Overview

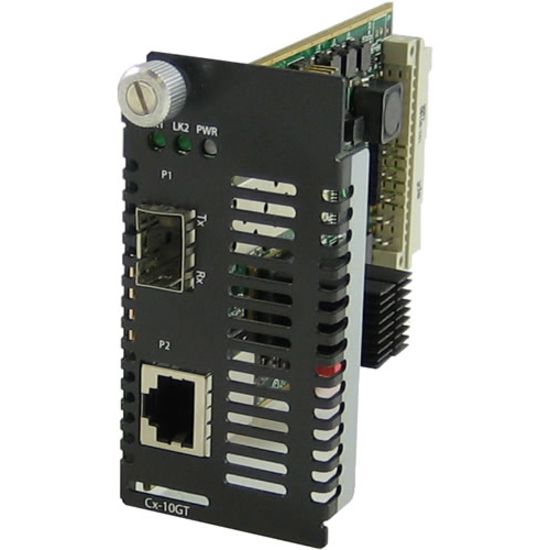

Installed in a high density MCR1900 Media Converter Chassis, Perle C-10GT Media Converter Modules transparently connect 10GBase-T Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with one RJ45 10GBase-T port and an empty slot for one SFP+ or XFP module.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
Highlights
- For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
- Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
- Connect different types of media within a network with this single port
- With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
- The Internal provides convenient installation
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | 05062560 |
| Maximum Distance Supported | 0.10 km |
| Limited Warranty | Lifetime |
| Form Factor | Internal |
| Manufacturer | Perle Systems, Inc |
| Product Model | CM-10GT-XFPH |
| Product Name | 10 Gigabit Ethernet Managed Media Converter Module |
| Network Technology | 10GBase-T |
| Brand Name | Perle |
| Expansion Slot Type | XFP |
| Country of Origin | Canada |
| Environmentally Friendly | Yes |
| Ethernet Technology | 10 Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of XFP Slots | 1 |
| Media Type Supported | Twisted Pair |
| Total Number of Ports | 1 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
