SKU
05060564
Category
Transceivers/Media Converters
Overview

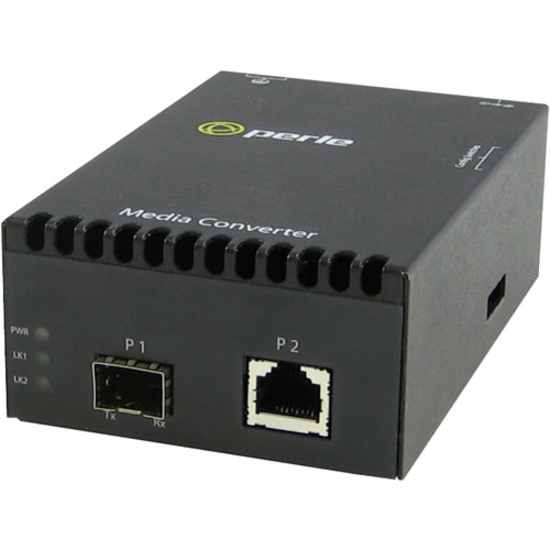

Perle S-10GT Media Converters transparently connect 10GBase-T Ethernet links over multimode or single mode fiber. Each 10GbE Media Converter comes with one RJ45 10GBase-T port and an empty slot for one SFP+ or XFP module.
Copper to Fiber conversion is achieved by inserting XFP or SFP+ fiber transceivers that support multimode and single-mode fiber, including CWDM/DWDM wavelengths. Copper to copper is achieved by inserting SFP+ Direct Attach Cable (DAC), also known as twinax, or XFP 10Gbase-CX4 transceivers.
Warranty
Limited Warranty: Lifetime
Highlights
For efficient encoding/decoding of data into light pulses and then sending them to the other end as electrical signals for a dependable photoelectric conversion
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Connect different types of media within a network with this single port
With 10GBase-T technology get up to 10Gbps data transfer rate over twisted pair cable
The Rail-mountable provides convenient installation
Specifications
General Information
Manufacturer
Perle Systems, Inc
Manufacturer Part Number
05060564
Brand Name
Perle
Product Model
S-10GT-XFPH
Product Name
10 Gigabit Ethernet Stand-Alone Media Converter
Product Type
Transceiver/Media Converter
I/O Expansions
Expansion Slot Type
SFP+
Number of SFP+ Slots
1
Interfaces/Ports
Total Number of Ports
1
Network (RJ-45)
Yes
DVI
No
USB
No
Management Port
No
Number of Network (RJ-45) Ports
1
Media & Performance
Media Type Supported
Twisted Pair
Maximum Distance Supported
0.10 km
Network & Communication
Ethernet Technology
10 Gigabit Ethernet
Network Technology
10GBase-T
Physical Characteristics
Form Factor
Rail-mountable, Wall Mountable, Rack-mountable
Height
1.7"
Width
3.1"
Depth
4.7"
Weight (Approximate)
13.40 oz
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
10 Gigabit Ethernet Stand-Alone Media Converter
AC Adapter
Environmentally Friendly
Yes
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
