Pepwave 2x2 MIMO 5G-Ready Cellular Antenna System with GPS Receiver
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 4900 MHz to 6000 MHz, 1561 MHz to 1602 MHz - 28 dB - Cellular Network, GPS, Wireless Data Network - Black - Wall/Panel, Pole - Omni-directional - SMA Connector
SKU
ANT-MB-20G-S-B-6
Category
Antennas
MSRP$199.00
$184.92
Save 7%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Peplink through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ANT-MB-20G-S-B-6
Category
Antennas
Overview

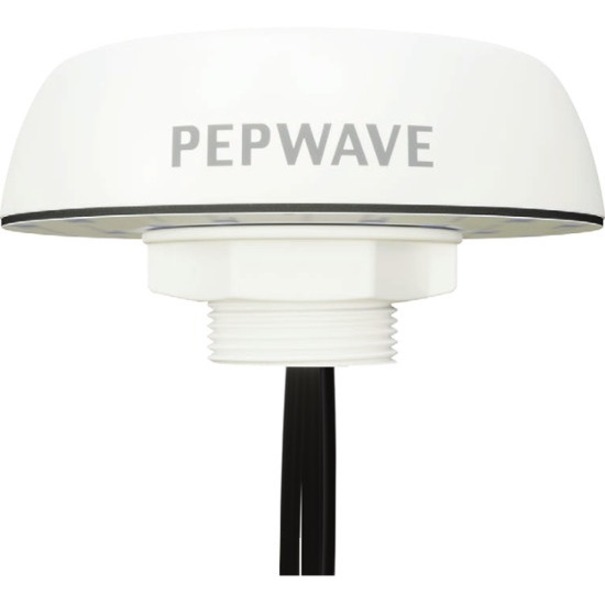

The Peplink Mobility 22G is a 5 in 1 antenna built for mobile applications. It supports 2x2 cellular MIMO for high bandwidth and solid reliability, dual-band (2.4GHz & 5GHz) Wi-Fi and GPS. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.
The Mobility 22G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options.
Applications
• Public Safety and mission critical connectivity
• Mobile healthcare
• Transportation Connectivity
Highlights
Built for 5G: 2x LTE/5G omni-directional antenna for the best performance.
Ultra-wide bandwidth: Wide frequency range (600-6000MHz) supports LTE and 5G connectivity.
Robust design: IP68 rated, rugged, low profile and durable housing in Black or White color options.
Easy installation: Ground plane is not required for installation. Simple panel, wall or pole installation for various applications
Specifications
General Information
Manufacturer
Peplink
Manufacturer Part Number
ANT-MB-20G-S-B-6
Brand Name
Pepwave
Product Line
Mobility
Product Name
2x2 MIMO 5G-Ready Cellular Antenna System with GPS Receiver
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
Black
Height
1.42"
Diameter
5.12"
Form Factor
Wall/Panel, Pole
Technical Information
Directivity
Omni-directional
Operating Frequency Range
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 4900 MHz to 6000 MHz, 1561 MHz to 1602 MHz
Antenna Gain
28 dB
Voltage Standing Wave Ratio (VSWR)
< 2.5
Miscellaneous
Application/Usage
Cellular Network, GPS, Wireless Data Network
Package Contents
2x2 MIMO 5G-Ready Cellular Antenna System with GPS Receiver
