Pepwave 4x4 MIMO 5G Ready Cellular Antenna System with GPS Receiver
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 4900 MHz to 6000 MHz, 1561 MHz to 1602 MHz - 28 dB - Cellular Network, GPS - White - Wall/Panel, Pole - SMA Connector
- SKU
- PUMA-401-S-W-6
- Category
- Antennas
$200.59
Back ordered — ships when restocked.
Genuine Peplink through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PUMA-401-S-W-6
- Category
- Antennas
Overview

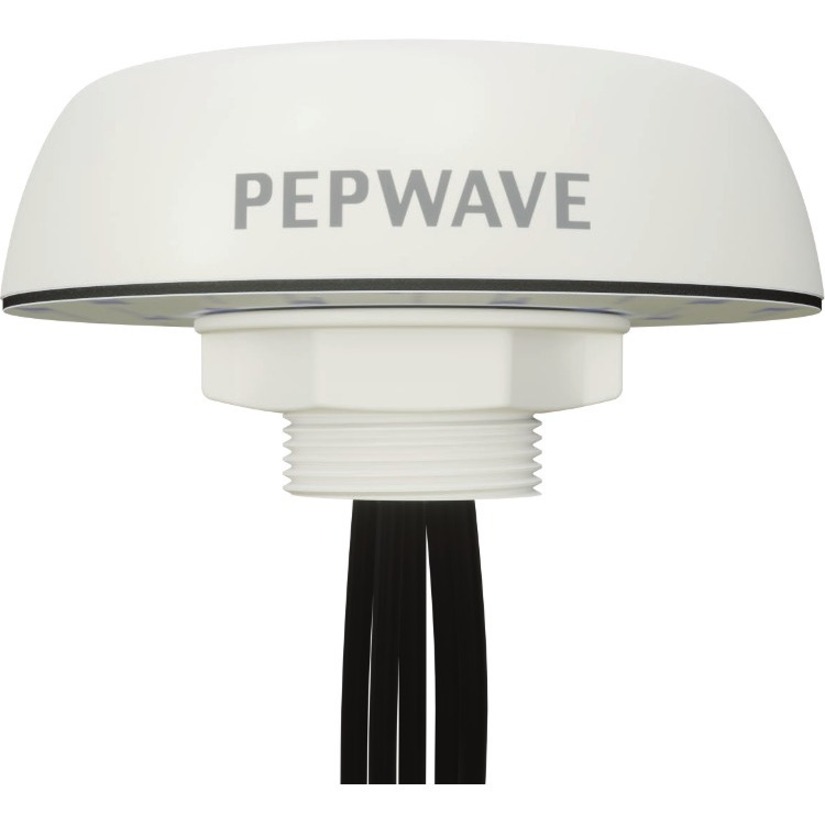

The Peplink Puma 401 is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.
The Puma 401 has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in SMA, QMA or N-type.
Applications
• Public Safety and mission critical connectivity
• Mobile healthcare
• Transportation Connectivity
Highlights
- 4x4 MIMO 5G ready cellular antenna system with GPS receiver
- Cellular frequencies 600-6000 MHz
- B71 Support
- Durable and UV-stable housing
- Black or white color options
- IP68 rated
Specifications
| Application/Usage | Cellular Network, GPS |
|---|---|
| Package Contents |
|
| Product Type | Antenna |
| Manufacturer Part Number | PUMA-401-S-W-6 |
| Connector Type | SMA |
| Form Factor | Wall/Panel, Pole |
| Manufacturer | Peplink |
| Product Name | 4x4 MIMO 5G Ready Cellular Antenna System with GPS Receiver |
| Product Line | Puma |
| Brand Name | Pepwave |
| Diameter | 5.12" |
| Height | 1.42" |
| Environmentally Friendly | Yes |
| Antenna Gain | 28 dB |
| Product Color | White |
| Voltage Standing Wave Ratio (VSWR) | < 2.5 |
| Operating Frequency Range | 617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 4900 MHz to 6000 MHz, 1561 MHz to 1602 MHz |
