Overview

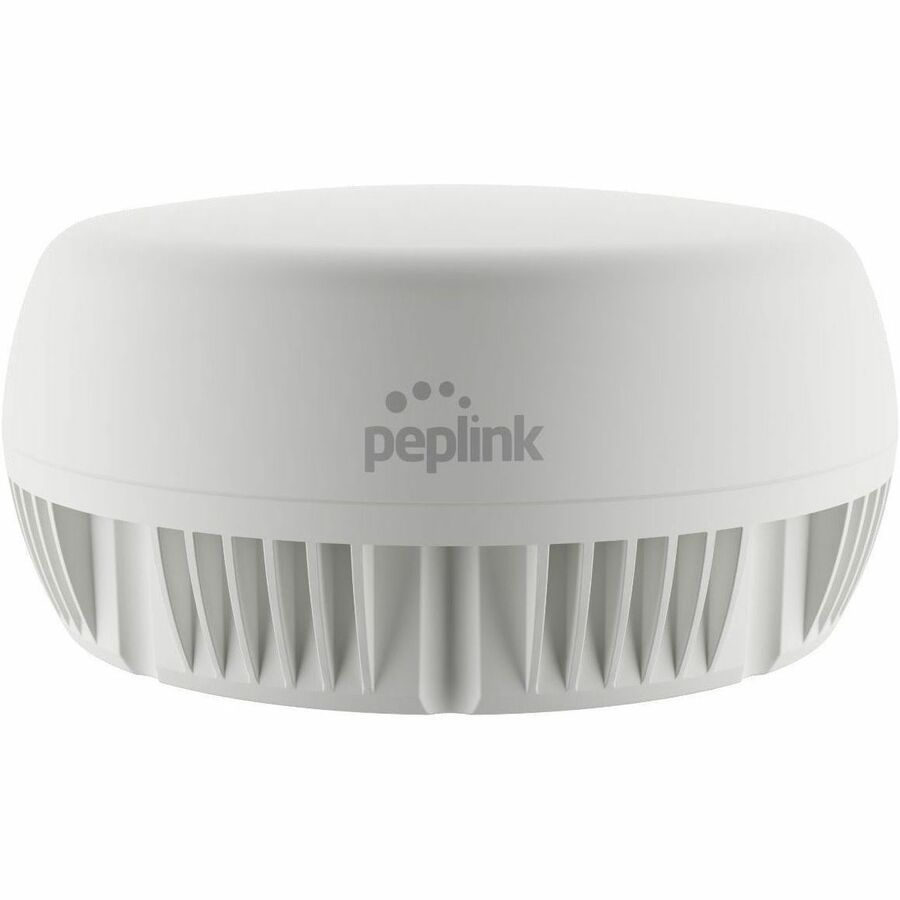

Antenna Max
Maximum Flexibility, Maximum Gain
Outdoor Cellular / GPS Antenna + Enclosure
Maximum Gain: Up to 6.6dBi
Worried about cable loss?

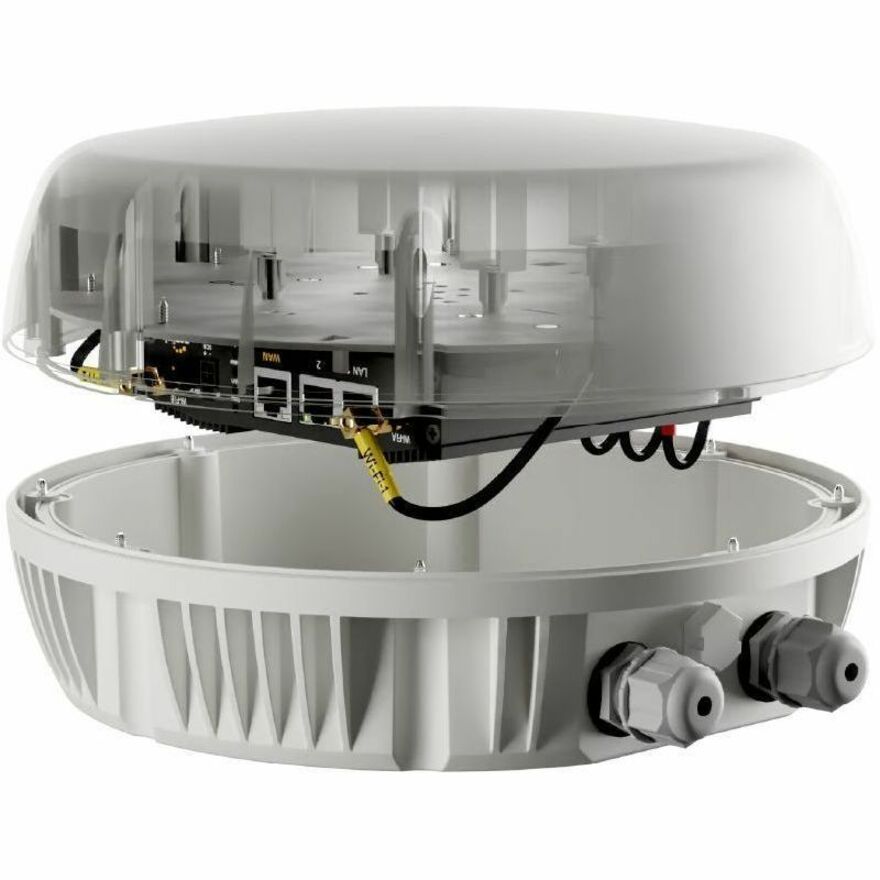

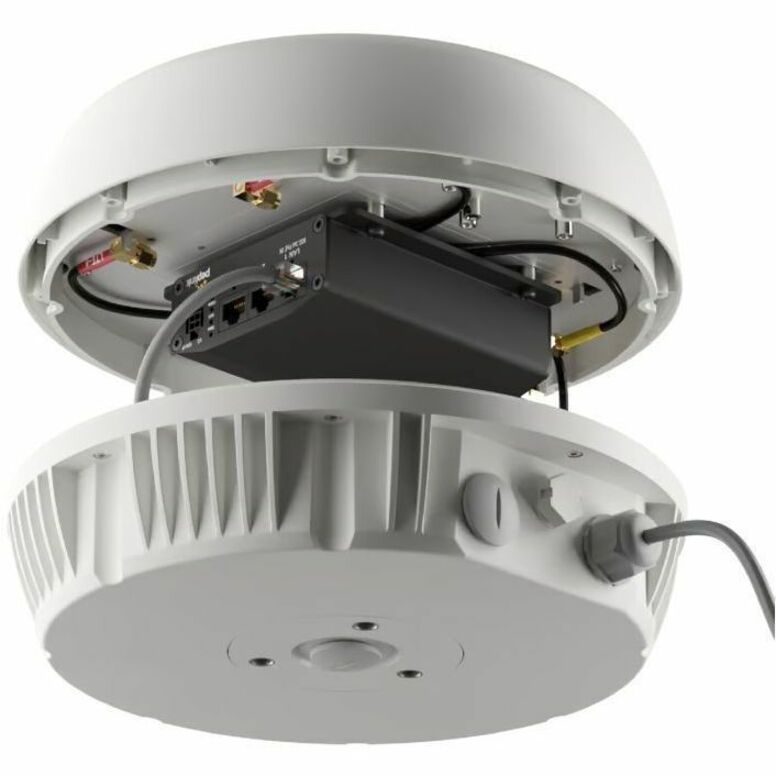

Minimize cable loss by installing your router directly into the antenna enclosure.
Retain maximum signal gain by connecting the Antenna MAX to the rest of your network with an ethernet cable.
Maximum durability

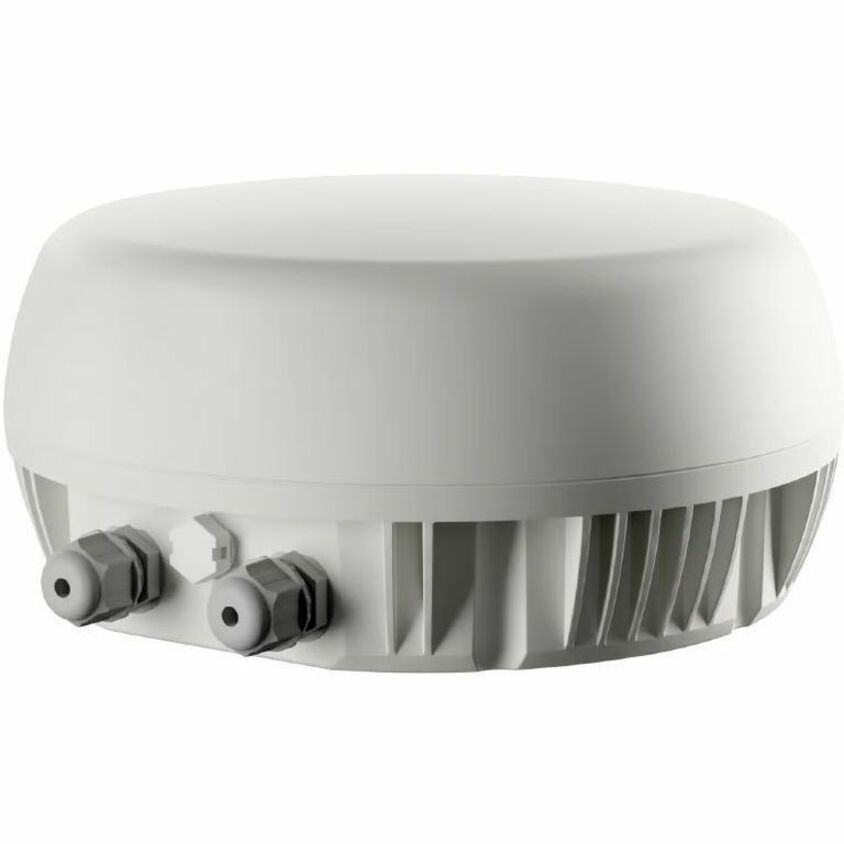

UV-resistant plastic enclosure resists moisture, water intrusion, salt spray and corrosion
Maximum flexibility
Mix-and-match antenna with many routers including:
• BR1 Mini Series
• Transit Duo Pro^
• BR1 Pro 5G / CAT-20^
• POTS Adapter^ & AP One Rugged
Multiple Mounting Options
Fixed-roof L-mount set included
• Wall Mount
• Surface Mount

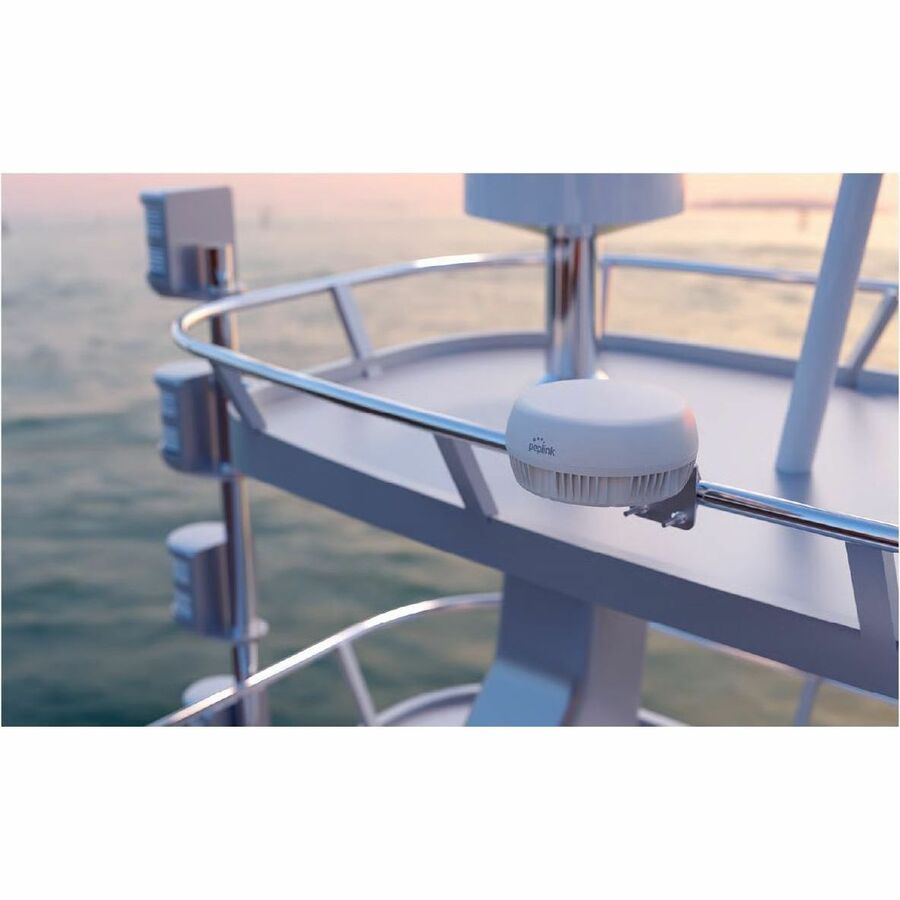

• Mounts easily on mobile equipment and vehicles - trucks, vans, boats.
• Pole Mount
Maximum value
Antenna MAX is a cost-effective way to get maximum performance from your cellular and 5G routers in outdoor environments
Warranty
Limited Warranty: 12 Month
Highlights
Designed to operate at 617 MHz to 960 MHz operating frequency range
Designed for outdoor applications
Operates at 27 dB gain
Roof Mountable - A perfect solution for roof installations
Specifications
General Information
Manufacturer
Peplink
Manufacturer Part Number
ANT-MAX
Brand Name
Peplink
Product Line
Antenna MAX
Product Name
Antenna MAX Antenna
Packaged Quantity
1
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA, RP-SMA
Physical Characteristics
Color Family
White
Product Color
White
Height
4.72"
Diameter
9.84"
Form Factor
Roof-mountable, Wall Mount, Surface Mount, Vehicle Mount, Trunk-mountable, Pole Mount, Deck Mount
Technical Information
Operating Frequency Range
617 MHz to 960 MHz, 1410 MHz to 2700 MHz, 3400 MHz to 4400 MHz, 5000 MHz to 6000 MHz
Antenna Gain
27 dB
Antenna Gain (Isotropic)
7.4 dBi
Voltage Standing Wave Ratio (VSWR)
< 2.5
Warranty
Limited Warranty
12 Month
Miscellaneous
Application/Usage
Outdoor, Cellular Network, GPS, Router, Wireless Access Point, Vehicle, Mobile Device, Truck, Wireless Data Network, Boat
Package Contents
Antenna MAX Antenna
Double Sided 3M Adhesive Pad
3 x Cable Gland
1 x L-Mount Set
2 x Hole Plug
Compatibility
AP One Rugged Peplink MAX Routers Series: BR1 Mini BR1 Mini Core BR1 Mini 5G BR1 Mini M2M Transit Duo Pro BR1 Pro 5G BR1 Pro CAT-20 Peplink Adapter Series: POTS MAX
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
