Pepwave 4x4 MIMO 5G Ready Cellular Antenna System with GPS Receiver
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 4900 MHz to 6000 MHz, 1561 MHz to 1602 MHz - 28 dB - Cellular Network, GPS - White - Wall/Panel, Pole - SMA Connector
SKU
ANT-MB-40G-S-W-6
Category
Antennas
MSRP$249.00
$231.39
Save 7%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Peplink through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ANT-MB-40G-S-W-6
Category
Antennas
Overview

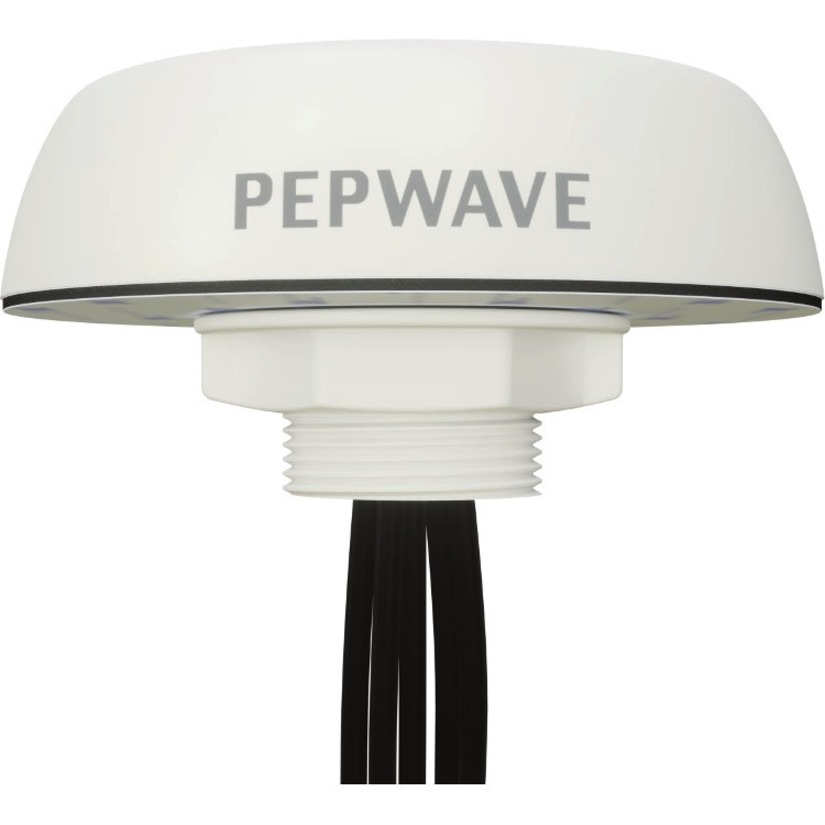

The Peplink Mobility 40G is a 5G ready multi-band antenna built for land-based mobile applications. It supports 4x4 MIMO for high bandwidth and solid reliability. It is also 5G ready and supports a wide range of global cellular frequencies. The GPS receiver is equipped with high gain LNA, making it ideal for location tracking.
The Mobility 40G has a solid housing made of UV stable plastic materials. Two color options are available (black and white) to fit different deployments. For easier installation, the antenna comes with different cable length options, available in SMA, QMA or N-type.
Applications
• Public Safety and mission critical connectivity
• Mobile healthcare
• Transportation Connectivity
Highlights
4x4 MIMO 5G ready cellular antenna system with GPS receiver
Cellular frequencies 600-6000 MHz
B71 Support
Durable and UV-stable housing
Black or white color options
IP68 rated
Specifications
General Information
Manufacturer
Peplink
Manufacturer Part Number
ANT-MB-40G-S-W-6
Brand Name
Pepwave
Product Line
Mobility
Product Name
4x4 MIMO 5G Ready Cellular Antenna System with GPS Receiver
Product Type
Antenna
Interfaces/Ports
Connector Type
SMA
Physical Characteristics
Product Color
White
Height
1.42"
Diameter
5.12"
Form Factor
Wall/Panel, Pole
Technical Information
Operating Frequency Range
617 MHz to 960 MHz, 1710 MHz to 2700 MHz, 3400 MHz to 4200 MHz, 4900 MHz to 6000 MHz, 1561 MHz to 1602 MHz
Antenna Gain
28 dB
Voltage Standing Wave Ratio (VSWR)
< 2.5
Miscellaneous
Application/Usage
Cellular Network, GPS
Package Contents
4x4 MIMO 5G Ready Cellular Antenna System with GPS Receiver
