Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
4355-20
Category
Transceivers/Media Converters
Overview

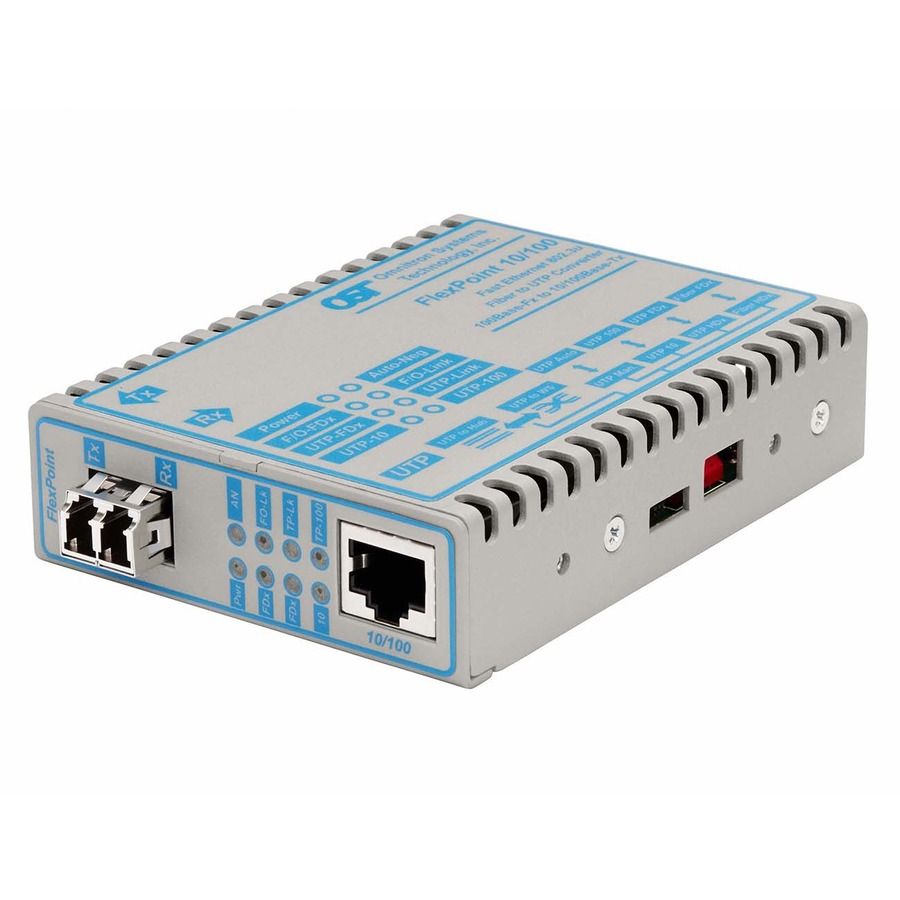

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Highlights
Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Expand your network capabilities with this 2 transceiver/media converter
With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
Package Contents
FlexPoint 10/100 LC Single-Mode 30km No Power Adapter
User Manual
Product Type
Transceiver/Media Converter
Manufacturer Part Number
4355-20
Maximum Distance Supported
30 km
Limited Warranty
Lifetime
Weight (Approximate)
6 oz
Form Factor
Rack-mountable, Desktop, External, Wall Mountable
Manufacturer
Omnitron Systems
Product Model
4355-2x
Product Name
FlexPoint 10/100 LC Single-Mode 30km No Power Adapter
Network Technology
10/100Base-TX, 100Base-LX
Package Type
Retail
Product Line
FlexPoint
Product Series
10/100
Brand Name
Omnitron Systems
Country of Origin
United States
Height
1"
Width
3"
Depth
4"
Environmentally Friendly
Yes
Ethernet Technology
Ethernet, Fast Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of LC Ports
1
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Single-mode
Total Number of Ports
2
LC Port Type
Duplex
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
