SKU
4340-2
Category
Transceivers/Media Converters
Overview

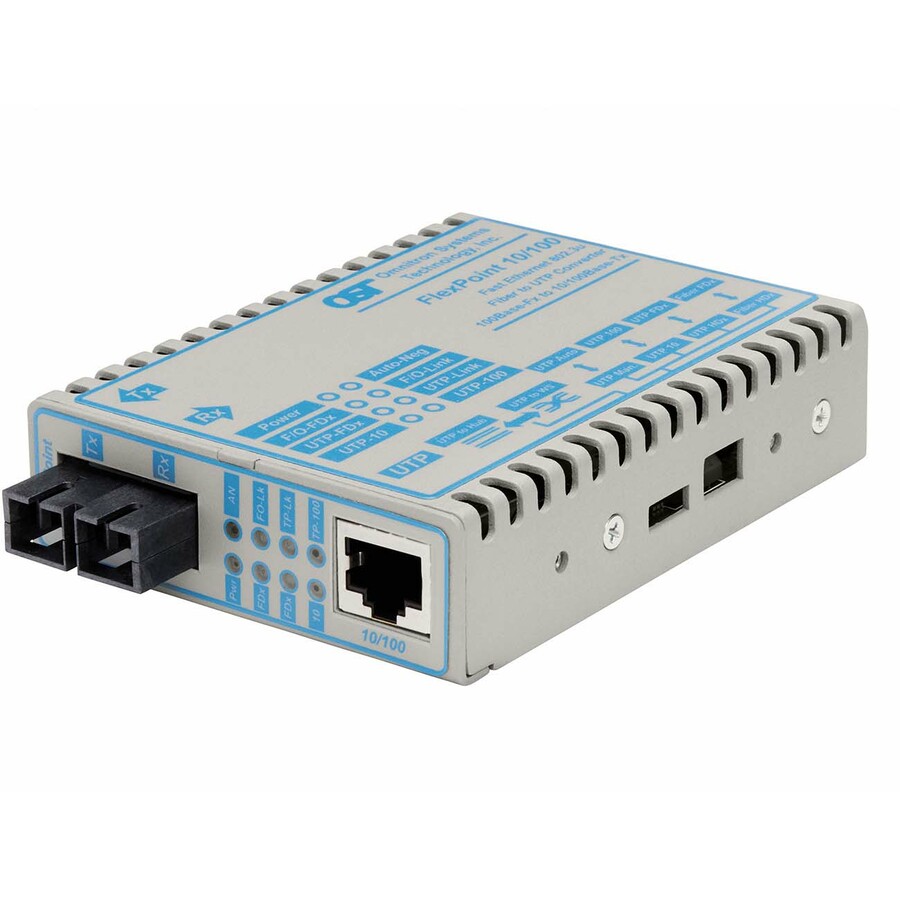

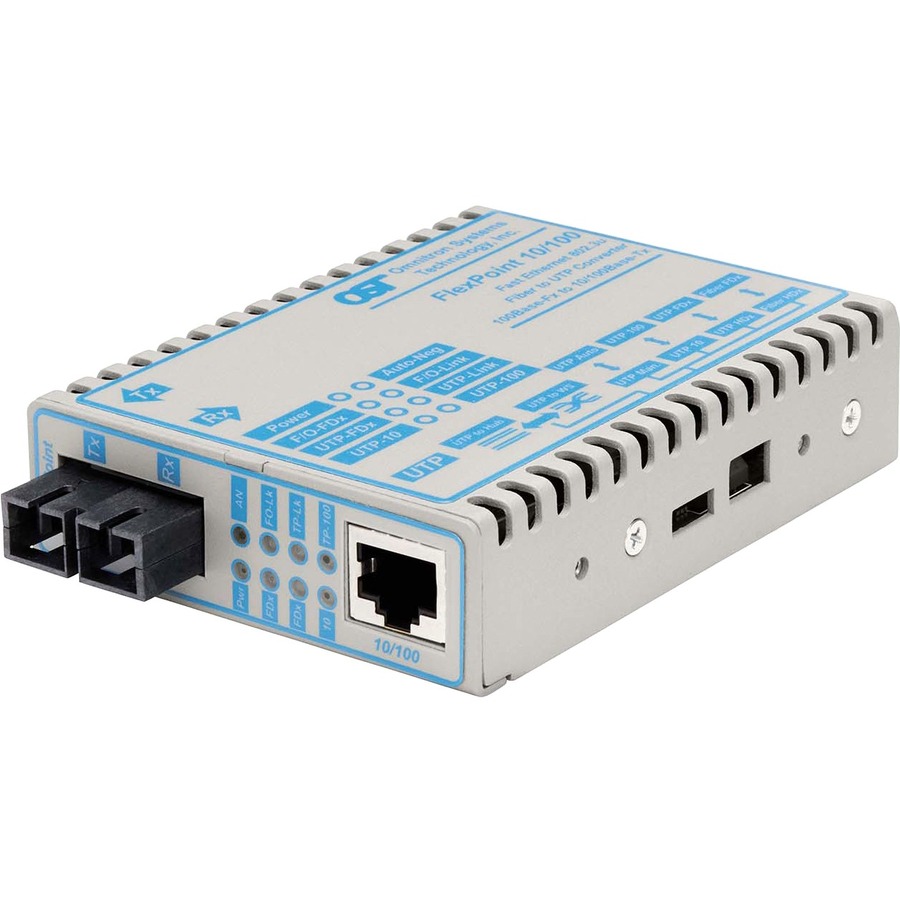

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Highlights
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
Rack mounting enables you to organize wires & secure cables for professional installation
Specifications
Package Contents
FlexPoint 10/100 SC Multimode 5km Univ. AC Powered Univ. Power Supply - 100-240Volt / 50-60Hz
User Manual
Product Type
Transceiver/Media Converter
Manufacturer Part Number
4340-2
Maximum Distance Supported
5.01 km
Limited Warranty
Lifetime
Weight (Approximate)
6 oz
Form Factor
Rack-mountable, Desktop, External, Wall Mountable
Manufacturer
Omnitron Systems
Product Model
4340-x
Product Name
FlexPoint 10/100 SC Multimode 5km Univ. AC Powered
