FlexPoint 10/100 Ethernet Fiber Media Converter RJ45 SC Multimode 5km
1 x 10/100BASE-TX; 1 x 100BASE-FX; No Power Adapter; Lifetime Warranty
- SKU
- 4340-0
- Category
- Transceivers/Media Converters
MSRP$371.22
$276.71
Save 25%Back ordered — ships when restocked.
Genuine Omnitron Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 4340-0
- Category
- Transceivers/Media Converters
Overview

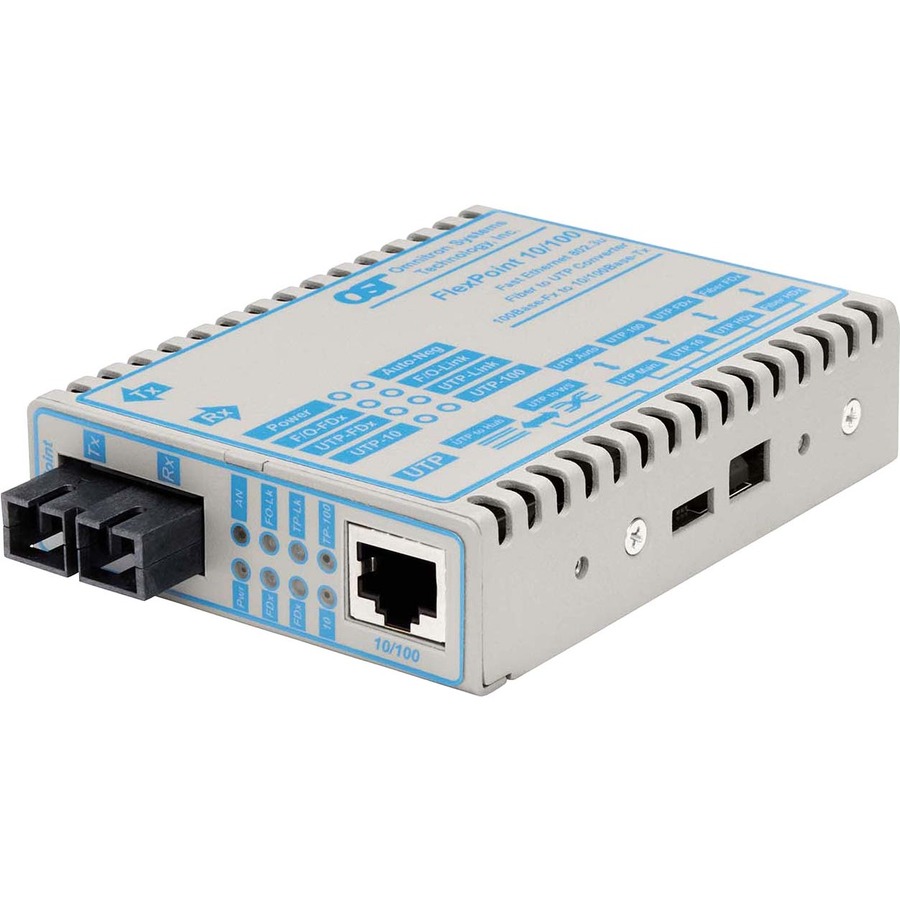

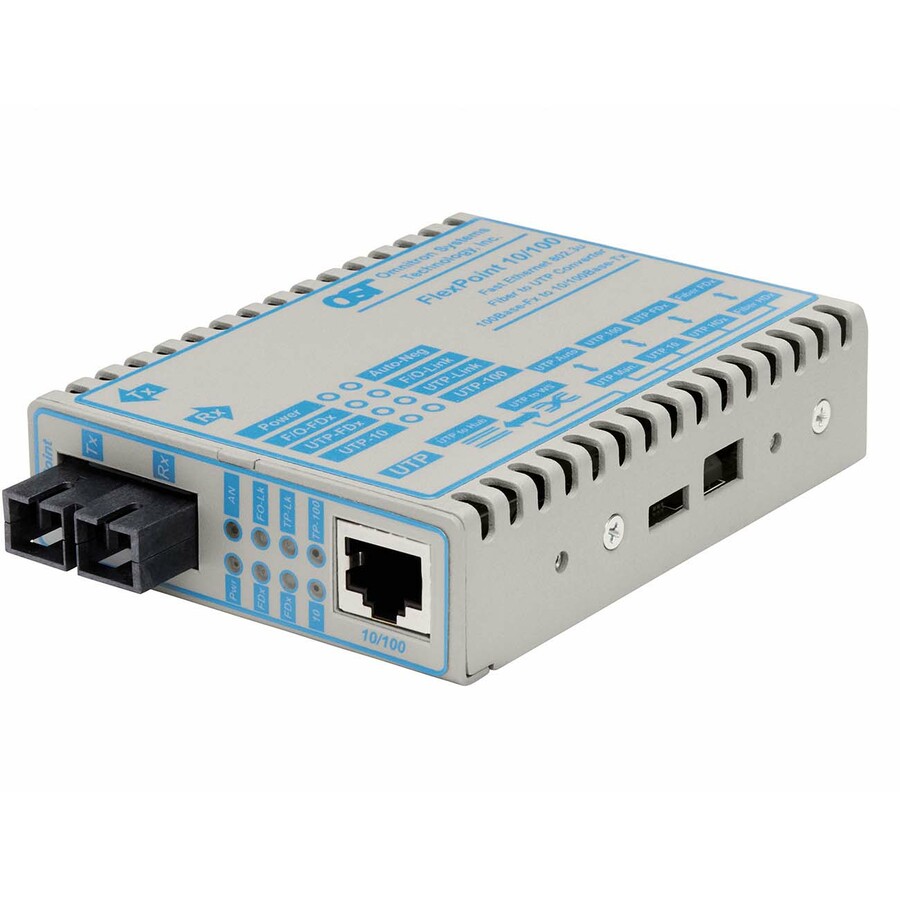

The FlexPoint 10/100 is a modular 10BASE-T or 100BASE-TX copper to 100BASE-FX fiber media converter that provides reliable and cost-effective network connectivity and fiber extension.
The FlexPoint 10/100 features a 10/100 auto-sensing RJ-45 port that adjusts to the highest level of performance supported by the attached device. An override switch provides manual control over the 10/100 operation of the RJ-45 port and the Half/Full-Duplex operation of both the fiber and RJ-45 ports.
When configured for auto-negotiation, the RJ-45 port automatically detects and sets MDI/MDI-X crossover. When configured for manual operation, the FlexPoint 10/100 features a manual switch to provide the MDI/MDI-X crossover.
The fiber port supports fixed-fiber connectors (SC, ST or LC) and Small Form Pluggable (SFP) transceivers, enabling easy adaptability to different fiber types, distances and wavelengths. The FlexPoint 10/100 supports multimode, single-mode, single-mode single-fiber, in standard and CWDM wavelengths.
Manual switch settings and LED indicators with on-the-label descriptions enable easy configuration to legacy devices or specific network requirements. The LEDs report the availability of power, port activity and link status, speed and duplex modes.
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Meet the multiple network connectivity needs of today's network environment with this 2 transceiver/media converter
- With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable
- Rackmountable feature for convenient and safe installation of device
Specifications
| Package Contents |
|
|---|---|
| Product Type | Transceiver/Media Converter |
| Manufacturer Part Number | 4340-0 |
| Maximum Distance Supported | 5.01 km |
| Limited Warranty | Lifetime |
| Weight (Approximate) | 6 oz |
| Form Factor | Rack-mountable, Desktop, External, Wall Mountable |
| Manufacturer | Omnitron Systems |
| Product Model | 4340-x |
| Product Name | FlexPoint 10/100 SC Multimode 5km No Power Adapter |
| Network Technology | 10/100Base-TX, 100Base-FX |
| Package Type | Retail |
| Product Line | FlexPoint |
| Product Series | 10/100 |
| Brand Name | Omnitron Systems |
| Country of Origin | United States |
| Height | 1" |
| Width | 3" |
| Depth | 4" |
| Environmentally Friendly | Yes |
| Ethernet Technology | Ethernet, Fast Ethernet |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of SC Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Total Number of Ports | 2 |
| SC Port Type | Duplex |
| Fiber Optic Cable Wavelength | 1310 nm |
