Pentium Gold, Celeron, Core Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - UDIMM, DIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - DisplayPort - 6 x SATA Interfaces
$680.53
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
Genuine MSI through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

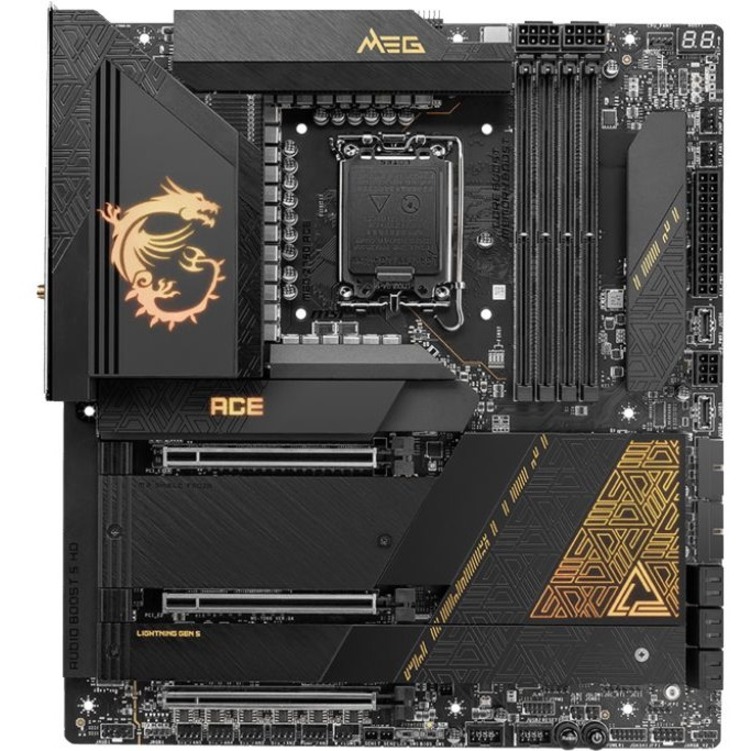

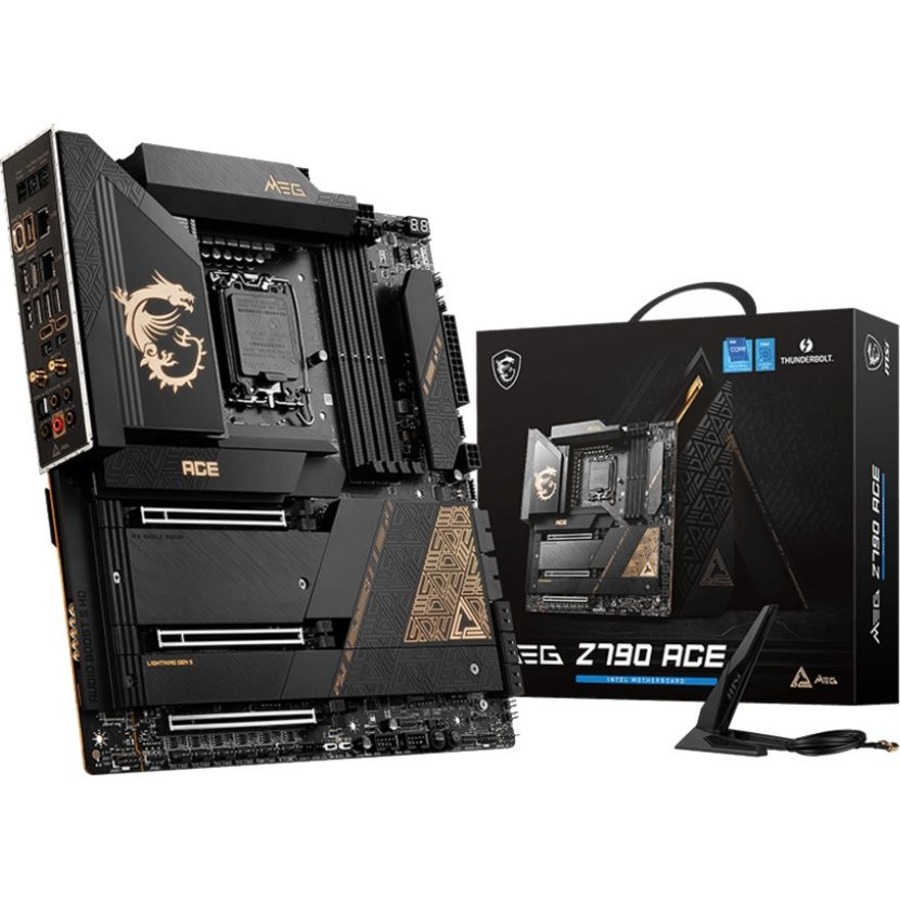

Furnished premium aesthetics with its dark black finish and gold embellishes. Developed to unlock the full gaming potential of the latest 13th Gen Intel® Core processor by combining elite hardware system support and premium durability, the MEG Z790 ACE is an outstanding E-ATX platform for extreme settings in terms of overclocking the processor, memory, and graphics card at the highest level.
Limited Warranty: 3 Year
Dedicated to customer-driven innovation, MSI leverages its remarkable R&D strengths to craft top-notch, well-acclaimed motherboards, graphics cards, notebook PCs and All-in-One PCs. The Overclocking Series is designed for enthusiasts who pursue extreme performance and go after world records. Aimed at fulfilling the needs and expectations toward professional gaming, the MSI GAMING Series receives gamers’ unanimous acclaim. Incorporating Military Class components, the Classic Series has an excellent reputation for quality and durability. All these distinctive products have made MSI a forerunner in the middle-range and high-end market. Also adding to the lineup are cloud servers, tailor-made IPCs, intelligent panoramic camera (Panocam), robotic appliances and human-centric vehicle electronics that further demonstrate MSI's strengths and endeavors in consumer, commercial and IOT(Internet of Things) markets.
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | Z790ACE |
| Brand Name | MSI |
| Product Line | MEG |
| Product Model | MEG Z790 Ace |
| Product Name | MEG Z790 Ace Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10, 0, 1, 5 |
| I/O Expansions | |
| Total Number of Expansion Slots | 3 |
| Total Number of PCI Express Slots | 3 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0 |
| Number of PCI Express x16 Slots | 1 |

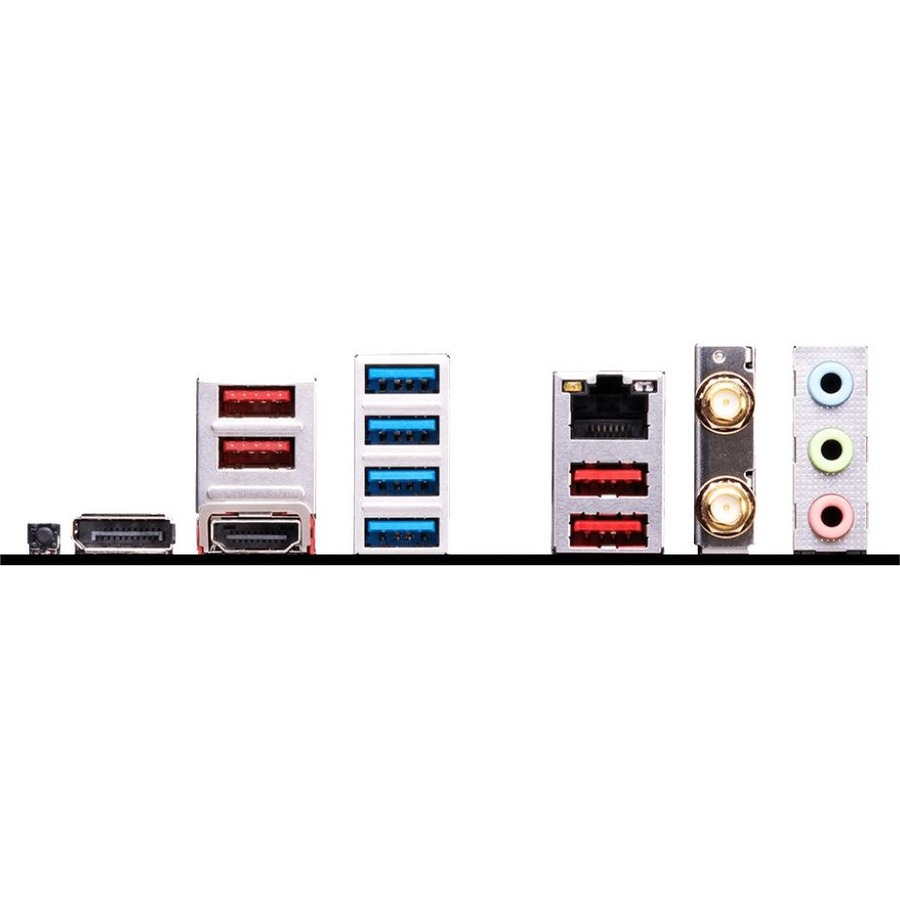

| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.2 Gen 2 Type-A Ports | 7 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Thunderbolt | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | UDIMM, DIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 7600 MHz, 7400 MHz, 7200 MHz, 7000 MHz, 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Extended ATX |
| Width | 12" |
| Depth | 10.9" |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | Z790 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 13th Gen, 12th Gen |
| Processor Supported | Pentium Gold, Celeron, Core |
| Video | |
| Onboard Video | CPU Dependent Video |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
