Ryzen 3, Ryzen 5 Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
MSRP$285.68
$275.28
Save 4%In stock: 3
Genuine MSI through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
USER FRIENDLY DESIGN
M.2 SHIELD FROZR
World's fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance.
With MSI M.2 Shield FROZR
• Prevents throttling
• Maximizes drive performance
• Higher maximum SSD speeds
Normal M.2 SSD
CONNECTIVITY
SURFACING WITH THE REAL MU-MIMO TECHNOLOGY
The WIFI 6 adopts the latest OFDMA and two-way MU-MIMO technologies and could provide up to 4X network capacity and efficiency in the high signal density environment. Comparing to the WIFI 5, which can only send the data packet to one device at a time on each channel, the WIFI 6 could combine the packet, separate to several devices and allow signals from the different devices bundled together. This new technology provides all the devices in the same network environment with same and harmonious traffic bandwidth in an efficient way.
PCB WITH 2OZ THICKENED COPPER
An enhanced PCB design with 2oz thickened copper increases conductivity, improving heat dissipation and performance reliability especially during overclocking.
Dedicated to customer-driven innovation, MSI leverages its remarkable R&D strengths to craft top-notch, well-acclaimed motherboards, graphics cards, notebook PCs and All-in-One PCs. The Overclocking Series is designed for enthusiasts who pursue extreme performance and go after world records. Aimed at fulfilling the needs and expectations toward professional gaming, the MSI GAMING Series receives gamers’ unanimous acclaim. Incorporating Military Class components, the Classic Series has an excellent reputation for quality and durability. All these distinctive products have made MSI a forerunner in the middle-range and high-end market. Also adding to the lineup are cloud servers, tailor-made IPCs, intelligent panoramic camera (Panocam), robotic appliances and human-centric vehicle electronics that further demonstrate MSI's strengths and endeavors in consumer, commercial and IOT(Internet of Things) markets.
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | 9B13-144-548 |
| Brand Name | MSI |
| Product Series | PRO |
| Product Model | B550M-VC WIFI |

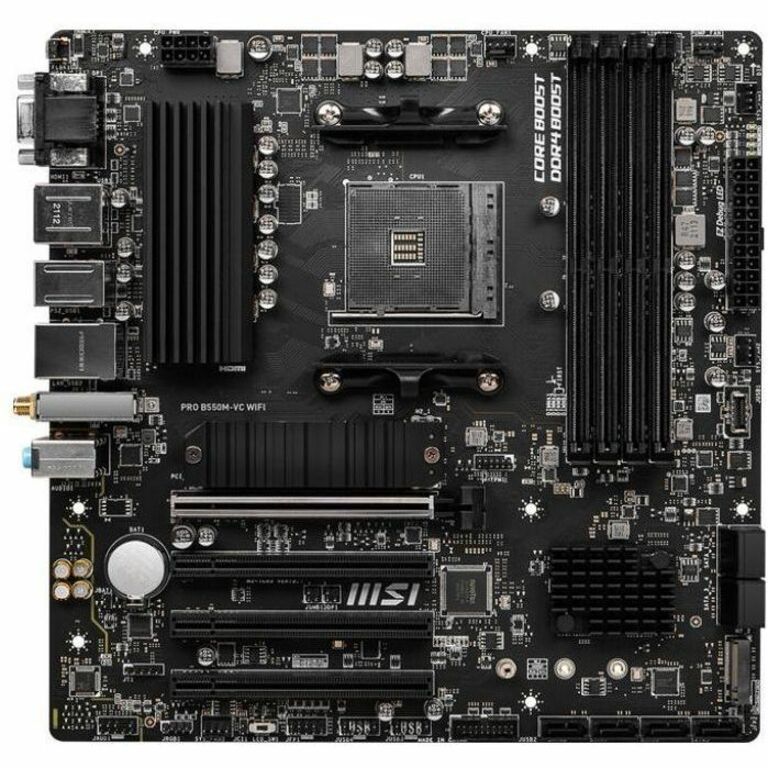

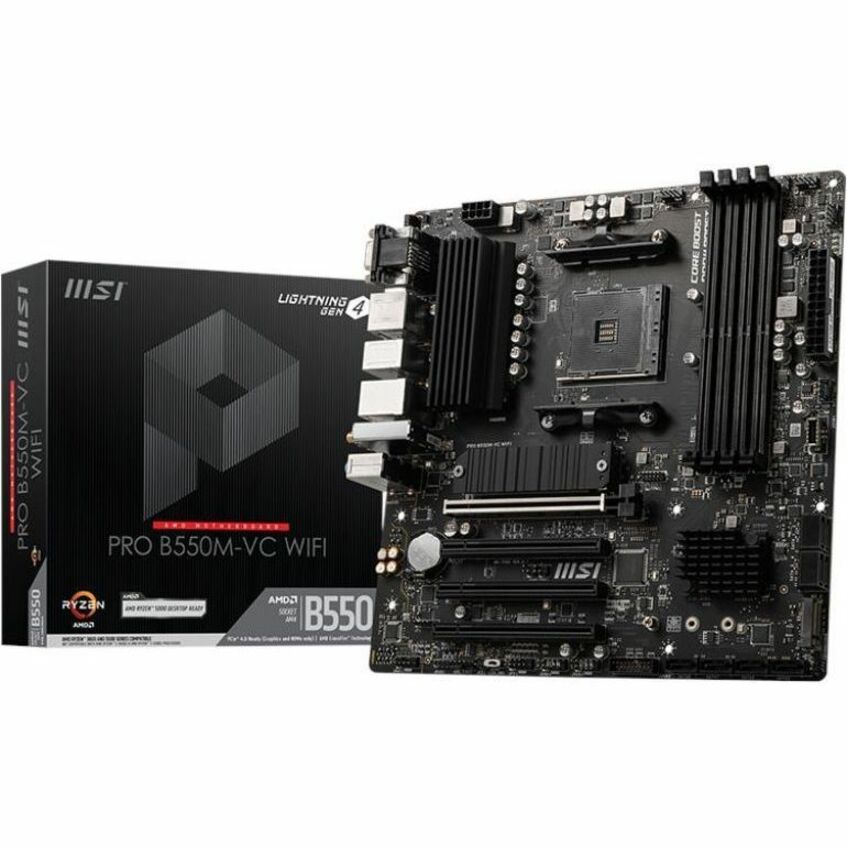

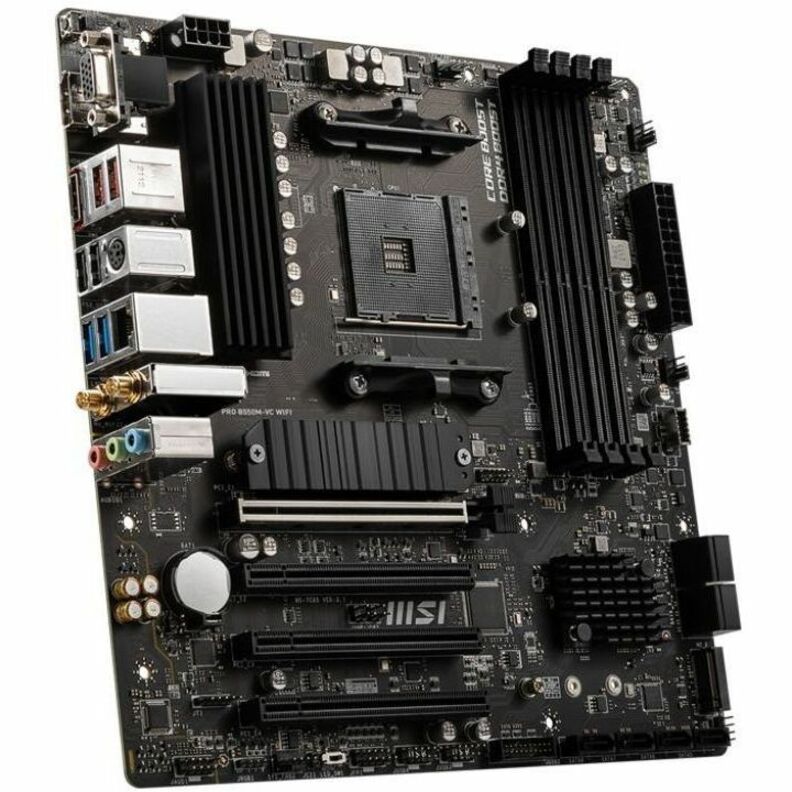

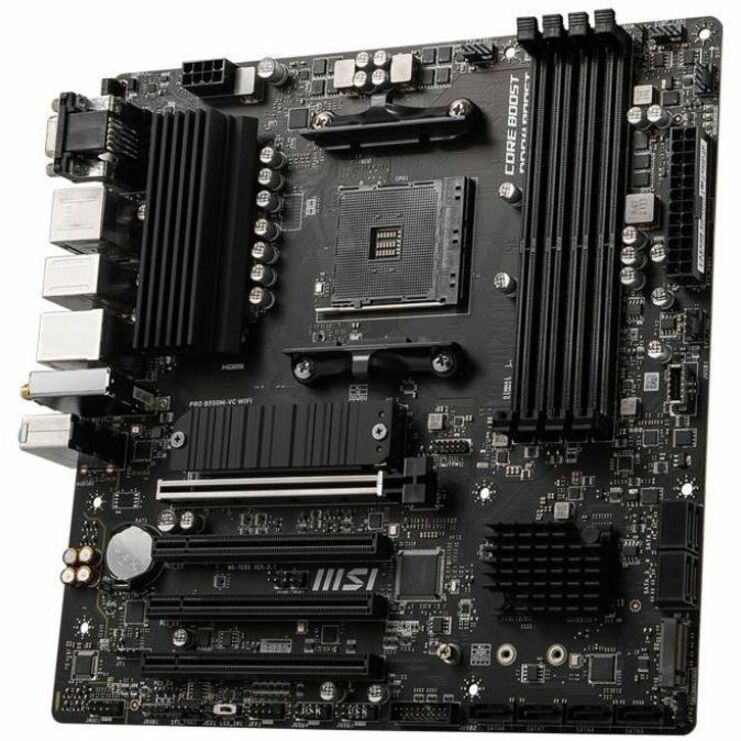

| Product Name | PRO B550M-VC WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| PCI Express Standard | PCI Express 3.0, PCI Express 4.0 |
| Number of PCI Express x16 Slots | 4 |

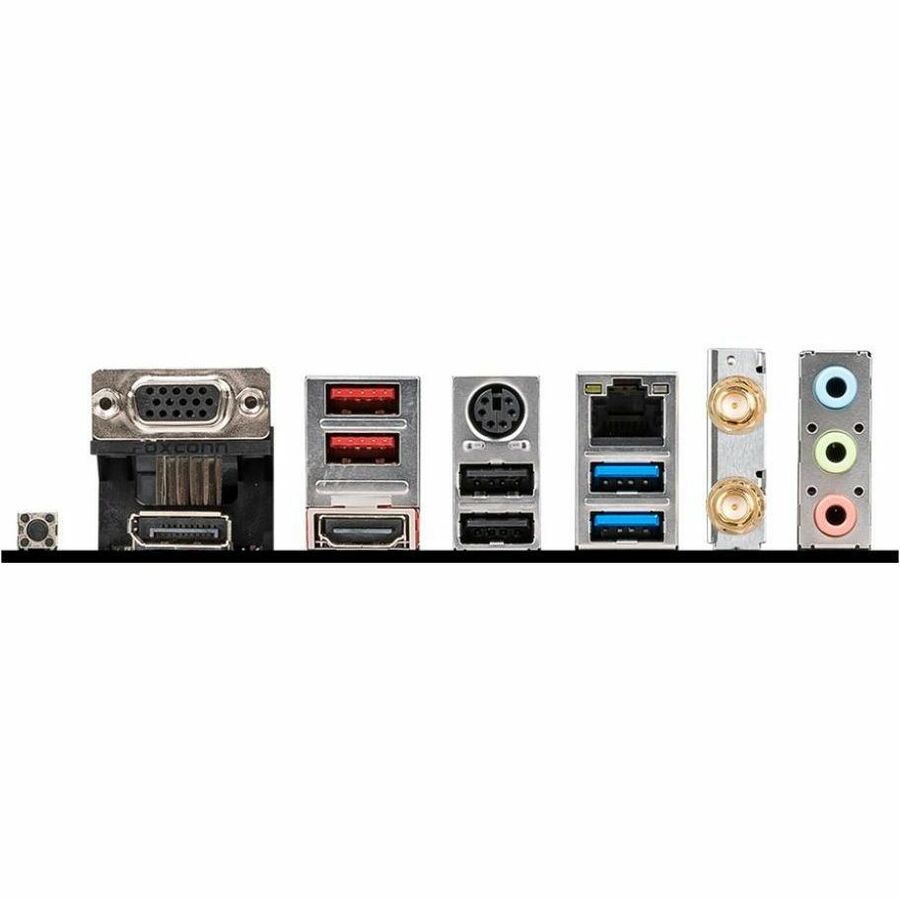

| Interfaces/Ports | |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| VGA | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 3200 MHz, 3066 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2667 MHz, 2400 MHz, 2133 MHz, 1866 MHz, 4400 MHz, 4266 MHz, 4133 MHz, 4000 MHz, 3866 MHz, 3733 MHz, 3600 MHz, 3466 MHz |
| Memory Technology | DDR4 SDRAM |
| Error Checking | ECC |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.2 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | Micro ATX |
| Width | 9.6" |
| Depth | 9.6" |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | B550 |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM4 |
| Processor Supported | Ryzen 3, Ryzen 5 |
| Video | |
| Onboard Video | CPU Dependent Video |
| Miscellaneous | |
| Package Contents |
|
