Core, Pentium Gold, Celeron Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11 a/b/g/n/ac/ax - HDMI - DisplayPort - 4 x SATA Interfaces
MSRP$384.77
$358.01
Save 7%Special order — estimated available by September 10, 2026.
Genuine MSI through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

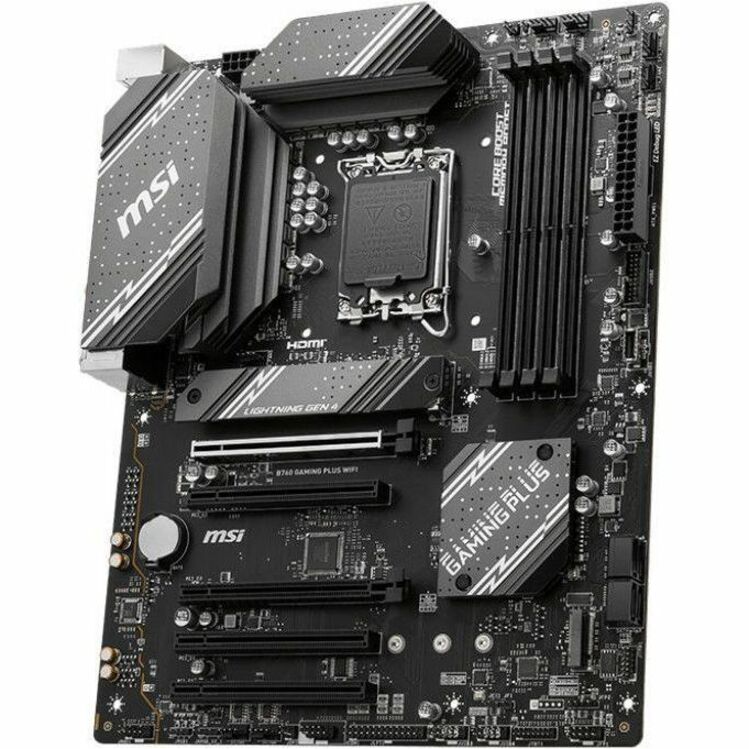

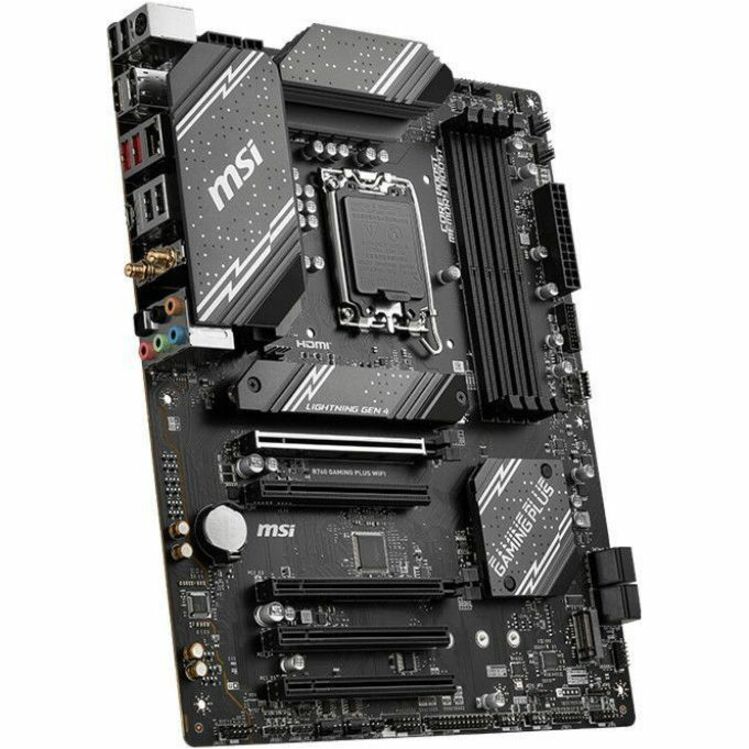

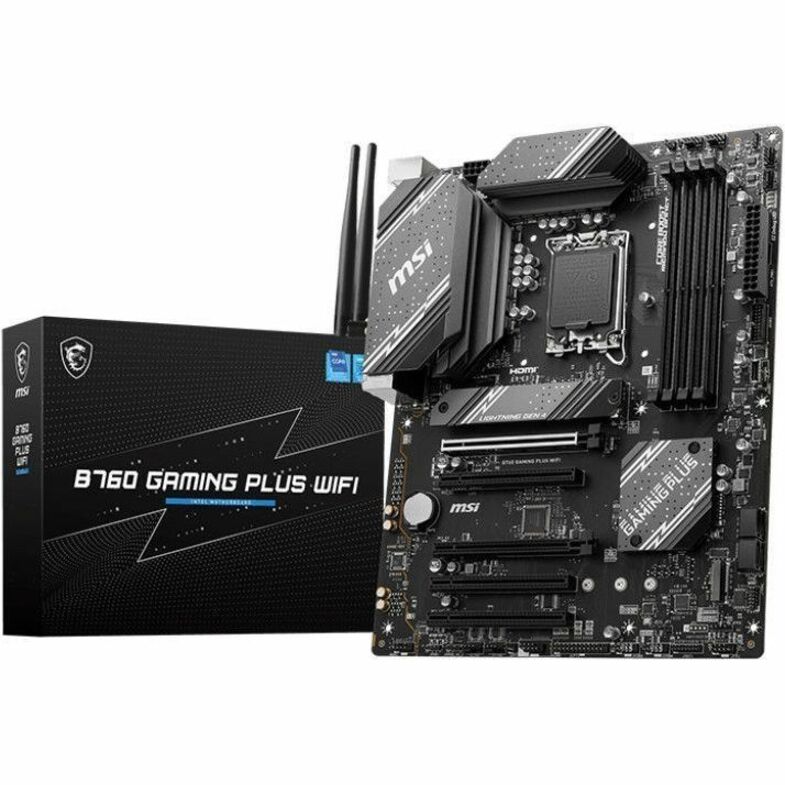

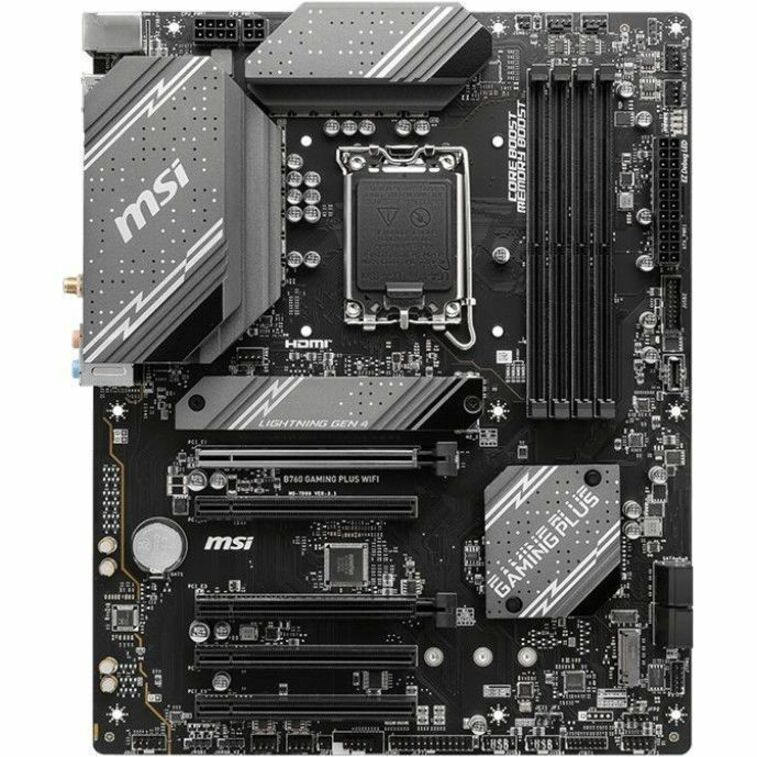

B760 GAMING PLUS WIFI is designed with tons of connectivity, flexible tools, and convenient Wi-Fi solution with DDR5 memory version for gamers who want all.
Extended Heatsink
• Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.
M.2 Shield Frozr
• Strengthened M.2 thermal solution helps M.2 SSD safe and ensures incredible performance.
Heavy Plated VRM Heatsink
• The VRM heatsink covers the upper MOS and helps dissipate the heat.
7W/mK Thermal Pad & Additional Choke Pad
• High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are running at high speed.
Chipset Heatsink
• The chipset heatsink is designed to reduce dust and noise and also capable of maintaining high efficiency of PCH.
Dedicated to customer-driven innovation, MSI leverages its remarkable R&D strengths to craft top-notch, well-acclaimed motherboards, graphics cards, notebook PCs and All-in-One PCs. The Overclocking Series is designed for enthusiasts who pursue extreme performance and go after world records. Aimed at fulfilling the needs and expectations toward professional gaming, the MSI GAMING Series receives gamers’ unanimous acclaim. Incorporating Military Class components, the Classic Series has an excellent reputation for quality and durability. All these distinctive products have made MSI a forerunner in the middle-range and high-end market. Also adding to the lineup are cloud servers, tailor-made IPCs, intelligent panoramic camera (Panocam), robotic appliances and human-centric vehicle electronics that further demonstrate MSI's strengths and endeavors in consumer, commercial and IOT(Internet of Things) markets.
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | MSI |
| Manufacturer Part Number | B760 GAMING PLUS WIFI |
| Brand Name | MSI |
| Product Model | B760 GAMING PLUS WIFI |
| Product Name | B760 GAMING PLUS WIFI Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 5 |
| Total Number of PCI Express Slots | 5 |
| PCI Express Standard | PCI Express 4.0, PCI Express 3.0 |
| Number of PCI Express x16 Slots | 5 |

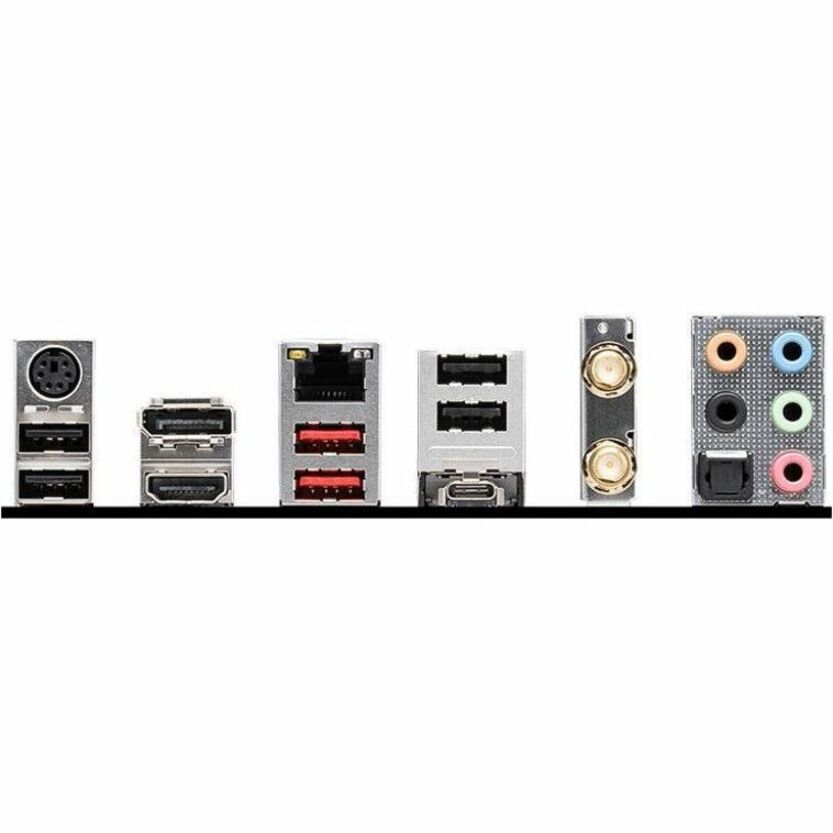

| Interfaces/Ports | |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 4 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB 3.2 Gen 2 Type-C Ports | 1 |
| S/PDIF | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Number of Memory Slots | 4 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 192 GB |
| Memory Speed Supported | 6800 MHz, 6600 MHz, 6400 MHz, 6200 MHz, 6000 MHz, 5800 MHz, 5600 MHz, 5400 MHz, 5200 MHz, 5000 MHz, 4800 MHz |
| Memory Technology | DDR5 SDRAM |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.3 |
| Gigabit Ethernet | Yes |
| 2.5Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11 a/b/g/n/ac/ax |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Total Processor Supported | 1 |
| Processor Socket | Socket LGA-1700 |
| Processor Generation Supported | 12th Gen, 13th Gen |
| Processor Supported | Core, Pentium Gold, Celeron |
| Video | |
| Onboard Video | CPU Dependent Video |
