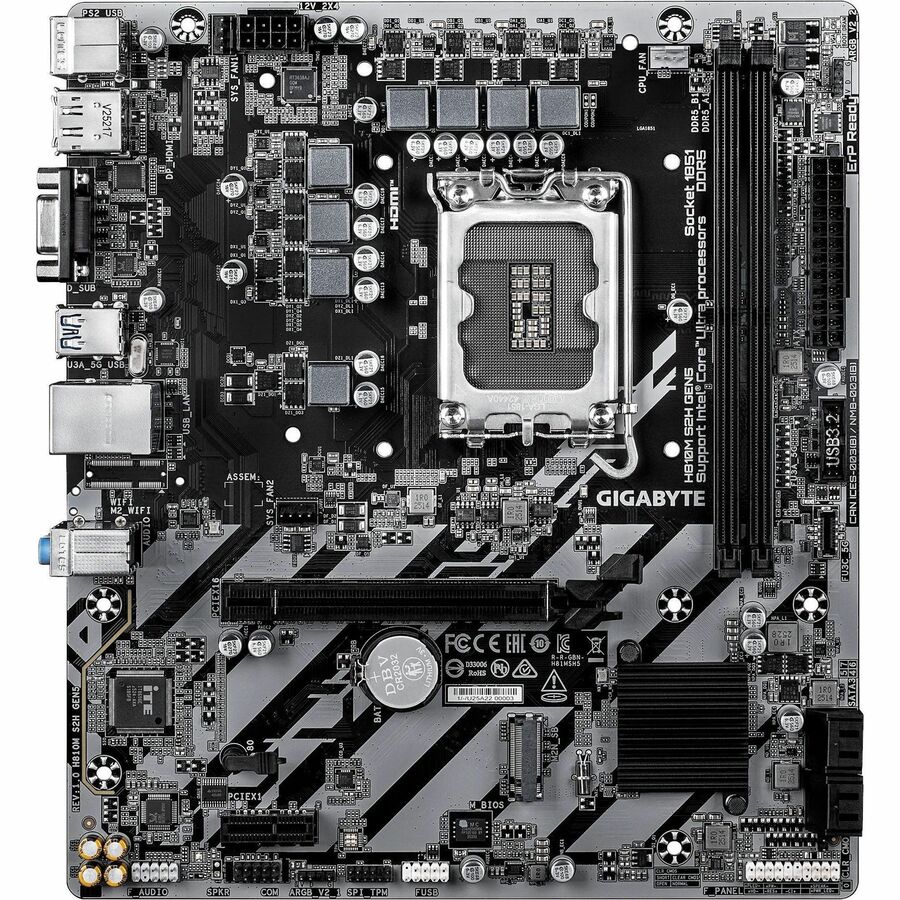

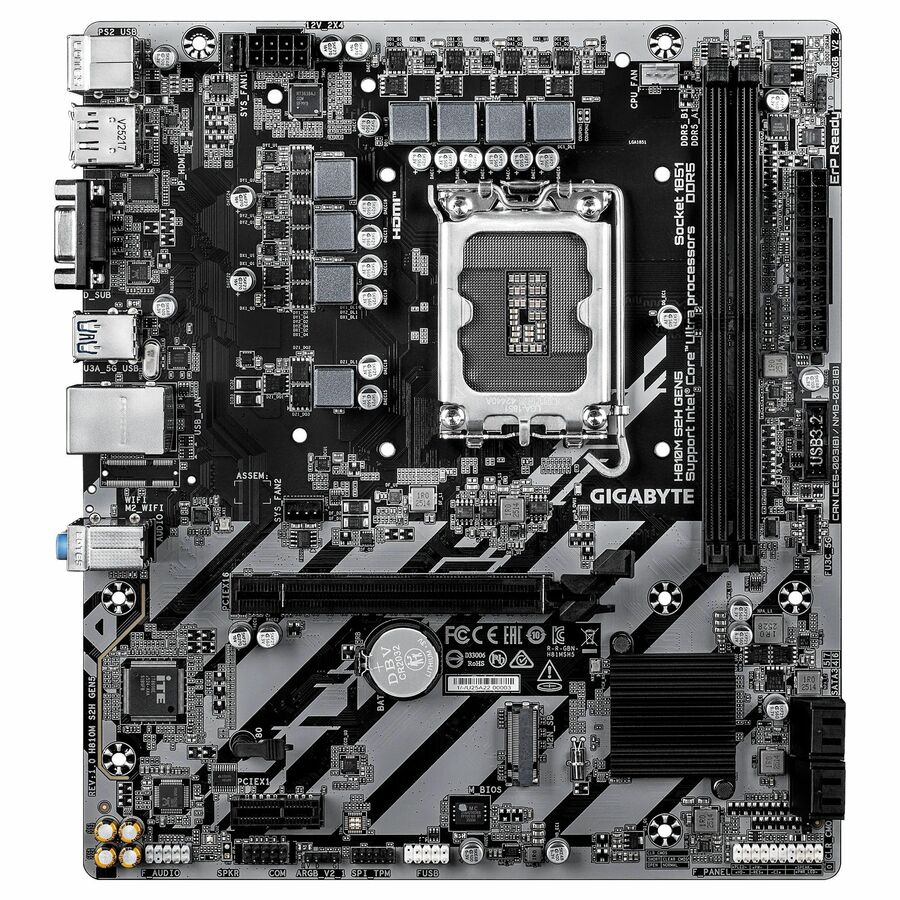

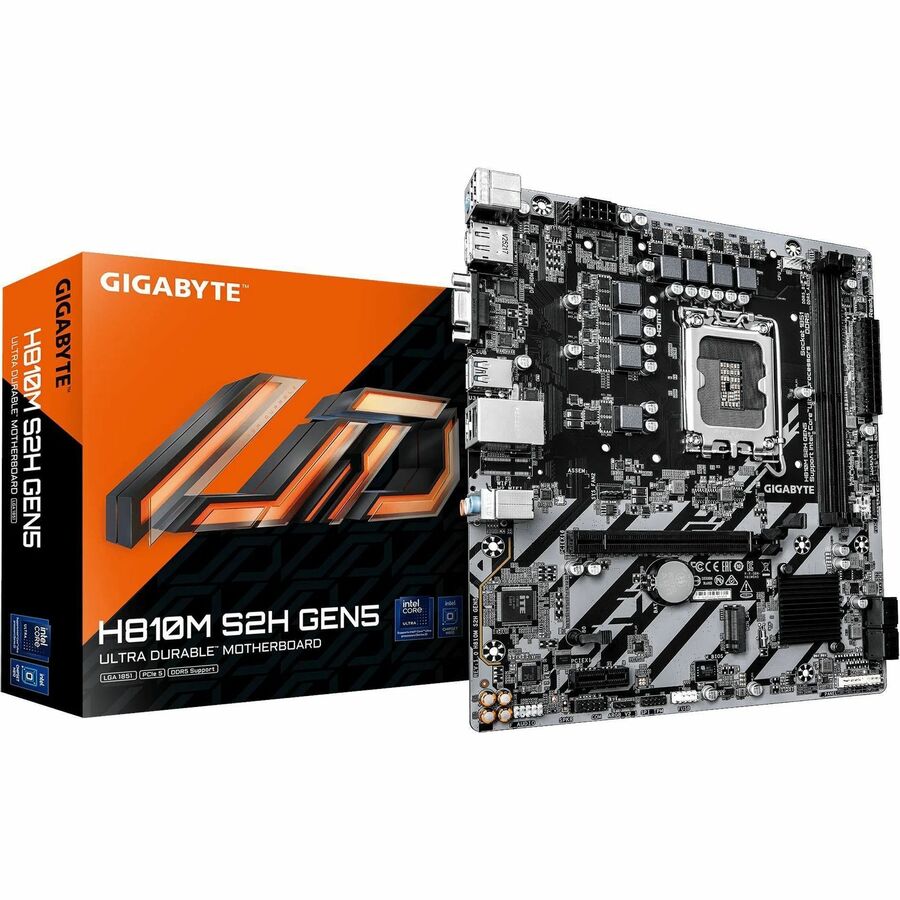

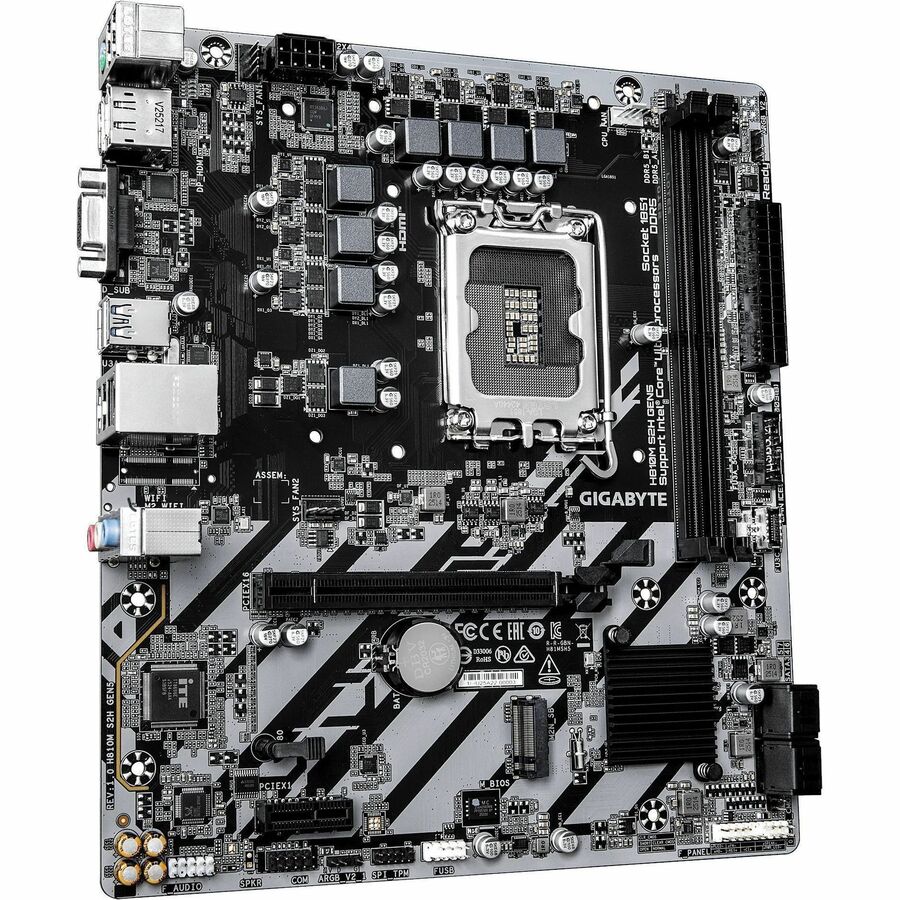

GIGABYTE Ultra Durable H810M S2H GEN5 Gaming Desktop Motherboard - Intel H810 Chipset - Socket LGA-1851 - Micro ATX
Core Ultra Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- H810M S2H GEN 5
- Category
- Motherboards
$127.60
Back ordered — ships when restocked.
Genuine GIGABYTE Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- H810M S2H GEN 5
- Category
- Motherboards
Overview
Express to PCIE5 Performance
The new GIGABYTE H810 motherboards provides the most efficient solution to enjoy boosted performance of PCIe Gen5 on the existing platform. PCIe 5.0 doubles the data transfer rate of PCIe 4.0 from 16 GT/s to 32 GT/s per lane. This substantial increase in bandwidth particularly benefits high-performance graphics cards, storage devices, and AI accelerators that demand faster data movement.
Durable Performance
GIGABYTE Ultra Durable? motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Smart Fan 6 Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
Highlights
- PCIe Gen5 Performance
- Supports Intel® Core? Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe 5.0 x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN

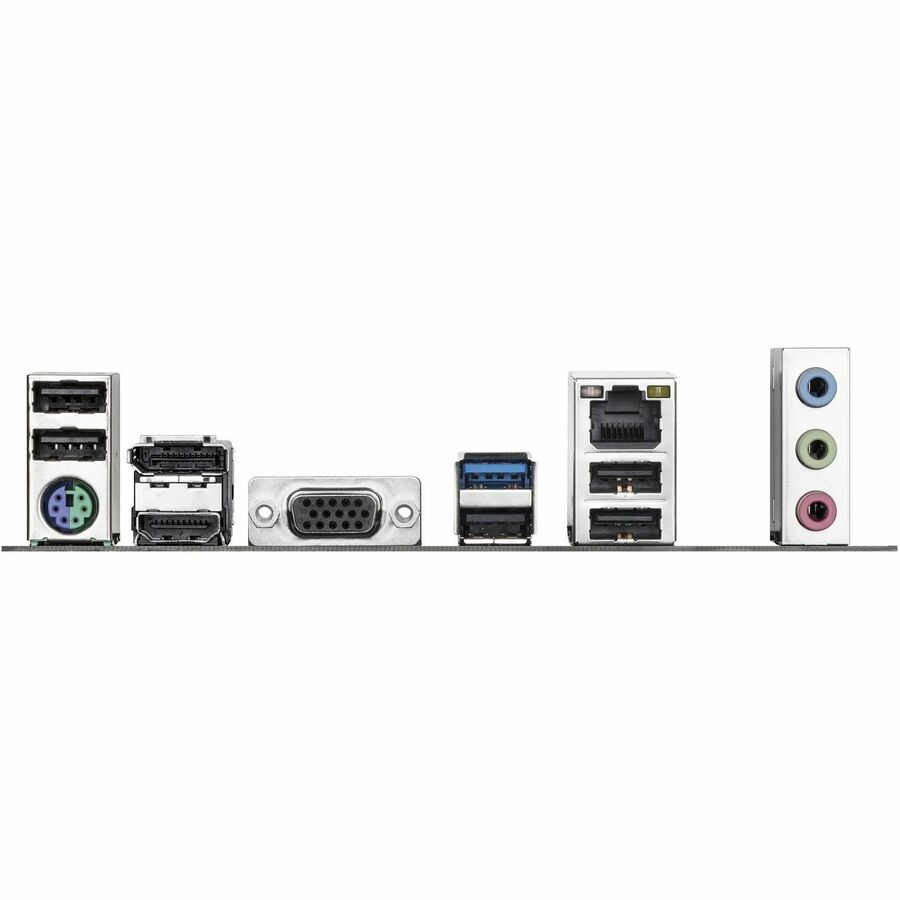

- Extended Connectivity: DisplayPort, HDMI, D-Sub
Specifications
| Product Type | Gaming Desktop Motherboard |
|---|---|
| Error Checking | ECC |
| Manufacturer Part Number | H810M S2H GEN 5 |
| Maximum Memory Supported | 128 GB |
| Limited Warranty | 3 Year |
| Form Factor | Micro ATX |
| Manufacturer | GIGABYTE Technology, Inc |
| Product Model | H810M S2H GEN5 |
| Product Name | Ultra Durable H810M S2H GEN5 Gaming Desktop Motherboard |
| Processor Supported | Core Ultra |
| Product Line | Ultra Durable |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | GIGABYTE |
| Memory Technology | DDR5 SDRAM |
| Width | 9.6" |
| Depth | 8.5" |
| Chipset Manufacturer | Intel |
| Chipset Model | H810 |
| Number of Memory Slots | 2 |
| Graphics Controller Manufacturer | Intel |
| Graphics Controller Model | HD Graphics |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 4 |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| Number of PCI Express x16 Slots | 1 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 5 |
| Total Number of Onboard USB Ports | 5 |
| Number of Onboard USB 2.0 Ports | 2 |
| PCI Express Standard | PCI Express 3.0, PCI Express 5.0 |
| Total Number of PCI Express Slots | 2 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 2 |
| Number of M.2 Interfaces | 1 |
| Memory Speed Supported | 6400 MHz, 5600 MHz |
| Number of USB 3.2 Gen 1 Ports | 1 |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| AI-powered | Yes |
