PCIe 5.0 - DDR5 - M.2 Gen5 - SATA - USB A - USB C - 5Gbps LAN - Wifi 7 - Bluetooth 5.4
SKU
Category
Motherboards
$408.65
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine MSI through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Motherboards
Overview

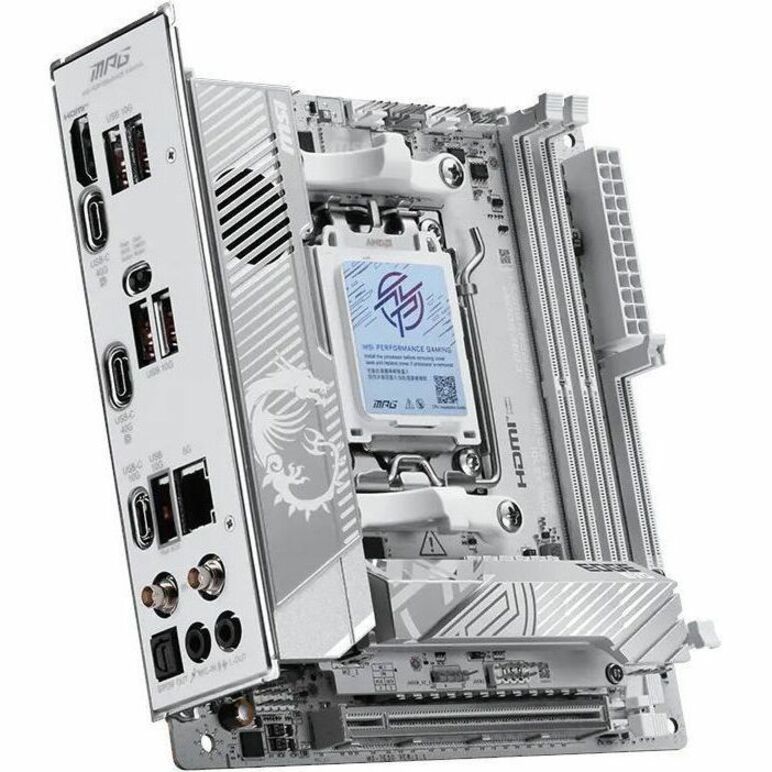

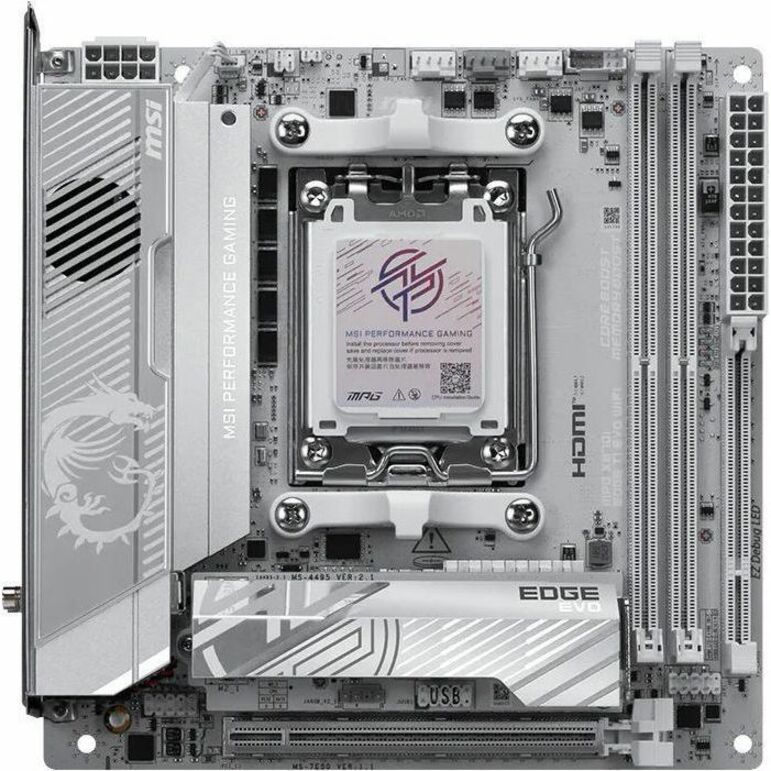

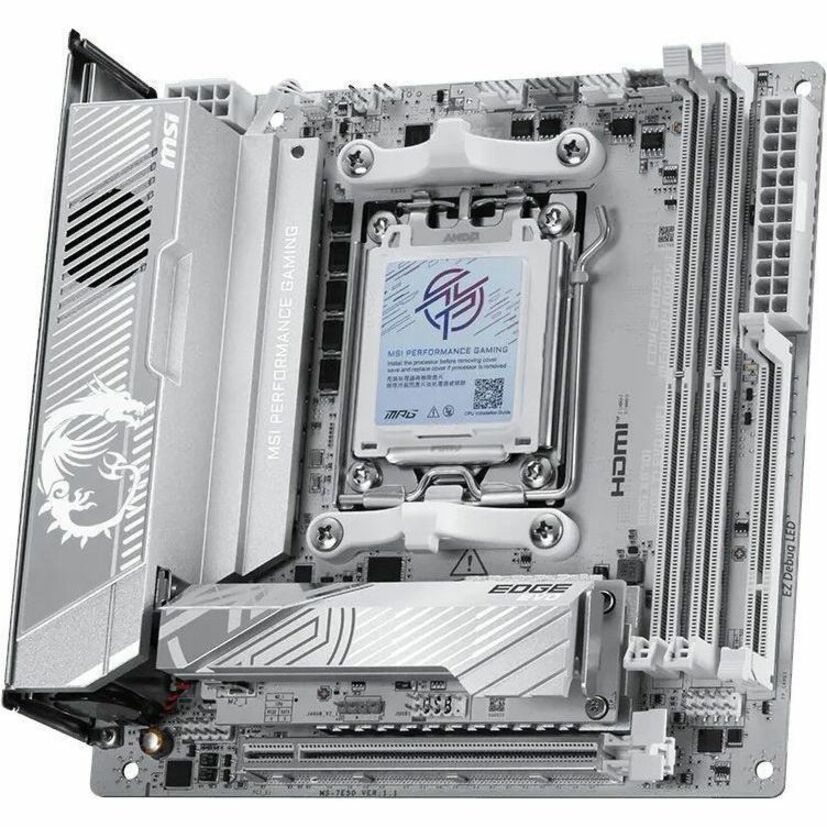

MPG X870I EDGE TI EVO WIFI is covered with a silver-white color scheme for white PC build lovers to show off different identity. It is also powerful because of its true Wi-Fi 7 solution, 5G LAN, USB4, and the latest PCIe 5.0 compatibility, and this is the best white theme X870 ITX motherboard for AMD Ryzen 9000 series processors.
Warranty
Limited Warranty: 3 Year
About MSI
Dedicated to customer-driven innovation, MSI leverages its remarkable R&D strengths to craft top-notch, well-acclaimed motherboards, graphics cards, notebook PCs and All-in-One PCs. The Overclocking Series is designed for enthusiasts who pursue extreme performance and go after world records. Aimed at fulfilling the needs and expectations toward professional gaming, the MSI GAMING Series receives gamers’ unanimous acclaim. Incorporating Military Class components, the Classic Series has an excellent reputation for quality and durability. All these distinctive products have made MSI a forerunner in the middle-range and high-end market. Also adding to the lineup are cloud servers, tailor-made IPCs, intelligent panoramic camera (Panocam), robotic appliances and human-centric vehicle electronics that further demonstrate MSI's strengths and endeavors in consumer, commercial and IOT(Internet of Things) markets.
Ultra Performance: 8+2+1 Duet Rail Power System, Core Boost, Memory Boost, 12-layer PCB made by 1oz thickened copper and server-grade level material
Frozr Guard: Enlarged heatsink, MOSFET thermal pads rated for 7W/mk and M.2 Shield Frozr are built for high performance system and non-stop gaming experience
Specifications
Audio
Audio Channels
7.1
General Information
Manufacturer
MSI
Manufacturer Part Number
MPGX870IEDGETI
Brand Name
MSI
Product Line
MPG
Product Model
X870I EDGE TI EVO WIFI
Product Name
MPG X870I EDGE TI EVO WIFI Gaming Desktop Motherboard
Product Type
Gaming Desktop Motherboard
I/O Controller
Controller Type
Serial ATA/600
RAID Supported
Yes
RAID Levels
0, 1, 5
I/O Expansions
Total Number of Expansion Slots
1
Total Number of PCI Express Slots
1
PCI Express Standard
PCI Express 4.0, PCI Express 5.0
Number of PCI Express x16 Slots
1

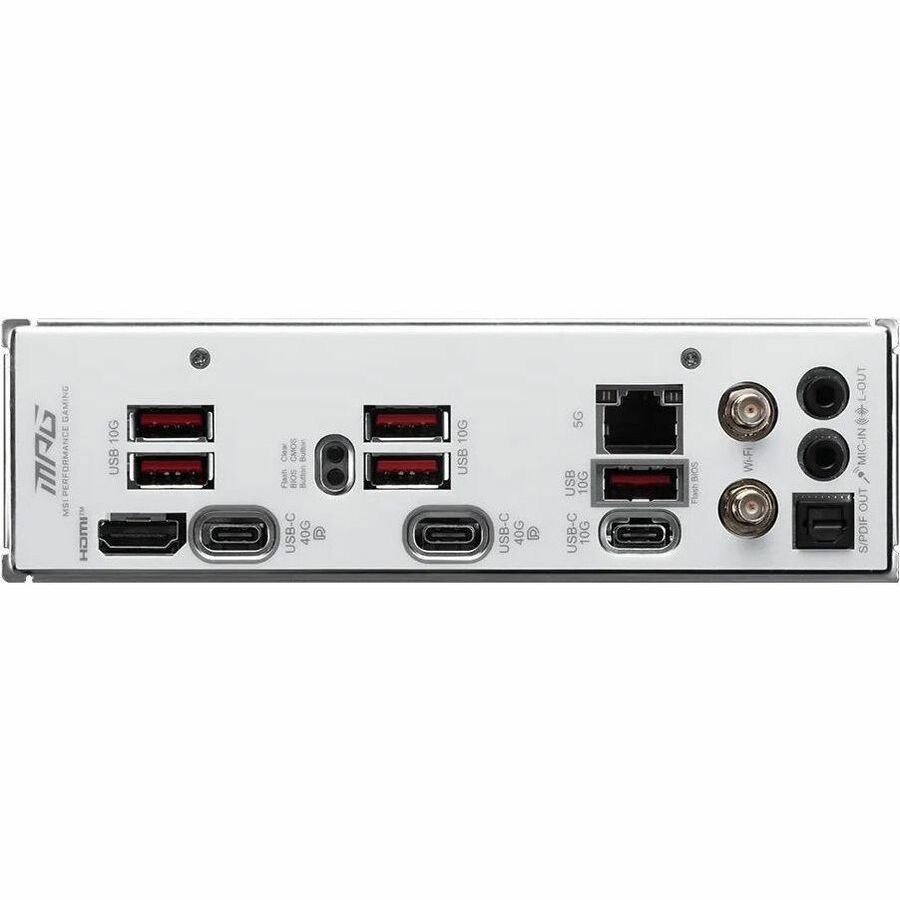

Interfaces/Ports
Total Number of USB Ports
8
S/PDIF
Yes
HDMI
Yes
DisplayPort
Yes
Number of Network (RJ-45) Ports
1
Memory
Number of Memory Slots
2
Memory Form Factor
DIMM, UDIMM, CUDIMM
Maximum Memory Supported
128 GB
Memory Speed Supported
10000 MHz, 8400 MHz, 8000 MHz, 5600 MHz, 4800 MHz
Memory Technology
DDR5 SDRAM
Network & Communication
Bluetooth
Yes
Bluetooth Standard
Bluetooth 5.4
Gigabit Ethernet
Yes
2.5Gigabit Ethernet
Yes
Wireless LAN
Yes
Wireless LAN Standard
IEEE 802.11 a/b/g/n/ac/ax/be
Onboard Interfaces
Number of SATA Interfaces
2
Number of M.2 Interfaces
3
Total Number of Onboard USB Ports
5
Number of Onboard USB 2.0 Ports
2
Physical Characteristics
Form Factor
Mini ITX
Height
11"
Width
2.5"
Depth
10.8"
Weight (Approximate)
3.06 lb
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
X870
Total Processor Supported
1
Processor Socket
Socket AM5
Processor Supported
Ryzen 9, Ryzen 7
Technical Information
AI-powered
Yes
Video
Onboard Video
CPU Dependent Video
Warranty
Limited Warranty
3 Year
Miscellaneous

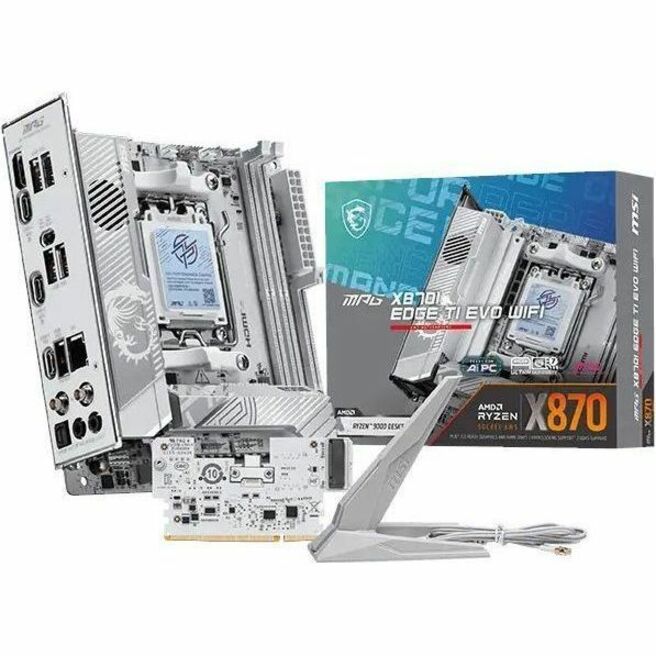

Package Contents
MPG X870I EDGE TI EVO WIFI Gaming Desktop Motherboard
