12 Input Device - 230 ft Range - 1 x Network (RJ-45) - 2 x HDMI In - 4K UHD - Twisted Pair - Category 7 - Wall Plate
MSRP$443.99
$419.31
Save 6%Special order — estimated available by September 10, 2026.
Genuine Legrand through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

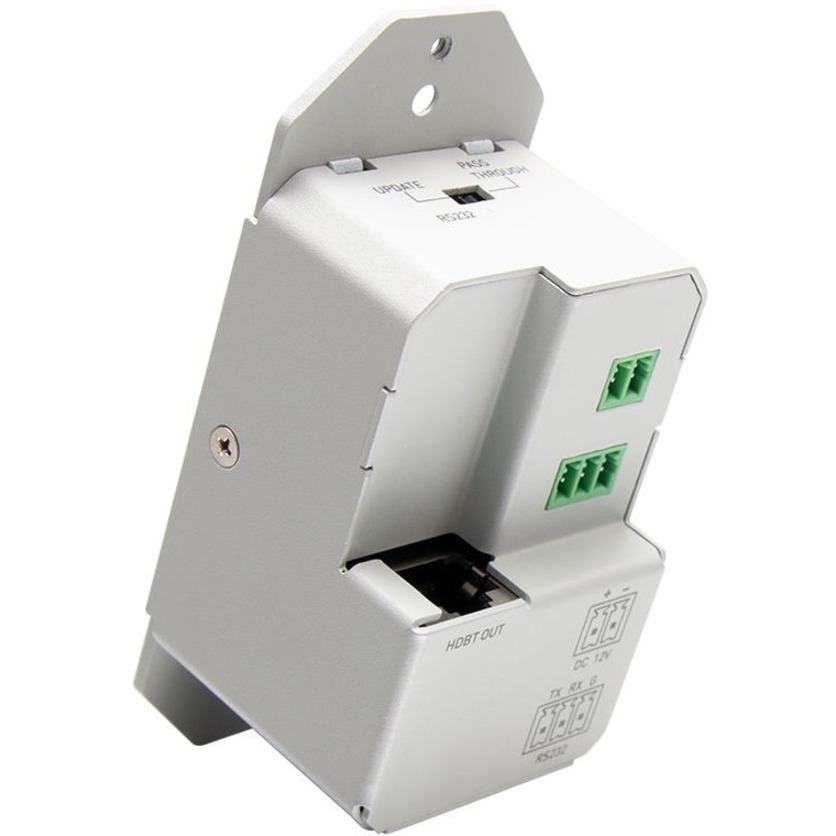

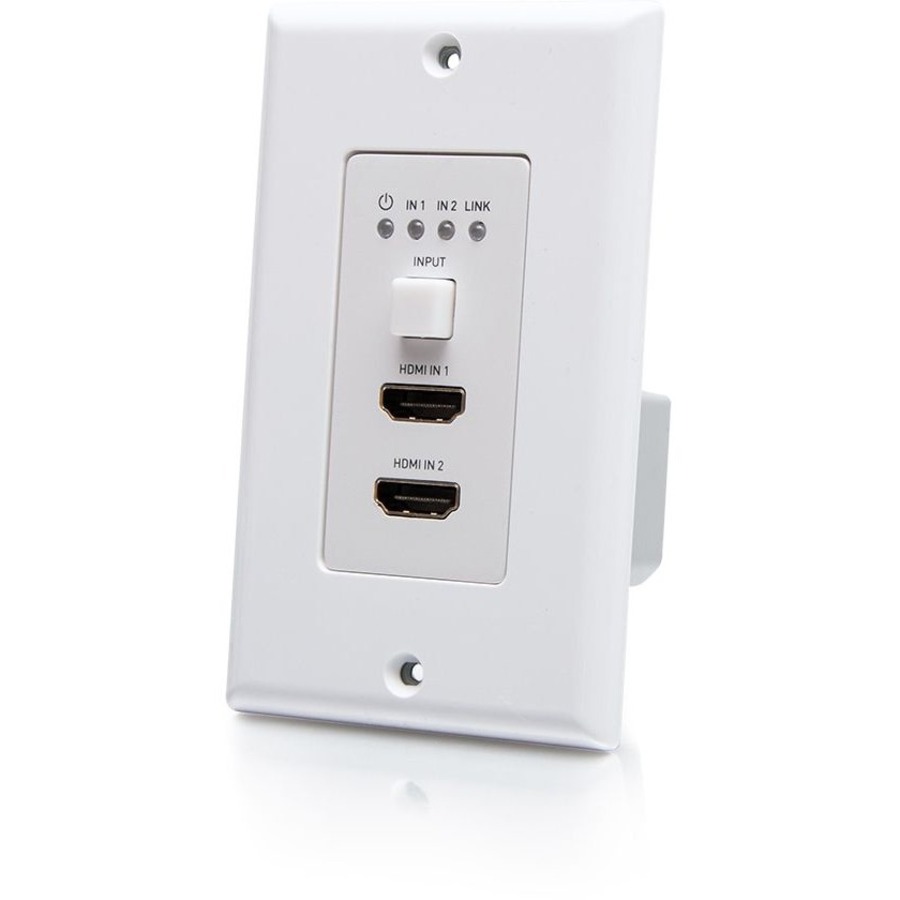

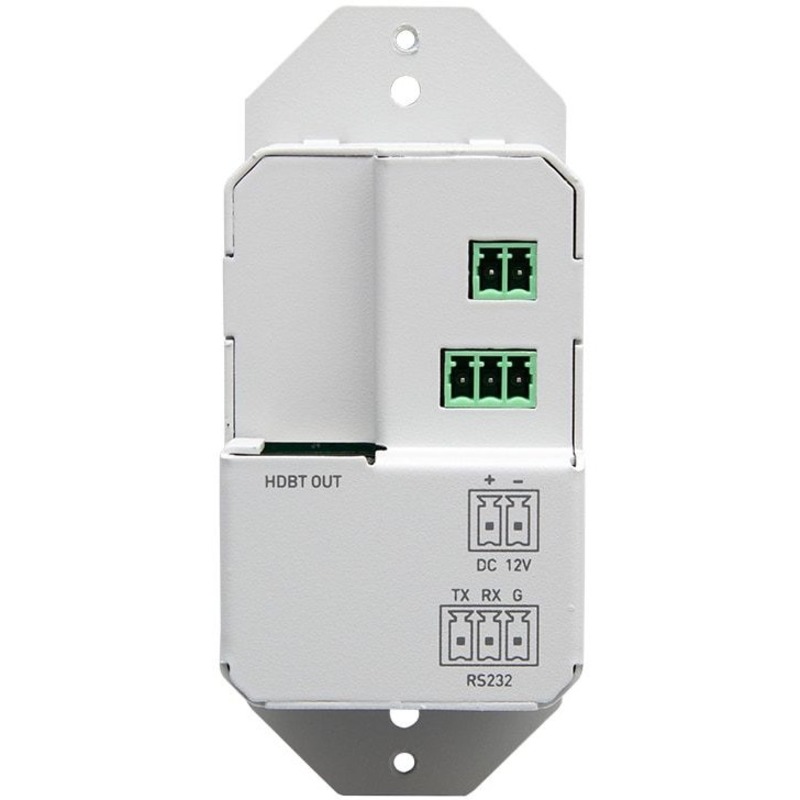

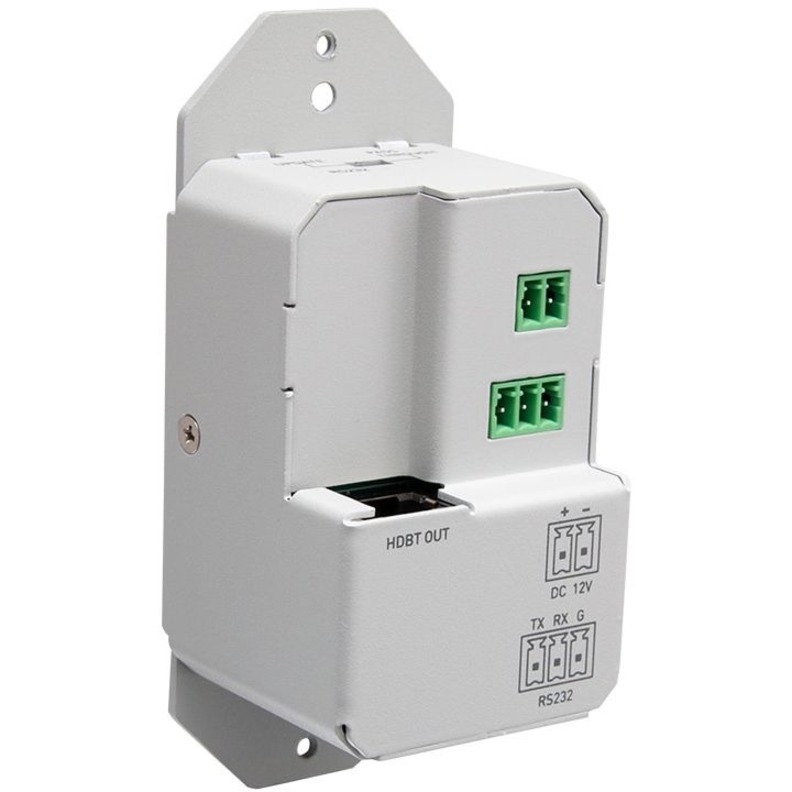

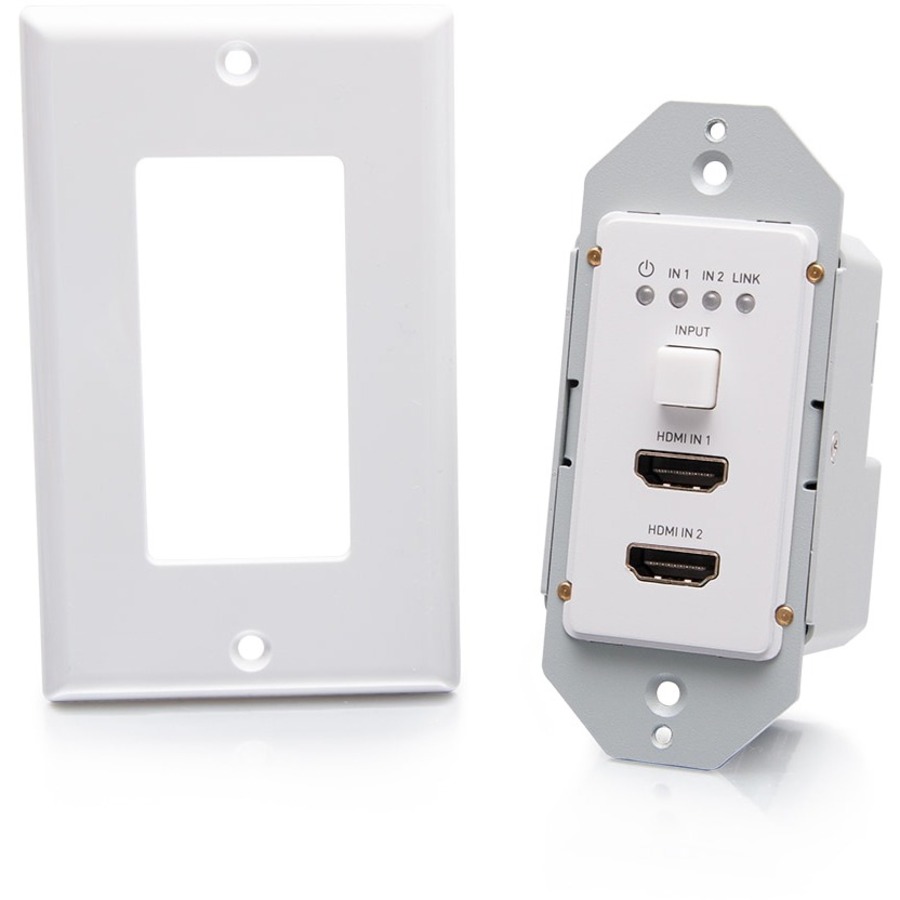

The Dual HDMI HDBaseT + RS232 over Cat Extender Single Gang Wall Plate Transmitter - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This transmitter is an ideal part of an HDBaseT solution where HDMI video and audio in conference rooms, classrooms, lecture halls, and many other installation needs are far beyond the length limitations of standard HDMI cabling.
This transmitter extends HDMI over a single Cat5e, Cat6, or Cat6a network patch cable. Extend 4K HDMI up to 115 feet and 1080p up to 230 feet using a Cat5e or Cat6 cable. For longer 4K distances, extend 4K HDMI up to 130 feet using a Cat6a cable.
This HDMI HDBaseT transmitter is HDCP 2.2 compliant, making sure that the connection from the source is secure. Multi-channel audio formats are supported, including PCM 2.0/5.1/7.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, and DTS:X. With one-way Power over Cable (PoC) support, the transmitter gets its power from the receiver, allowing for greater flexibility in installations. Advanced users can control bi-directional IR and RS232 pass through.
Note: Ensure a solid, reliable connection between the 4K HDMI HDBaseT Extender and critical equipment. We suggest using HDMI Cables with gripping connectors that provide greater port retention than standard HDMI connectors. Stranded Cat5e/6/6a patch cables may be used for HDMI extension applications up to 230ft. Shielded, solid conductor Cat6 or HDBaseT Certified Cat6a network cabling is recommended for applications where the category cable must be coiled, is run near other high-frequency signaling cables, or in high EMI/RFI environments.
Limited Warranty: 5 Year
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G30022 |
| Brand Name | C2G |
| Product Name | 1-Gang Dual HDMI HDBaseT Wall Plate Transmitter RS232 over Cat Extender |
| Product Type | Video Extender Transmitter |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of HDMI Inputs | 2 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 7 |
| Physical Characteristics | |
| Color Family | White |
| Product Color | White |
| Transmitter Height | 4.16" |
| Transmitter Width | 1.77" |
| Transmitter Depth | 1.78" |
| Form Factor | Wall Plate |
| Transmitter Weight (Approximate) | 6.35 oz |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 12 |
| Maximum Operating Distance | 230 ft |
| Video | |
| Graphics Modes | 4K UHD |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Country of Origin | China |
