SKU
C2G30010
Category
Audio & Video Consoles/Extenders
Overview

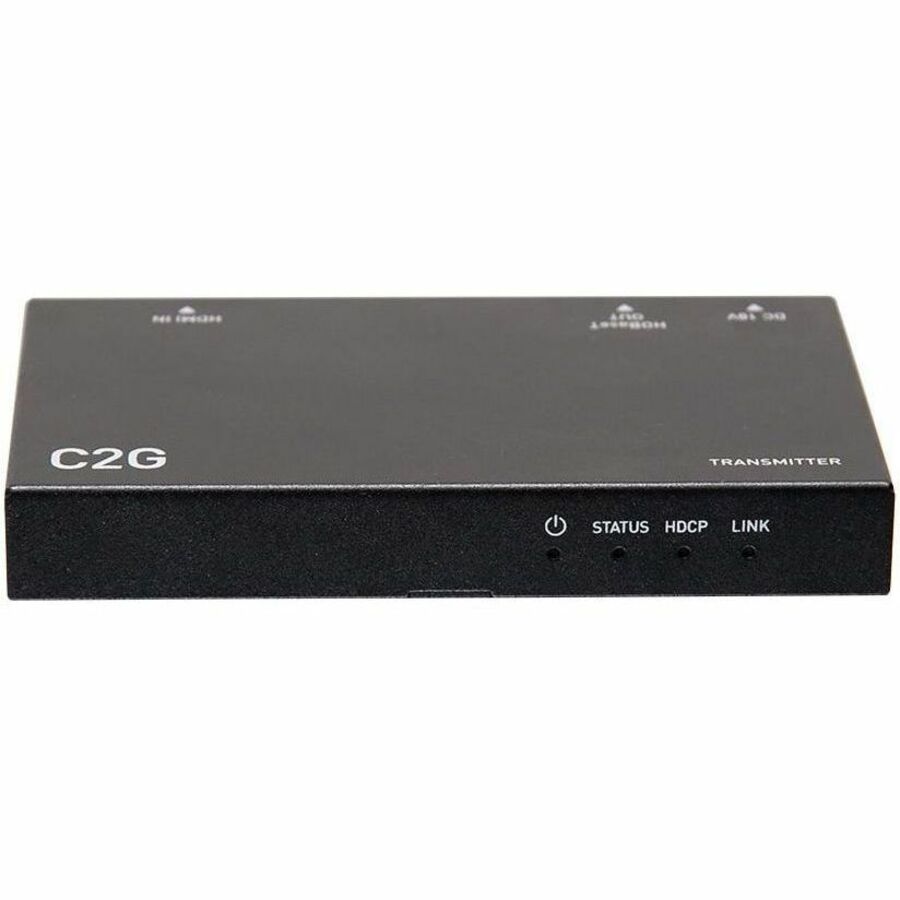

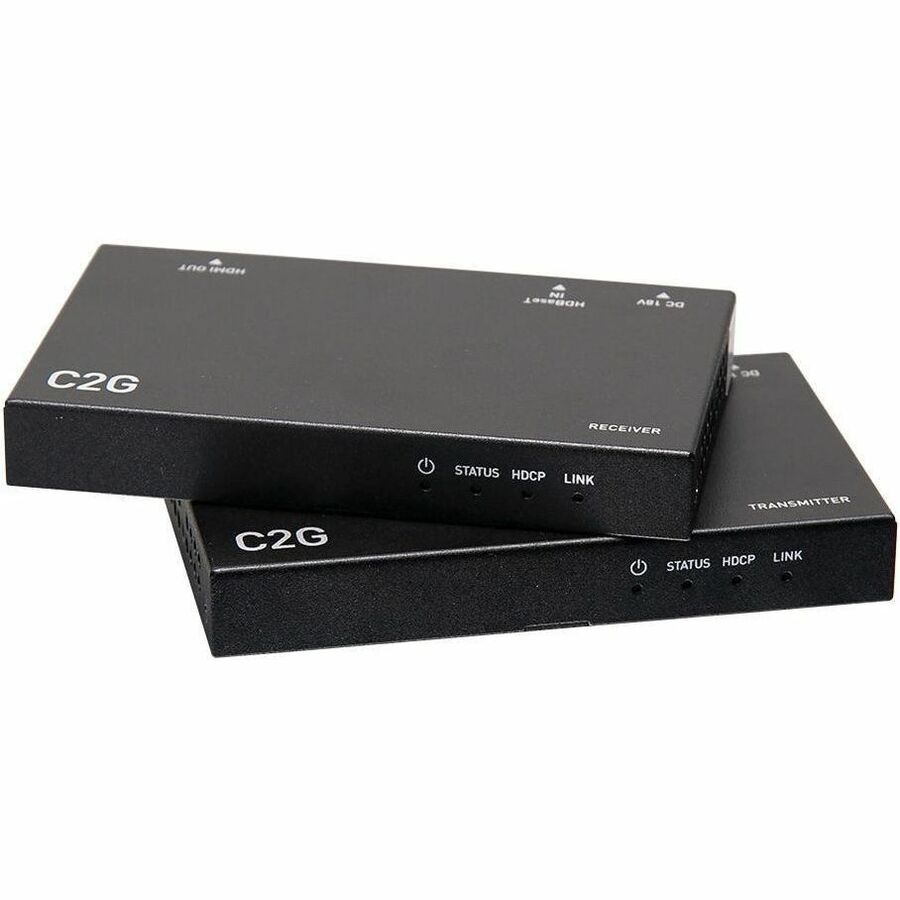

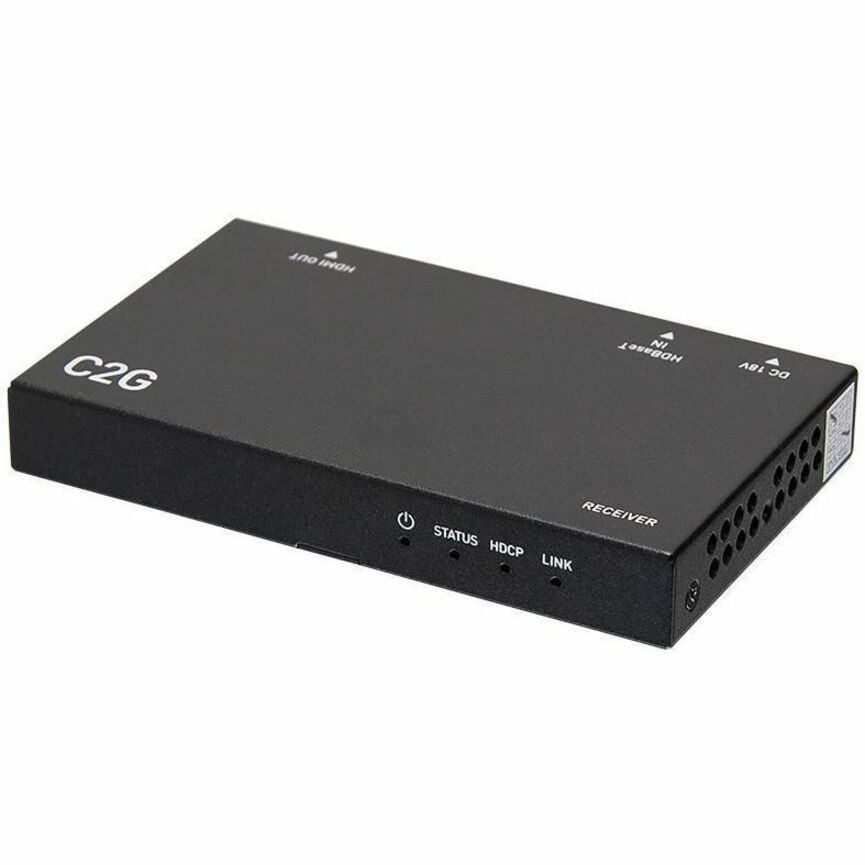

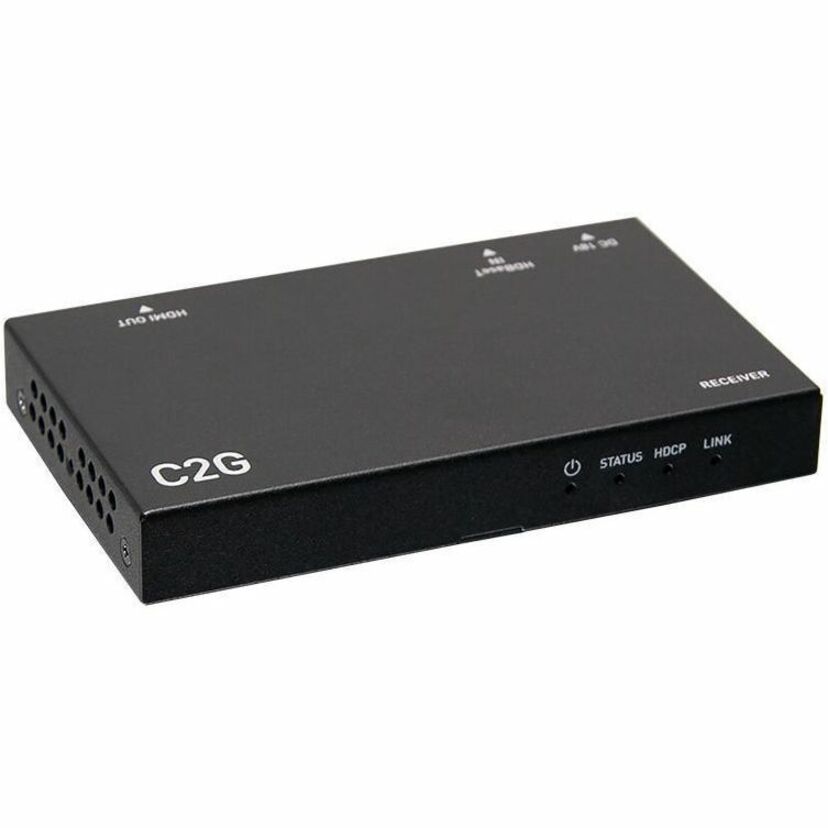

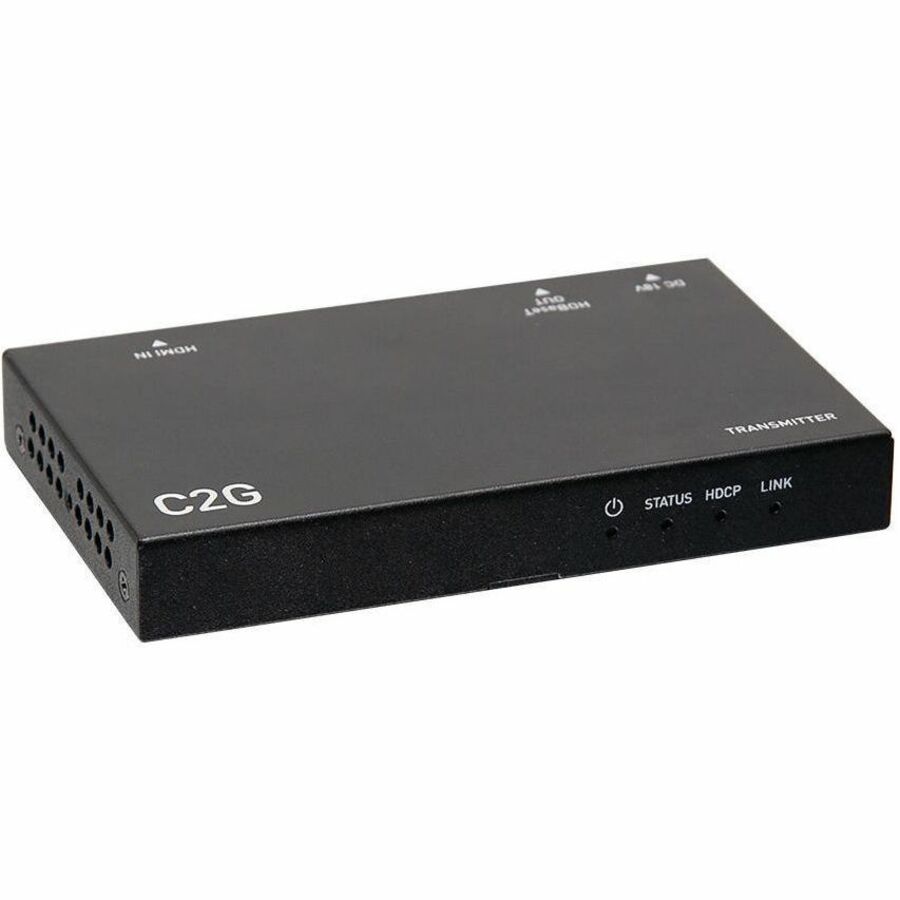

The HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz allows a 4K HDMI source to be extended up to 130ft to a 4K display using a single Cat6a Ethernet cable. This is an ideal solution for delivering uncompressed HDMI video and audio to displays in conference rooms, classrooms, lecture halls, and many other installation needs that are far beyond the length limitations of standard HDMI cabling.
This HDMI HDBaseT Extender supports 4K resolutions at 60Hz up to 130ft and 1080p at 60Hz up to 230ft when using a single, recommended Cat6a Ethernet cable. Also, extend 4K at 60Hz up to 115ft and 1080p at 60Hz up to 200ft when using Cat5e or Cat6 cabling.
This HDMI HDBaseT Extender is HDCP 2.2 compliant, making sure that the connection between the source and display is secure. The bi-directional PoC (Power over Cable) function allows both the transmitter and the receiver to be powered on when either side is plugged into power, allowing for greater flexibility in installations.
Note: Ensure a solid reliable connection between the 4K HDMI HDBaseT Extender and critical equipment.
Highlights
Extend 4K at 60Hz (4:2:0) up to 130ft and 1080p at 60Hz up to 230ft with Cat 6a cable
Extend 4K at 60Hz (4:2:0) up to 115ft and 1080p at 60Hz up to 200ft with Cat 5e/6 cable
HDCP 2.2 compliant, to create a secure connection between the source and display
Bi-directional PoC, when either transmitter or receiver is plugged into power
Specifications
Package Contents
1 x Transmitter Unit
1 x Receiver Unit
Product Type
Video Extender Transmitter/Receiver
Manufacturer Part Number
C2G30010
Limited Warranty
5 Year
Connectivity Technology
Wired
Manufacturer
Legrand Group
Product Name
HDMI HDBaseT Extender over Cat Box Transmitter to Box Receiver - 4K 60Hz
Brand Name
C2G
Country of Origin
China
Graphics Modes
4K UHD
Environmentally Friendly
Yes
Twisted Pair Cable Standard
Category 7
Maximum Operating Distance
230 ft
Number of Network (RJ-45) Ports
2
Network (RJ-45)
Yes
Number of HDMI Inputs
1
Number of HDMI Outputs
1
HDMI In
Yes
HDMI Out
Yes
Media Type Supported
Twisted Pair
Number of Output Devices Supported
1
Number of Input Devices Supported
1
Product Color
Black
Color Family
Black
Environmental Compliance
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
