RX (18Gbps) 4K 60Hz up to 328ft
1 Input Device - 1 Output Device - 328 ft Range - 2 x Network (RJ-45) - 5 x USB - 1 x HDMI In - 1 x HDMI Out - 1080p - 4K - Twisted Pair - Category 6a - Yes
$914.63
In stock: 186
Genuine Legrand through authorized distribution — NDAA §889 screened before checkout.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.

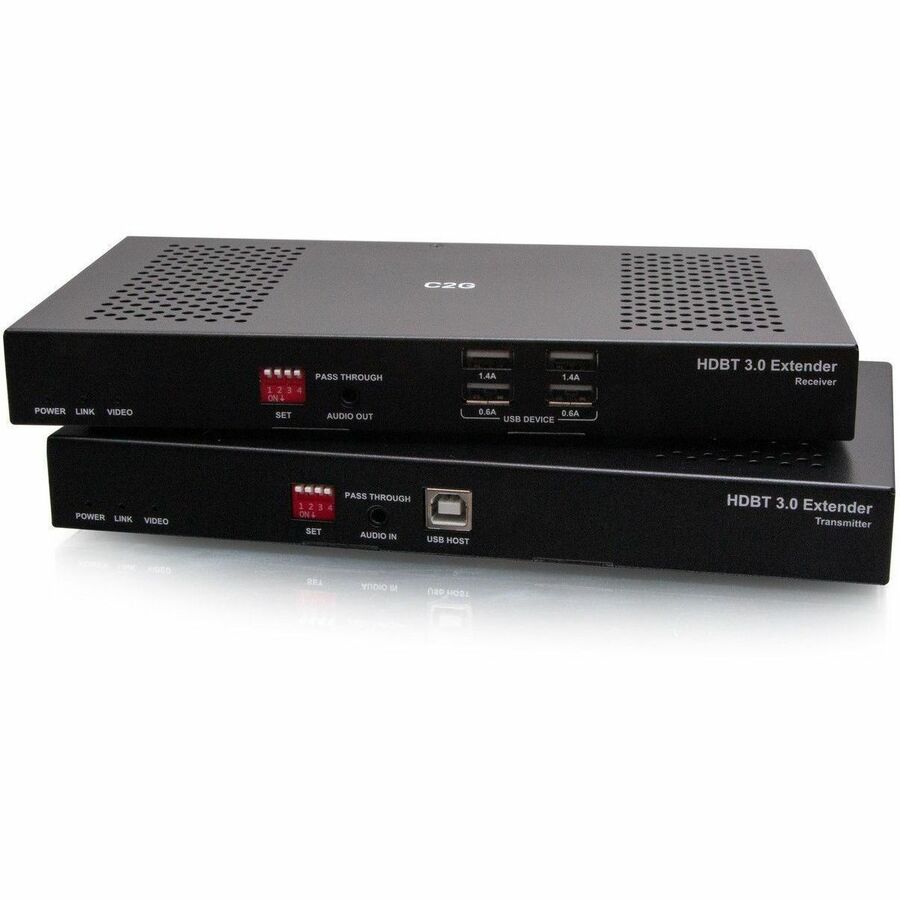

The HDMI® HDBaseT + USB-B to A and RS232 over Cat Extender (18Gbps) allows for the extension of a 4K HDMI source up to 328ft to a 4K display without signal loss using a single Cat6a Ethernet cable. This is an ideal solution where USB must also be extended alongside HDMI video and audio to interactive whiteboards and displays or in any installation that goes far beyond the length limitations of standard HDMI and USB cabling.
This HDMI HDBaseT 3.0 kit supports 5Play features, including the combined delivery of uncompressed ultra-high-definition digital video and audio, Ethernet, control signals, USB 2.0, and up to 100W of power through a single, 100m/328ft Cat6a LAN cable. The uncompressed digital video fully supports 4K 60Hz (4:4:4) HDMI signals and all audio formats in the HDMI 2.0 specification. The Ethernet pass-through transmits 1GB of data. The featured dip switch allows for RS232 pass-through and the added convenience of field firmware updating. USB 2.0 supports streaming cameras, connected peripherals, and storage devices. With one-way Power over HDBaseT (PoH) support, one power adapter connected to the receiver powers both the transmitter and receiver, so no additional power adapter required, allowing for greater flexibility in installations.
Limited Warranty: 5 Year
C2G is an industry leader in high performance cabling and connectivity solutions. Our mission is to simplify connectivity through innovative products and services. Founded in 1984 as Cables To Go, C2G provides end–to–end connectivity solutions serving a variety of markets — including hospitality, education, healthcare, corporate, home theater and digital signage. C2G also delivers customized connectivity products and solutions renowned for superior quality, value, and innovation using premium components and the latest technologies to maximize cable performance and ensure compliance with industry specifications for each cable and its designated application. We are a company focused on delivering unique connectivity products and solutions to our partners while providing unparalleled service and value-added solutions. Our employees and their dedication to providing our customers with superior cable products and superior service to support those products are what sets C2G apart from the competition. Our organization is dedicated to going beyond basic fulfillment by creating lasting partnerships where your specific needs are addressed through both products and services. Offering both broad line products and market–specific solutions, we have more than 6,000 connectivity products across 75 lines. With a focus on education, healthcare, digital signage and hospitality, our solutions range from A/V and PC Cabling to specific market solutions such as the TruLink A/V Classroom Controller and RapidRun®. And with a lifetime warranty on all cables, you can be sure your investment is protected for the long run. We also make custom cabling simple and quick. Offering both custom design and cost effective manufacturing techniques (whether domestic short-run or off–shore large volume production), we ensure you get the right solution, right on time. All our custom products are backed by a LIFETIME GUARANTEE against defects in workmanship.
| General Information | |
|---|---|
| Manufacturer | Legrand Group |
| Manufacturer Part Number | C2G30055 |
| Brand Name | C2G |
| Product Name | HDMI HDBaseT + USB-B to A + RS232 Over Cat Extender Box TX to Box RX (18Gbps) 4K 60Hz up to 328ft |
| Product Type | Video Extender Transmitter/Receiver |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Twisted Pair Cable Standard | Category 6a |
| Physical Characteristics | |
| Transmitter Height | 1.51" |
| Transmitter Width | 3.50" |
| Transmitter Depth | 4.16" |
| Receiver Height | 0.98" |
| Receiver Width | 8.27" |
| Receiver Depth | 3.55" |
| Transmitter Weight (Approximate) | 10.58 oz |
| Receiver Weight (Approximate) | 1.01 lb |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Number of Output Devices Supported | 1 |
| Maximum Operating Distance | 328 ft |
| HDBase-T | Yes |
| Video | |
| Graphics Modes | 4K |
| Supported Video Modes | 1080p |
| Warranty | |
| Limited Warranty | 5 Year |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
