SKU
GCS1716KITTAA
Category
KVM Switchboxes
Overview
The GCS1716 KVM is a combo switch allowing access and control of up to 256 computers from a single console (keyboard, mouse, and monitor). As many as 16 additional switches can be cascaded bringing the total number of connected computers to 256 computers that can be controlled from a single keyboard-monitor-mouse console. A custom ASIC (patent pending) provides an auto-sensing function that recognizes the position of each station on the installation, eliminating the need to manually set the position with DIP switches. Additionally, the GCS1716 features high density SPHD 15-pin instead of the usual 25-pin connectors thus allowing for a compact design and installation in a 1U system rack.
The GCS1716 includes one USB port located on the front panel for easy access and sharing of any USB peripherals. Setup is fast and easy; plugging cables into their appropriate ports is all that is needed. The switch supports both USB and PS/2 connections for the console and computers. The GCS1716 intercepts keyboard input directly, thus eliminating the need for any software configuration. Switching between computers can be easily accomplished either by manually pressing the front panel push button port LEDs, entering hotkey combinations from the keyboard, or via a menu driven multilingual on-screen display (OSD) system. A convenient auto-scan feature permits automatic scanning and monitoring of activities on all connected.
More from the Manufacturer
Highlights
Multi platform OS support - Windows®, Mac, Sun Solaris? , and Linux®
Auto Scan Mode to monitor connected computers
Broadcast Mode to send commands to all connected computers
Easy to operate - computer selection via front panel LED's, intuitive OSD (on screen display), and hotkeys
*Cascade up to 2 levels - control up to 256 computers from a single console
Security - 2 level password protection for OSD
Maximum video resolution: up to 2048 x 1536
Supports both USB and PS/2, VGA computers
Front USB Port - Fully compliant with USB 1.1 for system upgrades and shared peripherals
Rack mountable in a 19" (1U) system rack
Specifications

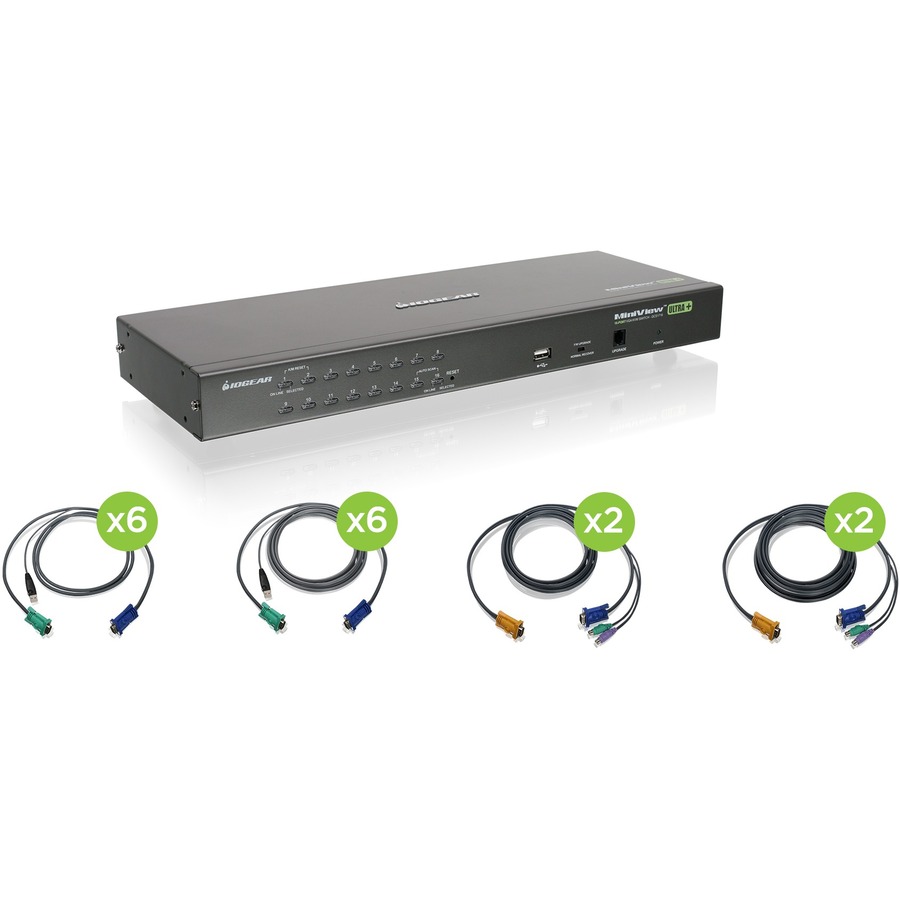

Package Contents
1 x GCS1716, 16-Port Combo KVM w/ Standard Rack Mounting Kit
6 x 2M USB KVM Cable
6 x 3M USB KVM Cable
2 x 2M PS/2 KVM Cable
2 x 3M PS/2 KVM Cable
1 x Console Cable
1 x Cascade Cable
1 x Firmware Upgrade Cable
1 x Grounding Wire
1 x Foot Pad Set (4 pads)
1 x Power Adapter
1 x Installation Guide
1 x Warranty Card
Product Type
KVM Switchbox
Manufacturer Part Number
GCS1716KITTAA
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
6.02 lb
Form Factor
Rack-mountable
Manufacturer
IOGEAR, Inc
Product Name
16-Port USB PS/2 Combo KVM Switch with Cables
Rack Height
1U
Brand Name
IOGEAR
Country of Origin
Taiwan
Height
1.8"
Width
17"
Depth
6.3"
Environmentally Friendly
Yes
Maximum Video Resolution
2048 x 1536
Graphic Mode
SVGA, VGA, QXGA
USB
Yes
Number of USB Ports
1
Number of Computers Supported
16
Number of Local Users Supported
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
