Genuine IOGEAR through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
GCS1816H
Category
KVM Switchboxes
Overview
16-Port HDMI KVMP Switch
IOGEAR's 16-port USB HDMI KVMP Switch allows you to control and access up to 16 computers from a single USB keyboard, USB mouse, and an HDMI monitor console. Experience high definition video resolution to 1080p (1920 x 1200) while sharing USB 2.0 peripherals and listening to 2.1 stereo surround sound.
Expanded Connectivity
IOGEAR's 16-Port USB HDMI KVMP Switch is designed to control up to 256 computers by cascading two levels of the GCS1816H. The built-in USB 2.0 hub allows peripheral sharing between the connected system and is backwards compatible with USB 1.1. Administrators can easily broadcast messages, announcements, firmware updates, or notifications to all connected sources.
EDID Support
IOGEAR's Video DynaSync? technology optimizes the display resolution by reading and remembering the monitor's parameters (EDID) so there is no delay or change in video resolution when switching between, or booting computers.
Simple Switching Methods

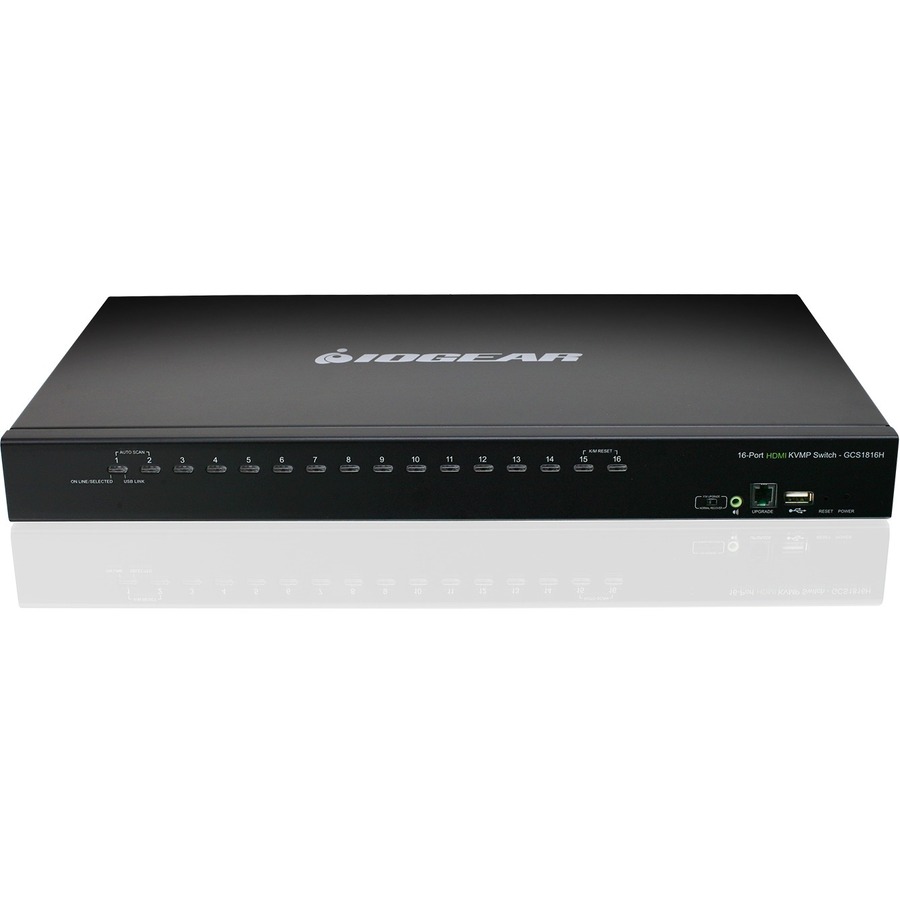

Easily switch between connected computers by either manually pressing the front panel push-buttons, entering hotkey combinations from the keyboard, or via the On-Screen Display (OSD) system. The KVM's convenient Auto-Scan feature permits automatic scanning and monitoring of activities on all connected devices.
2.1 Surround Sound
This 16-port HDMI KVMP switch provides 2.1 audio support allowing you to enjoy stereo surround sound through connected speakers.
Multi-Display Setup
Enhance productivity and view all connected sources on up to eight displays by stacking eight (8) IOGEAR GCS1816H together.
More from the Manufacturer
Highlights
Controls up to 16 HDMI® sources while sharing 2 additional USB 2.0 devices
Supports up to 1080p (1920 x 1200) HD video resolution
Cascade up to 2 levels1 - control up to 256 computers from a single console
Features 2 built-in USB 2.0 ports 2 for USB peripheral sharing
Multi-display feature allows viewing of up to 8 monitors when stacking up to (8) GCS1816H together
Independent KVM and USB focus switching
Supports 2 level password protection security for On-Screen Display (OSD)
OSD Backup/Restore configuration and user profile information
Broadcast Mode sends commands to all connected computers
Auto Scan Mode monitors connected computers
Specifications

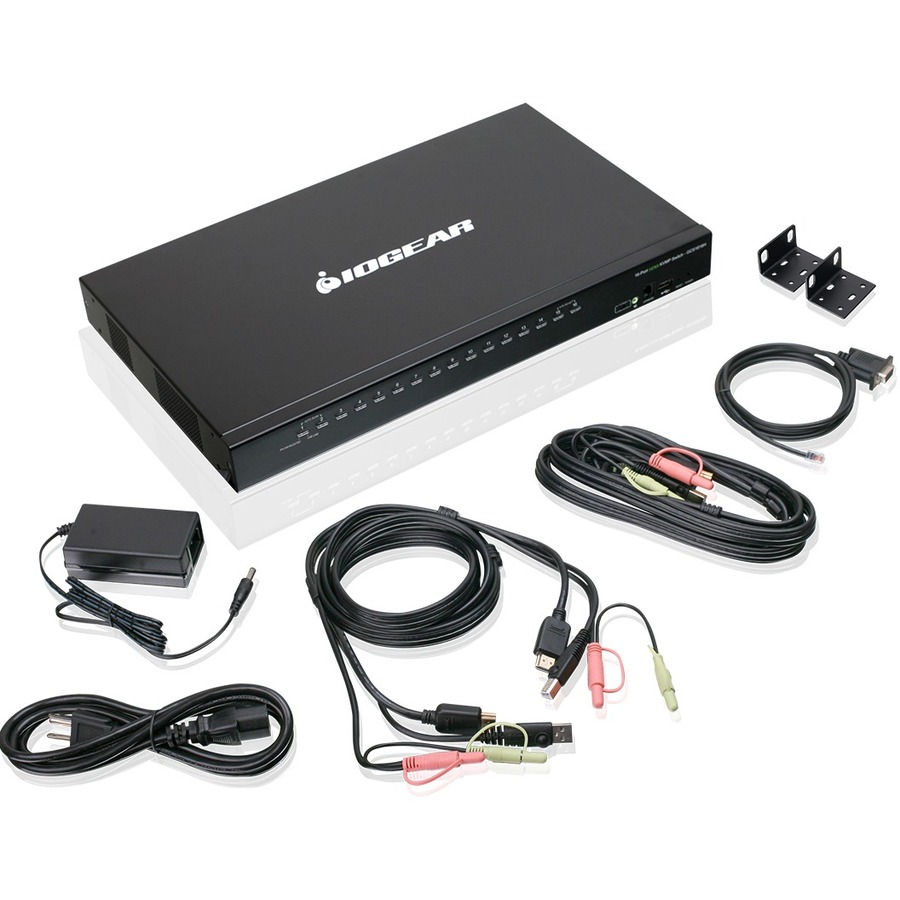

Package Contents
16-Port USB HDMI KVM Switch with Audio (TAA Compliant)
2 x Custom USB HDMI KVM Cable Sets
1 x Firmware Upgrade Cable
1 x Power Adapter
1 x Foot Pad Set (4 pcs)
1 x Quick Start Guide
1 x Rack Mounting Kit
Product Type
KVM Switchbox
Manufacturer Part Number
GCS1816H
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
8.80 lb
Form Factor
Rack-mountable
Manufacturer
IOGEAR, Inc
Product Model
GCS1816H
Product Name
16-Port USB HDMI KVM Switch with Audio (TAA Compliant)
Rack Height
1U
Brand Name
IOGEAR
Country of Origin
Taiwan
Height
1.8"
Width
17"
Depth
10"
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1200
USB
Yes
HDMI
Yes
Number of HDMI Ports
17
Number of USB Ports
20
Number of Computers Supported
16
Number of Local Users Supported
1
TAA Compliant
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
