Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FG1010-362FX
Category
Audio & Video Consoles/Extenders
Overview
Overview

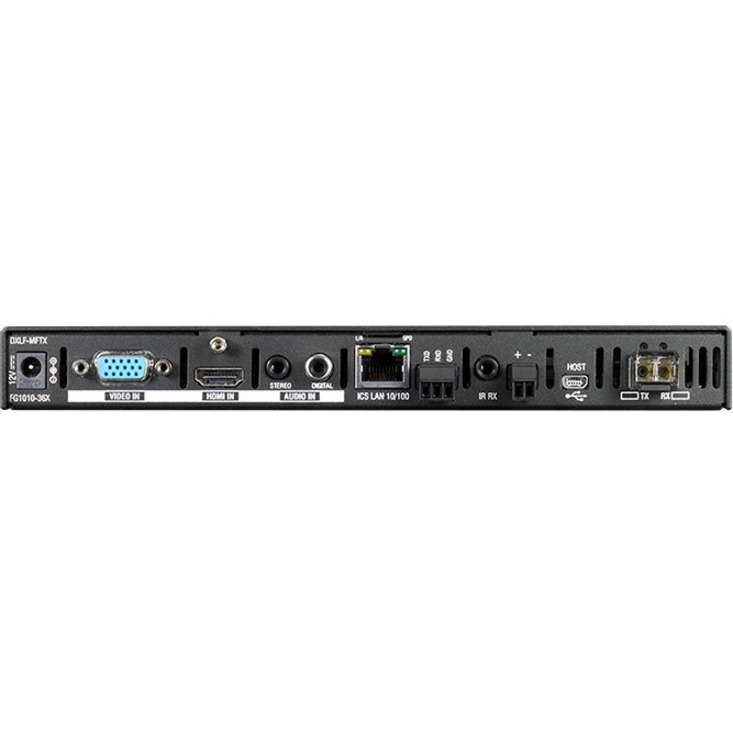

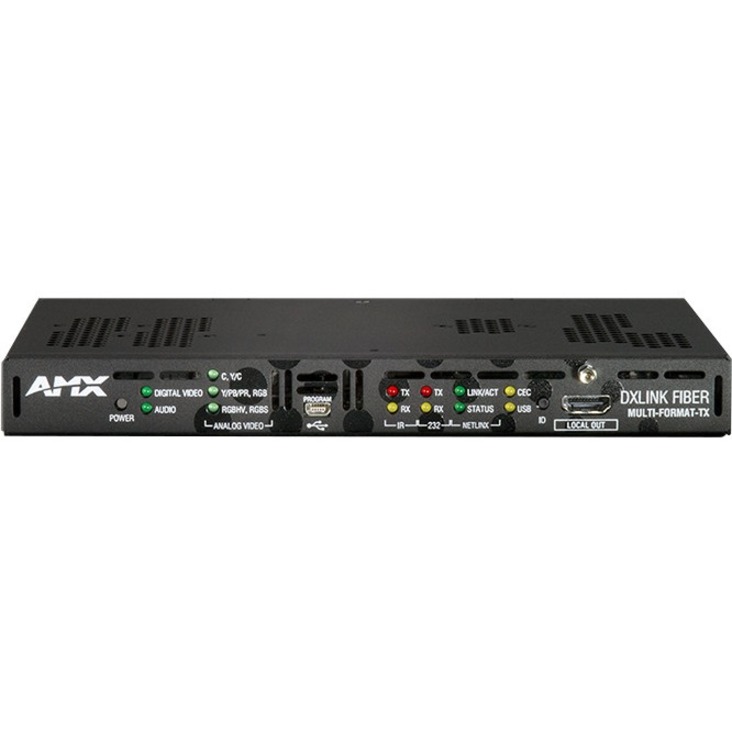

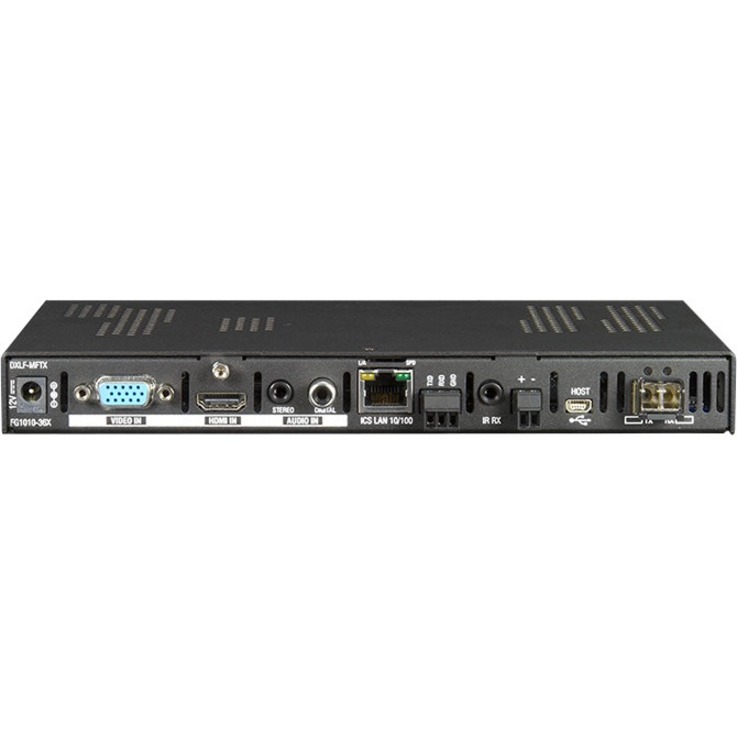

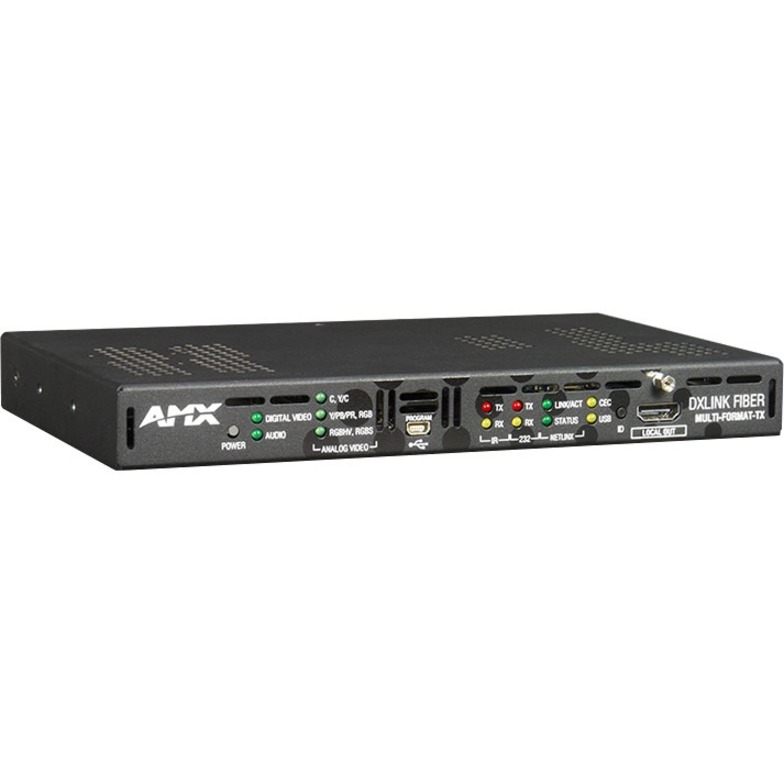

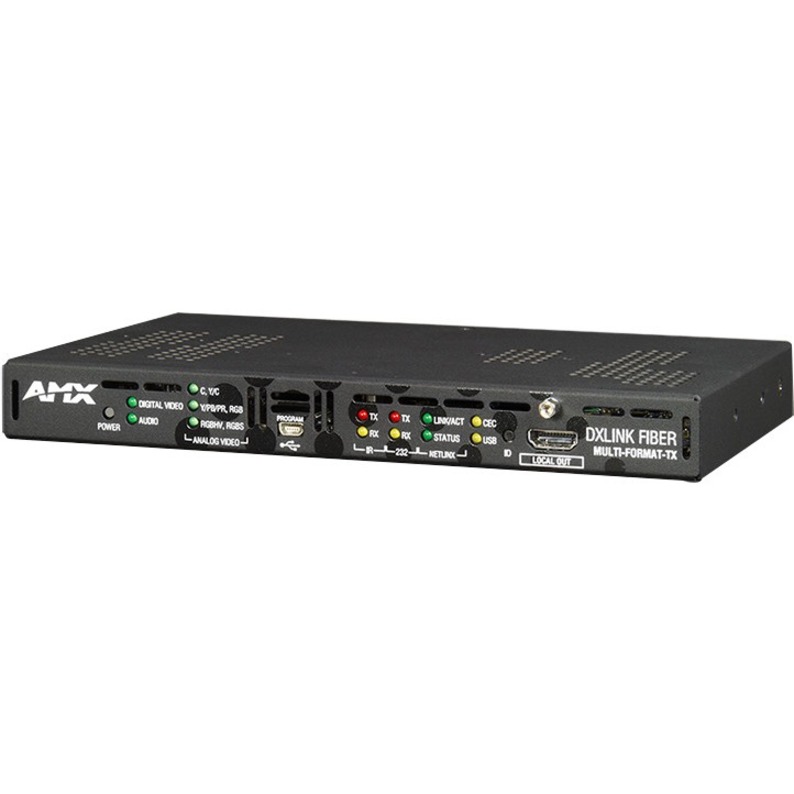

The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 300 meters over multimode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video at the fastest data rate in the industry - 10 Gbps. The DXF-TX-MMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.
COMMON APPLICATIONS
The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.
Highlights
HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 300 m
Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
InstaGate Pro® Technology - Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints - it just works
Native NetLinx® Control Everywhere - Control connected source devices using the built-in IR and RS-232 ports
Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to a Ethernet enabled source device
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG1010-362FX
Brand Name
AMX
Product Line
DXLink
Product Model
DXF-TX-MMD
Product Name
DXLinkTM Multi-Format Multimode Fiber Transmitter, Duplex With Fiber Extension
Product Type
Video Extender Transmitter
Interfaces/Ports
Network (RJ-45)
Yes
HDMI In
Yes
USB
Yes
Number of Network (RJ-45) Ports
1
Number of USB Ports
1
Number of HDMI Inputs
1
Media & Performance
Media Type Supported
Optical Fiber
Physical Characteristics
Transmitter Height
1"
Transmitter Width
8.71"
Transmitter Depth
5.15"
Transmitter Weight (Approximate)
1.10 lb
Technical Information
Connectivity Technology
Wired
Number of Input Devices Supported
1
Maximum Operating Distance
984.25 ft
Video
Graphics Modes
WUXGA
Supported Video Modes
480i, 576i, 720p, 1080i, 1080p
Maximum Video Resolution
1920 x 1200
Miscellaneous
Package Contents
DXLinkTM Multi-Format Multimode Fiber Transmitter, Duplex With Fiber Extension
Power Supply With Power Cord
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
