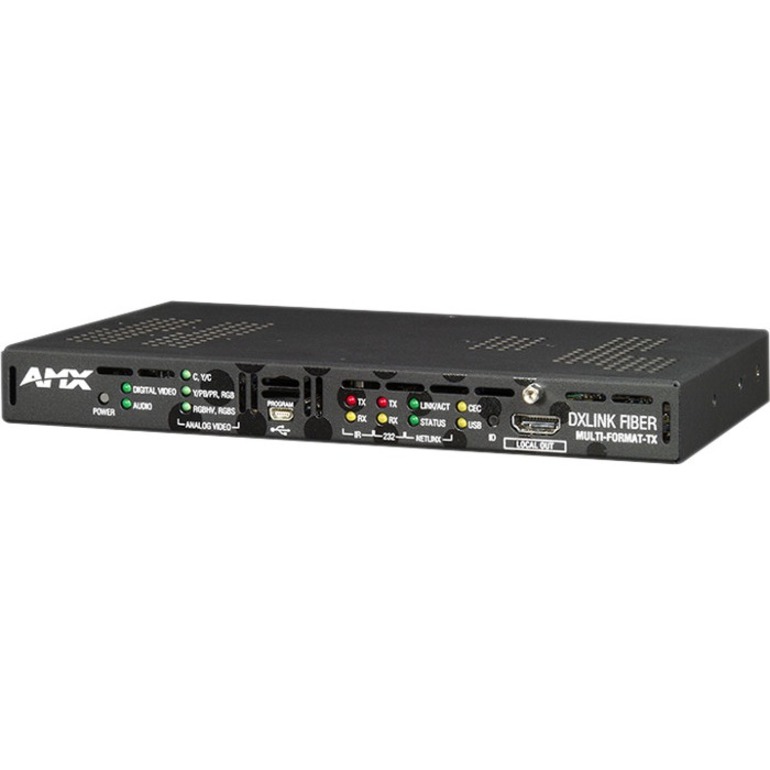

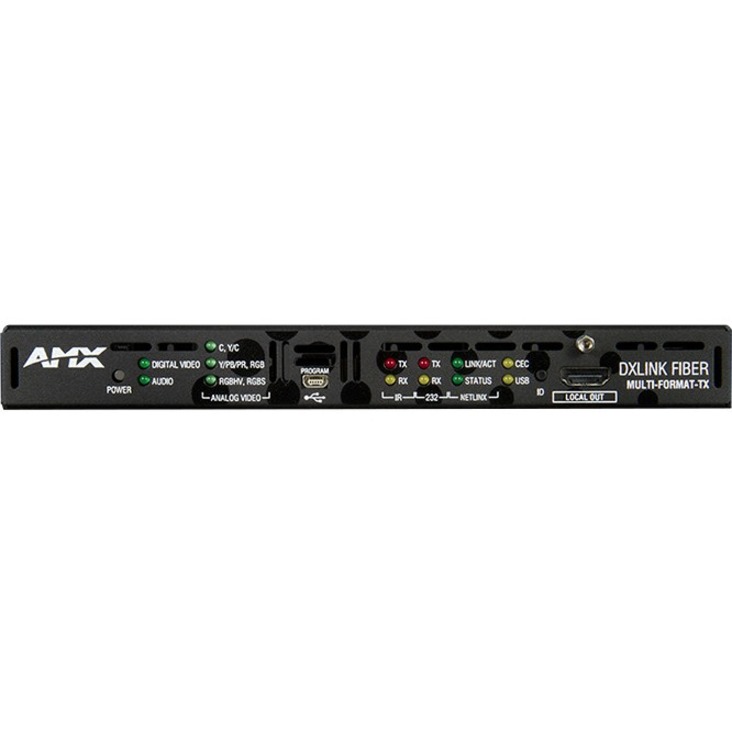

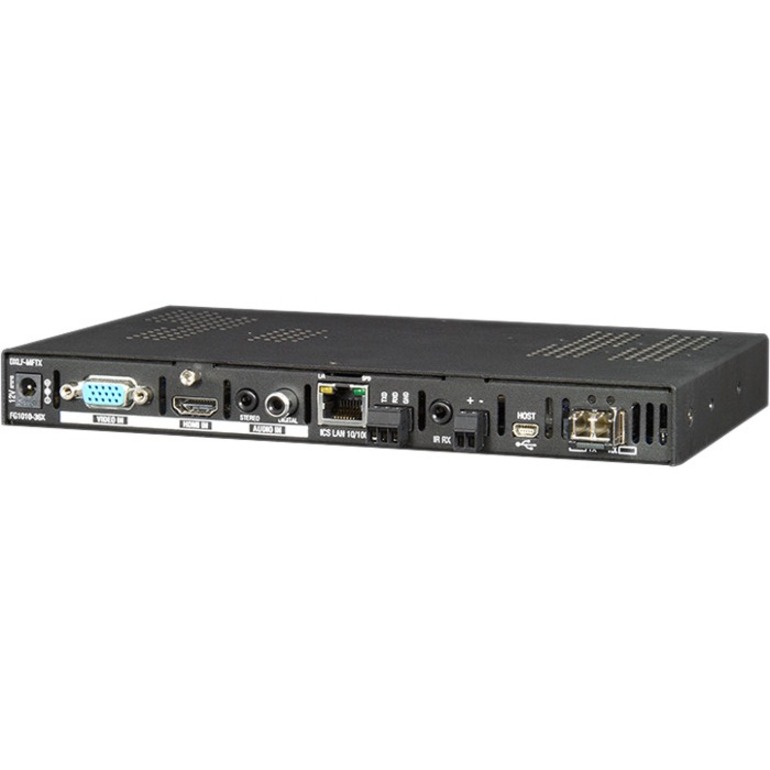

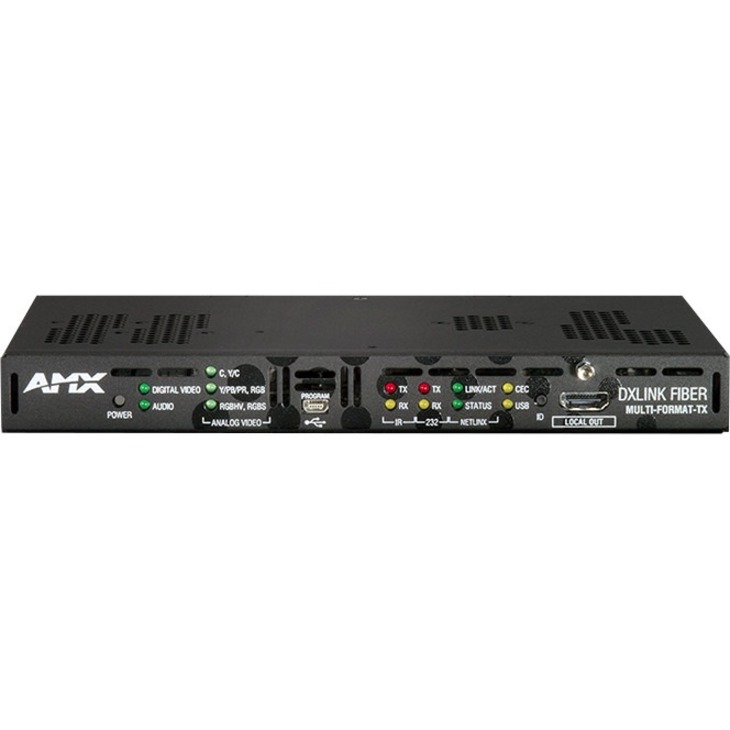

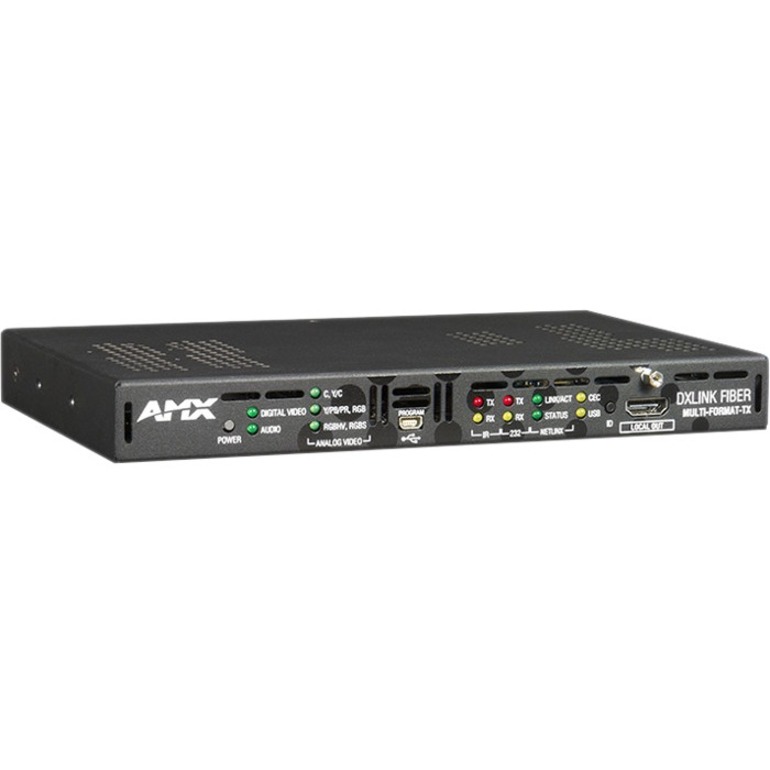

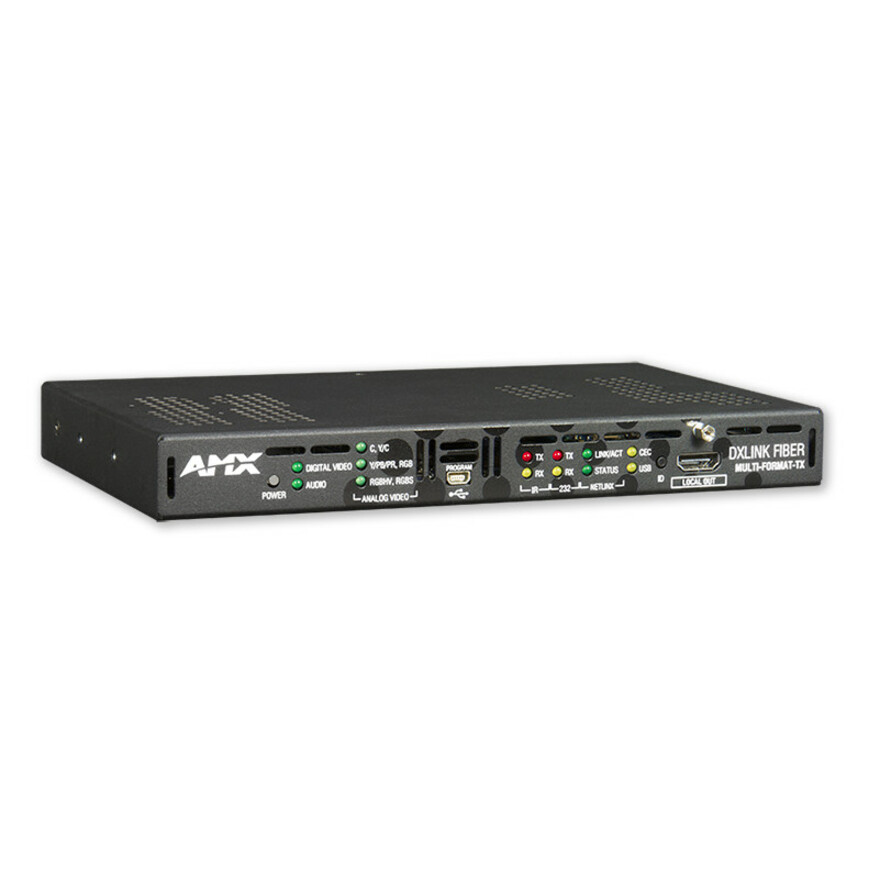

AMX DXF-TX-MMD DXLink Multi-Format Multimode Fiber Transmitter, Duplex
2 Input Device - 1 Output Device - 984 ft Range - 1 x Network (RJ-45) - 2 - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 480p, 480i, 576i, 1080i - WUXGA - 1920 x 1200 - Optical Fiber, Twisted Pair
- SKU
- FG1010-361FX
- Category
- Audio & Video Consoles/Extenders
MSRP$2,786.00
$1,349.57
Save 52%Back ordered — ships when restocked.
Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FG1010-361FX
- Category
- Audio & Video Consoles/Extenders
Overview
The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 300 meters over multimode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video at the fastest data rate in the industry - 10 Gbps. The DXF-TX-MMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.
Common Applications
The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.
Highlights
- HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 300 m
- Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
- Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
- InstaGate Pro® Technology - Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints - it just works
- Native NetLinx® Control Everywhere - Control connected source devices using the built-in IR and RS-232 ports
- Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
- Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
- Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to a Ethernet enabled source device
Specifications
| Product Type | Video Extender Transmitter |
|---|---|
| Manufacturer Part Number | FG1010-361FX |
| Connectivity Technology | Wired |
| Manufacturer | Harman International Industries, Inc |
| Product Model | DXF-TX-MMD |
| Product Name | DXF-TX-MMD DXLink Multi-Format Multimode Fiber Transmitter, Duplex |
| Product Line | DXLink |
| Brand Name | AMX |
| Graphics Modes | WUXGA |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 984 ft |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 2 |
| Number of HDMI Inputs | 1 |
| Number of HDMI Outputs | 1 |
| VGA In | Yes |
| HDMI In | Yes |
| HDMI Out | Yes |
| Media Type Supported | Optical Fiber, Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 2 |
| Transmitter Height | 1" |
| Transmitter Width | 8.71" |
| Transmitter Depth | 5.15" |
| Number of VGA Inputs | 1 |
| Supported Video Modes | 480p, 480i, 576i, 1080i |
More Audio & Video Consoles/Extenders from Harman International Industries

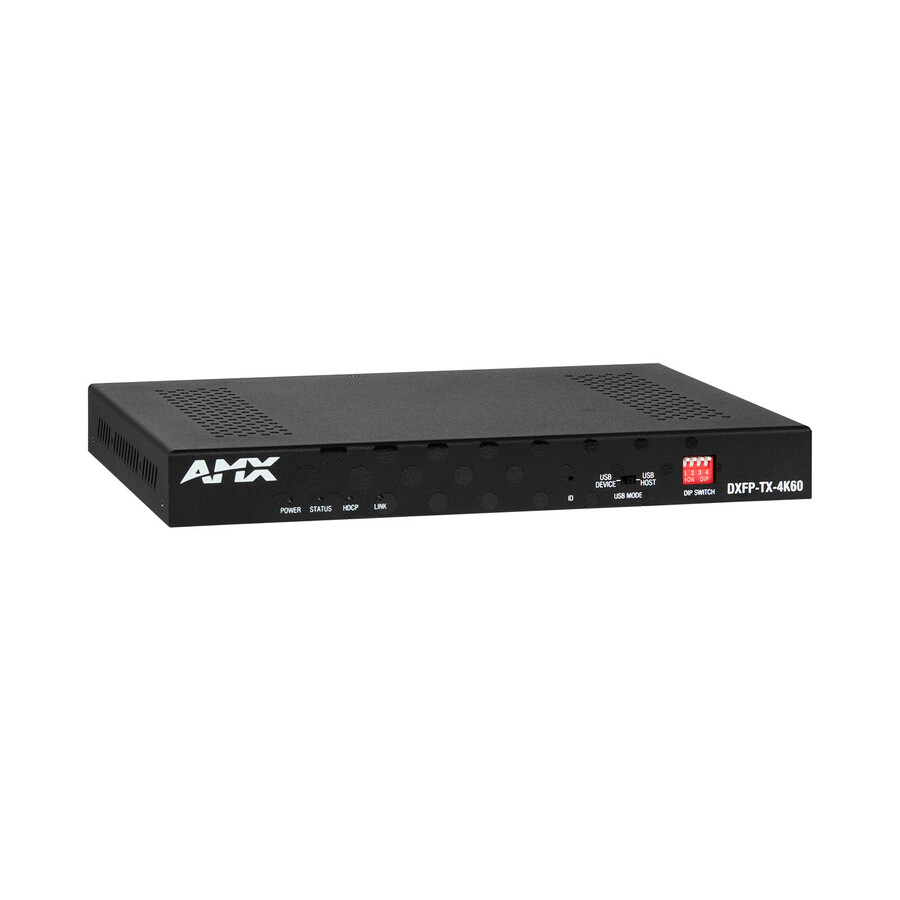

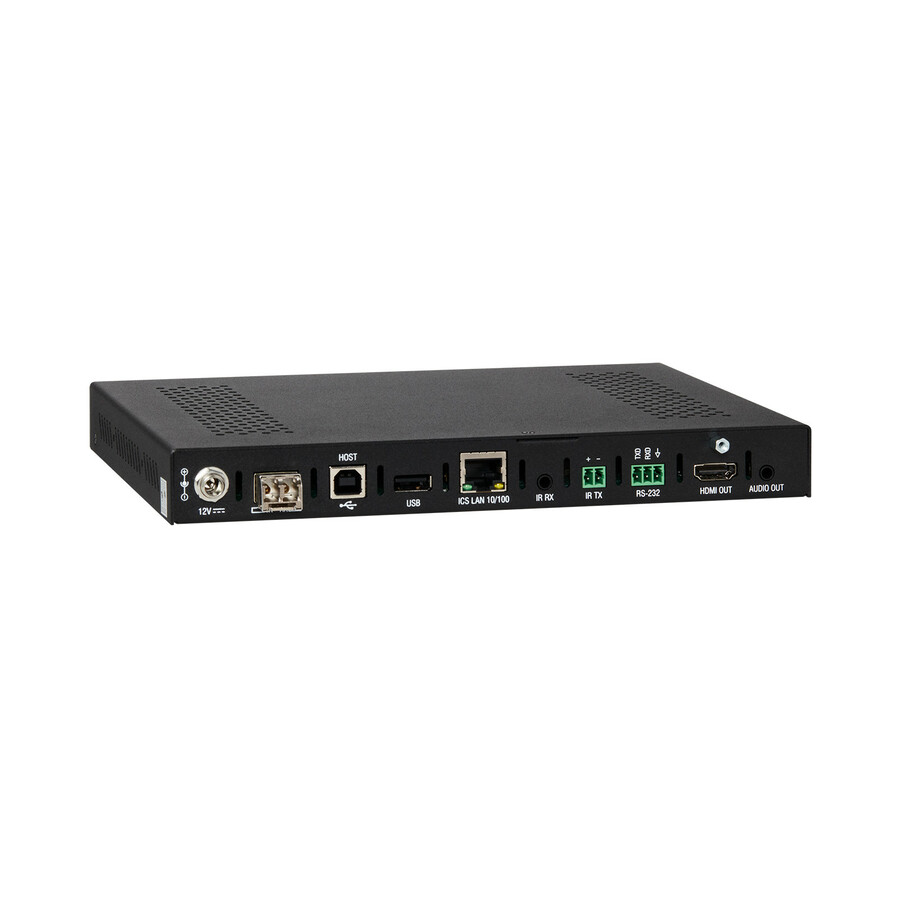

View the Harman International Industries catalog →- Harman International IndustriesAMX DXLink 4K60 HDMI Fiber Transmitter Module - 1 Input Device - 1804.46 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x HDMI Out - 2160p - 4K - Optical Fiber - Surface-mountable, Pole-mountable, Rail-mountable - TAA CompliantFG1010-365-02
