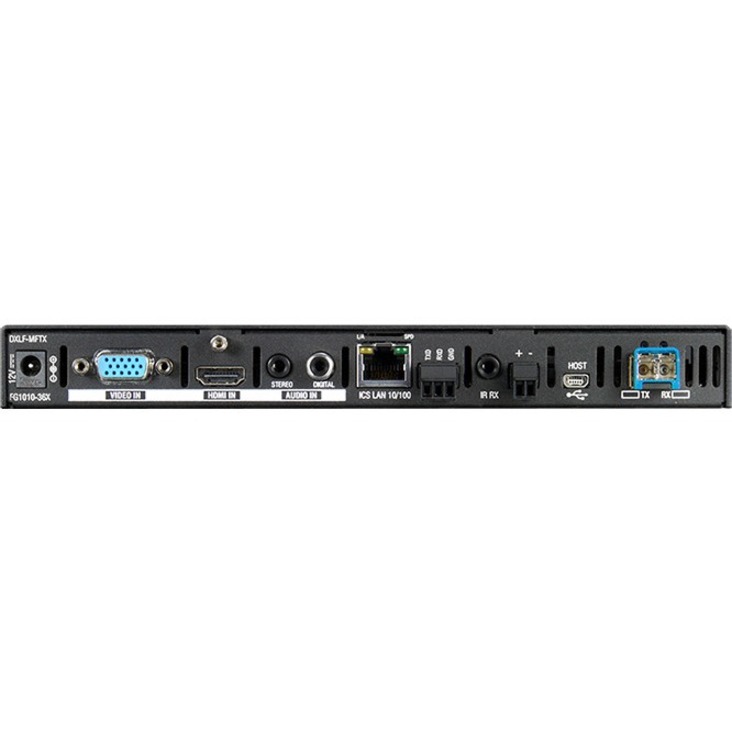

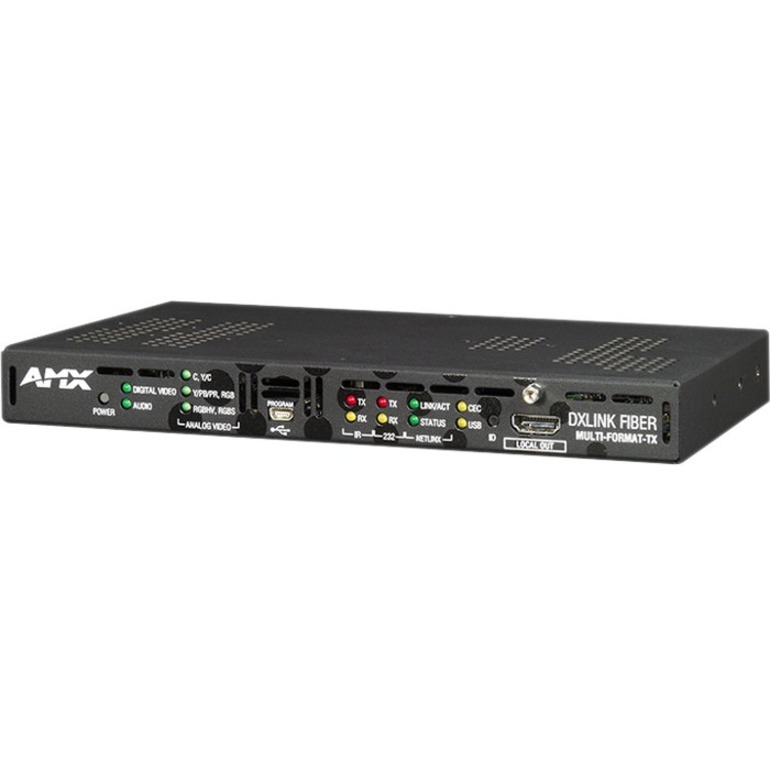

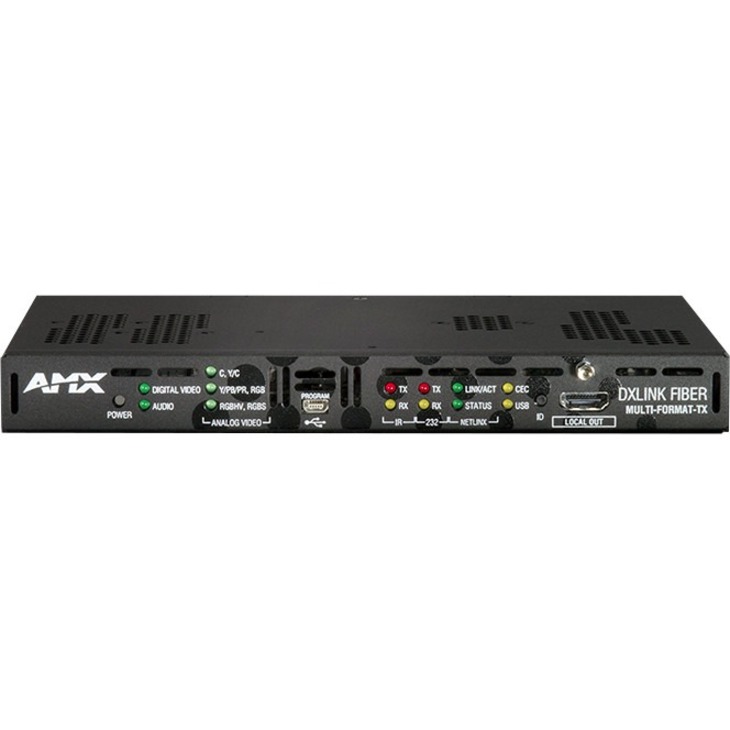

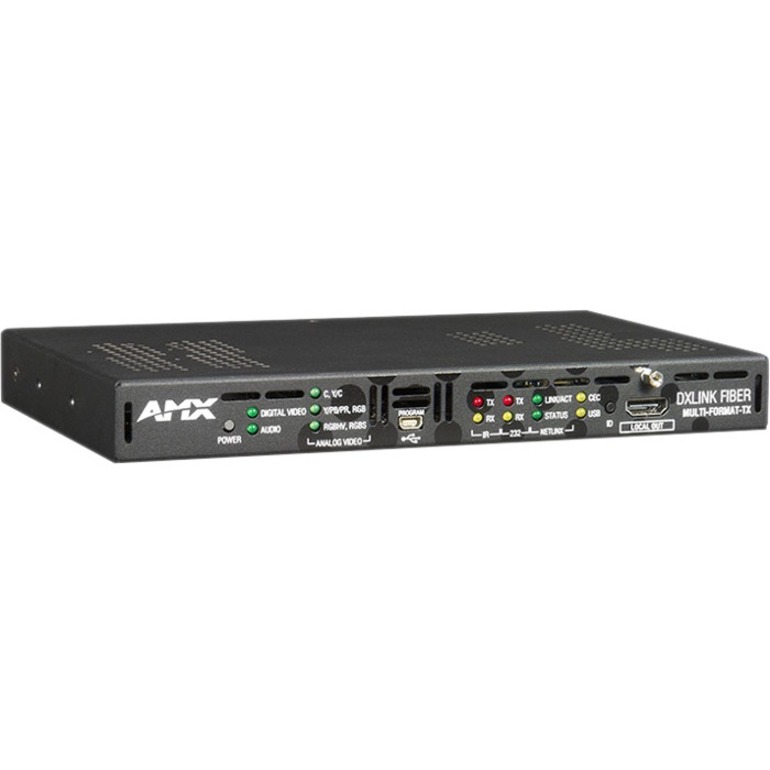

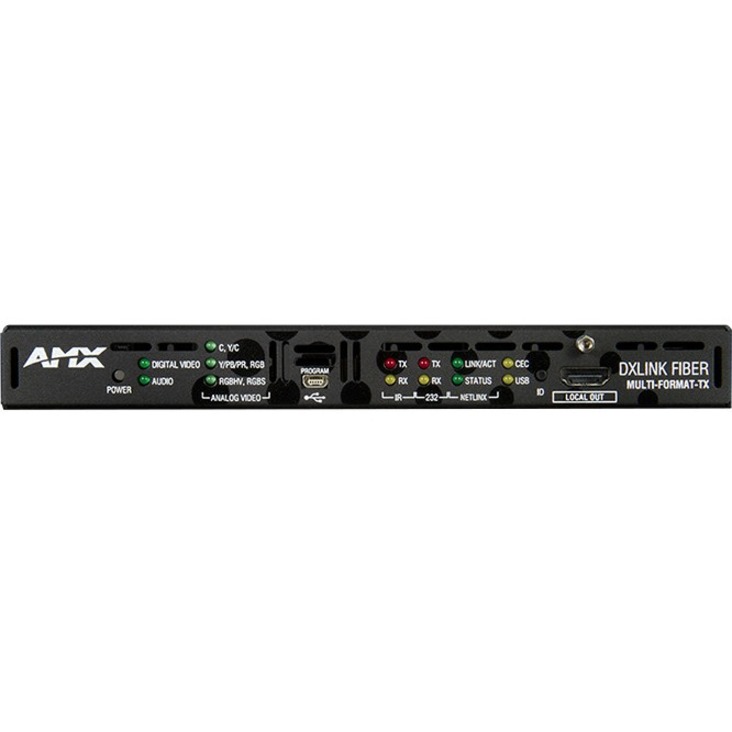

AMX DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter, Duplex
2 Input Device - 1 Output Device - 32808.40 ft Range - 1 x Network (RJ-45) - 2 x USB - 1 x HDMI In - 1 x VGA In - 1 x HDMI Out - 480p, 480i, 576i, 1080i - WUXGA - 1920 x 1200 - Optical Fiber, Twisted Pair
SKU
FG1010-360FX
Category
Audio & Video Consoles/Extenders
MSRP$2,786.00
$1,626.79
Save 42%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FG1010-360FX
Category
Audio & Video Consoles/Extenders
Overview
The DXLink Multi-Format Fiber Transmitter sends analog and digital audio and video signals including HDMI with HDCP up to 10 Km over single mode fiber. Use the DXLink Fiber Transmitter in conjunction with the Enova DGX 8, 16, 32 or 64 to transmit clear, uncompressed video beyond 6 miles at the fastest data rate in the industry - 10 Gbps. The DXF-TX-SMD also sends and receives control commands from the Enova DGX Digital Media Switcher with integrated NetLinx providing a total control and distribution solution to all end points.
Common Applications
The ideal entry-point for any source designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect video sources such as PCs using the HD-15 multi-format input connection or HDMI input and easily include audio on the same fiber cable by using the stereo or digital audio connection.
Highlights
HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 10 Km (over 6 miles)
Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments
InstaGate Pro® Technology - Easily integrate HDCP into system designs and enjoy hassle free matrix switching to all compliant displays, no tools, no delays and no key constraints - it just works
Native NetLinx® Control Everywhere - Control connected source devices using the built-in IR and RS-232 ports
Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
Multi-Format Analog Port and HDMI Port - Supports legacy analog signals - RGBHV, Component, S-Video, and Composite, and digital HDMI/HDCP, DisplayPort and DVI signals
Ethernet Connectivity - Provides ICSLan Ethernet support at the Transmitter - add Ethernet connectivity to a Touch Panel, plug in a WAP or stream IP audio/video to a Ethernet enabled source device
Specifications
General Information
Manufacturer
Harman International Industries, Inc
Manufacturer Part Number
FG1010-360FX
Brand Name
AMX
Product Line
DXLink
Product Model
DXF-TX-SMD
Product Name
DXF-TX-SMD DXLink Multi-Format Single Mode Fiber Transmitter, Duplex
