AMX DXLinkTM HDMI Multimode Fiber Receiver, Simplex With Fiber Extension
1 Output Device - 984.25 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI Out - 480i, 576i, 720p, 1080i, 1080p - WUXGA - 1920 x 1200 - Optical Fiber - Surface-mountable, Pole-mountable, Rail-mountable
- SKU
- FG1010-563FX
- Category
- Audio & Video Consoles/Extenders
MSRP$2,180.00
$1,055.28
Save 52%Back ordered — ships when restocked.
Genuine Harman International Industries through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FG1010-563FX
- Category
- Audio & Video Consoles/Extenders
Overview

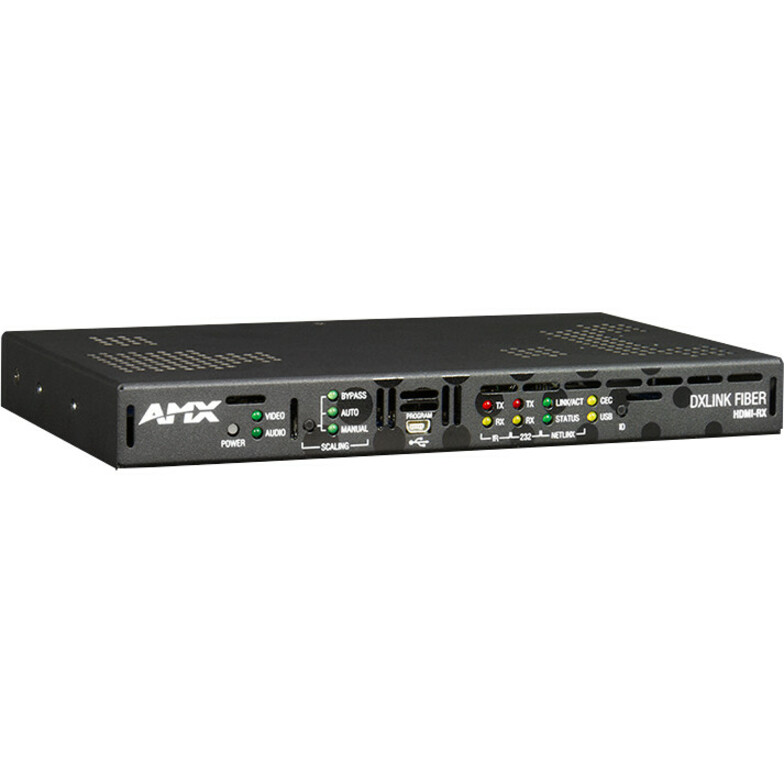

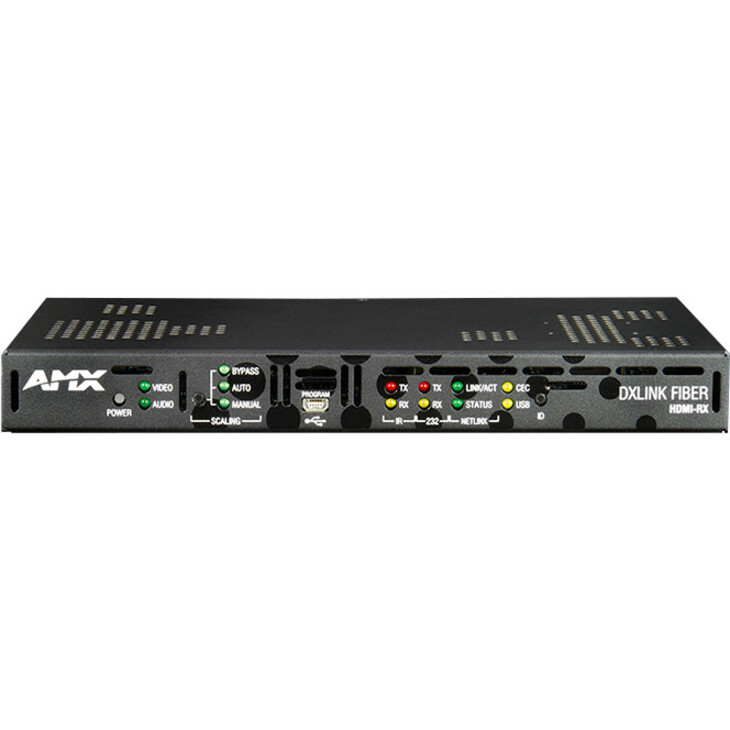

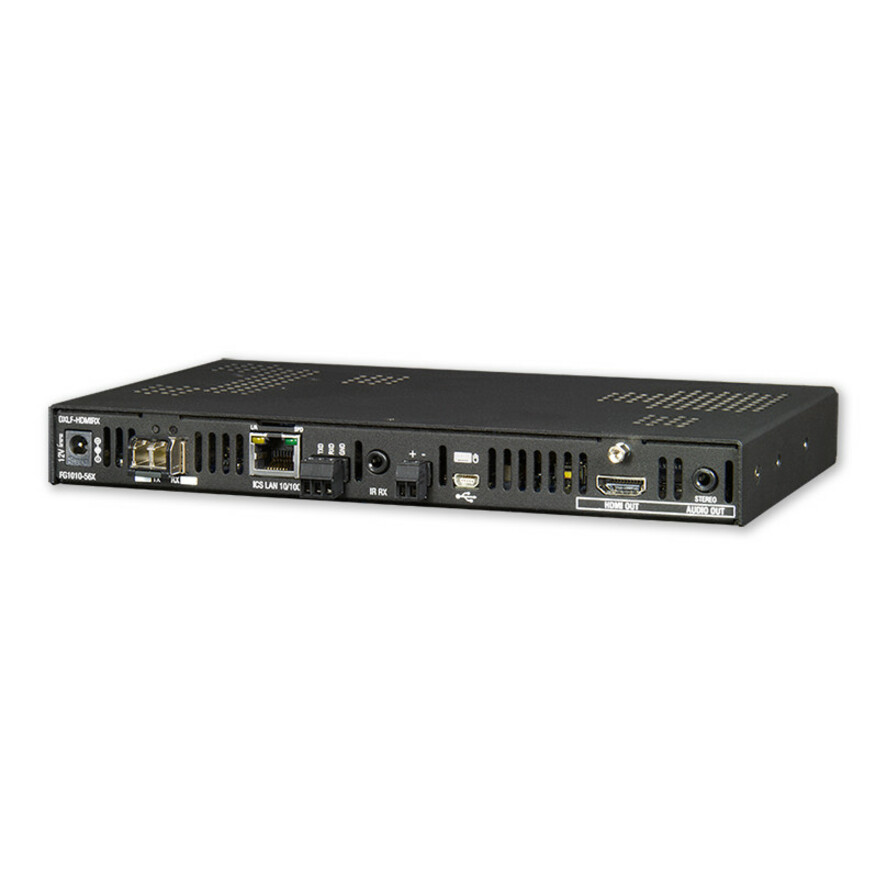

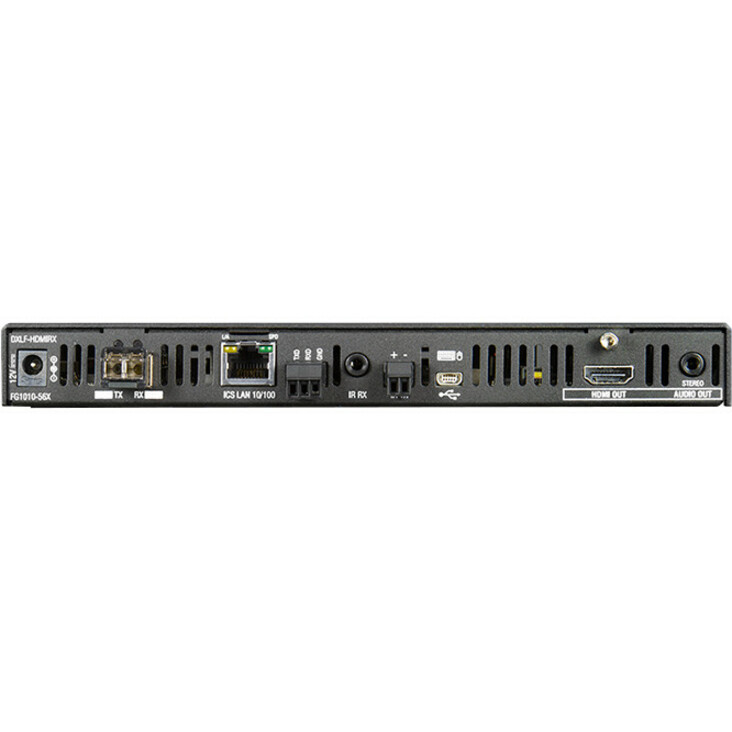

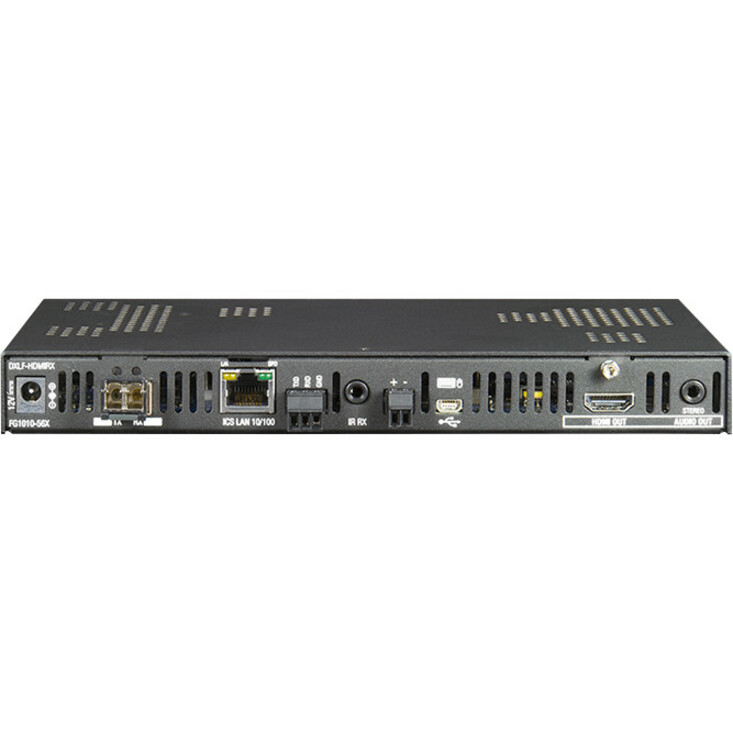

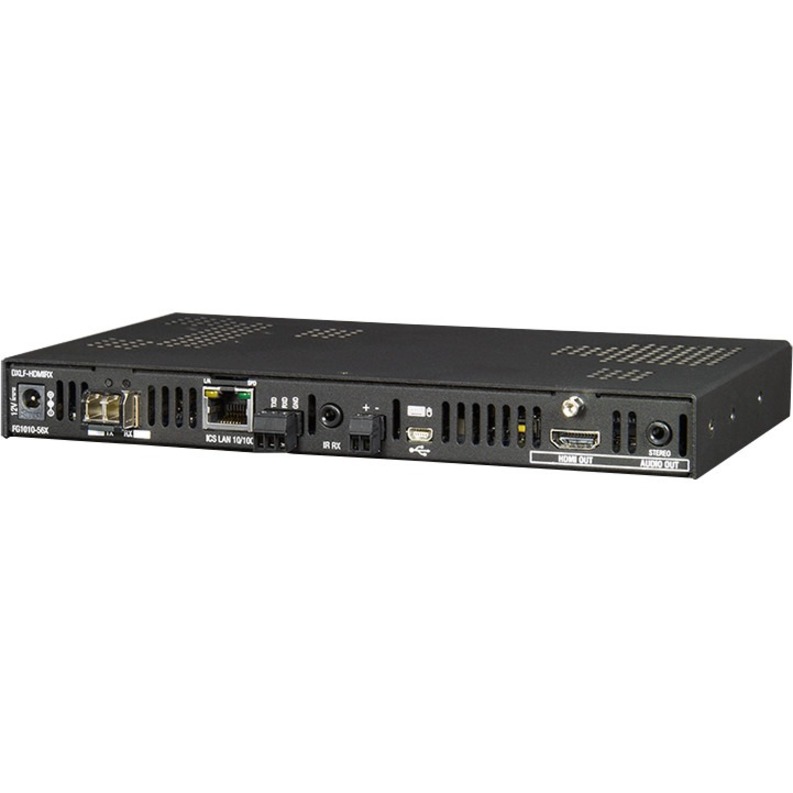

The DXLink HDMI Fiber Receiver features built-in SmartScale® Technology to deliver HDMI with HDCP that is perfectly scaled for each connected display automatically, eliminating the integration challenges that can occur when sources and displays have different optimal resolutions. It accepts audio and video over multimode fiber from up to 300 meters. Mount the low-profile DXLink Fiber Receiver behind a display or above a ceiling mounted projector.
COMMON APPLICATIONS
The ideal solution for any destination display or projector designed into an Enova DGX integrated system that requires the distance capabilities and inherent security of fiber - or both; including campus-wide distribution of sources that are shared between classrooms, secure military applications, casinos, arenas and museums. Directly connect LCDs, plasmas and projectors using the HDMI output connection while delivering room audio via the stereo audio output.
Highlights
- HDCP Compliance Over Fiber - Transmit HDCP compliant video including HDMI up to 300 m
- Industry Leading Data Rate - DXLink is leading the way with an optical transport rate of 10 Gbps
- SmartScale® Technology - Automatically responds to the display's declared EDID information and scales the video to the best resolution and video parameters for that display without manual setup; this prevents inferior video quality when sources are forced to lower resolutions to support the least capable display in the system
- Secure and Isolated - Fiber inherently provides extra security and electrical isolation making it the transport method of choice for many mission-critical secure environments; further, by removing the fiber return path simplex models provide an added layer of security
- Field Serviceable Fiber Modules - Easily remove and replace SFP modules in the field
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Receiver |
| Manufacturer Part Number | FG1010-563FX |
| Connectivity Technology | Wired |
| Form Factor | Surface-mountable, Pole-mountable, Rail-mountable |
| Manufacturer | Harman International Industries, Inc |
| Product Model | DXF-RX-MMS |
| Product Name | DXLinkTM HDMI Multimode Fiber Receiver, Simplex With Fiber Extension |
| Product Line | DXLink |
| Brand Name | AMX |
| Graphics Modes | WUXGA |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1200 |
| Maximum Operating Distance | 984.25 ft |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Number of USB Ports | 1 |
| Number of HDMI Outputs | 1 |
| HDMI Out | Yes |
| Media Type Supported | Optical Fiber |
| Number of Output Devices Supported | 1 |
| Receiver Height | 1" |
| Receiver Width | 8.71" |
| Receiver Depth | 5.15" |
| Receiver Weight (Approximate) | 1.10 lb |
| Supported Video Modes | 480i, 576i, 720p, 1080i, 1080p |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
