StarTech VGA to Cat 5 Monitor Extender Kit (250ft/80m), VGA Cat5 Extender, TAA
Extend a VGA signal to a remote display using Cat5 cabling - vga extender - vga to cat5 - cat 5 vga extender - cat5 vga extender - monitor extender
- SKU
- ST121UTPEP
- Category
- Audio & Video Consoles/Extenders
MSRP$156.81
$148.29
Save 5%In stock: 75
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ST121UTPEP
- Category
- Audio & Video Consoles/Extenders
Overview
The ST121UTPEP VGA Video Extender over Cat5 - Point to Point lets you connect a remote VGA display/projector up to 80m (250ft) away from the VGA signal source. The ST121UTPEP is a bundled kit that includes both a local and a remote unit providing a complete end to end solution for a single source/display connection, transmitting the source VGA signal over a standard Ethernet cable (Cat5or better UTP cable, terminated with RJ45 connectors). Offering convenient and cost-effective VGA distribution, the ST121UTPEP only requires one power adapter which can be installed at either the local or remote end of the connection, depending on what is most convenient for your application. To ensure a tidy installation, the ST121UTPEP includes a mounting bracket for the receiver to help eliminate unnecessary cable tangles. Backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights
- Extends video signal by up to 250 ft. (80m)
- Supports 1920x1200 or 1600x1200 resolutions at 150 ft. (50m)
- Supports 1280x1024 or 1024x768 resolutions at 250 ft. (80m)
- Mounting bracket included
- Single power adapter can be connected at local or remote end of the extension
- Uses standard Cat 5 or better cabling

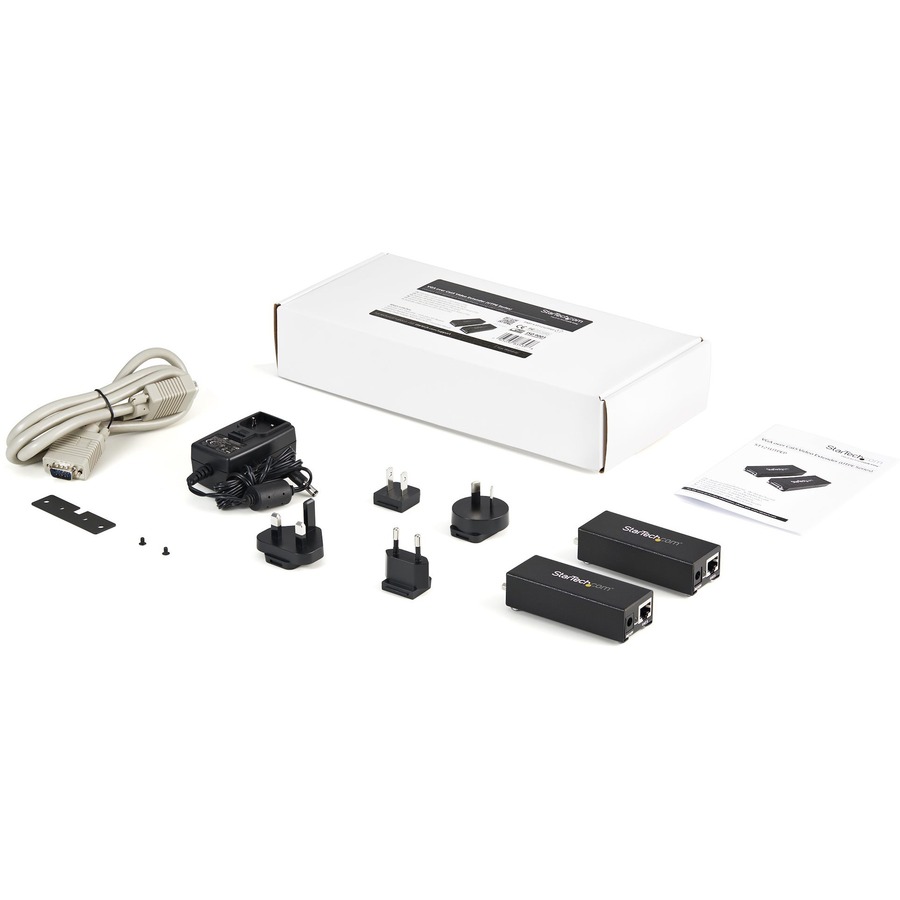

- Kit consists of 1 Base unit and 1 Remote unit
- Pure hardware design - no software or drivers required
Specifications
| Package Contents |
|
|---|---|
| Product Type | Video Extender Transmitter/Receiver |
| Manufacturer Part Number | ST121UTPEP |
| Packaged Quantity | 1 Kit |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | StarTech.com |
| Product Name | VGA to Cat 5 Monitor Extender Kit (250ft/80m) - VGA Cat5 Extender |
| Brand Name | StarTech.com |
| Country of Origin | Taiwan |
| Graphics Modes | WUXGA |
| Environmentally Friendly | Yes |
| Maximum Video Resolution | 1920 x 1200 |
| Twisted Pair Cable Standard | Category 5e |
| Maximum Operating Distance | 262.47 ft |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Number of VGA Outputs | 1 |
| VGA In | Yes |
| VGA Out | Yes |
| Media Type Supported | Twisted Pair |
| Number of Output Devices Supported | 1 |
| Number of Input Devices Supported | 1 |
| Transmitter Height | 1" |
| Transmitter Width | 5.40" |
| Transmitter Depth | 3.90" |
| Receiver Height | 1" |
| Receiver Width | 5.40" |
| Receiver Depth | 3.90" |
| Transmitter Weight (Approximate) | 9.28 oz |
| Receiver Weight (Approximate) | 9.28 oz |
| Number of VGA Inputs | 1 |
| TAA Compliant | Yes |
| Product Color | Black |
| Color Family | Black |
