Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
UA-R580F2
Category
Surveillance/Network Cameras
Overview

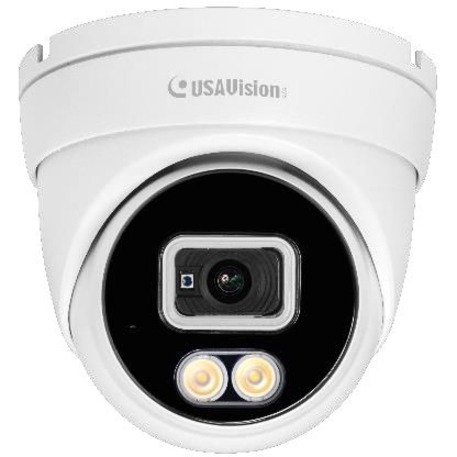

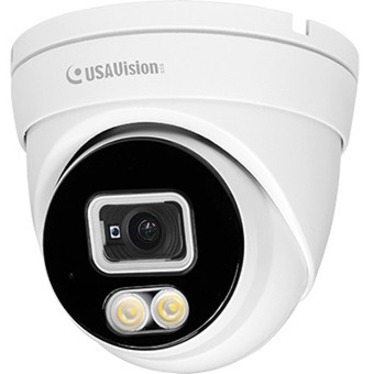

UA-R580F2 is an outdoor network camera equipped with an automatic IR-cut filter. It is built in 2 IR LEDs and 2 full-color warm LEDs to enhance the accuracy of day and night surveillance. The IR illumination can reach up to 30 m (100 ft) while the warm LED is up to 25 m (80 ft). The camera supports H.265 video codec to achieve a better compression ratio while maintaining high-quality pictures at reduced network bandwidths. The camera adheres to IP66 standards and can be powered through PoE.
This camera also supports AI functions. Empowered by deep learning algorithms, AI technology distinguishes humans and vehicles from other moving objects. Integrated with USAVision Standalone Network Video Recorder (UA-SNVR1620-P and UA-SNVRL810-P), it supports smart premier protection, real-time alert, event playback, and more.
5MP H.265 Super Low Lux WDR Pro Full Color IR Eyeball Dome IP Camera
Product Type
Network Camera
Interfaces/Ports
Network (RJ-45)
Yes
Lens
Lens Type
Fixed
Maximum Focal Length
2.80 mm
Lens Included
Yes
Lens Mount Type
M12-mount
Maximum Aperture
f/1
Network & Communication
Connectivity Technology
Wired
Remote Management
Yes
Physical Characteristics
Color Family
White
Mount Type
Wall Mount, Bracket Mount, Box Mount, Power Box Mount
Product Color
White
Form Factor
Dome
Height
3.5"
Diameter
3.9"
Weight (Approximate)
14.57 oz
Power Description
Input Voltage
12 V DC
Storage
Storage Type
Memory Card
Technical Information
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared/Color
Number of IR LEDs
2
Video
Video Formats
H.265, H.264
Maximum Video Resolution
2880 x 1620
Maximum Frame Rate
30 fps
Warranty
Limited Warranty
12 Month
Miscellaneous
Features
Built-in IR LED, Built-in Microphone, SD Card Local Storage, Ingress Protection, Back Light Compensation (BLC), 3D Digital Noise Reduction, Motion Detection, Privacy Masking, Auto Gain Control, Automatic White Balance, Cross Line Detection, Wide Dynamic Range
Indoor/Outdoor
Outdoor
Package Contents
5MP H.265 Super Low Lux WDR Pro Full Color IR Eyeball Dome IP Camera
