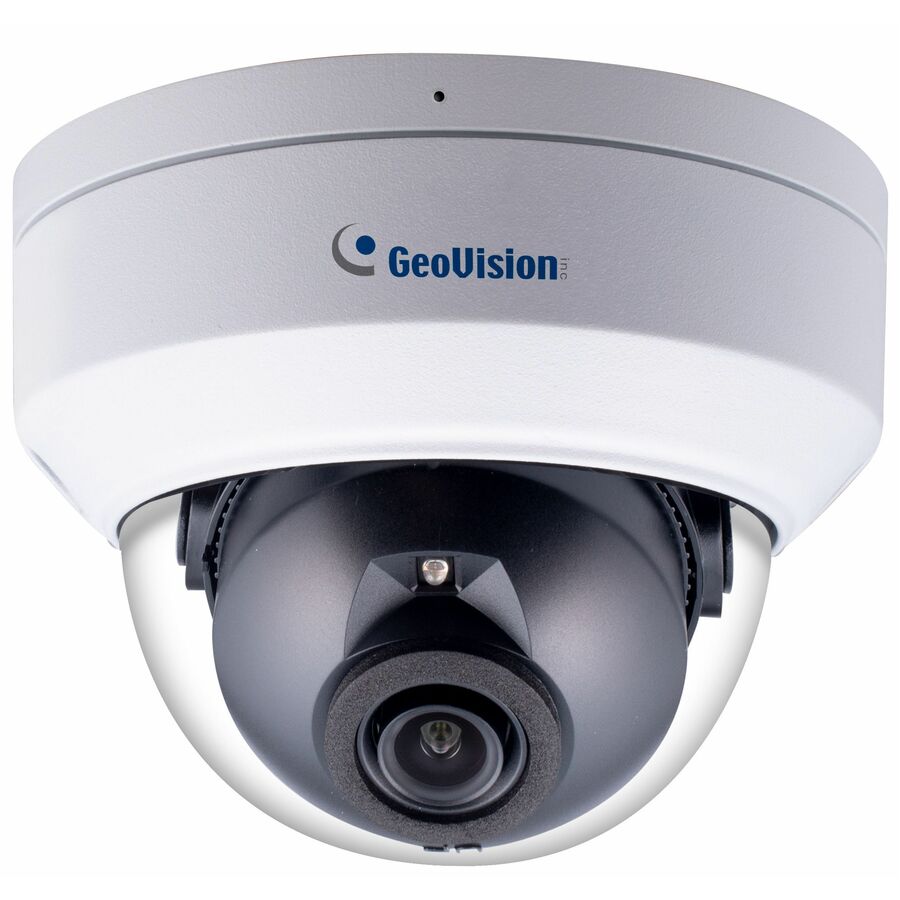

GeoVision GV-TDR2705 2 Megapixel Outdoor Full HD Network Camera - Color - Dome
98.43 ft Infrared Night Vision - H.264, H.265, MJPEG - 1920 x 1080 - 2.80 mm Fixed Lens - 30 fps - CMOS - Fast Ethernet - IK10 - IP67 - Vandal Resistant - Audio Support - Day/Night, Built-in IR LED, Wide Dynamic Range, Ingress Protection, Privacy Masking, HTTPS Encryption, Motion Detection, 3D Noise Reduction, White Balance, Defog, SD Card Local Storage, ...
- SKU
- 125-TDR2705-2F10
- Category
- Surveillance/Network Cameras
MSRP$128.00
$92.44
Save 28%Back ordered — ships when restocked.
Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 125-TDR2705-2F10
- Category
- Surveillance/Network Cameras
Overview

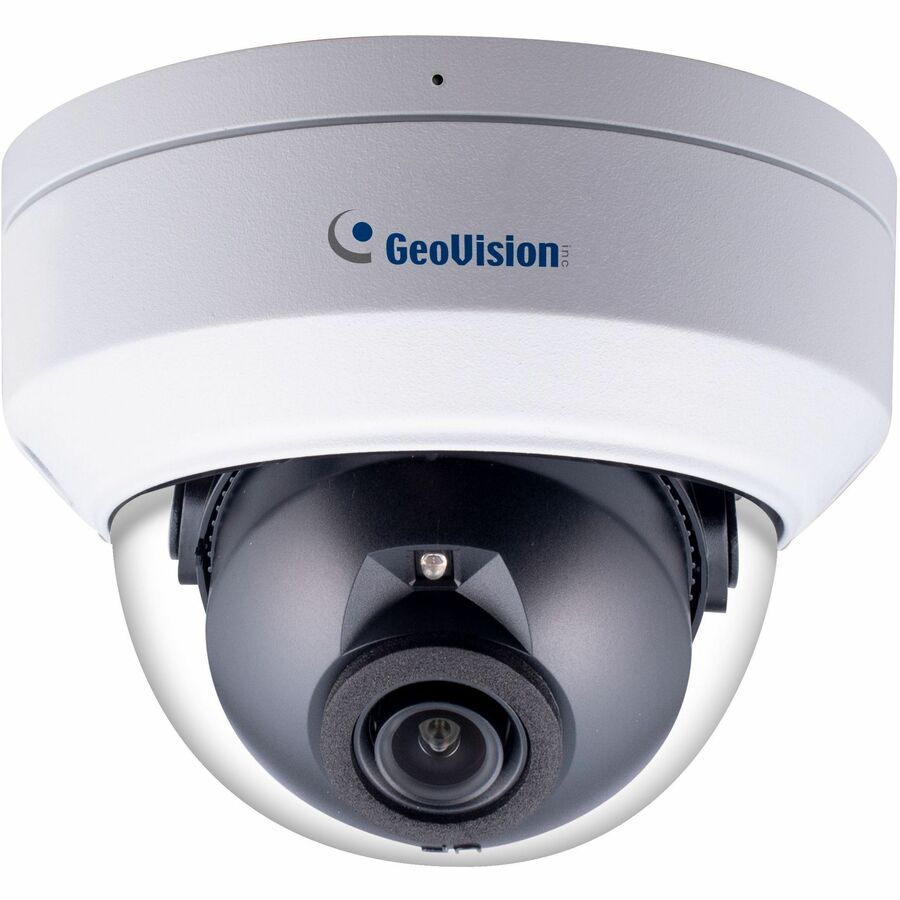

The Mini Fixed Rugged IP Dome is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. It adheres to IP67 and IK10 standards, and can be powered through PoE.
Highlights
- 1/2.7" progressive scan CMOS sensor
- Min. illumination at 0.01 lux
- Dual streams from H.265, H.264 or MJPEG
- Up to 30 fps at 1920 x 1080
- Intelligent IR
- IR distance up to 30 m (100 ft)
- Built-in microphone
- Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
- 3-axis mechanism (pan / tilt / rotate)
- Day and night function (with removable IR-cut filter)
- Ingress protection (IP67)
- Vandal Resistance (IK10 for metal casing)
- DC 12V / PoE (IEEE 802.3af)
- Wide Dynamic Range (WDR Pro)
- Defog
- 3D noise reduction
- Motion detection
- Tampering alarm
- Text overlay
- Privacy mask
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Specifications
| Package Contents |
|
|---|---|
| Product Type | Network Camera |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | 125-TDR2705-2F10 |
| Protocols | ONVIF, DHCP, DDNS, DNS, DynDNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, QoS, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP, UPnP |
| Recording Formats | Full HD |
| Limited Warranty | 24 Month |
| Weight (Approximate) | 12.70 oz |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Durability | Vandal Resistant |
| Features | Day/Night, Built-in IR LED, Wide Dynamic Range, Ingress Protection, Privacy Masking, HTTPS Encryption, Motion Detection, 3D Noise Reduction, White Balance, Defog, SD Card Local Storage, Built-in Microphone |
| Form Factor | Dome |
| Lens Type | Fixed |
| Manufacturer | GeoVision, Inc |
| Product Model | GV-TDR2705 |
| Product Name | GV-TDR2705 2MP H.265 Low Lux WDR Pro IR Mini Fixed Rugged IP Dome |
| Video Formats | H.264, H.265, MJPEG |
| Brand Name | GeoVision |
| Diameter | 4.3" |
| Maximum Aperture | f/2.0 |
| Image Sensor Size | 1/2.7" |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 30 fps |
| Maximum Focal Length | 2.80 mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 2 Megapixel |
| Ethernet Technology | Fast Ethernet |
| Field of View | Horizontal: 112.9° |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Lens Mount Type | Ø12 |
| Remote Management | Yes |
| Maximum Power Consumption | 5 W |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 98.43 ft |
| Number of IR LEDs | 1 |
| Camera Iris | Fixed |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Power Source Type | DC, PoE |
| Languages Support | Czech, English, French, German, Hungarian, Italian, Japanese, Polish, Portuguese, Russian, Spanish, Traditional Chinese |
| Audio Support | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Night Vision Type | Infrared |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Minimum Operating Humidity (Non-condensing) | 0% |
| Maximum Operating Humidity (Non-condensing) | 95% |
| Wide Dynamic Range Detail | 120 dB |
