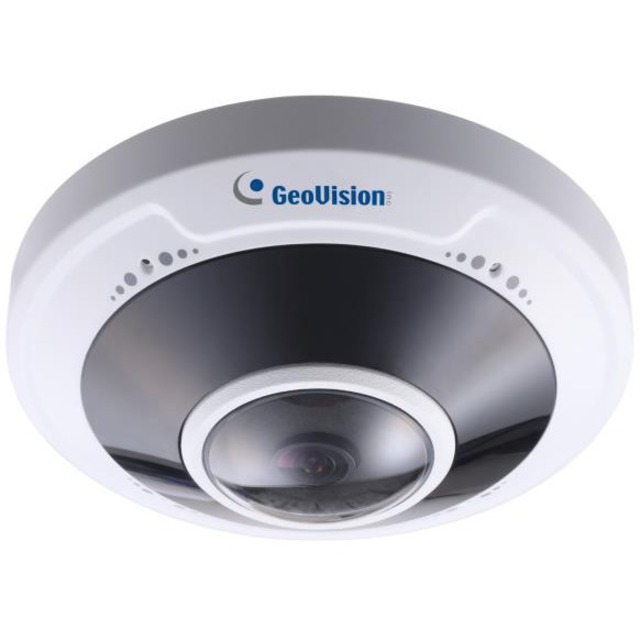

GeoVision GV-FER5702 5 Megapixel Outdoor Network Camera - Color - Fisheye
65.62 ft Infrared Night Vision - H.265, H.264, Motion JPEG - 2592 x 1944 - 1.40 mm Fixed Lens - 30 fps - CMOS - Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount - IK10 - IP66 - Vandal Resistant
SKU
Category
Surveillance/Network Cameras
MSRP$609.00
$468.99
Save 23%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine GeoVision through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Surveillance/Network Cameras
Overview
GV-FER 5702 is a 5 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP66 and IK10 standards and can be powered through PoE. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image. It is also equipped with a built in micro SD card slot for local storage.
Warranty
Limited Warranty: 24 Month
Highlights
1/2.8" progressive scan CMOS sensor
Triple streams from H.265, H.264 and MJPEG
Up to 30 fps at 2592 × 1944
Wide Dynamic Range Pro (WDR Pro)
Intelligent IR
Day and Night function (with removable IR-cut filter)
Vandal resistance (IK10)
Ingress protection (IP66)
One sensor input and one alarm output
Built-in microphone
Specifications
Display & Graphics
Image Sensor Type
CMOS
Color Supported
Color
Field of View
180°
Effective Camera Resolution
5 Megapixel
Environmental Conditions
Minimum Operating Temperature
-22°F (-30°C)
Maximum Operating Temperature
140°F (60°C)
Maximum Operating Humidity
95%
Exposure
Shortest Shutter Speed
1/100000 Second
Longest Shutter Speed
1 Second
General Information
Manufacturer
GeoVision, Inc
Manufacturer Part Number
GV-FER5702
Brand Name
GeoVision
Product Model
GV-FER5702
Product Name
5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera
Product Type
Network Camera
Interfaces/Ports
Network (RJ-45)
Yes
Lens
Lens Type
Fixed
Maximum Focal Length
1.40 mm
Lens Included
Yes
Lens Mount Type
M12-mount
Maximum Aperture
f/2.0
Network & Communication
Connectivity Technology
Wired
Remote Management
Yes
Physical Characteristics
Mount Type
Pendant Mount, Wall Mount, Junction Box Mount, Ceiling Mount
Form Factor
Fisheye
Durability
Vandal Resistant
Diameter
4.9"
Weight (Approximate)
12.70 oz
Power Description
Input Voltage
12 V DC
Storage
Storage Type
Memory Card
Technical Information
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
65.62 ft
Night Vision Type
Infrared
Number of IR LEDs
3
Video
Video Formats
H.265, H.264, Motion JPEG
Maximum Video Resolution
2592 x 1944
Maximum Frame Rate
30 fps
Warranty
Limited Warranty
24 Month
Miscellaneous
Features
Ingress Protection, Day/Night, Wide Dynamic Range, Rugged Design, SD Card Local Storage, Built-in Microphone, 2D Noise Reduction, 3D Noise Reduction, Smart Stream, Tampering Alarm, PTZ, Privacy Masking, Automatic White Balance
Indoor/Outdoor
Outdoor
Package Contents
5MP H.265 Super Low Lux WDR Pro IR Fisheye Rugged IP Camera
