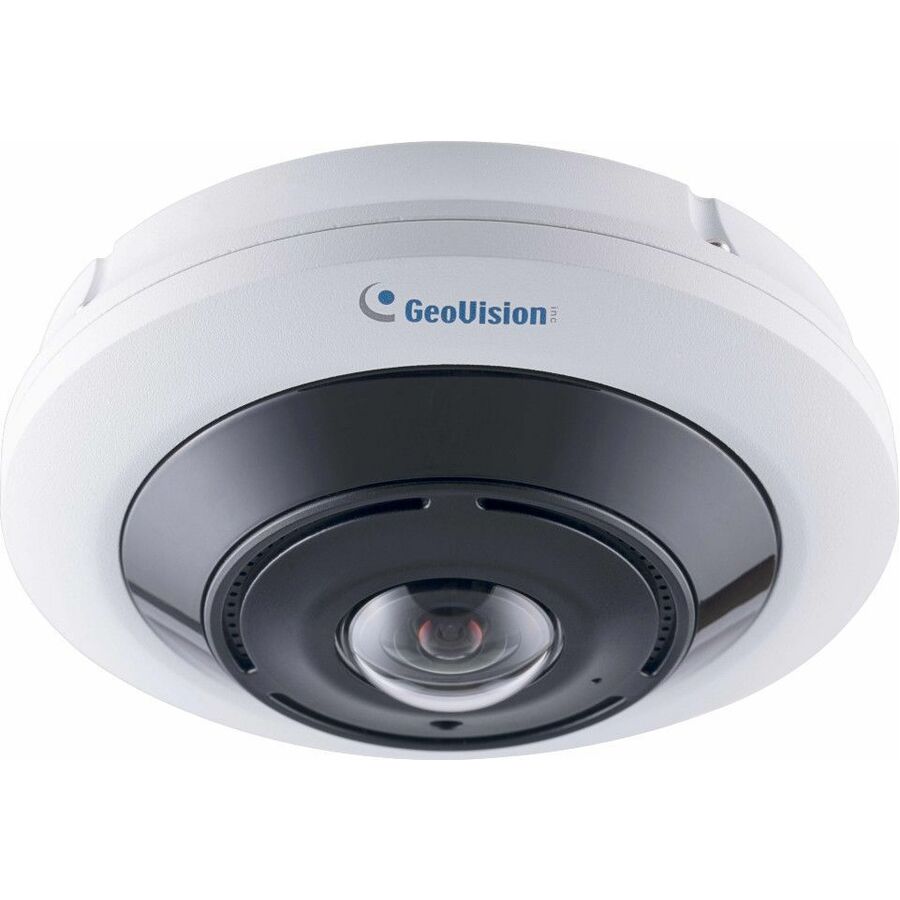

GeoVision GV-RFER12700 12 Megapixel Outdoor Network Camera - Color - Fisheye
32.81 ft Infrared Night Vision - H.265, H.264 - 3840 x 3000 - 1.60 mm Fixed Lens - 15 fps - CMOS - Fast Ethernet - Ceiling Mount, Wall Mount, Desk Mount - IP66 - Audio Support - Day/Night, Built-in IR LED, Ingress Protection, Wide Dynamic Range, HTTPS Encryption, Privacy Masking, Privacy Protection, Password Protection, White Balance, Automatic White Balance, Gain Control
- SKU
- 125-RFER127-0010
- Category
- Surveillance/Network Cameras
MSRP$645.00
$456.47
Save 29%Back ordered — ships when restocked.
Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 125-RFER127-0010
- Category
- Surveillance/Network Cameras
Overview

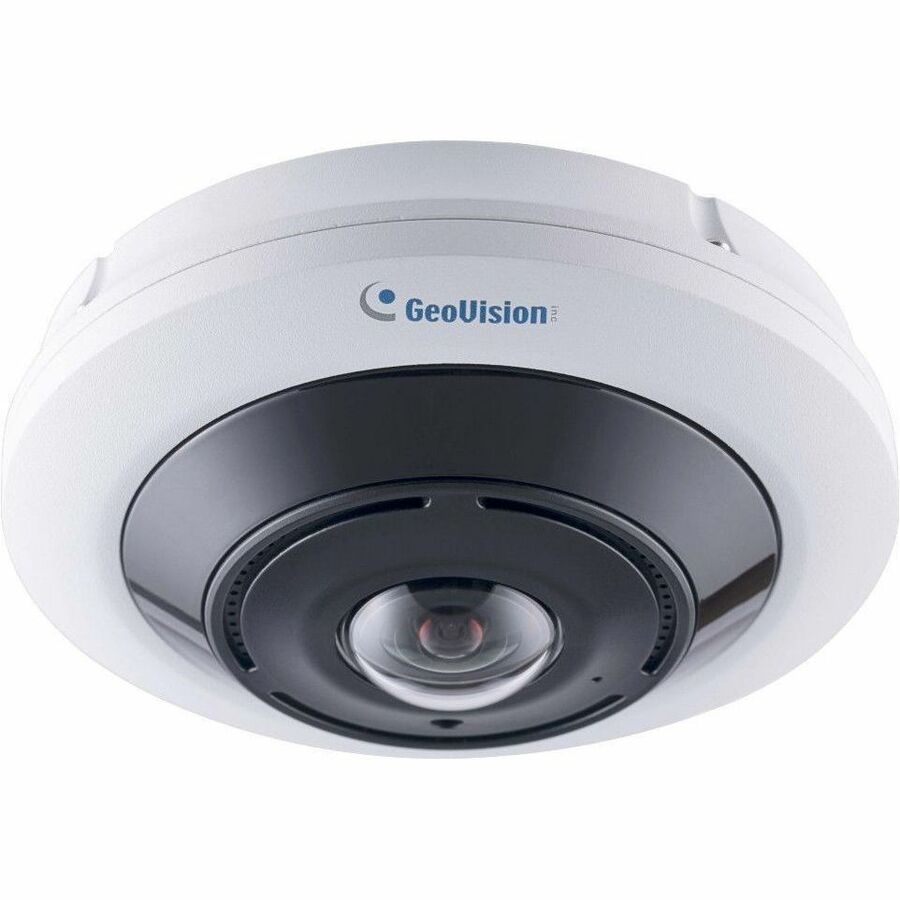

GV-RFER12700 is a 12 MP outdoor fisheye camera allowing you to monitor all angles of a location and can be installed to the ceiling or the wall. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality image at reduced network bandwidths. The camera adheres to IP66 standard and can be powered through PoE.
Highlights
- 1/2.3" progressive scan CMOS sensor
- Min. illumination at 0.01 lux
- Triple streams from H.265, H.264
- Up to 15 fps at 3840 x 3000
- Day and Night function (with removable IR-cut filter)
- Intelligent IR
- IR distance up to 10 m (35 ft)
- Ingress protection (IP66)
- Built-in micro SD card slot (SD/SDHC/SDXC/UHS-I, Class 10) for local storage
- Two-way audio
- Built-in microphone and speaker
- One sensor input and one alarm output
- DC 12V/ PoE (IEEE 802.af)
- Provides 360° and 180° panorama view
- Wide Dynamic Range (WDR)
- 3D noise reduction
- Motion detection
- Tampering alarm
- Privacy mask
- Text overlay
- 12 languages supported
- ONVIF (Profile G, S, T) conformant
Specifications
| Package Contents |
|
|---|---|
| Product Type | Network Camera |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | 125-RFER127-0010 |
| Protocols | 802.1X, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, ONVIF, RTP/RTSP, SMTP, SNMP, TCP, UPnP |
| Limited Warranty | 24 Month |
| Weight (Approximate) | 14.11 oz |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Features | Day/Night, Built-in IR LED, Ingress Protection, Wide Dynamic Range, HTTPS Encryption, Privacy Masking, Privacy Protection, Password Protection, White Balance, Automatic White Balance, Gain Control |
| Form Factor | Fisheye |
| Lens Type | Fixed |
| Manufacturer | GeoVision, Inc |
| Product Model | GV-RFER12700 |
| Product Name | GV-RFER12700 12MP H.265 Super Low Lux WDR IR Fisheye IP Camera |
| Mount Type | Ceiling Mount, Wall Mount, Desk Mount |
| Video Formats | H.265, H.264 |
| Brand Name | GeoVision |
| Diameter | 4.7" |
| Maximum Aperture | f/2 |
| Image Sensor Size | 1/2.3" |
| Maximum Video Resolution | 3840 x 3000 |
| Maximum Frame Rate | 15 fps |
| Maximum Focal Length | 1.60 mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 12 Megapixel |
| Ethernet Technology | Fast Ethernet |
| Field of View | Horizontal FOV: 180° |
| Minimum Operating Temperature | -31°F (-35°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/30000 Second |
| Lens Mount Type | M12-mount |
| Remote Management | Yes |
| Maximum Power Consumption | 9.60 W |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 32.81 ft |
| Number of IR LEDs | 3 |
| Camera Iris | Fixed |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Power Source Type | DC, PoE |
| Languages Support | English, German, Spanish, French, Japanese, Italian, Portuguese, Russian, Turkish, Traditional Chinese, Korean |
| Audio Support | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Ingress Protection Rating | IP66 |
| Night Vision Type | Infrared |
| Maximum Operating Humidity | 90% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
