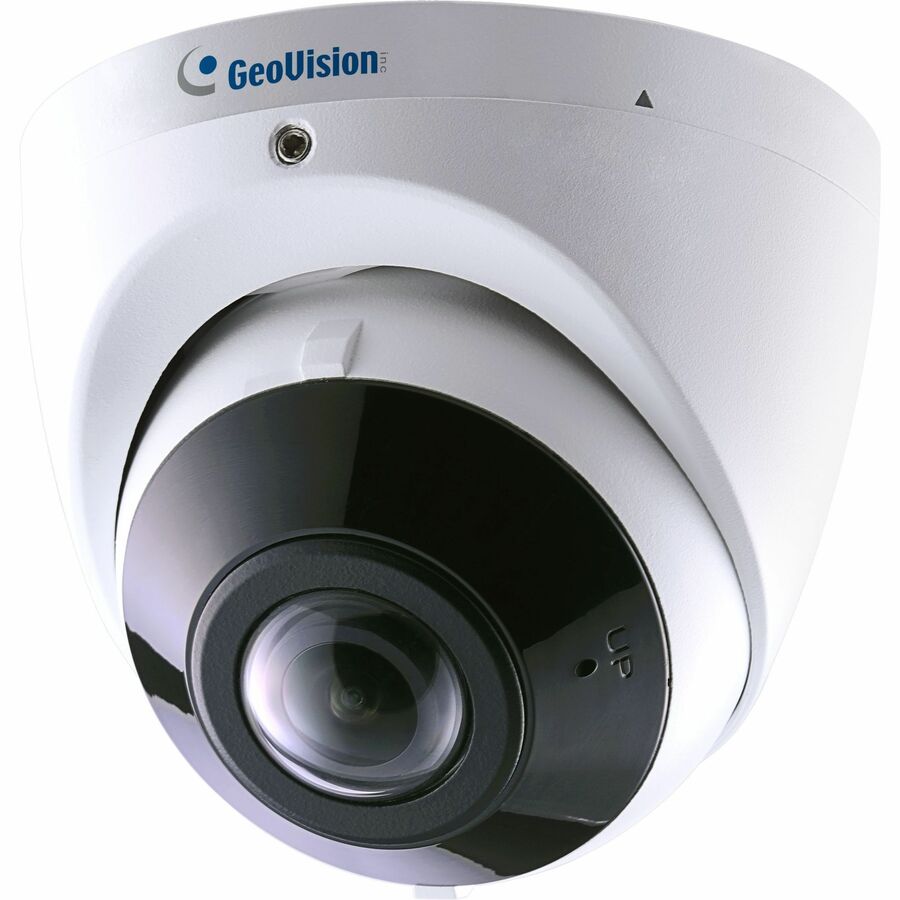

GeoVision GV-EBDP5800 5 Megapixel Outdoor Network Camera - Color - Dome
65.62 ft Infrared Night Vision - H.264, H.265, MJPEG - 2880 x 1620 - 1.68 mm Fixed Lens - 30 fps - CMOS - Fast Ethernet - Ceiling Mount, Wall Mount - IK10 - IP67 - Vandal Resistant, Weather Resistant - Audio Support - Day/Night, Built-in IR LED, Wide Dynamic Range, Ingress Protection, Privacy Masking, HTTPS Encryption, Motion Detection, 3D Noise Reduction, White Balance, Defog, SD Card Local Storage, ...
- SKU
- 125-EBDP580-0010
- Category
- Surveillance/Network Cameras
MSRP$324.00
$230.14
Save 29%Back ordered — ships when restocked.
Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 125-EBDP580-0010
- Category
- Surveillance/Network Cameras
Overview
AI Deep-Learning IP Camera
The panoramic eyeball IP camera is an outdoor, network camera that captures 180° horizontal coverage, providing a wide coverage of view for open and large areas with just one camera. It is equipped with an automatic IR-cut filter and IR LEDs for day and night surveillance. GV-EBDP5800 adheres to IK10 and IP67 standards, and can be powered through PoE. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, event playback and more.
Highlights
- Network camera - Helps achieve high-quality video results
- Up to 2880 x 1620 video resolution
- CMOS sensor is cheaper as compare to CCD and consumes less power while producing better HD videos
- 1.68 mm maximum focal length provides incredible detail and how effective is your network camera
- f/2.0 maximum aperture for productive capturing according to focal length and lighting conditions
- Up to 65.62 ft of night vision
- Infrared night vision type consumes very little electrical power and provides evidentiary quality night-time surveillance video
- Fixed camera iris effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- Fixed lens type effectively compensates for changes in the level of light by adjusting the exposure time or using gain
- DC power source type for your network camera provides optimal performance with maximum usability
Specifications
| Package Contents |
|
|---|---|
| Product Type | Network Camera |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | 125-EBDP580-0010 |
| Protocols | ONVIF, 802.1X, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP |
| Limited Warranty | 24 Month |
| Weight (Approximate) | 1.06 lb |
| Color Supported | Color |
| Connectivity Technology | Wired |
| Durability | Vandal Resistant, Weather Resistant |
| Features | Day/Night, Built-in IR LED, Wide Dynamic Range, Ingress Protection, Privacy Masking, HTTPS Encryption, Motion Detection, 3D Noise Reduction, White Balance, Defog, SD Card Local Storage, AI Analytics |
| Form Factor | Dome |
| Lens Type | Fixed |
| Manufacturer | GeoVision, Inc |
| Product Model | GV-EBDP5800 |
| Product Name | GV-EBDP5800 5MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera |
| Mount Type | Ceiling Mount, Wall Mount |
| Video Formats | H.264, H.265, MJPEG |
| Brand Name | GeoVision |
| Diameter | 4.4" |
| Maximum Aperture | f/2.0 |
| Image Sensor Size | 1/2.7" |
| Maximum Video Resolution | 2880 x 1620 |
| Maximum Frame Rate | 30 fps |
| Maximum Focal Length | 1.68 mm |
| Image Sensor Type | CMOS |
| Effective Camera Resolution | 5 Megapixel |
| Ethernet Technology | Fast Ethernet |
| Field of View | Horizontal: 180° |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Network (RJ-45) | Yes |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Lens Mount Type | Ø12 |
| Remote Management | Yes |
| Maximum Power Consumption | 5.50 W |
| Night Vision | Yes |
| HD Recording | Yes |
| Lens Included | Yes |
| Night Vision Distance | 65.62 ft |
| Number of IR LEDs | 2 |
| Camera Iris | Fixed |
| Storage Type | Memory Card |
| Indoor/Outdoor | Outdoor |
| Power Source Type | DC, PoE |
| Languages Support | Hungarian, English, Spanish, Italian, Portuguese, Russian, Polish, German, French, Dutch, Czech, Turkish, Japanese, Traditional Chinese |
| Audio Support | Yes |
| Infrared (IR) Cut-off Filter | Yes |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP67 |
| Night Vision Type | Infrared |
| Product Material | Metal |
| Maximum Operating Humidity | 95% |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
| Wide Dynamic Range Detail | 120 dB |
