Genuine GeoVision through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Surveillance/Network Cameras
Overview

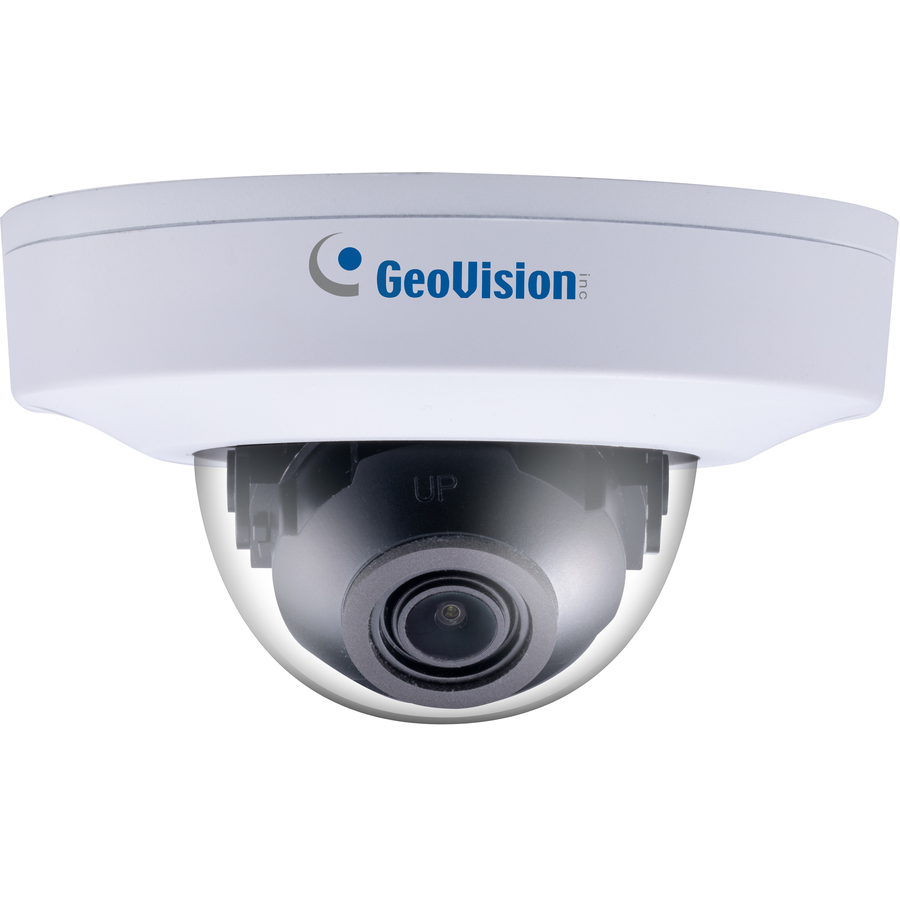

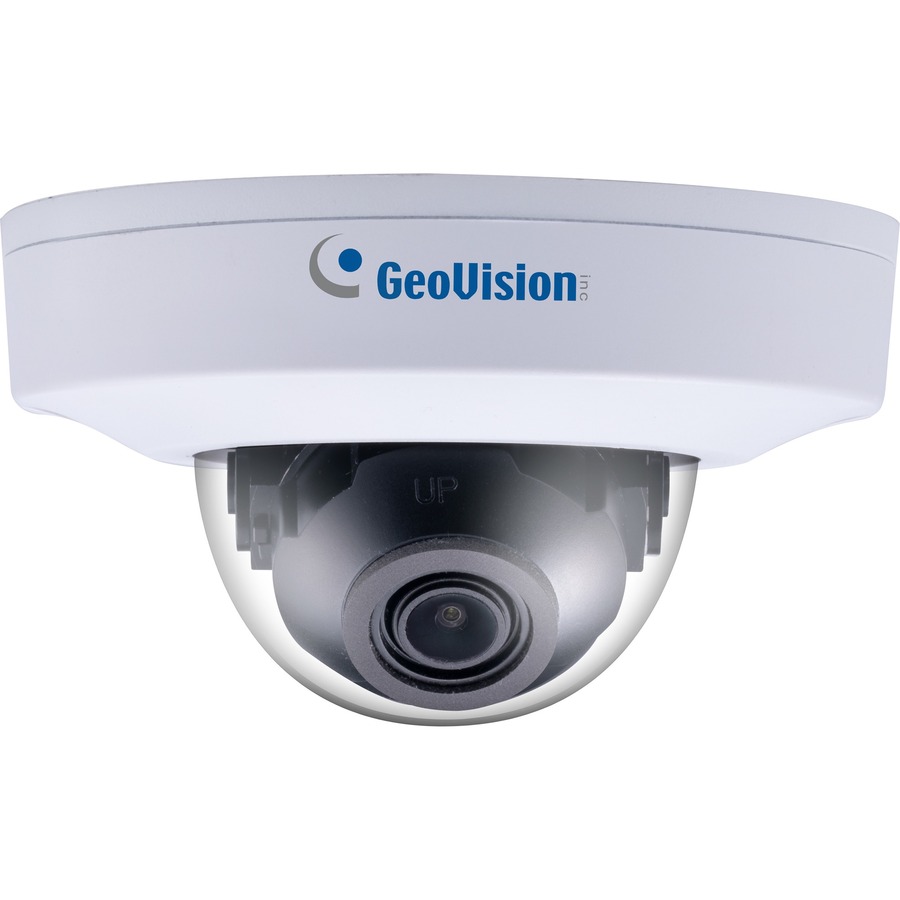

AI Deep-Learning IP Camera
GV-TFD4800 is an indoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With the super low lux CMOS image sensor, the camera is capable of providing a color live view in near darkness.
Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real-time alert, playback and more.
Highlights
AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
1/2.7" progressive scan CMOS sensor
Min. illumination at 0.003 lux
Triple streams from H.265, H.264 or MJPEG
Up to 30 fps at 2688 x 1520
Intelligent IR
IR distance up to 30 m (100 ft)
Day and Night function (with removable IR-cut filter)
Wide Dynamic Range Pro (WDR Pro)
3-axis mechanism (pan / tilt / rotate)
Specifications
Display & Graphics
Image Sensor Type
CMOS
Color Supported
Color
Field of View
101.1°
Effective Camera Resolution
4 Megapixel
Environmental Conditions
Minimum Operating Temperature
-22°F (-30°C)
Maximum Operating Temperature
131°F (55°C)
Maximum Operating Humidity
95%
Exposure
Shortest Shutter Speed
1/100000 Second
Longest Shutter Speed
1 Second
General Information
Manufacturer
GeoVision, Inc
Manufacturer Part Number
GV-TFD4800
Brand Name
GeoVision
Product Series
GV-TFD
Product Model
GV-TFD4800
Product Name
4MP H.265 Super Low Lux WDR Pro IR Mini Fixed IP Dome
Product Type
Network Camera
Interfaces/Ports
Network (RJ-45)
Yes
Lens
Lens Type
Fixed
Maximum Focal Length
2.80 mm
Lens Included
Yes
Lens Mount Type
M12-mount
Maximum Aperture
f/1.6
Network & Communication
Connectivity Technology
Wired
Remote Management
Yes
Physical Characteristics
Mount Type
Pendant Mount, Junction Box Mount, Wall Mount, Ceiling Mount, Corner Mount, Pole Mount
Form Factor
Dome
Diameter
4.3"
Weight (Approximate)
7.76 oz
Power Description
Input Voltage
12 V DC
Power Source Type
DC, PoE
Storage
Storage Type
Memory Card
Technical Information
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared
Number of IR LEDs
1
Video
Video Formats
H.265, H.264, MJPEG
Maximum Video Resolution
2688 x 1520
Maximum Frame Rate
30 fps
Miscellaneous
Features
SD Card Local Storage, Day/Night, Built-in Microphone, Defog, 3D Noise Reduction, Motion Detection, Privacy Masking, Tampering Alarm, Face Detection, Wide Dynamic Range
