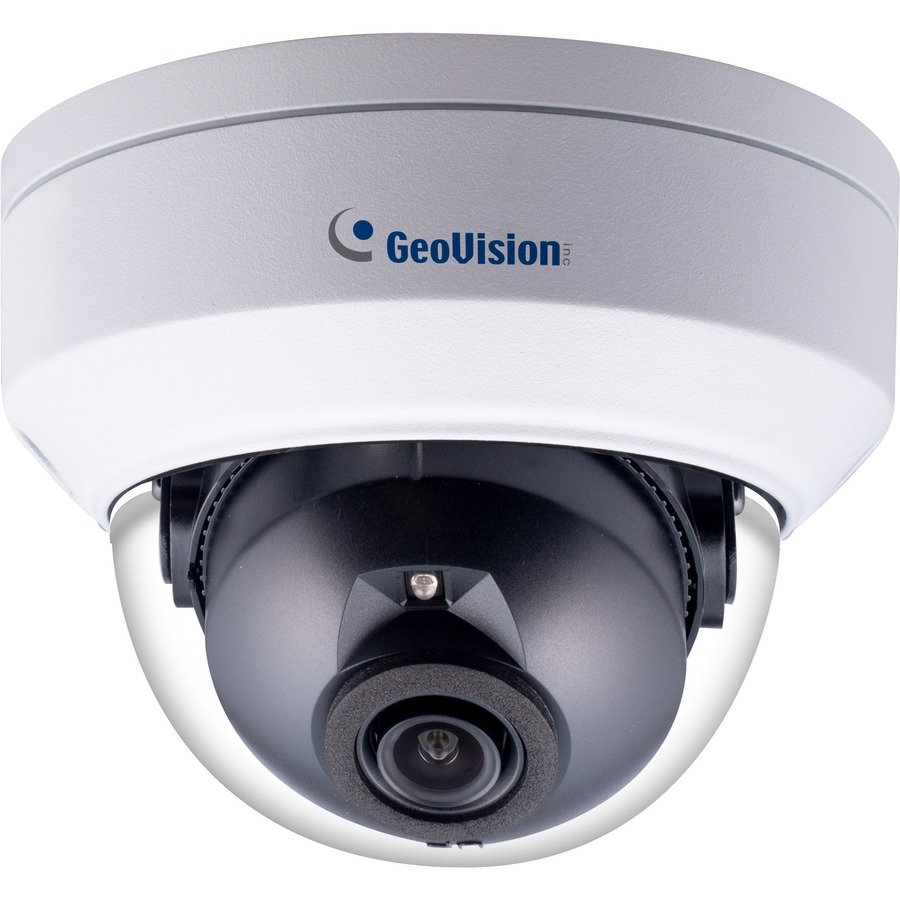

GeoVision 4 Megapixel Outdoor Network Camera - Color - Mini Dome
GeoVision

GeoVision 4 Megapixel Outdoor Network Camera - Color - Mini Dome

98.43 ft Infrared Night Vision - H.265, H.264, MJPEG - 2688 x 1520 - 30 fps - CMOS - IK10 - IP67 - Vandal Resistant

SKU
GV-TDR4803
Category
Surveillance/Network Cameras

MSRP$213.00

$151.07

Save 29%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine GeoVision through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
GV-TDR4803
Category
Surveillance/Network Cameras

Overview

GV-TDR4803 is an outdoor, fixed, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. The camera adheres to IP67 and IK10 standards, and can be powered through PoE.

Empowered by deep learning algorithms, AI technology distinguishes human and vehicles from other moving objects. Integrated with GeoVision Video Management Software (VMS), it supports AI perimeter protection, real time alert, events playback and more.

Highlights

  • AI deep learning: AI Perimeter Protection & Classification (Human, Vehicle)
  • 1/3" progressive scan super low lux CMOS
  • Min. illumination at 0.003 lux
  • Triple streams from H.265, H.264 or MJPEG
  • Up to 30 fps at 2688 x 1520
  • Intelligent IR
  • IR distance up to 30 m (100 ft)
  • Day and Night function (with removable IR-cut filter)
  • 3-axis mechanism (pan / tilt / rotate)
  • Ingress protection (IP67)
  • Vandal resistance (IK10 for metal casing)
  • Built-in micro SD card slot (SD / SDHC / SDXC / UHS-I, Class 10) for local storage
  • DC 12V / PoE (IEEE 802.3af)
  • Wide Dynamic Range Pro (WDR Pro)
  • Two-way audio
  • ONVIF (Profile G, S, T) conformant

Specifications

Package Contents
  • GV-TDR4803 Dome
  • Waterproof Rubber Set
  • Screw Kit
  • Drill Template Paster
  • Torx Wrench
  • Download Guide
Product TypeNetwork Camera
Input Voltage12 V DC
Manufacturer Part NumberGV-TDR4803
Limited Warranty24 Month
Weight (Approximate)14.82 oz
Color SupportedColor
Connectivity TechnologyWired
DurabilityVandal Resistant
FeaturesWide Dynamic Range, Removable IR Cut-off Filter, Day/Night, Human Detection, Vehicle Detection, Video Management System, Built-in Card Reader, Face Detection, Cross Line Detection, Auto Gain Control
Form FactorMini Dome
ManufacturerGeoVision, Inc
Product NameAI 4MP H.265 Super Low Lux WDR Pro IR Mini Fixed Rugged IP Dome
Video FormatsH.265, H.264, MJPEG
Product SeriesGV-TDR4803
Brand NameGeoVision
Diameter4.3"
Environmentally FriendlyYes
Maximum Video Resolution2688 x 1520
Maximum Frame Rate30 fps
Image Sensor TypeCMOS
Effective Camera Resolution4 Megapixel
Minimum Operating Temperature-22°F (-30°C)
Maximum Operating Temperature140°F (60°C)
Network (RJ-45)Yes
Longest Shutter Speed1 Second
Shortest Shutter Speed1/100000 Second
Remote ManagementYes
Night VisionYes
HD RecordingYes
Night Vision Distance98.43 ft
Storage TypeMemory Card
Indoor/OutdoorOutdoor
Power Source TypePoE, DC
Impact Protection RatingIK10
Ingress Protection RatingIP67
Night Vision TypeInfrared
Maximum Operating Humidity95%
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
