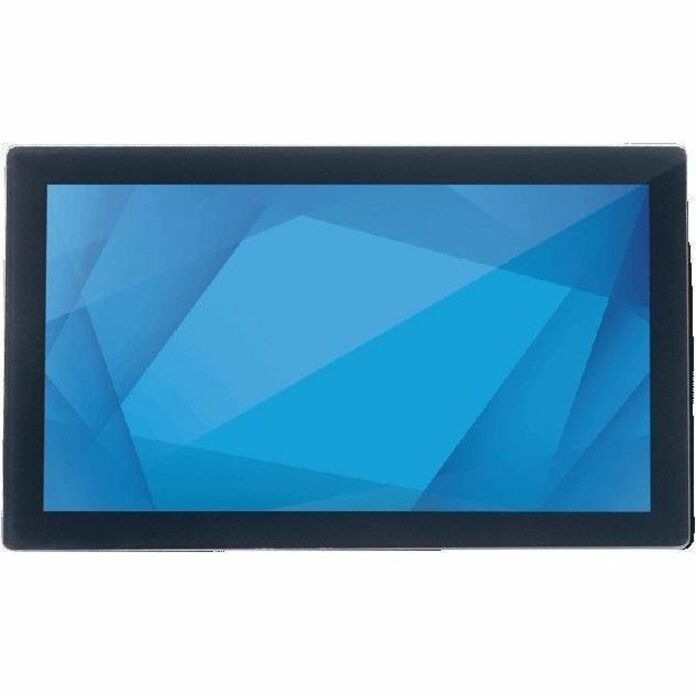

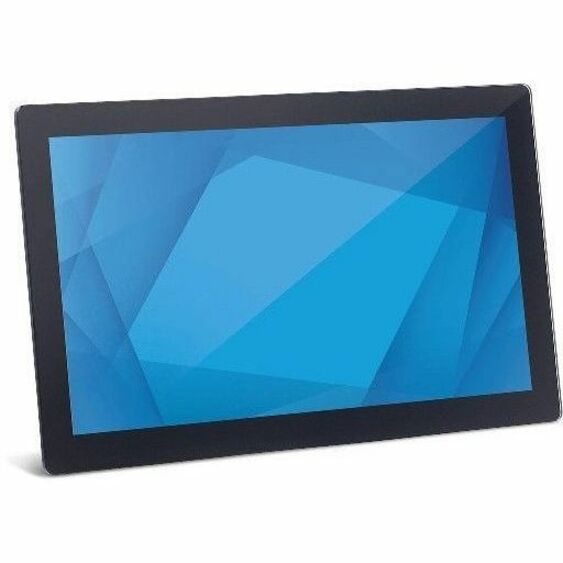

Elo TouchPro 7" Class LCD Touchscreen Monitor

TouchPro Display Modules

Elo's Touchscreen Display Modules combine industry-leading touch screens with liquid crystal displays (LCDs) - all in one embedded solution to help streamline your supply chain and simplify assembly.

The robust chemically strengthened cover glass with anti-glare treatment makes them well suited for deployment in a wide variety of commercial and industrial environments - from factory automation and medical displays to commercial kitchen equipment.

Available in standard sizes ranging from 7 to 15.6-inches and custom options up to 32-inches, Elo's touchscreen display modules offer superior touch performance in harsh environments, excellent optical clarity, and robust EMI performance.

How it Works

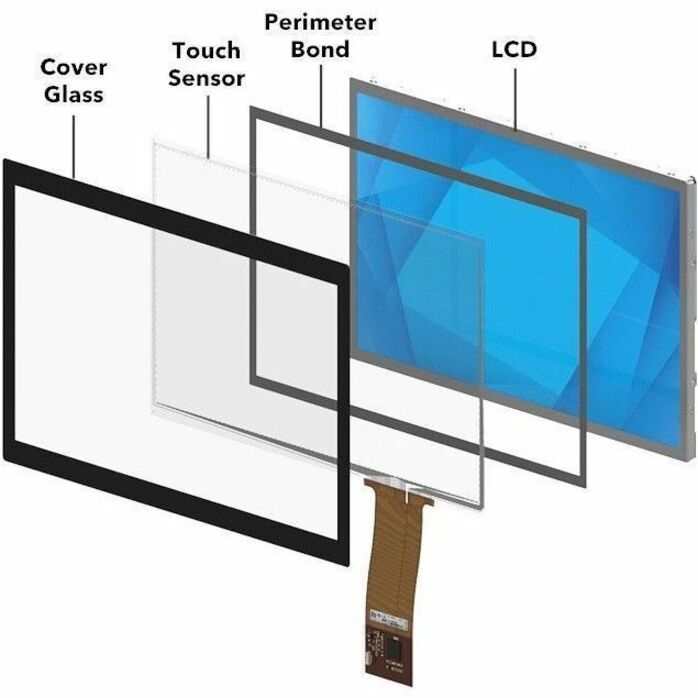

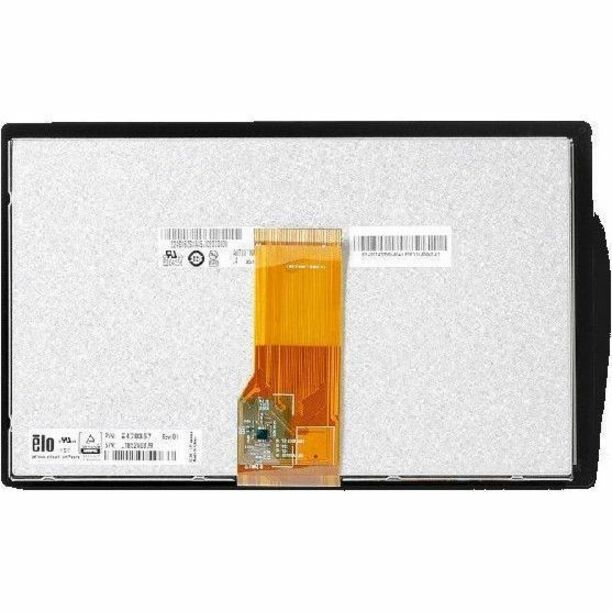

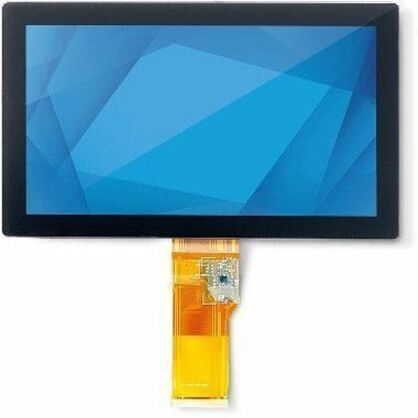

With a TouchPro Pro-F PCAP touch screen and chip-on-flex (COF) touch controller bonded to a commercial grade LCD, Elo's Touchscreen Display Modules deliver reliability that is ready for integration.

Customize Your TDM

From design and engineering to prototyping and production, partner with Elo to create your touchscreen display module. By leveraging our premium PCAP touch screens, display expertise and LCD buying power, Elo can help you develop the perfect touch enabled display for your application.

LCD

Resolution, Brightness, Temperature Range, Viewing Angle, Interface

PCAP Touch Screen

Film, Glass, Metal Mesh

Cover Glass

Custom sizes, shapes, edge treatments, holes and cut-outs, Materials (strengthened glass, safety glass, PMMA) Surface treatments, Border (colors, logos, icons, IR transmissive windows)

Display Enhancements

IR blockers, UV filters, Sunlight readable

Bonding

Perimeter Bond, Optical Bond, Tape Bond

Touch Controller

Wide variety of touch IC's and form factors, Performance tuning for water and contaminants, Suitable for thick cover glass or overlays, Other application specific tuning as requested
