10.1" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 262,000 Colors - 800:1 - 350 Nit - LED Backlight - HDMI - USB - VGA - DisplayPort - Black - 3 Year
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

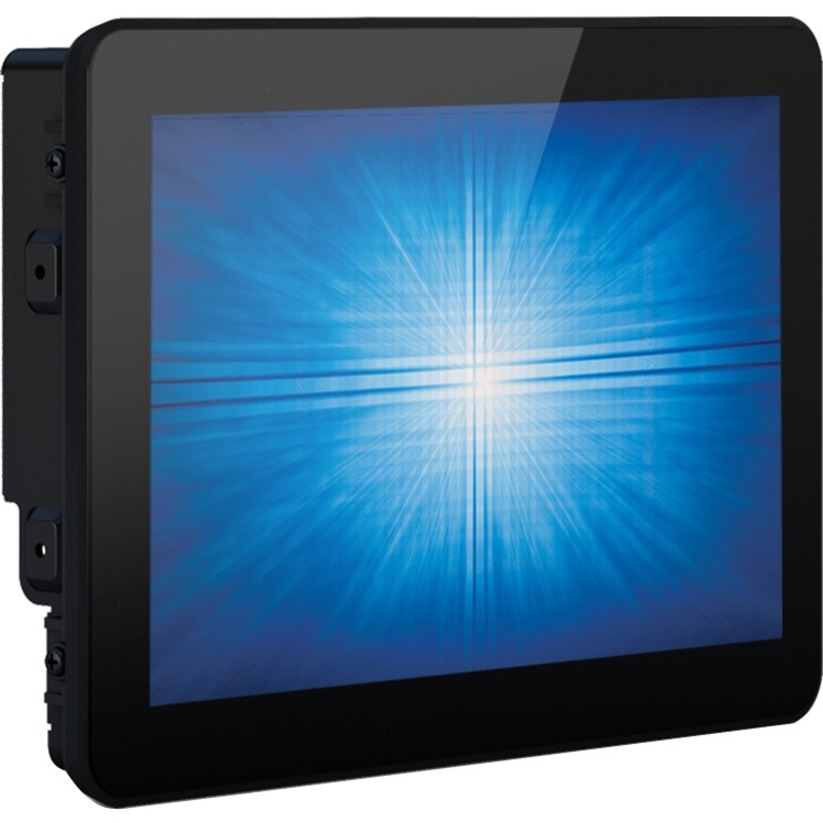

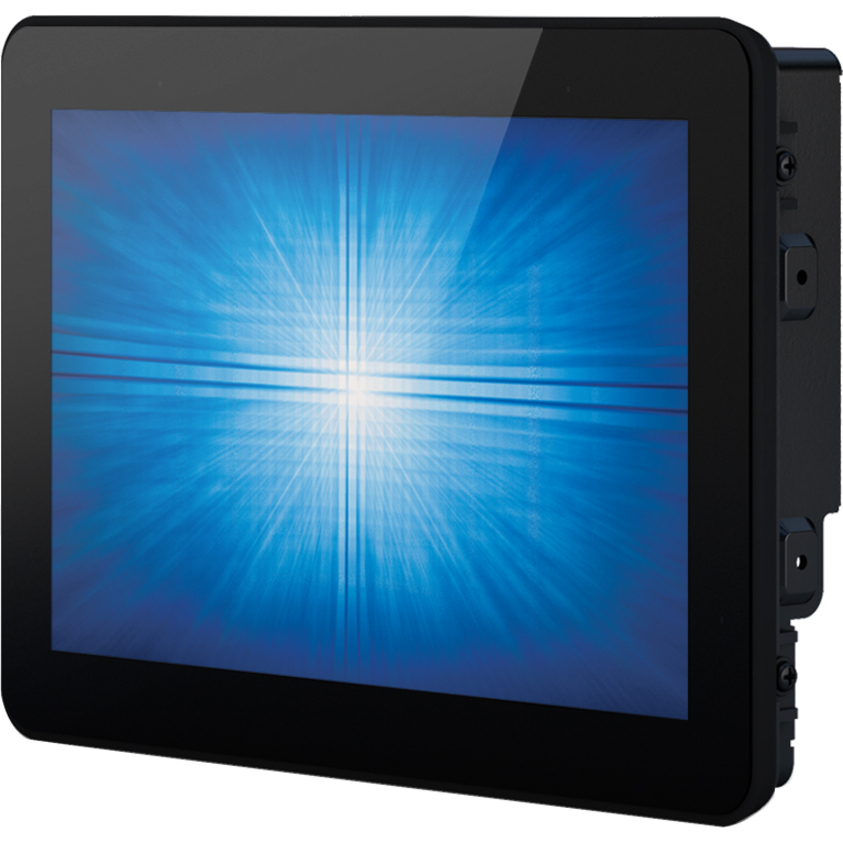

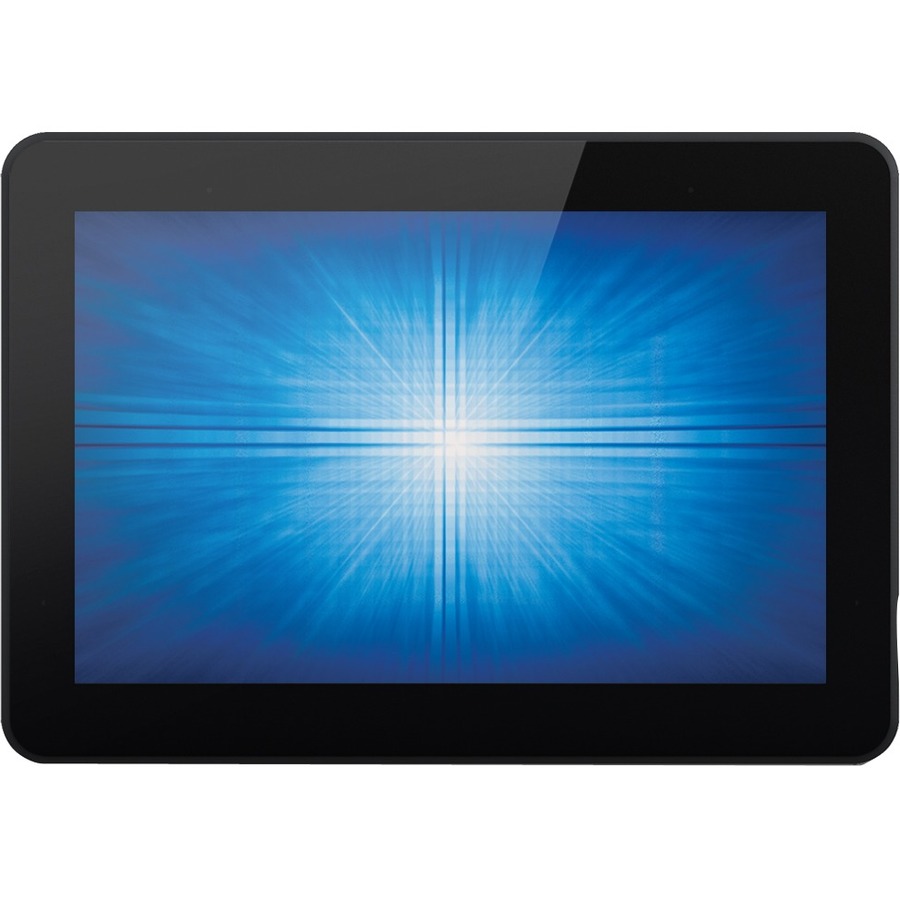

The Elo 1093L 10.1-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions thanks to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 1093L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the open-frame touchscreen is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
This seamless, zero-bezel, 10-inch multi-touch display is available with our latest TouchPro? PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities

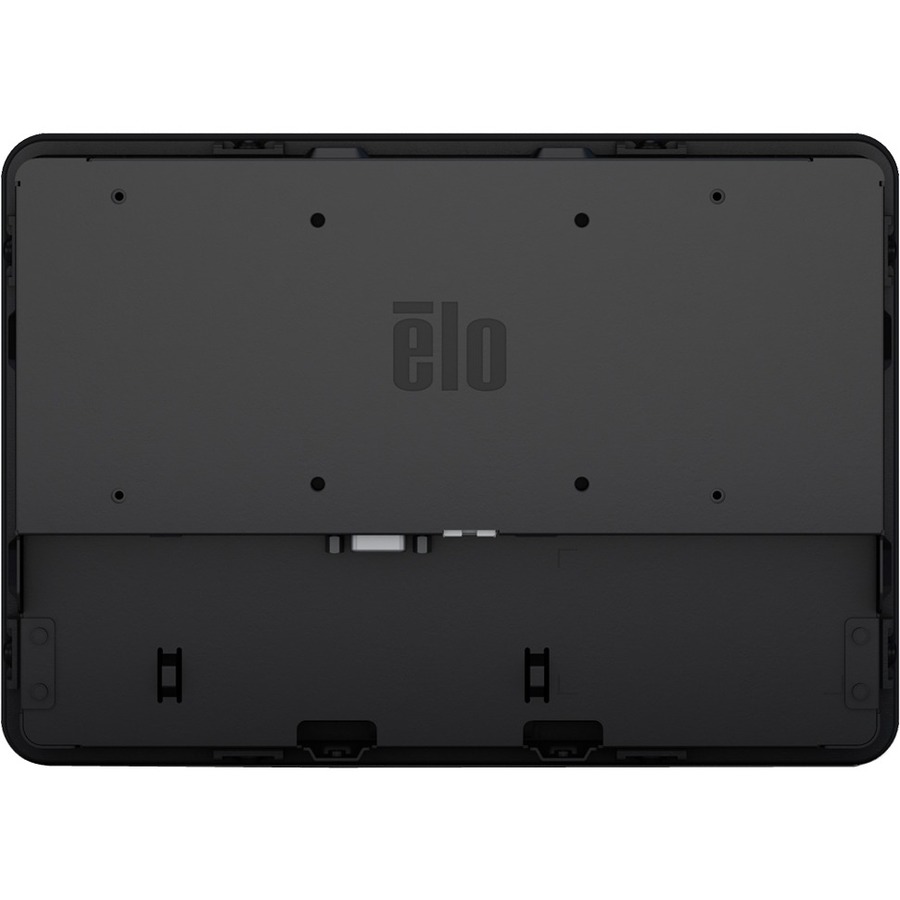

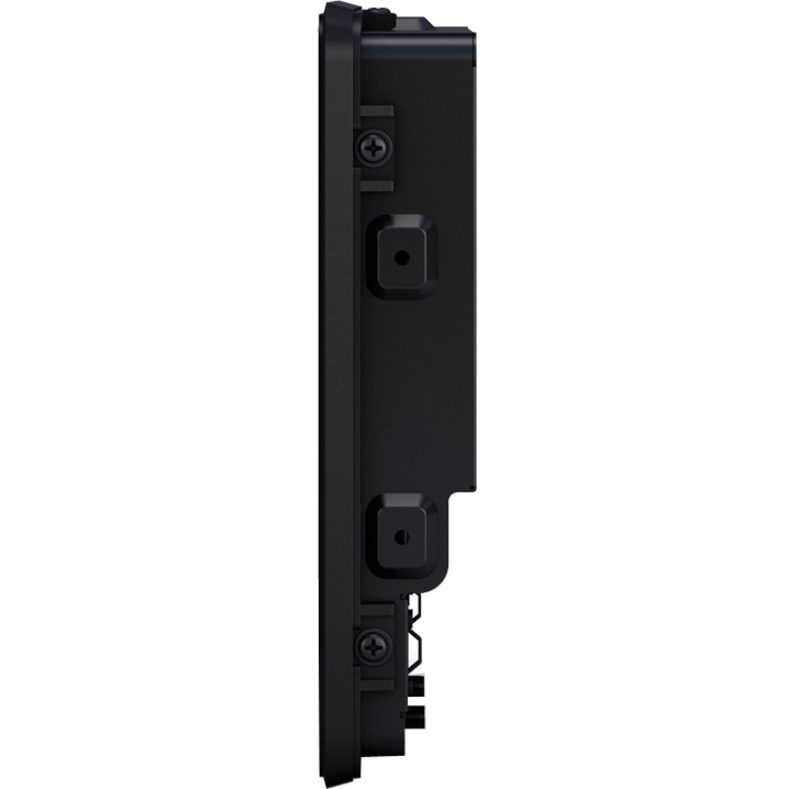

• Easy to integrate with flush mounting brackets on all 4 sides and rear 75 mm VESA mount
• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• Display Port and VGA video interfaces
| Aspect Ratio | 16:10 |
|---|---|
| Package Contents |
|
| Product Type | Open-frame LCD Touchscreen Monitor |
| Contrast Ratio | 800:1 |
| Manufacturer Part Number | E321195 |
| Packaged Quantity | 1 |
| Response Time | 25 ms |
| Limited Warranty | 3 Year |
| Touchscreen Type | TouchPro Projected Capacitive |
| Weight (Approximate) | 2.65 lb |
| Brightness | 350 Nit |
| Color Supported | 262,000 Colors |
| Features | On-screen Display (OSD) |
| Manufacturer | Elo Touch Solutions, Inc |
| Product Model | 1093L |
| Product Name | 1093L 10.1" Open Frame Touchscreen (RevB) |
| Mount Type | Flush Mount |
| Viewable Screen Size | 10.1" |
| Maximum Resolution | 1280 x 800 |
| Brand Name | Elo |
| Screen Mode | WXGA |
| Height | 7" |
| Width | 10.1" |
| Depth | 1.5" |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 170° |
| Environmentally Friendly | Yes |
| USB | Yes |
| HDMI | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 75 x 75 |
| Operating Power Consumption | 25 W |
| Standby Power Consumption | 700 mW |
| VGA | Yes |
| DisplayPort | Yes |
| Off-Mode Power Consumption | 500 mW |
| Multi-touch Screen | Yes |
| Panel Technology | Thin Film Transistor (TFT) |
| Horizontal Frequency | 30 kHz to 60 kHz |
| Curved Screen | No |
| TAA Compliant | No |
| Vertical Frequency | 50 Hz to 75 Hz |
| Screen Size Class | 10" |
| Product Color | Black |
| Number of Simultaneous Touchpoints | 10 |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
