Elo 0764L 7" Class Open-frame LED Touchscreen Monitor - 16:10 - 40 ms
7" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 360 Nit - LED Backlight - HDMI - USB - DisplayPort - USB Type-C - Black
SKU
Category
Touchscreen Monitors
$338.75
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Elo Touch Solutions through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Touchscreen Monitors
Overview

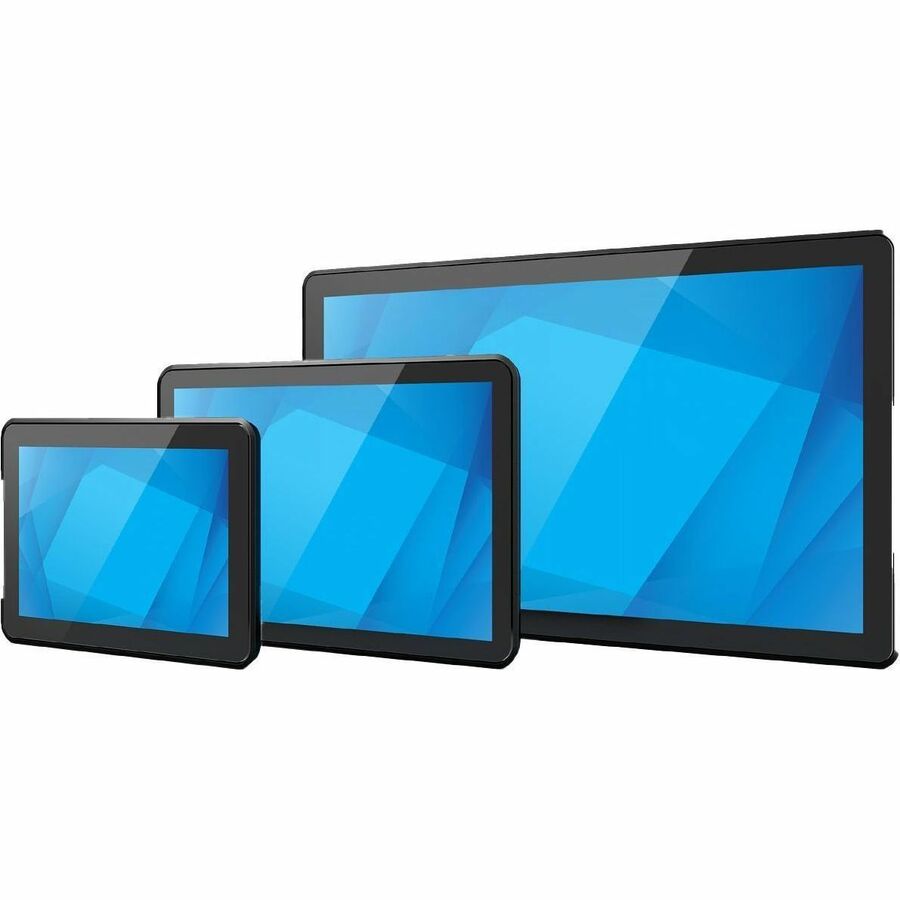

Elo's 64-Series Open-Frames, available in 7-, 10- and 15-inch, deliver brilliant, industrialgrade touchscreen monitors designed for easy integration into enclosures. Featuring scratch-resistant glass, UL62368 ball-drop certification, IK08 impact resistance, and built for 24/7 operation across a wide voltage range, these displays are engineered for durability and reliability. Ideal for a variety of applications including industrial controls, HMI, warehouse automation, and gaming, the 64-Series also provides added flexibility with TouchPro technology, supporting thru touch functionality through up to an additional 6mm glass or 3mm plastic.
Highlights
Enhance customization with Open-frame LED touchscreen monitor delivering responsive touch and energy-efficient LED technology
WXGA touchscreen offers WXGA resolution up to 1280 x 800 pixels for crisp visuals and a widescreen format ideal for media and apps
LED backlight technology reduces power use and hazardous materials for eco-friendly performance
Captivating visuals with about 360 Nit brightness levels for clear and vivid touchscreen performance
16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows
VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Features HDMI input for seamless connection with PCs, Blu-ray players, and advanced gaming consoles for high-quality visuals
Specifications
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E970862
Brand Name
Elo
Product Series
64
Product Model
0764L
Product Name
0764L Open-frame LED Touchscreen Monitor
Product Type
Open-frame LED Touchscreen Monitor
Interfaces/Ports
HDMI
Yes
USB
Yes
DisplayPort
Yes
USB Type-C
Yes
Physical Characteristics
Color Family
Black
VESA Mount Compatible
Yes
Product Color
Black
VESA Mount Standard
75 x 75
Height
4.7"
Width
6.9"
Depth
1.3"
Weight (Approximate)
1.47 lb
Technical Information
Screen Size Class
7"
Viewable Screen Size
7"
Screen Mode
WXGA
Panel Technology
Thin Film Transistor (TFT)
Response Time
40 ms
Aspect Ratio
16:10
Horizontal Viewing Angle
176°
Vertical Viewing Angle
176°
Mount Type
Bracket-mountable, Flush Mount
Placement
Tabletop
Backlight Technology
LED
Features
On-screen Display (OSD), Color Temperature Selection, Low Blue Light, Flicker-free, Narrow Bezel, Edge-to-Edge Glass Design, Scratch Resistant, Landscape/Portrait Viewable
