10.1" Viewable - TouchPro Projected Capacitive - 10 Point(s) Multi-touch Screen - 1280 x 800 - WXGA - Thin Film Transistor (TFT) - 16.7 Million Colors - 450 Nit - LED Backlight - HDMI - USB - DisplayPort - USB Type-C - Black
Request pricing
Confirmed with stock before any payment. TAA verified on request.
Genuine Elo Touch Solutions through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.

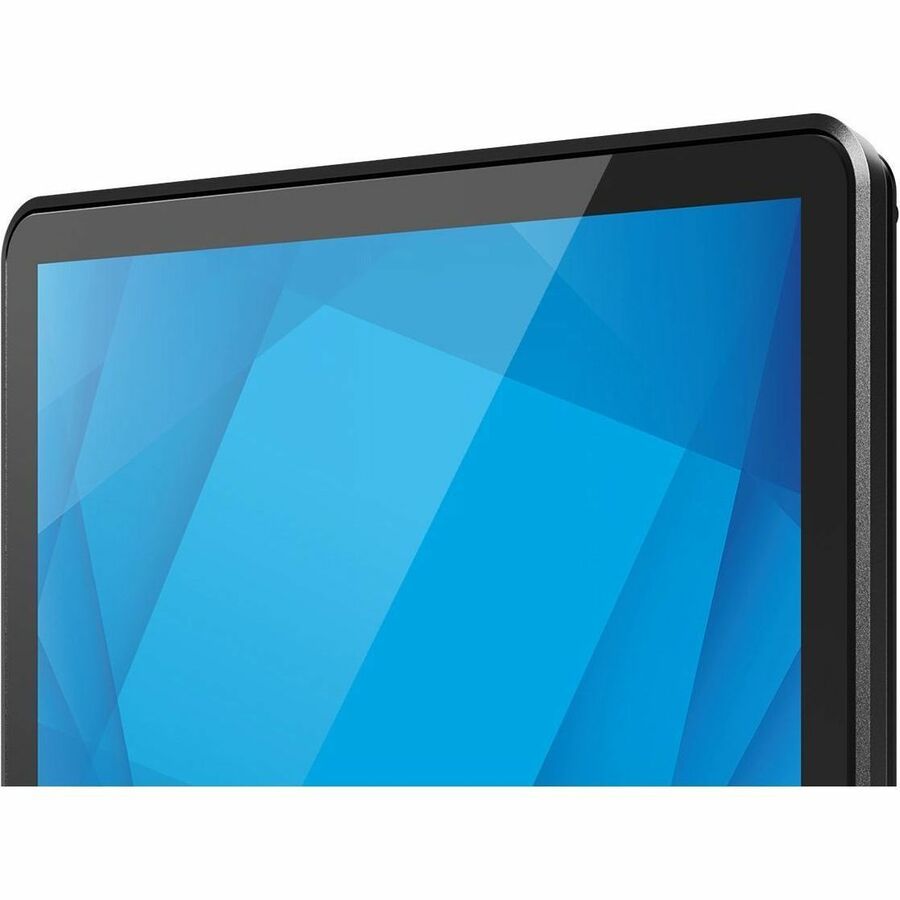

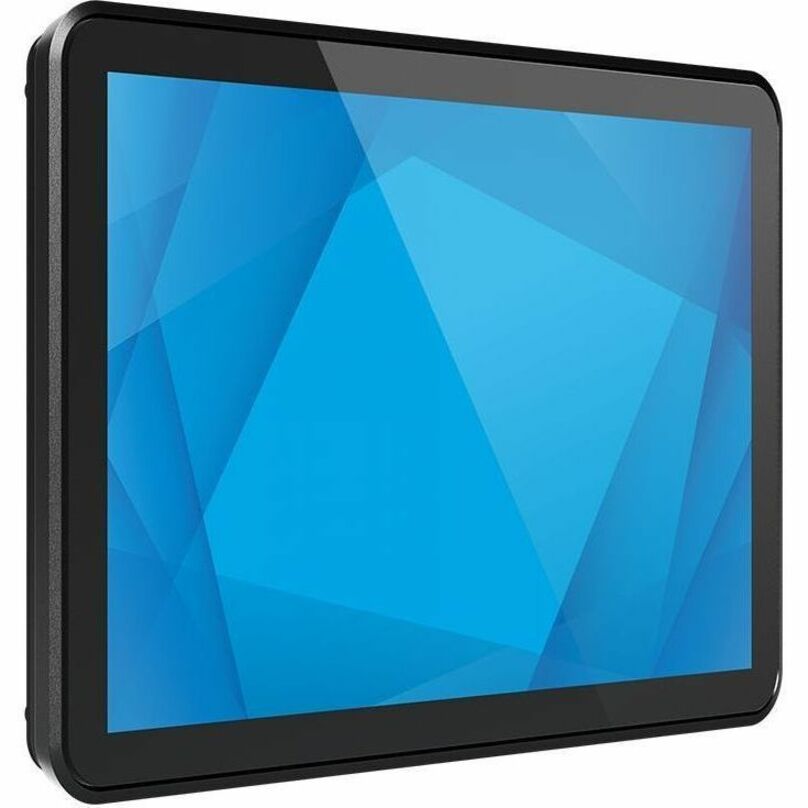

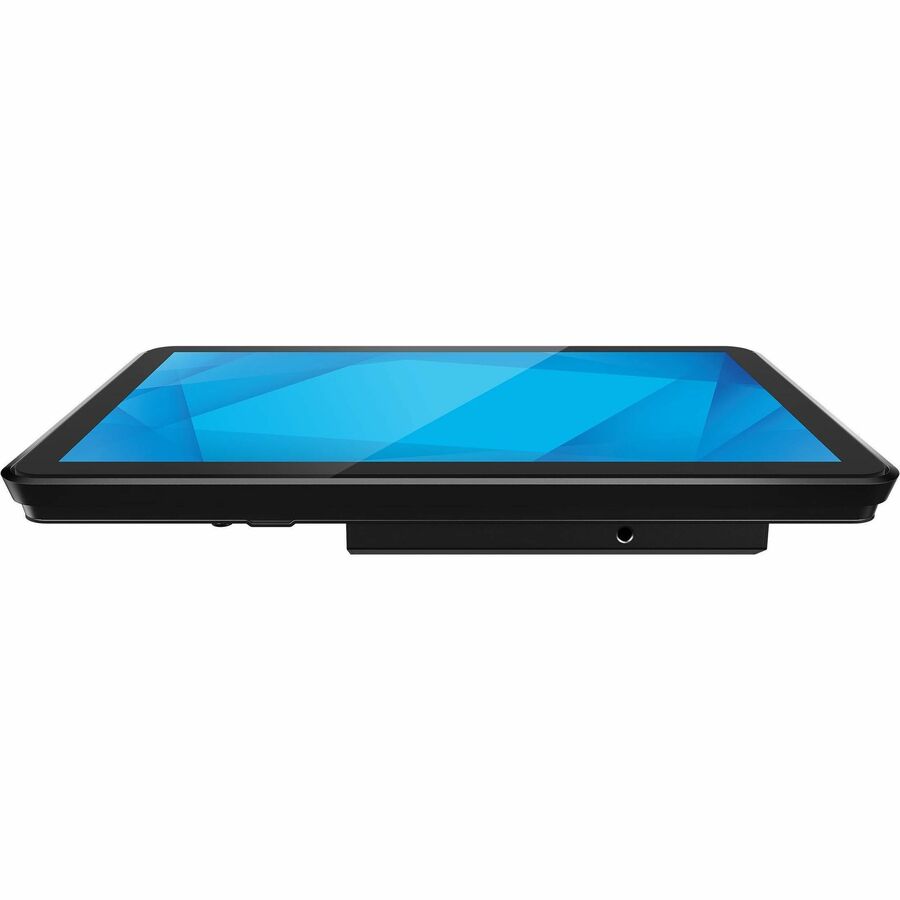

1064L 10-inchIndustrial-Grade Open Frame Touch Display
Elo's 1064L 10-inch HD open-frame delivers a brilliant, industrial-grade touchscreen monitor designed for easy integration into enclosures. With sleek, narrow borders and a modern form factor, the 1064L is well-suited for industrial controls, HMI, warehouse automation, gaming and more.
Brilliant, optically-bonded TouchPro® PCAP display.
The 10-inch 1064L optically-bonded display offers an enhanced, 10-touch tablet-like experience with the durability, touch performance and premium optics required for industrial and commercial applications.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls - Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Touch thru glass enabled with PCAP.
For installations that require specific IP ratings or protection from vandalism and harsh environments, Elo's TouchPro PCAP displays offer touch thru capability. With touch thru technology, the display can be mounted behind a front layer of glass up to 6 mm or plastic up to 3 mm to create a fully enclosed kiosk.

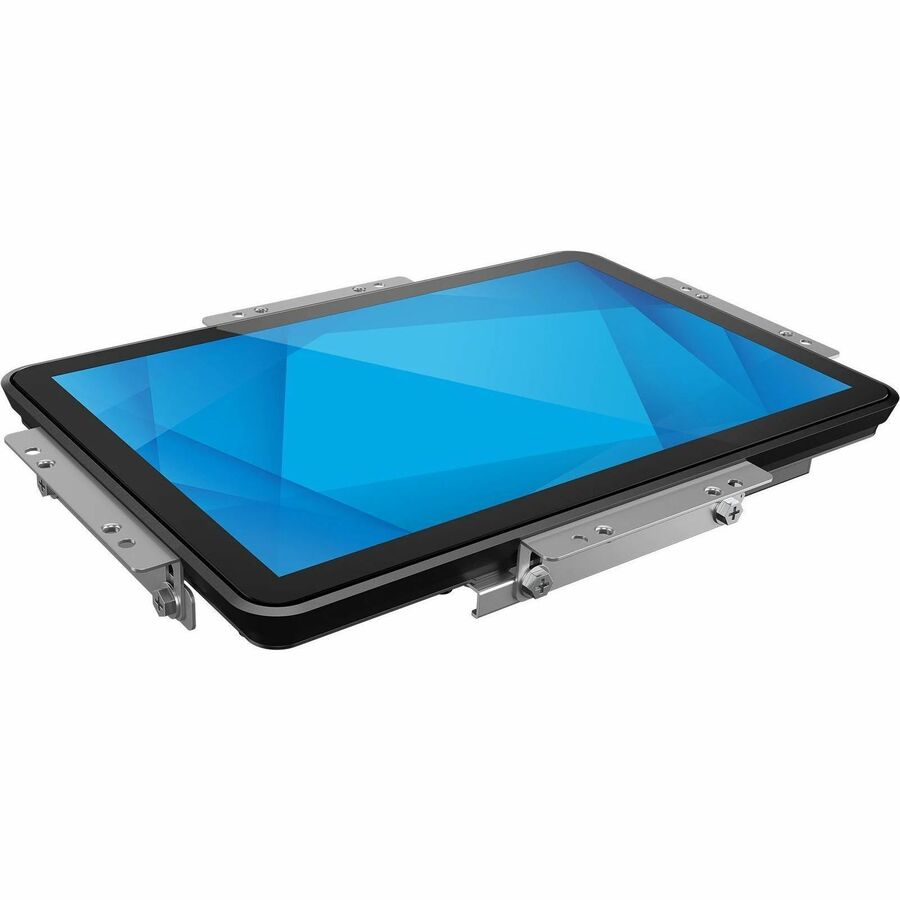

Designed for easy integration.
Elo's 10-inch touchscreen monitor can be mounted in landscape, portrait and upward facing orientations, providing optimal flexibility for integrating in any counter, kiosk or cabinet design. Whether viewing up close or from a distance, our optically bonded display offers what you need while maintaining optimal clarity for the viewing experience.

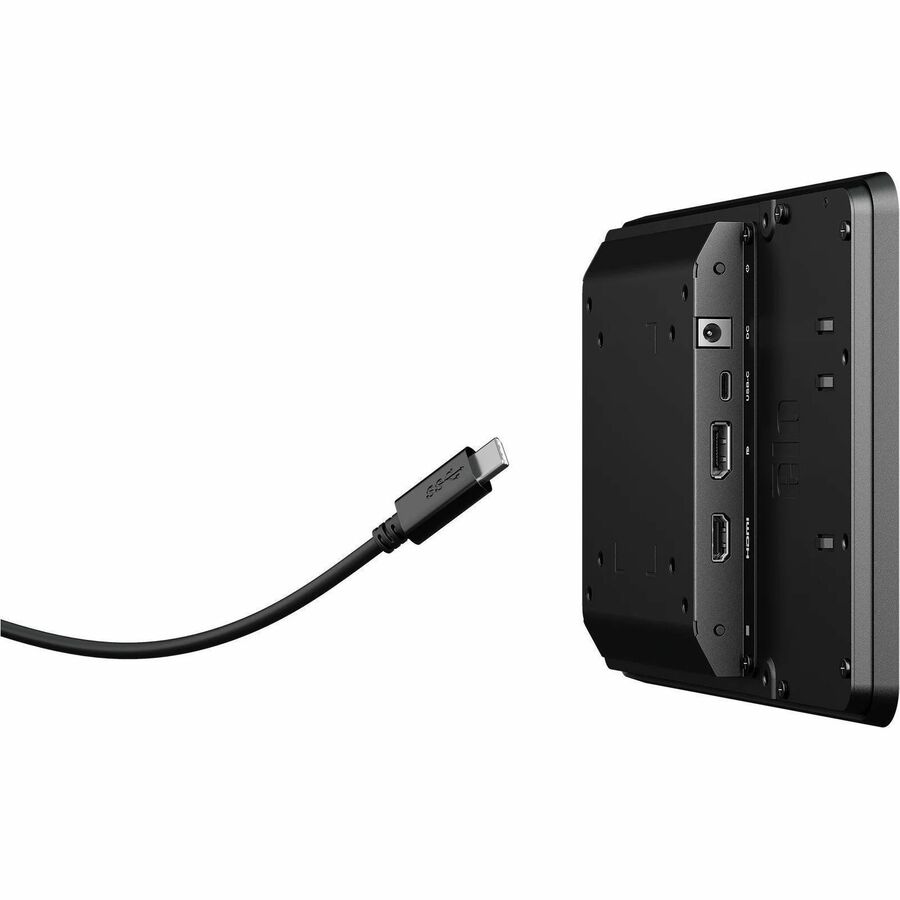

Computing power that scales with a single cable.
With the Elo Backpack you get a powerful, commercial-grade Android compute engine that can easily connect to the display with a single USB-C. Boasting a small footprint in both size and weight, the Elo Backpack can secure inside any kiosk with the built-in VESA mount. Scaling Elo's commercial Android platform across sizes and form factors has never been easier.
| General Information | |
|---|---|
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E971060 |
| Brand Name | Elo |
| Product Model | 1064L |
| Product Name | 1064L Open-frame LED Touchscreen Monitor |
| Product Type | Open-frame LED Touchscreen Monitor |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| DisplayPort | Yes |
| USB Type-C | Yes |
| Physical Characteristics | |
| Color Family | Black |
| VESA Mount Compatible | Yes |
| Product Color | Black |
| VESA Mount Standard | 75 x 75, 100 x 100 |
| Height | 6.3" |
| Width | 9.5" |
| Depth | 1.3" |
| Weight (Approximate) | 2.75 lb |
| Technical Information | |
| Screen Size Class | 10" |
| Viewable Screen Size | 10.1" |
| Screen Mode | WXGA |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 29 ms |
| Aspect Ratio | 16:10 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Flush Mount, Bracket-mountable |
| Backlight Technology | LED |
| Features | On-screen Display (OSD), Low Blue Light, Landscape/Portrait Viewable |
| Vertical Frequency | 50 Hz to 75 Hz |
| Operation Hours | 24 Hours/7 Days |
| Ingress Protection (IP) Rating | IPX1 |
| Impact Protection (IK) Rating | IK08 |
| Active Display Area (H x V) | 8.50" x 5.30" |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Video | |
| Maximum Resolution | 1280 x 800 |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 800:1 |
| Brightness | 450 Nit |
| Brightness (Peak) | 500 Nit |
| Environmental Conditions | |
| Operating Temperature Range | 32°F (0°C) to 104°F (40°C) |
| Operating Humidity Range | 20% to 80% (Non-condensing) |
| Miscellaneous | |
| Energy Star | Yes |
| Application/Usage | Industrial, Commercial |
