Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
E967935
Category
Touchscreen Monitors
Overview
Razor thin design. | Brilliant touchscreen.

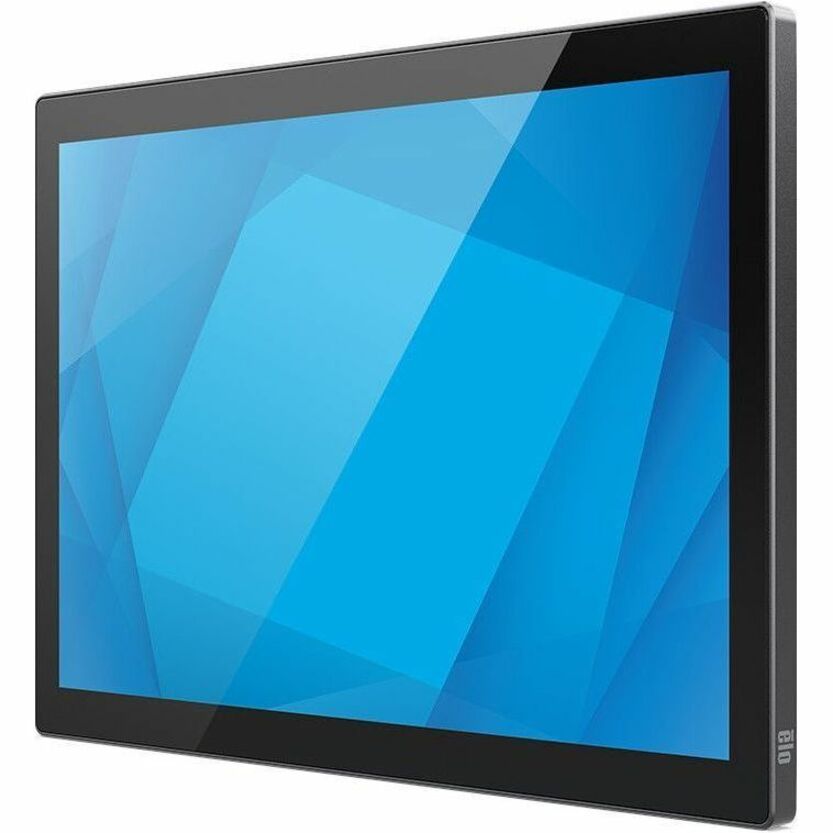

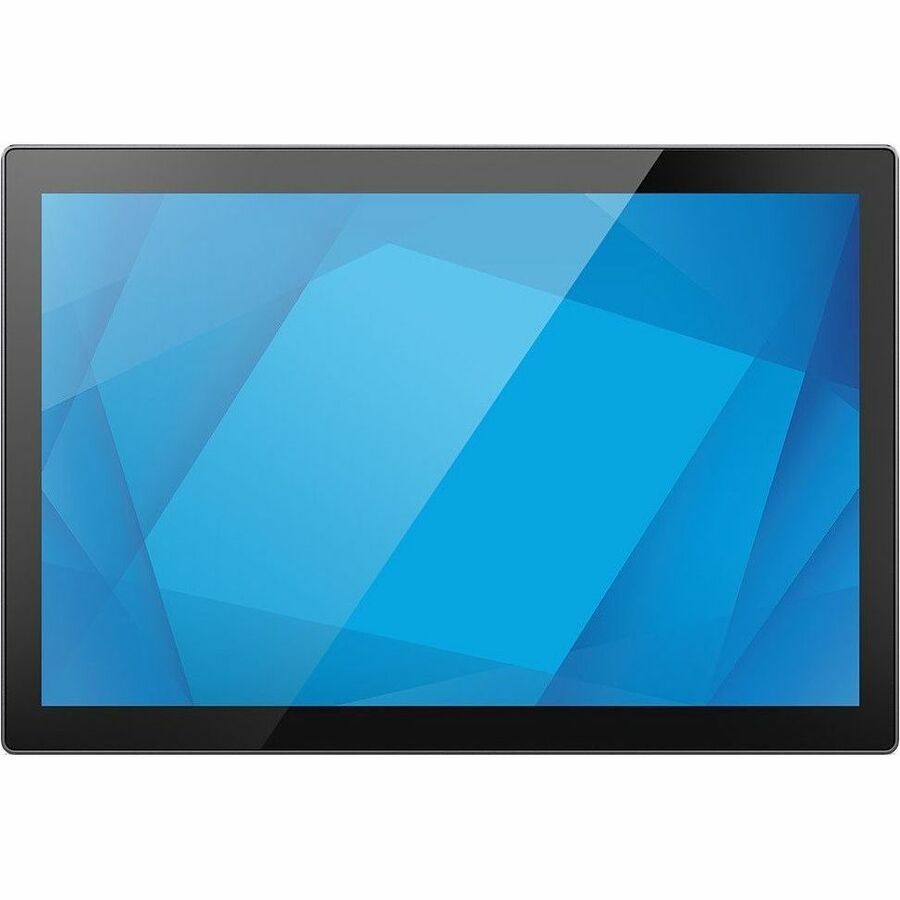

Built to be one of the thinnest commercial-grade 10-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the-art optical bonding - all with brilliant display clarity.

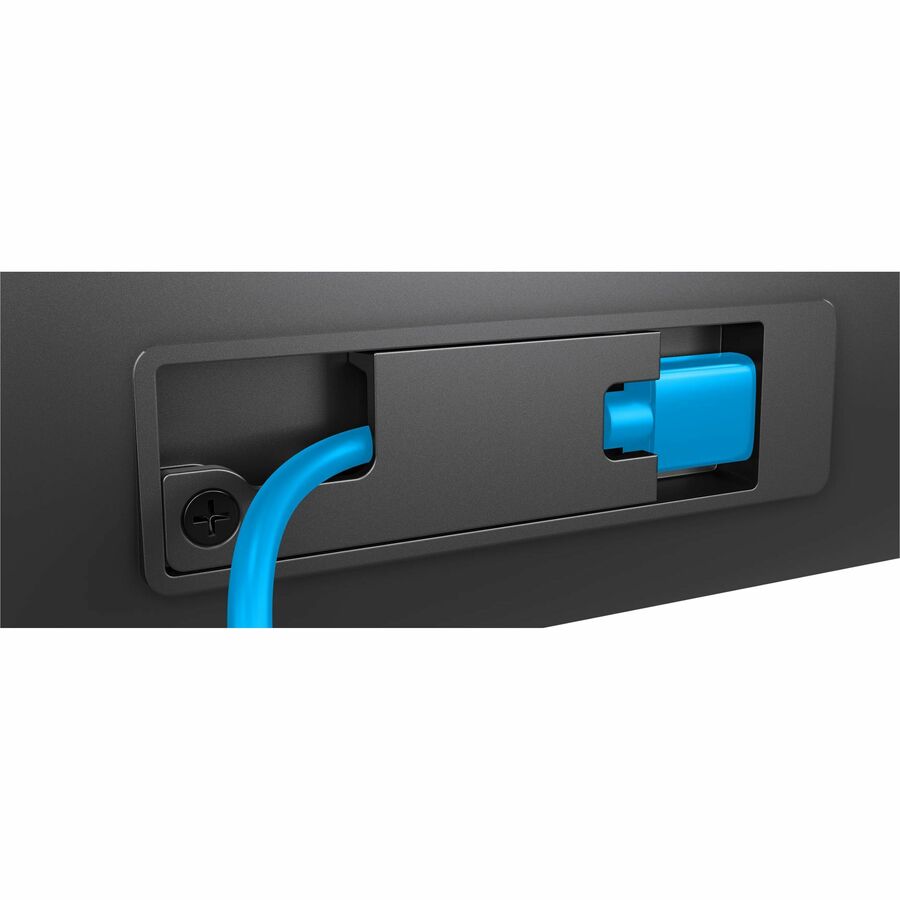

Secure your cables into place.
With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.
A clean slate for touch experiences.

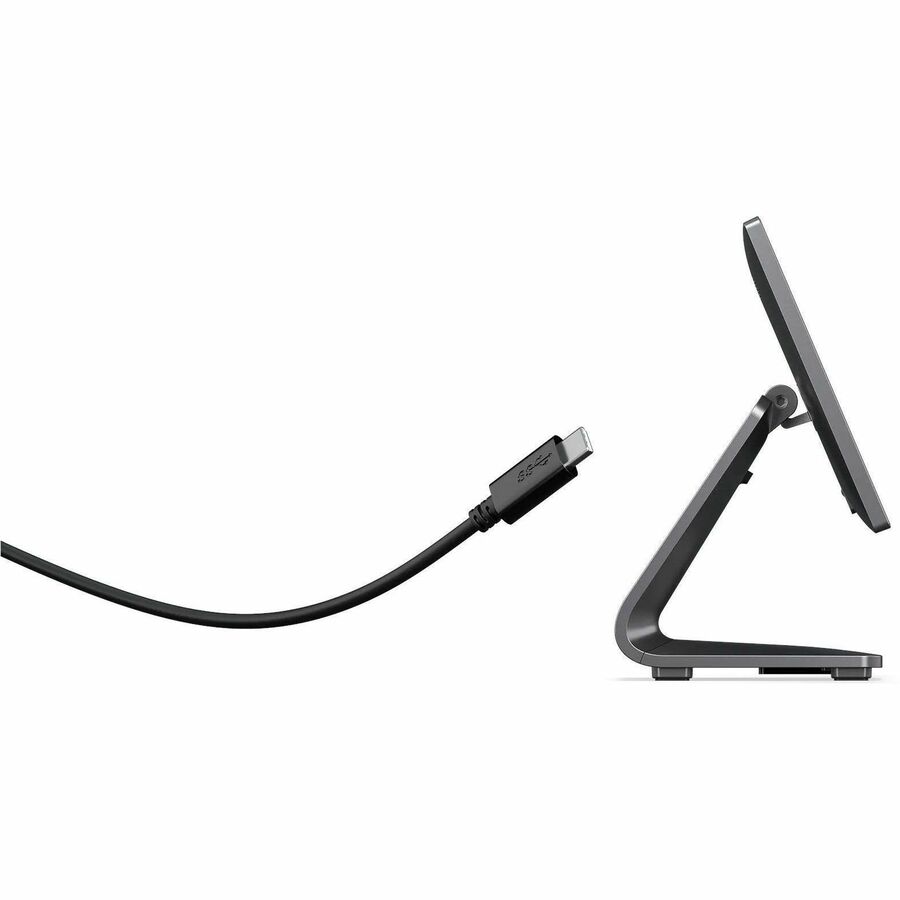

The perfect pairing for your POS terminal.
Whether you want to pair the 1004LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.
Get peace of mind with EloCare. SM
From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.
Highlights
Enjoy vibrant visuals and responsive interaction with the advanced hd, led touchscreen monitor LED touchscreen
HD touchscreen delivers HD resolution up to 1280 x 800 pixels for crisp visuals and smooth performance in everyday tasks
Projective Capacitive technology allows touch with bare fingers or thin gloves for flexibility in medical and industrial use
LED backlight technology reduces power use and hazardous materials for eco-friendly performance
Captivating visuals with about 400 Nit brightness levels for clear and vivid touchscreen performance
16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows

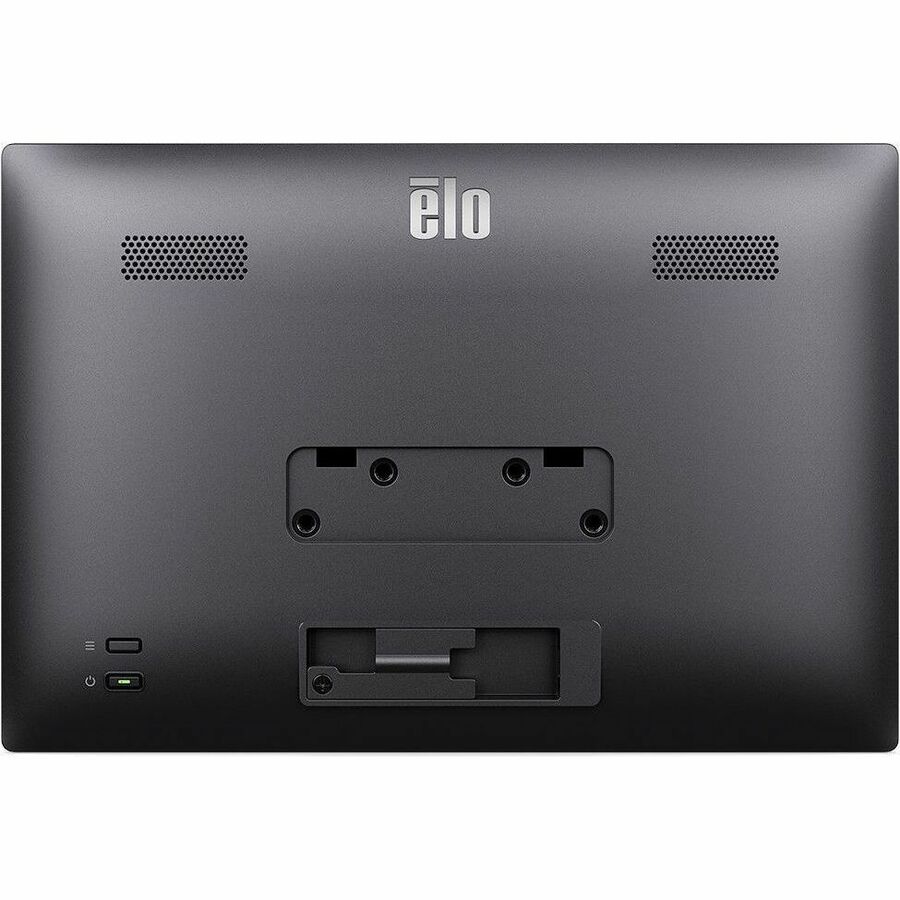

VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Specifications
Application/Usage
Commercial, Point of Sale (POS)
Aspect Ratio
16:10
Product Type
LED Touchscreen Monitor
Manufacturer Part Number
E967935
Response Time
30 ms
Speakers
Yes
Touchscreen Type
Projected Capacitive
Weight (Approximate)
1.32 lb
Brightness
400 Nit
Color Supported
16.7 Million Colors
Features
Anti-glare, On-screen Display (OSD), Low Blue Light
Manufacturer
Elo Touch Solutions, Inc
Product Model
1004LS
Product Name
1004LS 10" Touchscreen Monitor
Mount Type
Wall Mountable, Shelf Mount, Floor-mountable, Pole Mount
Viewable Screen Size
10.1"
Maximum Resolution
1280 x 800
Brand Name
Elo
Screen Mode
HD
Placement
Tabletop
Height
6.4"
Width
9.5"
Depth
0.6"
Horizontal Viewing Angle
170°
Vertical Viewing Angle
170°
USB
Yes
Backlight Technology
LED
VESA Mount Compatible
Yes
VESA Mount Standard
75 x 75
Native Contrast Ratio
800:1
Multi-touch Screen
Yes
Panel Technology
Thin Film Transistor (TFT)
Horizontal Frequency
30 kHz to 60 kHz
USB Type-C
Yes
Vertical Frequency
60 Hz
Screen Size Class
10"
Product Color
Dark Gray
Number of Simultaneous Touchpoints
10
Color Family
Gray
Impact Protection (IK) Rating
IK07
Active Display Area (H x V)
8.50" x 5.30"
Operating Temperature Range
32°F (0°C) to 104°F (40°C)
On Screen Display (OSD) Controls
Color Temperature, Brightness, Contrast, Volume, Mute, Sharpness
