Advantech IDS-3118WP-30HDA1E 19" Class Open-frame LCD Touchscreen…
Monitor - 5 ms
18.5" Viewable - Projected Capacitive - 1366 x 768 - HD - 16.7 Million Colors - 300 Nit - LED Backlight - DVI - HDMI - USB - VGA - 2 Year
SKU
Category
Touchscreen Monitors
$669.94
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 24 and Nov 28, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Touchscreen Monitors
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

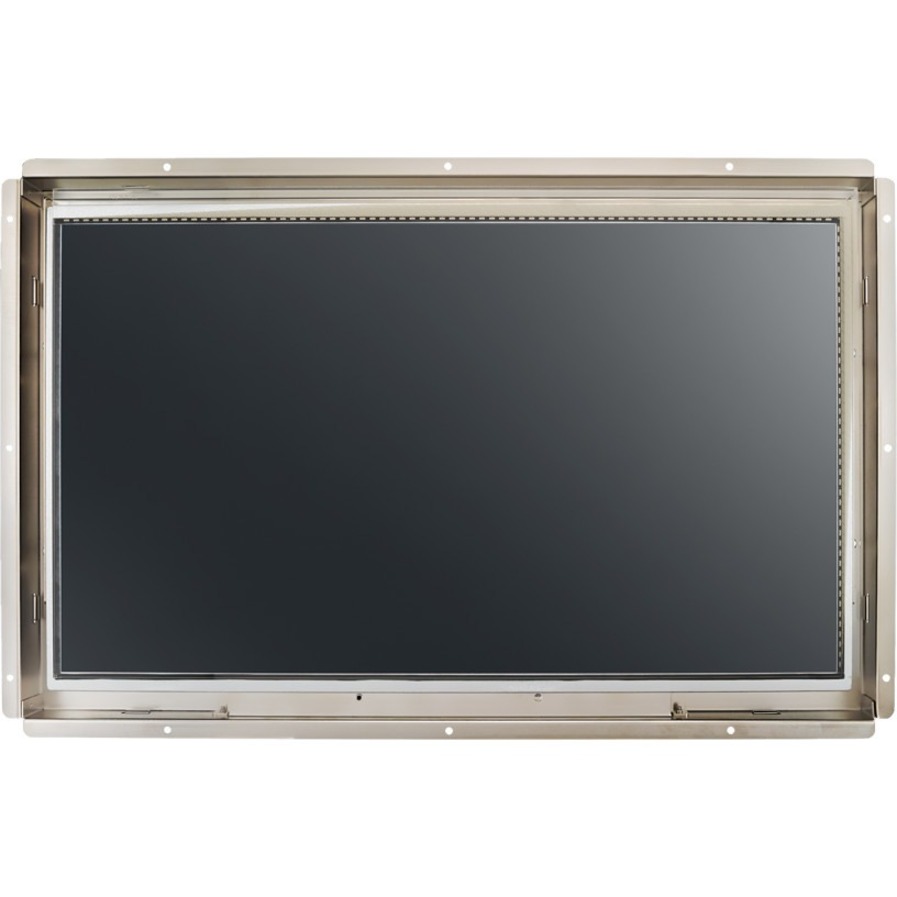

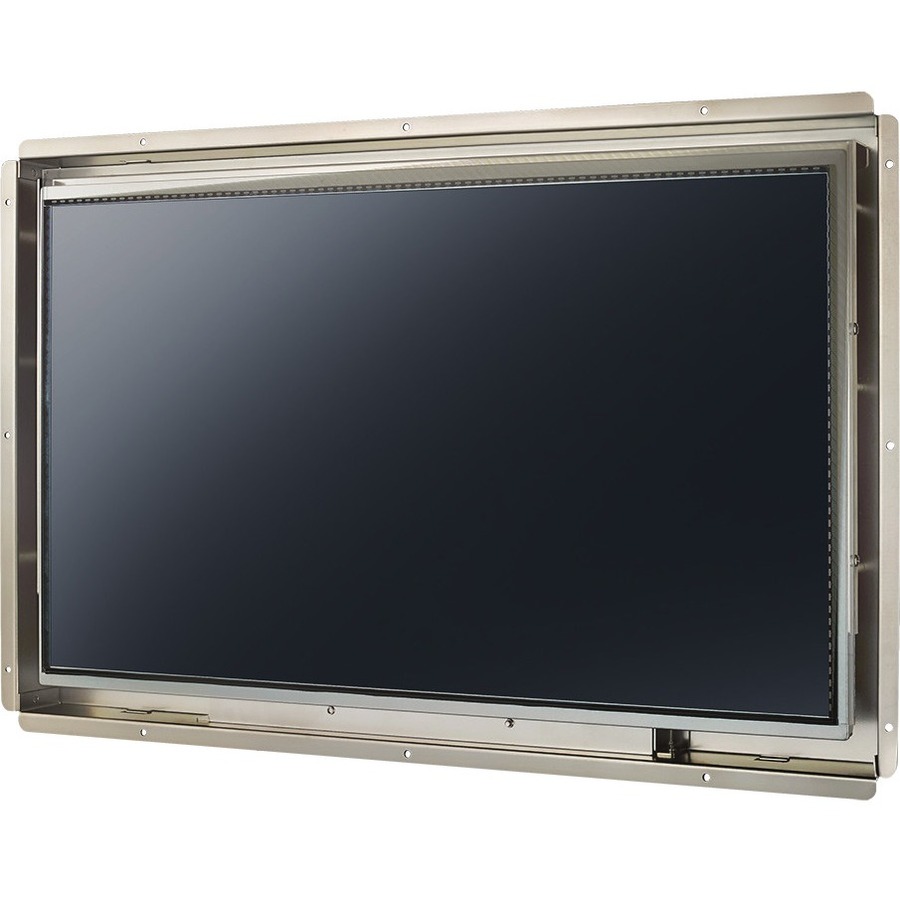

The Advantech IDS-3118W Open Frame Monitor Series offer ultra slim design supporting a 18.5" 1366 x 768 pixels TFT LCD screen, with 0 ~ 55° C operating temperature, and optional resistive and projective capacitive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.
Warranty
Limited Warranty: 2 Year
Highlights
18.5" 1366x768 HD LCD panel with LED backlight for 20% power saving and environmental protection
0° ~ 55° C wide range operating temperature
5-wire resistive and P-cap touchscreen solution
Touch interface: USB & RS-232

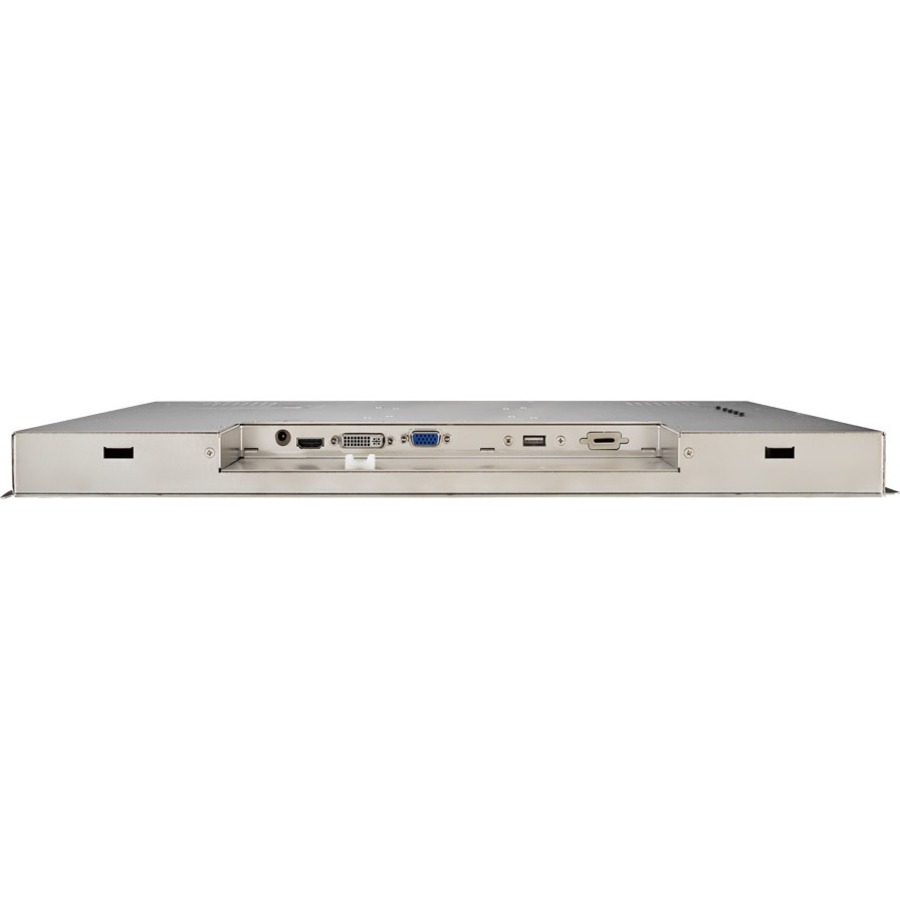

Multiple signal interface with VGA, DVI & HDMI
Integrated bracket for easy installation
Versatile mounting methods for rear mounting and VESA mounting
Anti-Reflective treatment (optional)
Optical bonding (optional)
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IDS-3118WP-30HDA1E
Brand Name
Advantech
Product Series
IDS-3118W
Product Model
IDS-3118WP-30HDA1E
Product Name
IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor
Product Type
Open-frame LCD Touchscreen Monitor
Interfaces/Ports
DVI
Yes
HDMI
Yes
USB
Yes
VGA
Yes
Number of USB Ports
1
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Height
12"
Width
18.8"
Depth
1.4"
Weight (Approximate)
10.36 lb
Technical Information
Screen Size Class
19"
Viewable Screen Size
18.5"
Screen Mode
HD
Response Time
5 ms
Mount Type
Rear Mount
Backlight Technology
LED
Touchscreen Information
Touchscreen Type
Projected Capacitive
Video
Maximum Resolution
1366 x 768
Color Supported
16.7 Million Colors
Native Contrast Ratio
1,000:1
Brightness
300 Nit
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
IDS-3118WP-30HDA1E Open Frame LCD Touchscreen Monitor
