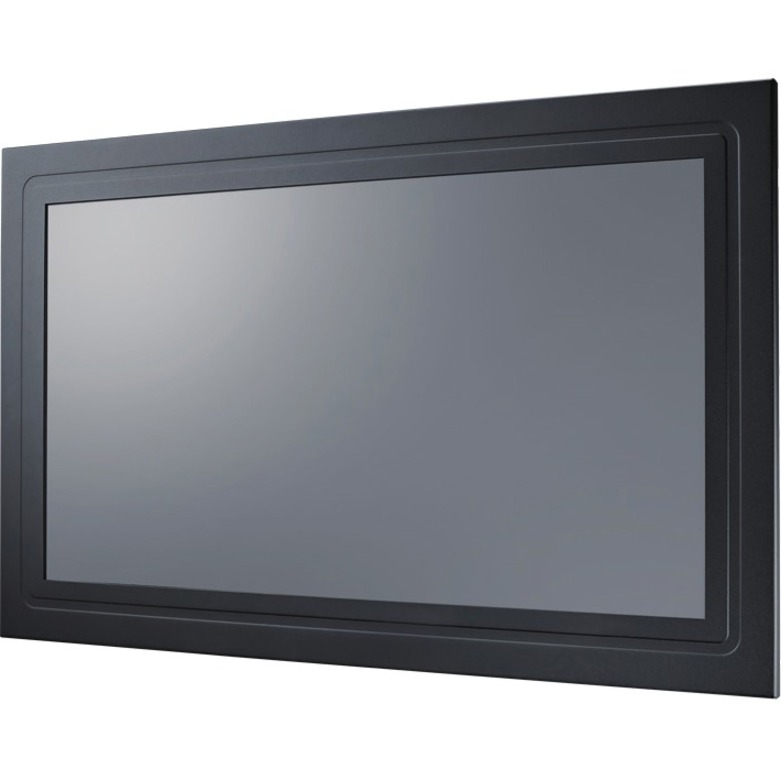

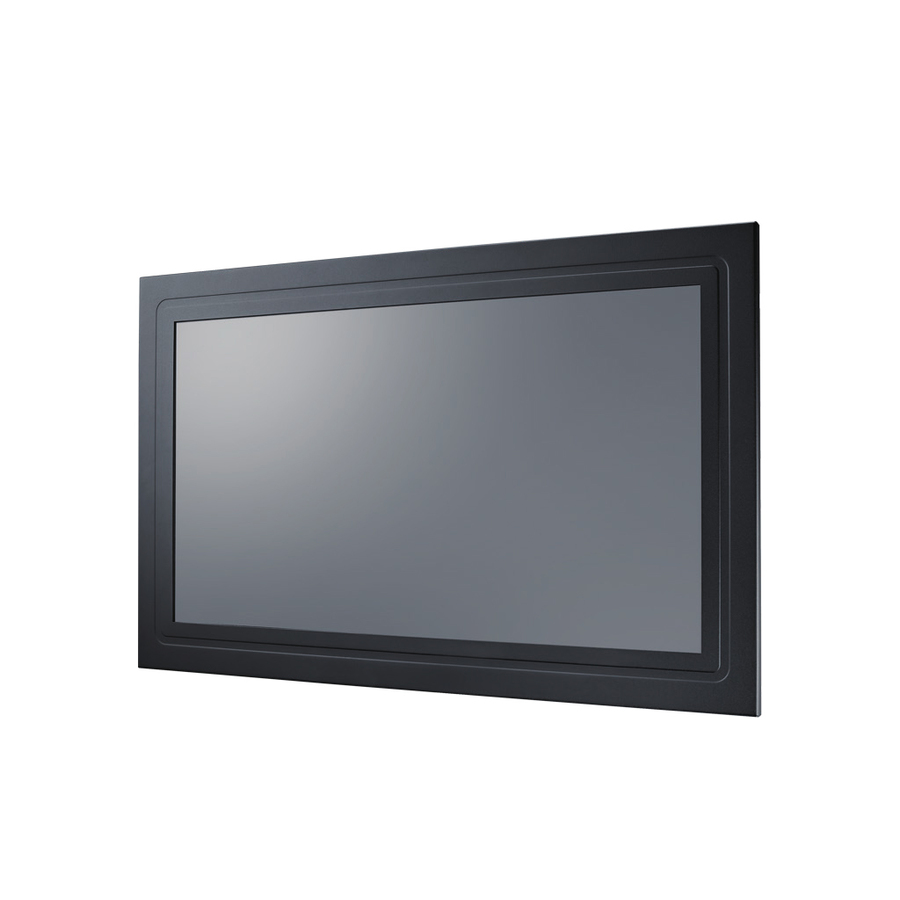

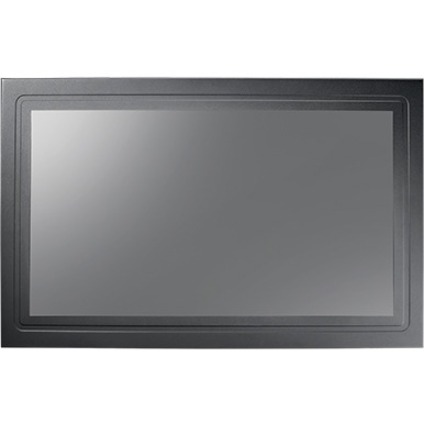

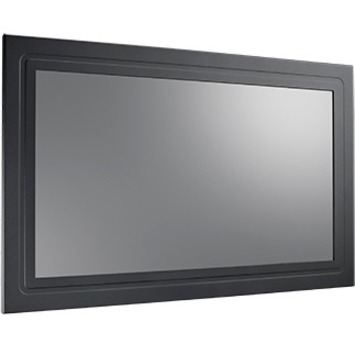

Advantech IDS-3218WP-30HDA1 19" Class LCD Touchscreen Monitor - 5 ms
Advantech

Advantech IDS-3218WP-30HDA1 19" Class LCD Touchscreen Monitor - 5 ms

18.5" Viewable - Projected Capacitive - 1366 x 768 - HD - 16.7 Million Colors - 300 Nit - LED Backlight - DVI - HDMI - USB - VGA - 2 Year

SKU
IDS-3218WP-30HDA1
Category
Touchscreen Monitors

$765.32

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3218WP-30HDA1
Category
Touchscreen Monitors

Overview

Introduction

The Advantech IDS-3218W Panel Mount series offers flexible options for touchscreens, signal interfaces and chassis mounting. The series also supports rear and VESA mounting. The integrated brackets bring the benefits of easy installation and provide flexibility for different applications.

Highlights

  • 18.5" HD LCD panel with LED backlight for 20% power saving and
  • environmental protection
  • 0° ~ 55° C wide range operating temperature
  • 5-wire resistive and P-cap touchscreen solution
  • Touch interface: USB & RS-232
  • Multiple signal interface with VGA, DVI & HDMI
  • Integrated bracket for easy installation
  • Versatile mounting methods for rear mounting and VESA mounting
  • Anti-Reflective treatment (optional)
  • Optical bonding (optional)

Specifications

Package Contents
  • IDS-3218WP-30HDA1 Touchscreen LCD Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA Cable 15P(M) 1.8 meter
  • 8 x Clamper
  • 1935042520 8 x Screw of Clamper M4_25L
  • 1992610005 1 x Cable Clamp
  • 1933030500 1 x Screw of Cable Clamp
  • 1992602010 1 x Cable Tie
  • USB Cable
Product TypeLCD Touchscreen Monitor
Manufacturer Part NumberIDS-3218WP-30HDA1
Response Time5 ms
Limited Warranty2 Year
Touchscreen TypeProjected Capacitive
Brightness300 Nit
Color Supported16.7 Million Colors
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3218WP-30HDA1
Product NameIDS-3218WP-30HDA1 Touchscreen LCD Monitor
Mount TypePanel Mount, Rear Mount, Front Mount
Product SeriesIDS-3218W
Viewable Screen Size18.5"
Maximum Resolution1366 x 768
Brand NameAdvantech
Screen ModeHD
Country of OriginTaiwan
Height12.1"
Width19"
Depth1"
Environmentally FriendlyYes
USBYes
HDMIYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Native Contrast Ratio1,000:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class19"
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
