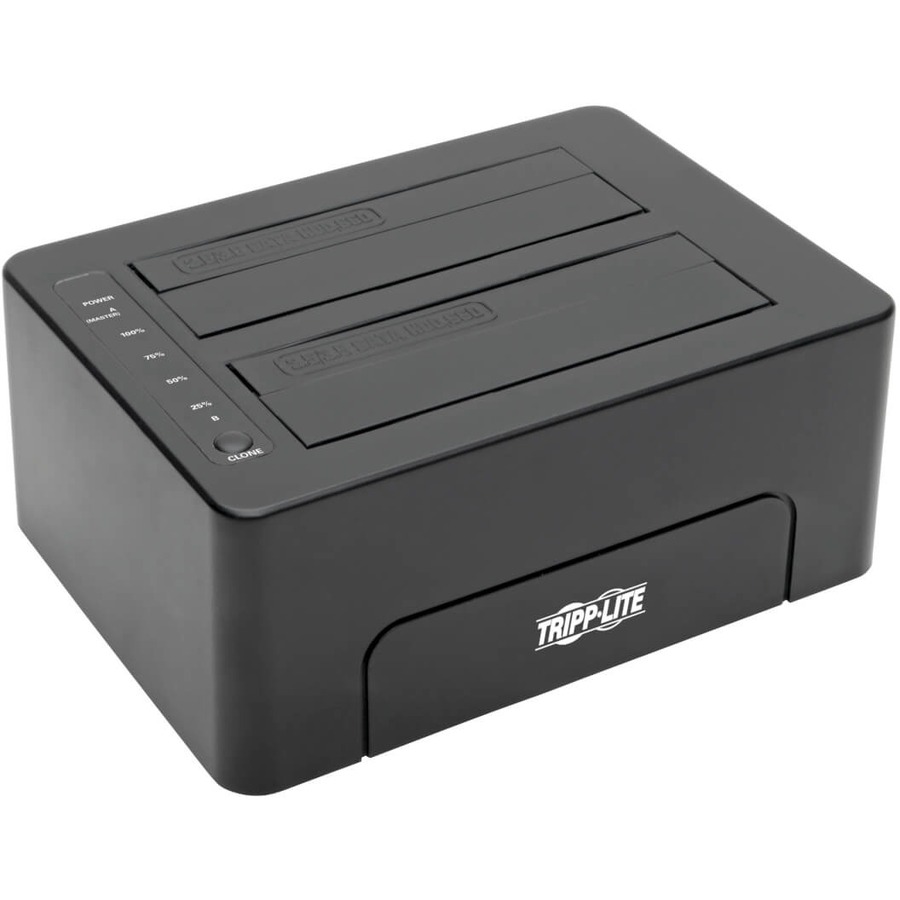

Eaton Tripp Lite Series USB-C to Dual SATA Quick Dock - USB 3.1 Gen 2 (10 Gbps), 2.5/3.5 in. HDD/SDD, Thunderbolt 3

USB-C to SATA Adapter Connects 2 SATA Drives to Your Device's USB-C or Thunderbolt 3 Port

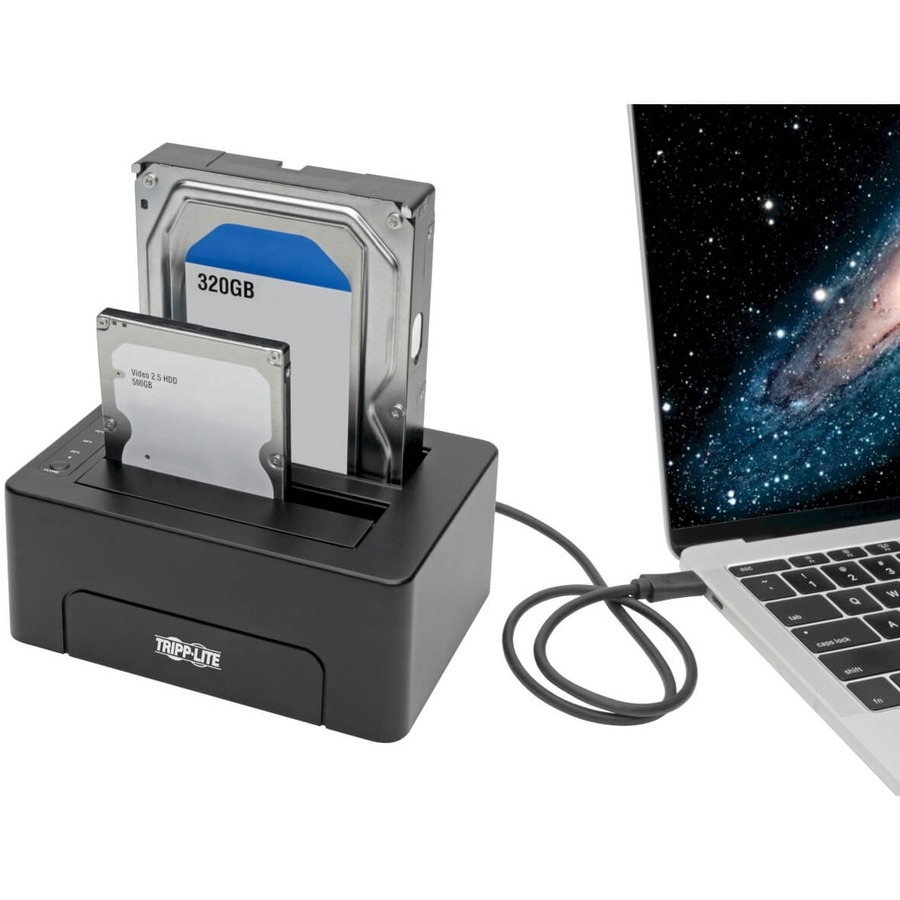

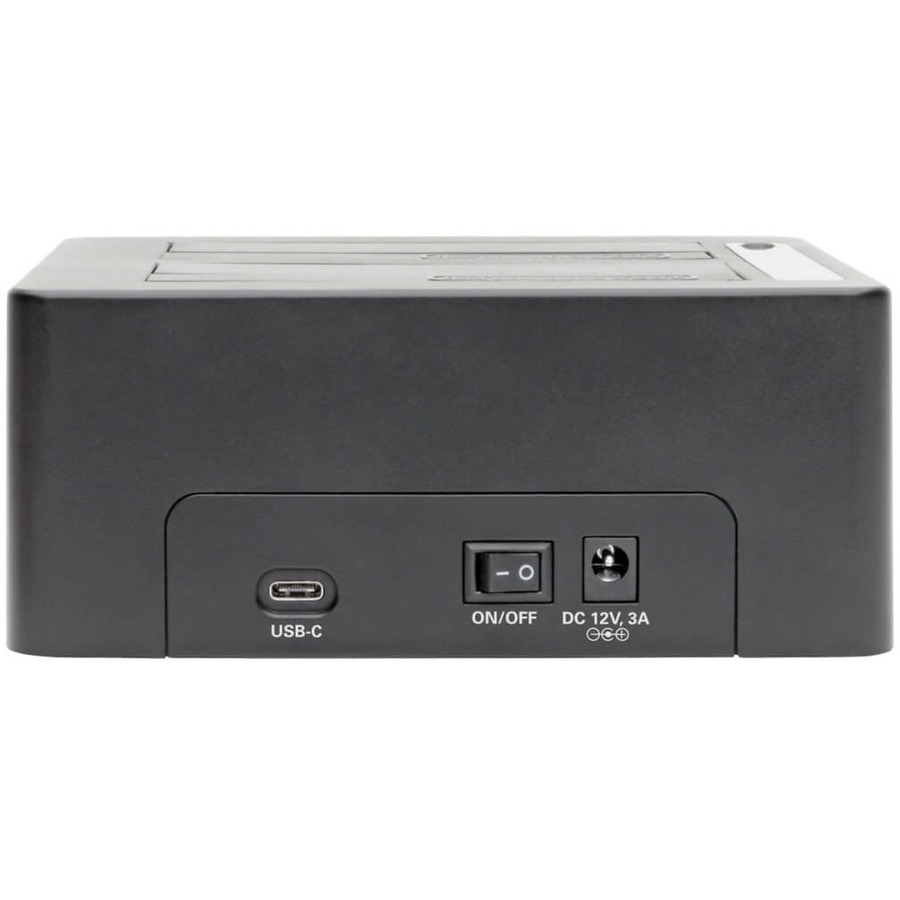

This dual-drive USB 3.1 Type-C to SATA quick dock allows you to quickly and easily add extra storage space to your computer, tablet, laptop, notebook, MacBook, Ultrabook or Chromebook. The plug-and-play unit connects to your device's USB Type-C or Thunderbolt 3 port using the included USB 3.1 Gen 2 cable. Just insert up to two 2.5- or 3.5-inch SATA drives into the top slots, and activate the on/off switch. LEDs indicate the unit is receiving power and the SATA drives are ready to use.

One-Touch Cloning Allows Easy Drive Duplication

You can duplicate the contents of one SATA drive onto a second drive without connecting to a host computer. Just insert the SATA master drive into the unit's Master slot, and insert the SATA replica drive into the Replica slot. Press the Clone button. A progress bar illuminates to indicate cloning progress.

Complies with USB 3.1 Gen 2 Standards for Ultra-Fast File Transfers

This USB Type-C to SATA adapter supports USB 3.1 Gen 2 data transfer speeds up to 10 Gbps. It is backward compatible with previous USB 3.0 and USB 2.0 generations, so you can use it with older USB devices and cables. It also reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller.

Works with Most SATA Drives

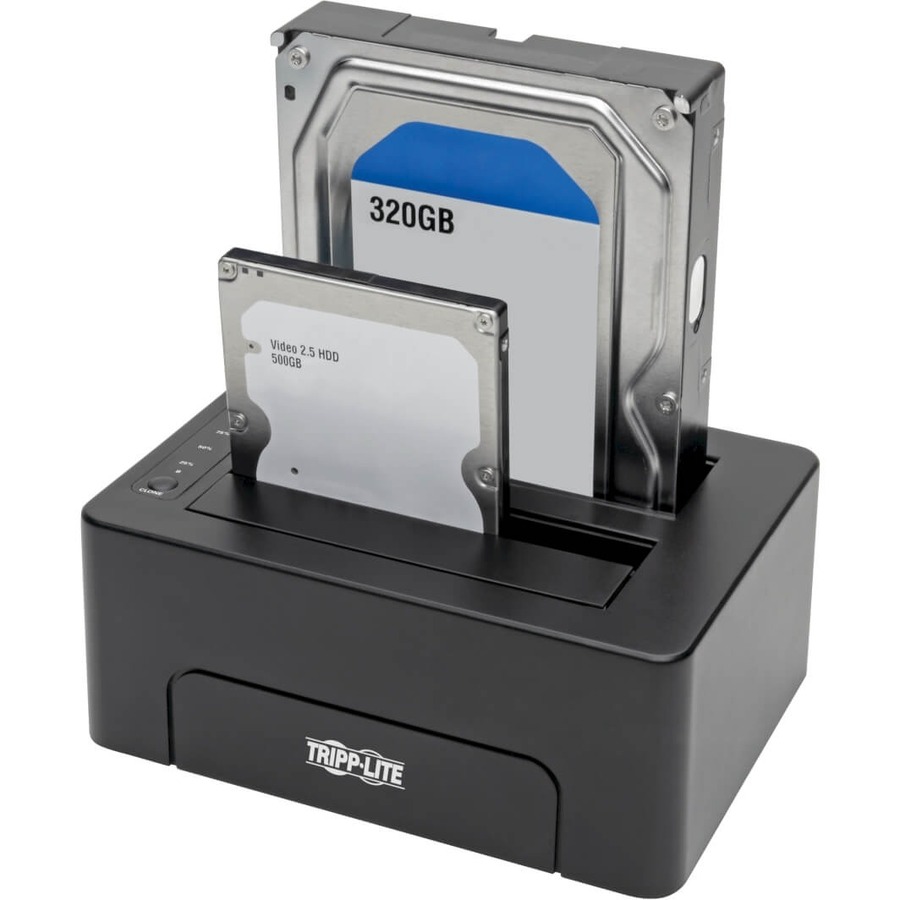

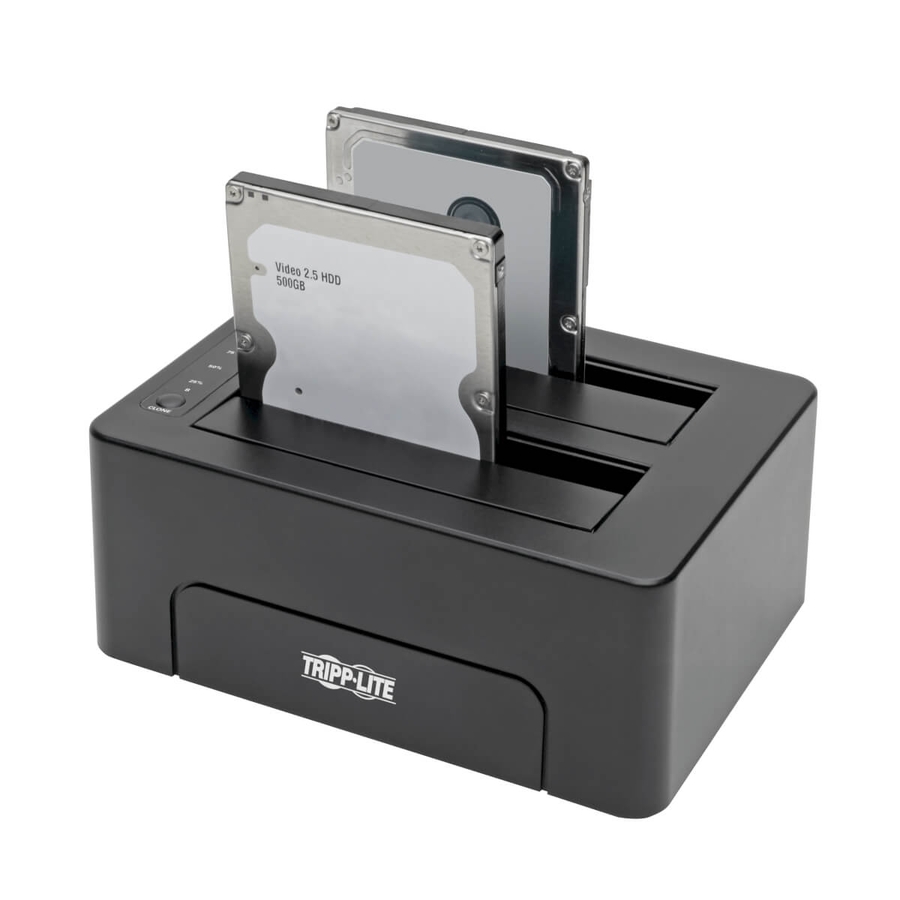

The dock accepts 2.5-inch and 3.5-inch SATA I, II and III hard disc drives (HDDs) and solid state drives (SSDs) up to 10 TB (and higher-capacity drives when they become available). It also works with all major operating systems, including Windows, Mac and Linux.

More from the Manufacturer

One-Touch Cloning for Easy Duplication

Tripp Lite’s U439-002-CG2 features dual SATA drive slots so you can duplicate the contents of one inserted SATA drive onto a second inserted drive without connecting to a host computer. Simply press the Clone button and watch on the progress bar as your drive is copied.

Typical Applications

Clone one SATA drive to another without connecting to a PC

Quickly archive data from your computer to an external drive

Transfer data from one computer to another via SATA drive

Gain fast access to SATA drives for imaging purposes

What’s in the Box

U439-002-CG2 USB 3.1 Gen 2 USB-C to SATA Hard-Drive Quick Dock

External power supply (Input: 100–240V, 50/60 Hz, 1.5A; Output: 12V 3A)

USB 3.1 Gen 2 (10 Gbps) USB-C cable (M/M), 3 ft.

Owner’s manual
