Overview

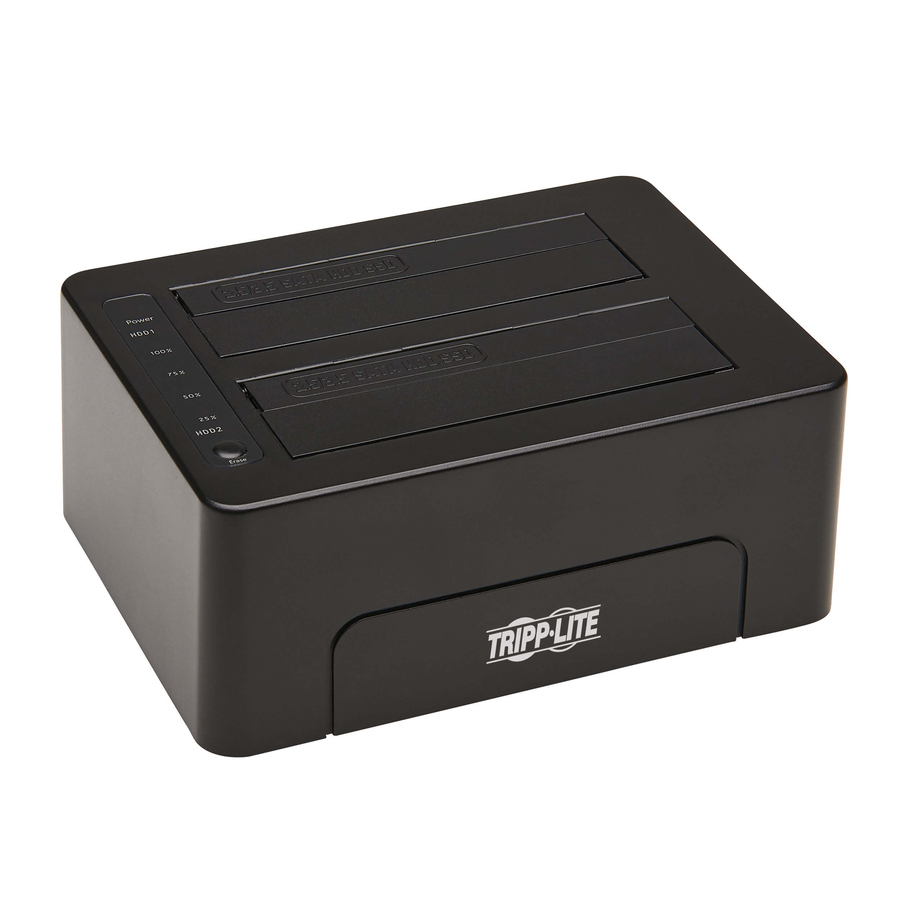

Connect 2 SATA External Hard Drives to Your Computer's USB Port for Extra Storage
When the hard drive on your laptop is not large enough to hold all your photos, videos, music and documents, Tripp Lite's U339-E02 is the solution. This dependable docking station allows you to connect two SATA HDD or SSD drives to any device with a USB port, including MacBooks, Ultrabooks and Chromebooks. It supports 2.5-inch SATA III, II and I drives up to 2 TB, 3.5-inch drives up to 14 TB, and will support higher capacities as they become available.
Transfers Data at Fast USB 3.0 Speeds with UASP Support
This dock supports USB 3.0 data transfer rates up to 5 Gbps, which is 10 times the speed of USB 2.0, to give you more data storage, retrieval and backup capacity. It reads data up to 70 percent faster and writes up to 40 percent faster when connected to a UASP-enabled host controller. The U339-E02 is backward compatible with previous USB generations, allowing you to use it with older equipment.
Clears the Content of 2 SATA Drives at the Same Time

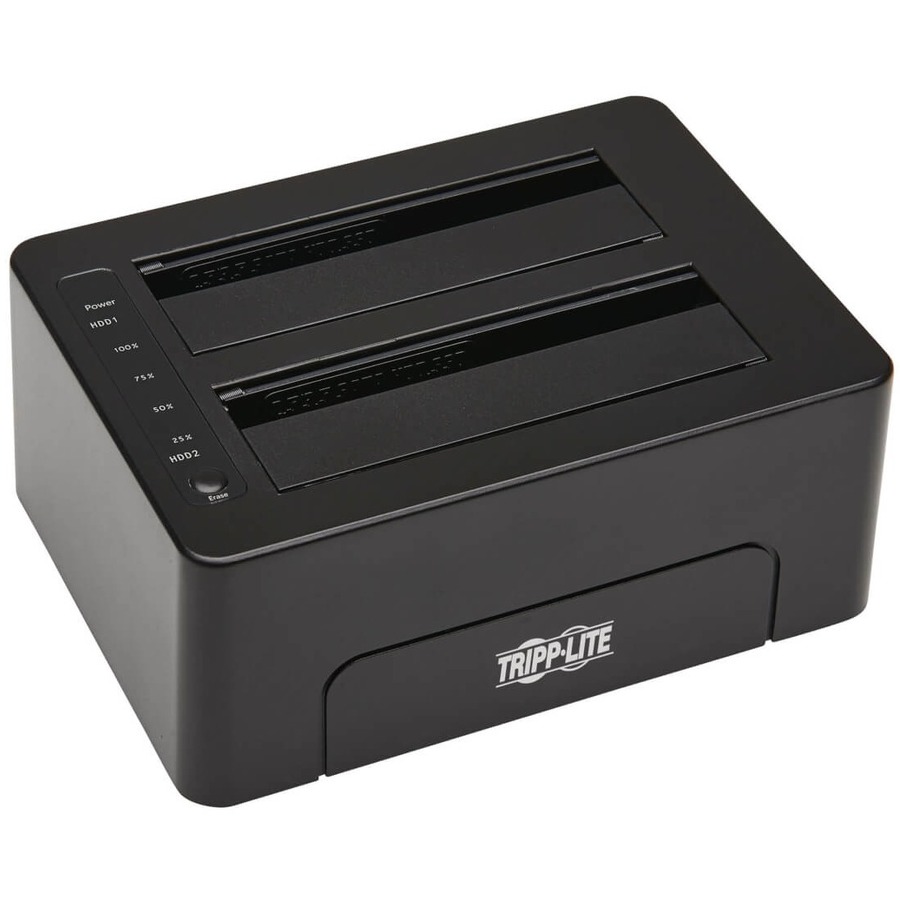

An Offline Erase function reformats two SATA hard drives simultaneously at the touch of a button. A red LED blinks to indicate the Erase function is being performed. Four blue LEDs indicate progress, letting you know at a glance when the disks are completely erased. Note: The Erase function will not work if the U339-E02 is connected to a computer or any other source via USB cable.
Just Plug and Play for Immediate Use Right Out of the Package
No software or drivers are required. The U339-E02 is compatible with all USB-enabled operating systems, including Windows, Mac and Linux. The included power supply with six-foot cord and NEMA 1-15P plug connects to a convenient wall outlet, PDU or UPS system.
Typical Applications
• Archive backup data quickly to an external SATA drive
• Transfer video, photos and other data from one SATA drive to another
• Erase up to 2 SATA drives simultaneously
Warranty
Limited Warranty: 1 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights

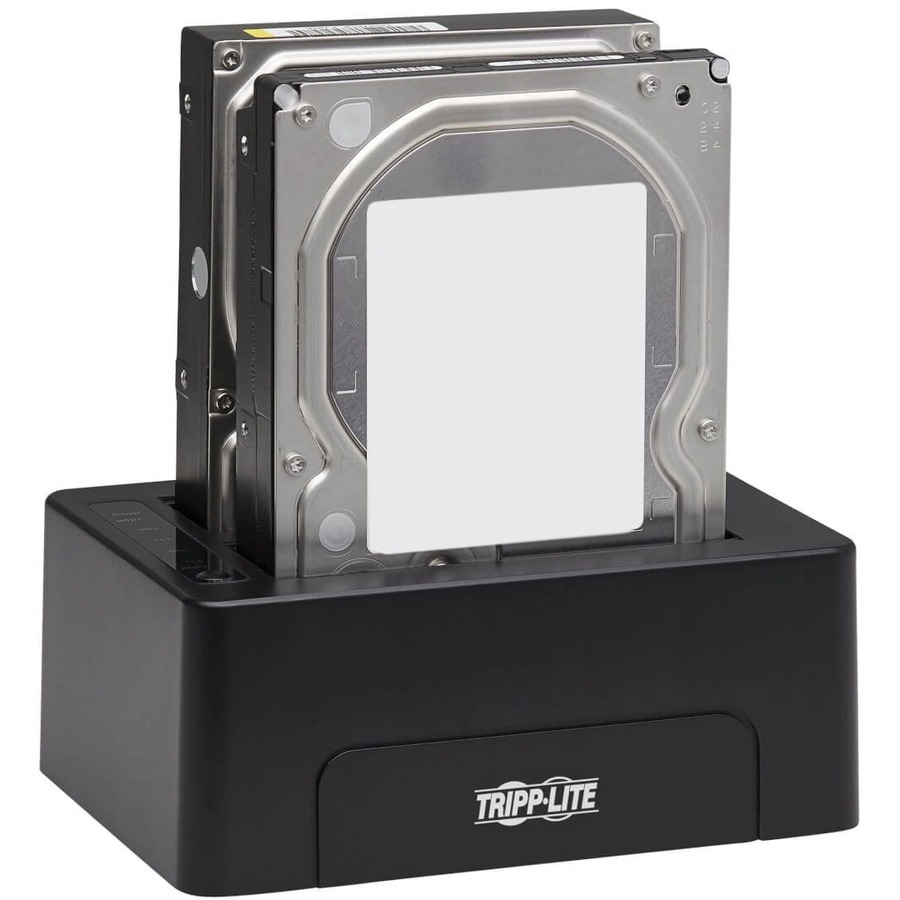

Connects dual SATA HDD (hard disk drives) or SSD (solid state drives) to your computer
Supports 2.5 in. SATA III, II and I drives up to 2 TB; 3.5 in. SATA drives up to 14 TB
Supports USB 3.0 speeds up to 5 Gbps to ensure fast data transfers
Reads data up to 70% faster when connected to UASP host controller
One-touch erase feature formats 2 hard drives with no computer connection needed
1-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
U339-E02
Brand Name
Tripp Lite series
Product Model
U339-E02
Product Name
U339-E02 2-Bay USB 3.0 SATA Hard Drive Docking Station
Product Type
Drive Enclosure
Interfaces/Ports

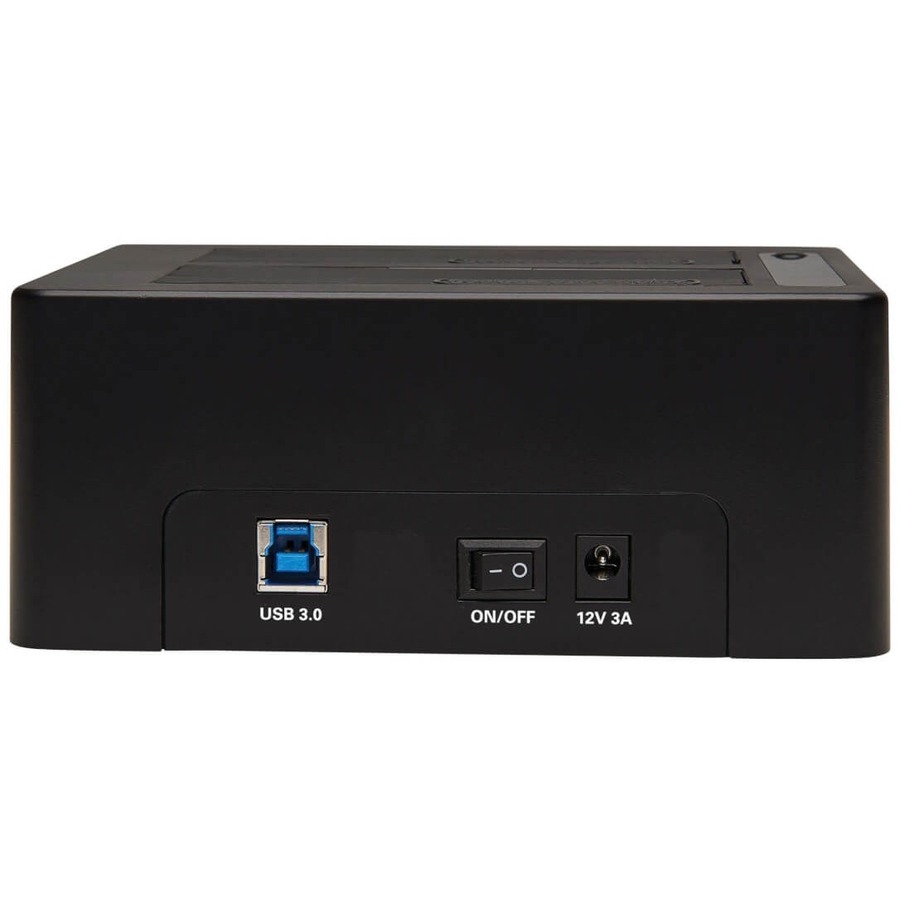

Host Interface
USB 3.0 Type B
Network & Communication
UASP Support
Yes
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Acrylonitrile Butadiene Styrene (ABS)
Form Factor
External
Height
2.4"
Width
15.3"
Depth
4.4"
Weight (Approximate)
14.40 oz
Technical Information
Number of Hard Drives Supported
2
I/O Expansions
Number of Total Expansion Bays
2
Number of 2.5"/3.5" Bays
2
Warranty
Limited Warranty
1 Year
Miscellaneous

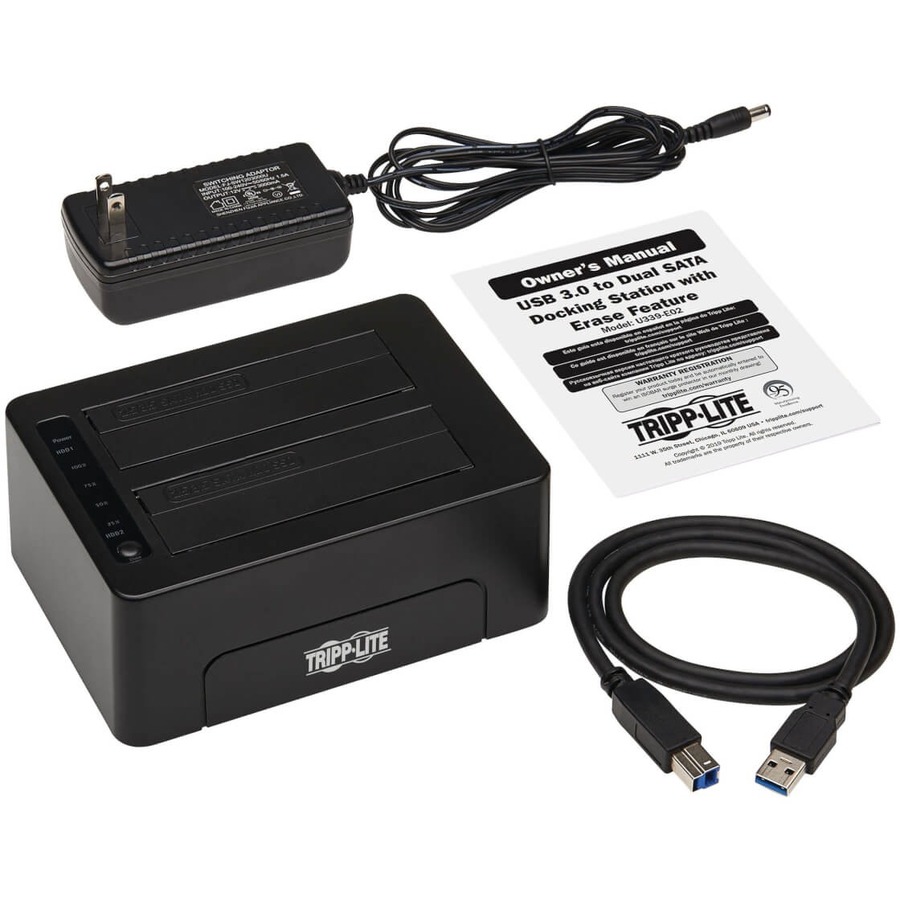

Package Contents
U339-E02 2-Bay USB 3.0 SATA Hard Drive Docking Station
External Power Supply with NEMA 1-15P plug (Input: 100-240V, 50/60 Hz, 1.5A; Output: 12V 3A)
USB 3.0 A-to-B Cable, 3 ft
Owner's Manual
Country of Origin
China
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
