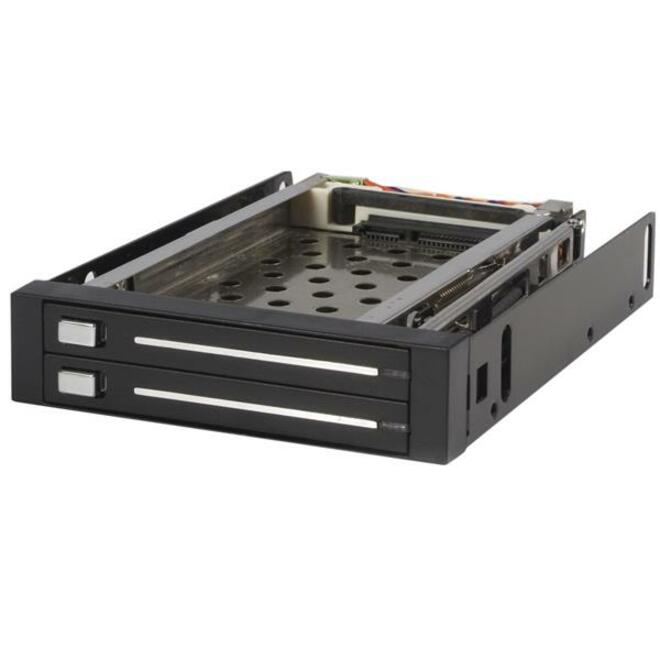

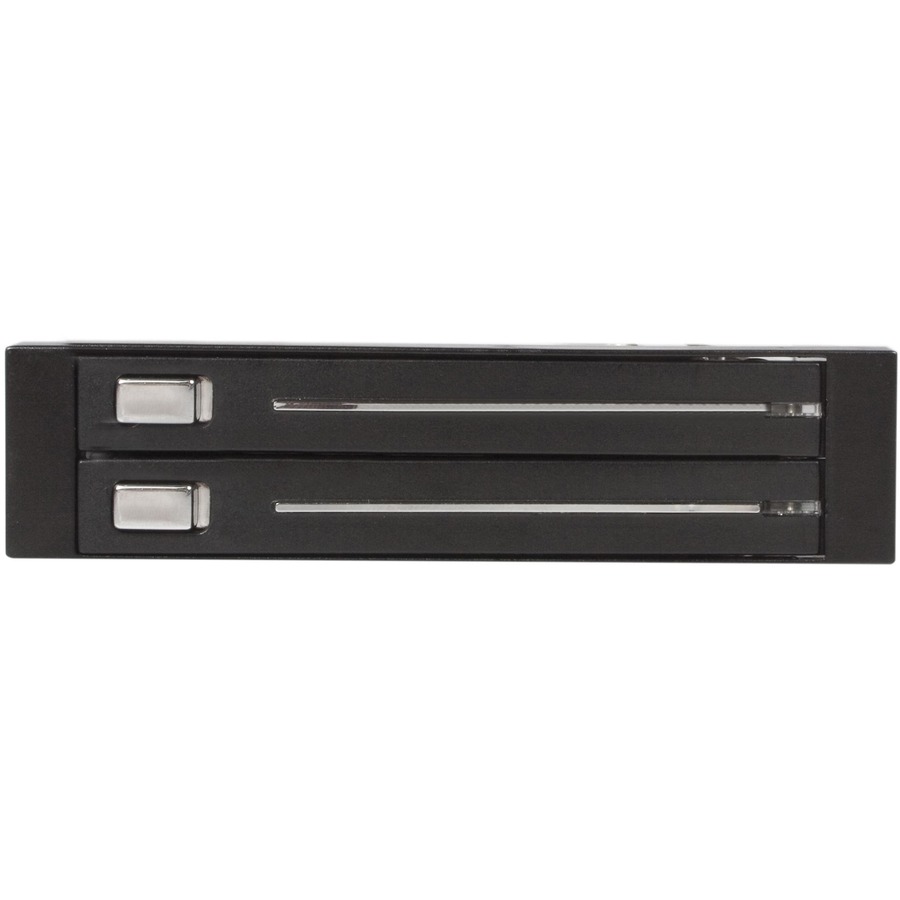

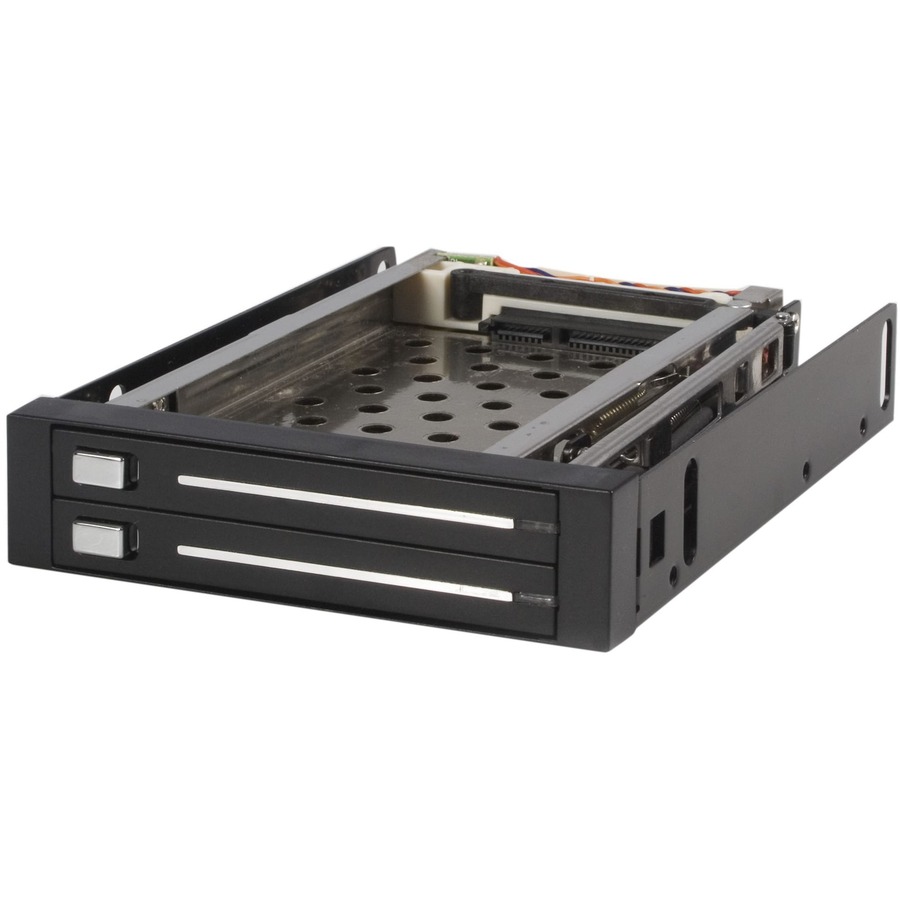

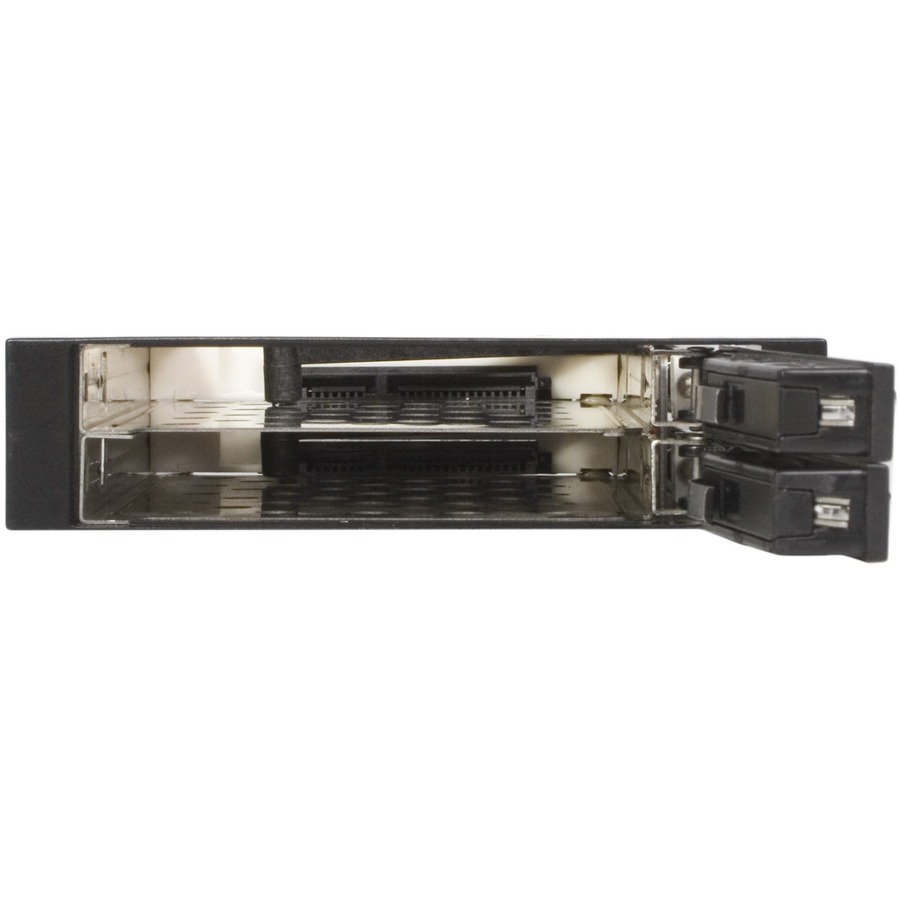

StarTech 2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane - Storage bay adapter - black
Easy, trayless removal and insertion of dual 2.5in SATA hard drives from single 3.5in bay - sata backplane - sata mobile rack - sata enclosure - 2.5inhot swap bay - SATA hot swap
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
HSB220SAT25B
Category
Drive Cabinets
Overview
This 3.5in SATA hard drive hot-swap bay allows you to install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) in an available/unused 3.5in floppy drive bay. Featuring a convenient "no mounting required /easy eject" feature (like a tape cartridge or floppy disk), the hard drive hot swap bay doesn't require that the drives be installed in a tray - making it the ideal solution for quick and easy drive removals and insertions as part of a system building process, or integration into rackmount systems or industrial environments. To maximize performance and utilize the full speed potential of your SATA III hard drives, this HDD Backplane supports SATA III for transfer speeds up to 6 Gbps when paired with a compatible controller. Also a perfect addition for operating system image deployment and any task that requires being able to quickly access large volumes of data on the fly, the hot swap bay provides everything you need to expedite important projects while maintaining a reliable storage solution. With support for SATA HDD speeds up to 6.0 Gbps, this backplane is fully compatible with RAID installations to ensure maximum performance and versatility for enhanced storage applications. More from the Manufacturer More from the Manufacturer
Highlights
Holds up to two SATA drives in a single 3.5" bay

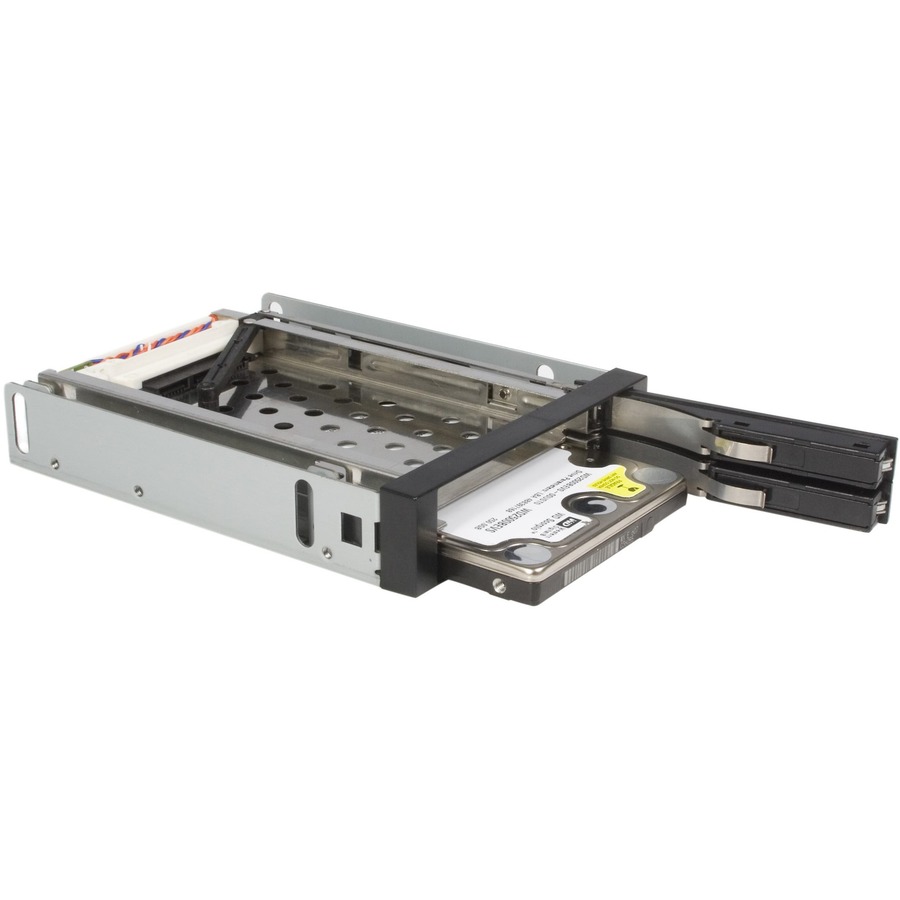

Trayless design: drives are not mounted into separate trays/enclosures
Includes a plastic protective film for the bottom side of hard drive
Aluminum construction
50,000+ insertion rating
Power/Activity LED for each drive
Support for SATA revision I/II/III (1.5/3.0/6.0 Gbps)
Supports 2.5" form factor SATA hard drives (HDD) and solid state drives (SSD)
Plug-and-Play and Hot-Swap compatible
Specifications
Package Contents
2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
2 x Lp4 To SATA And LED Adapter Cable
1 x 15-Pin SATA Power And LED Y Cable
2 x 7-Pin SATA Data Cable
2 x Hard Drive Protector Film
1 x Screw Kit
1 x Instruction Manual
Host Interface
Serial ATA/600
Product Type
Drive Enclosure
Manufacturer Part Number
HSB220SAT25B
Packaged Quantity
1 Each
Limited Warranty
2 Year
Weight (Approximate)
10.10 oz
Form Factor
Internal
Manufacturer
StarTech.com
Product Name
2 Drive 2.5in Trayless Hot Swap SATA Mobile Rack Backplane
Controller Type
Serial ATA
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
0.9"
Width
4"
Depth
5.3"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Wireless LAN
No
Compatible Drive Bay Width
3.5"
Number of Total Expansion Bays
2
Number of Hard Drives Supported
2
Number of Hard Drives Installed
No
Number of Solid State Drive Supported
2
Number of Solid State Drive Installed
No
Number of 2.5" Bays
2
Drive Interface
SATA/600
Product Color
Black
Color Family
Black
Product Material
Aluminum
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
