StarTech Dual 2.5" to 3.5" HDD Bracket for SATA Hard Drives, 2 Drive 2.5" to 3.5" Bracket for Mounting Bay, TAA
Mount two 2.5in SATA SSDs/HDDs into a single 3.5in drive bay - Hard Drive Mounting Bracket - 2.5 to 3.5 Hard Drive Adapter - 2.5 to 3.5 Bracket - SSD Mounting Bracket - Hard Drive Mounting Brackets - Hard Drive Mounting Kit - SSD Mounting Kit
Genuine StarTech.com through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
BRACKET25X2
Category
Drive Cabinets
Overview

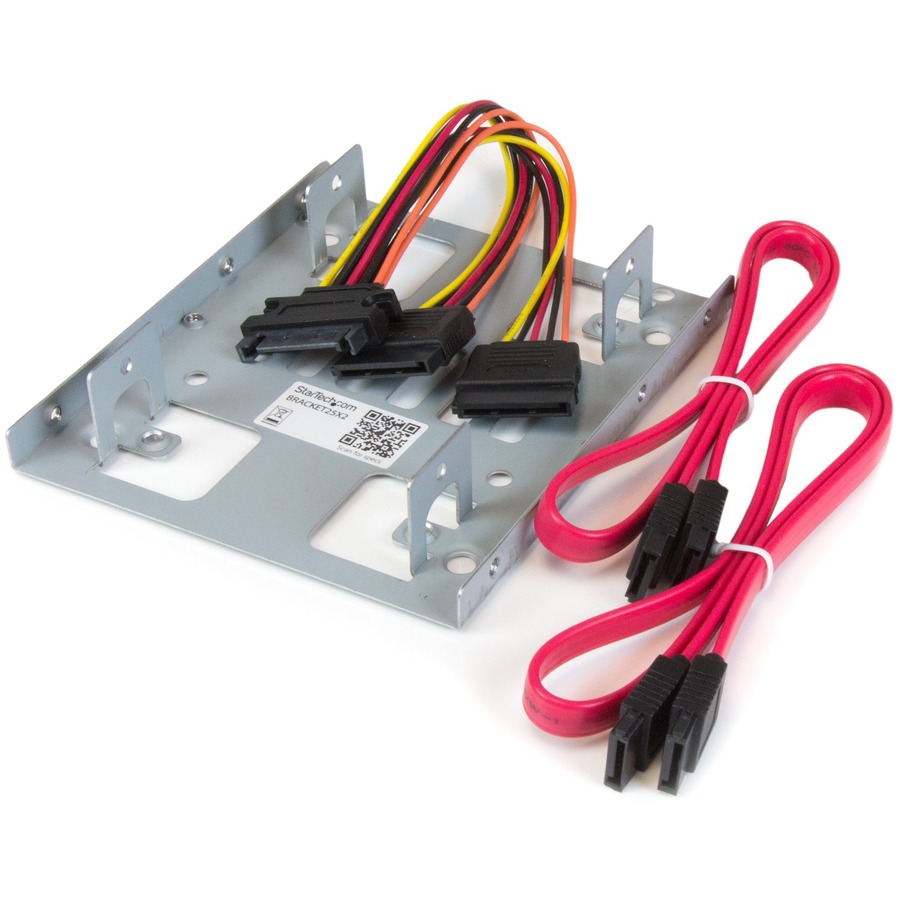

The BRACKET25X2 Dual hard drive mounting bracket kit lets you install two 2.5in SATA hard drives (HDD) or solid state drives (SSD) into a single 3.5in mounting bay -- enabling you to significantly increase the performance of your desktop by adding the speed of a 2.5in SSD. Maximize the internal mounting space of your computer, by installing two 2.5in hard drives in the same 3.5in bay. The bracket can be used with SATA hard drives and solid states For a hassle-free installation, the hard drive mounting kit includes all required data and power cabling for both SATA drives. Plus, the bracket can support IDE drives when using our 2.5in to 3.5in IDE Hard Drive cable adapter (IDE4044). The BRACKET25X2 features solid steel construction, and is backed by a StarTech.com lifetime warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer
Highlights

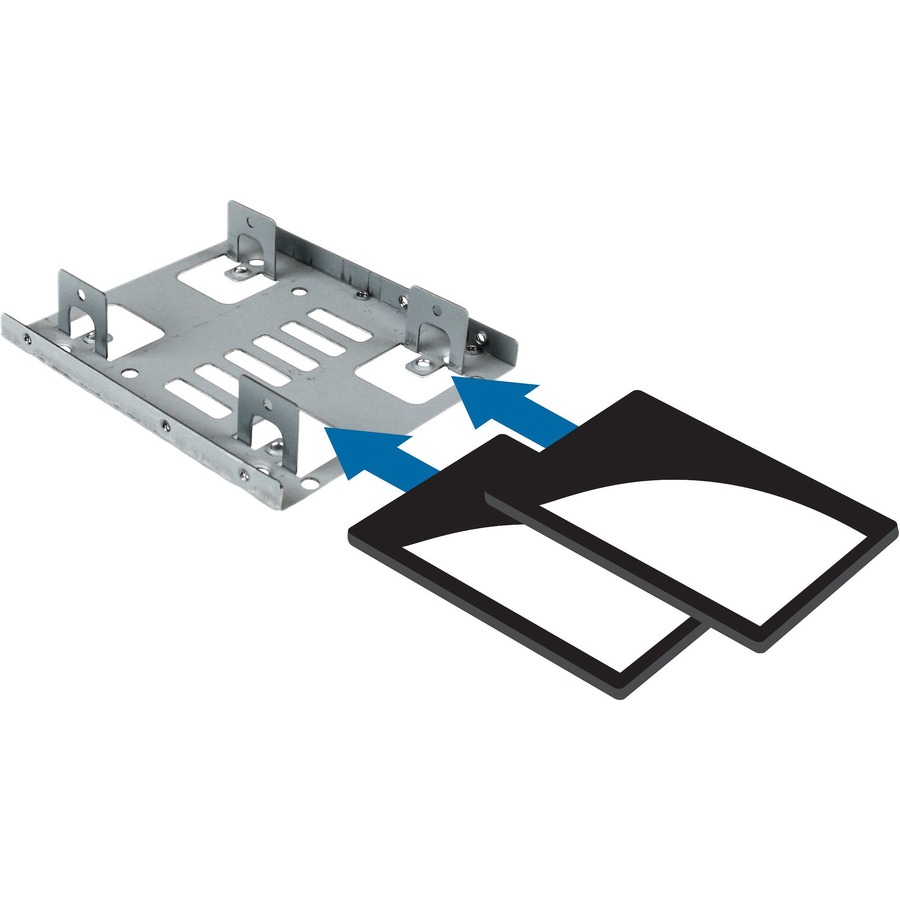

Mount up to two 2.5in drives into a single 3.5in bay
SATA data and power cabling included
Solid steel construction
Vertical and horizontal drive mounting holes
Specifications
Package Contents
Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
1 x Drive Mounting Screw Kit
4 x Flat Screws and Washers (Bottom Drive)
4 x M3x5mm Screws (Top Drive)
4 x 6-32 Screws (Case Mount)
2 x SATA Data Cables
1 x SATA Power Y Cable
1 x Quick-Start Guide
Product Type
Drive Bay Adapter
Manufacturer Part Number
BRACKET25X2
Packaged Quantity
1 Each
Limited Warranty
Lifetime
Weight (Approximate)
2.60 oz
Form Factor
Internal
Manufacturer
StarTech.com
Product Name
Dual 2.5" SATA Hard Drive to 3.5" Bay Mounting Bracket
Brand Name
StarTech.com
Country of Origin
Taiwan
Height
0.9"
Width
4"
Depth
4.6"
Environmentally Friendly
Yes
Environmental Certification
EU RoHS
Wireless LAN
No
Compatible Drive Bay Width
3.5"
Number of Total Expansion Bays
2
Number of Hard Drives Supported
2
Number of Hard Drives Installed
No
Number of Solid State Drive Supported
2
Number of Solid State Drive Installed
No
Number of 2.5" Bays
2
Drive Interface
SATA/600
TAA Compliant
Yes
Product Color
Silver
Color Family
Silver
Product Material
Steel
Environmental Compliance
Restriction of Hazardous Substances (RoHS) 2, Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Waste Electrical and Electronic Equipment Directive (WEEE)
