StarTech 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Mobile Rack for 2.5inch U.2 (SFF-8639) NVMe HDD/SSDs, Removable Trays
4-bay backplane adds four U.2 (SFF-8639) NVMe drive bays to desktop/server; Supports 7mm to 15mm 2.5" U.2 NVMe SSDs; Up to 32Gbps; Lockable and removeable drive trays/caddies; Works with any operating system; 2x keys incl.; Includes 4x Mini-SAS Cable
Genuine StarTech.com through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Drive Cabinets
Overview

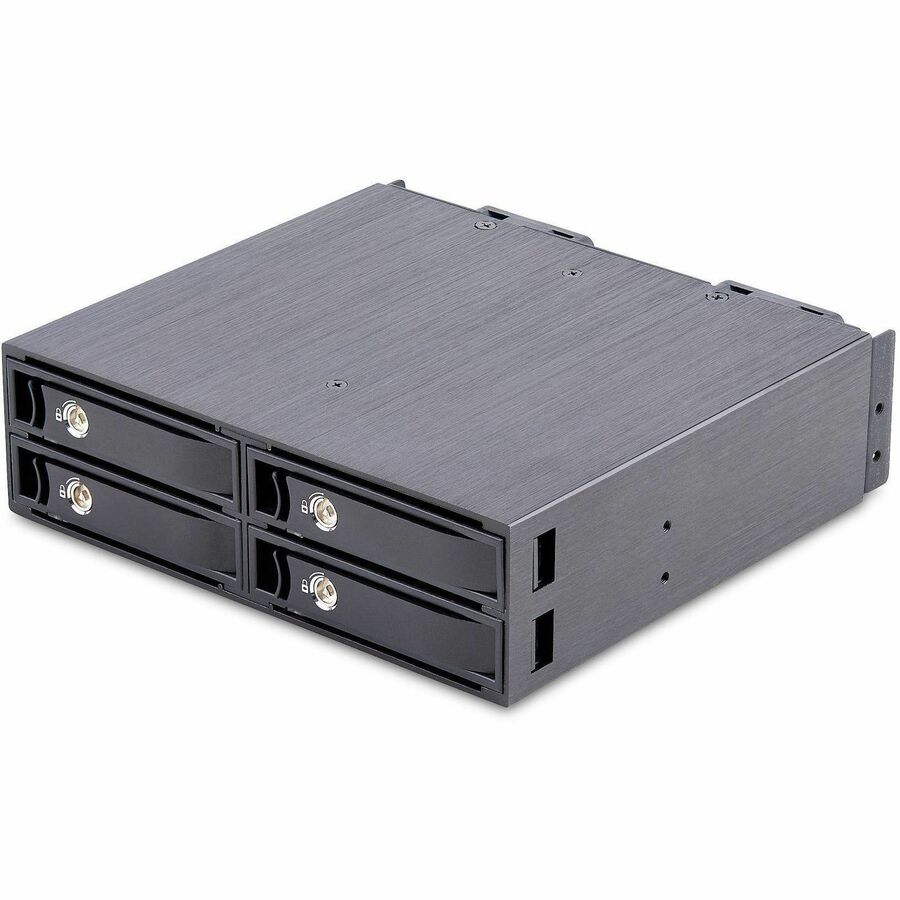

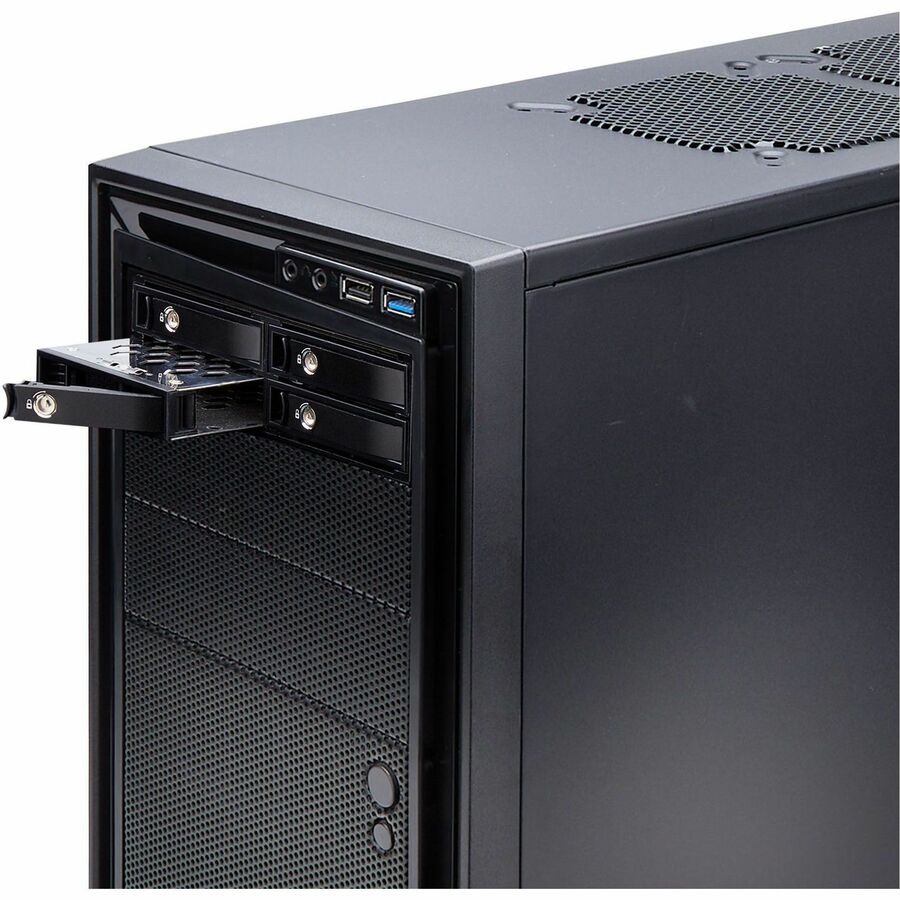

This 4-Bay Drive Backplane or Mobile Rack facilitates the installation of up to four 2.5-inch U.2 (SFF-8639) NVMe SSD/HDDs within a single 5.25-inch bay.
Secure Design

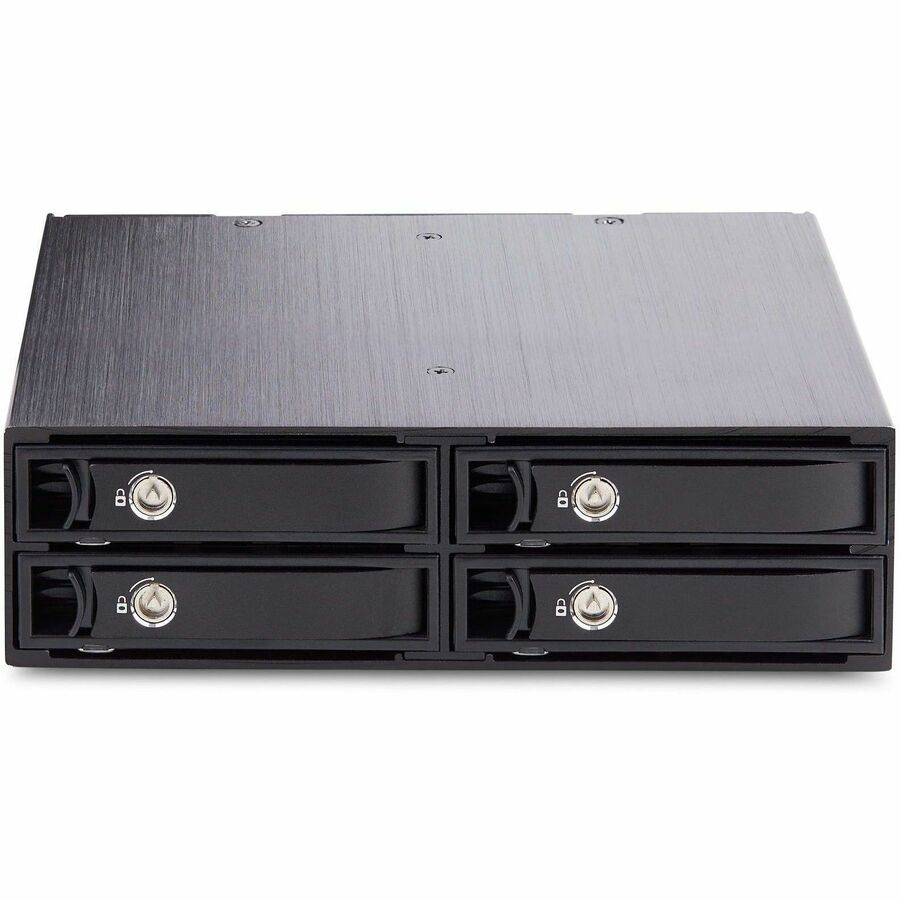

Enhance security and stability with lockable drive trays, providing an additional layer of protection while preventing accidental hot swaps*. The LEDs provide a visual indication of individual drive status and activity. *Hot swap support is dependent on host computer PCIe hot swap capability.
Well-Vented

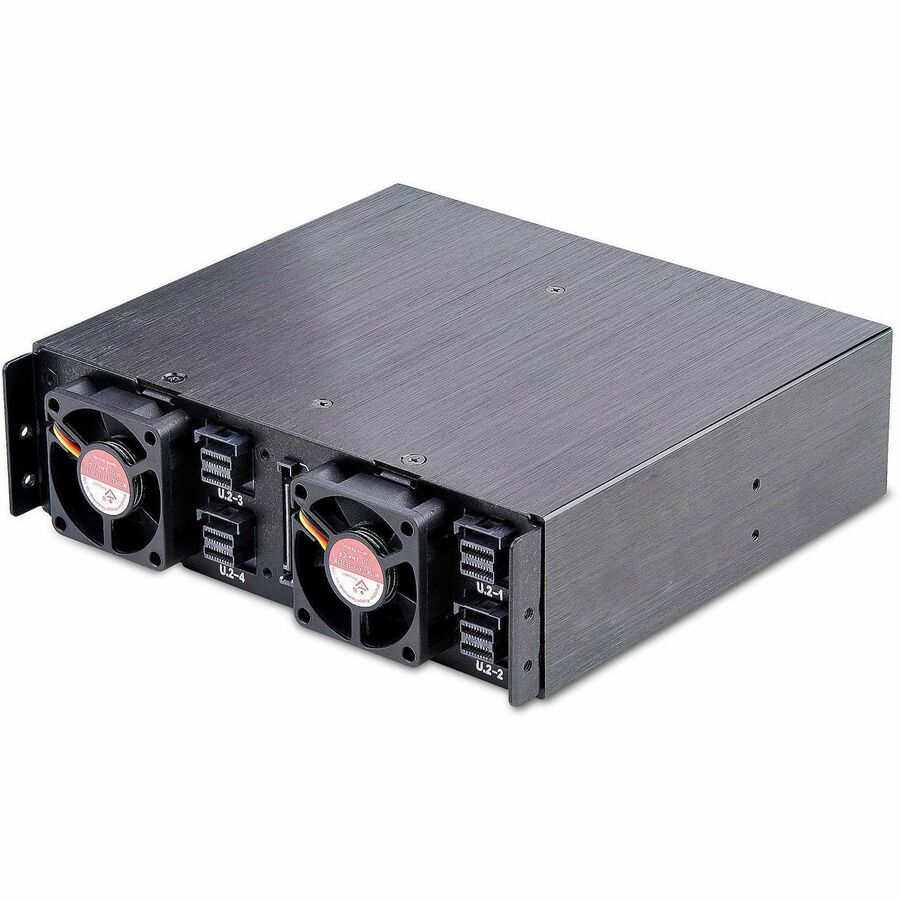

The Aluminum body is designed to facilitate heat dissipation ensuring optimal temperatures for the drives. Two rear cooling fans provide two adjustable airflow settings, ensuring reliable and sustained performance.
Hassle-Free Setup
This mobile rack includes four 2ft (61cm) Mini-SAS HD Cables, and drive/backplane mounting screws. Power the drives through a single SATA Power connection from the desktop/server power supply.
Warranty
Limited Warranty: 2 Year
About StarTech.com
The StarTech.com Advantage We simplify the lives of IT Professionals by making it easy to find the connectivity accessories and information they need and getting products to their project sites quickly. StarTech.com products are designed by IT pros, for IT pros, to meet their rigorous technical performance requirements. Who We Are While we may manufacture IT connectivity accessories, StarTech.com is truly in the business of making the lives of IT professionals easy. Founded in 1985 in London, Ontario, Canada by Paul Seed and Ken Kalopsis, StarTech.com has always been dedicated to solving technology problems faced by IT professionals. Originally known as StarTech Computer Accessories, the company had very humble beginnings as a “Visa Card” funded operation, manufacturing products like computer dust covers in the basement of a house. By focusing on the needs of our customers and continual innovation, StarTech.com has evolved into a global organization offering accessories that support over 200 different technologies, from legacy to the latest. StarTech.com Founder and CEO, Paul Seed’s dedication to making IT solutions easy to implement has not wavered, nor has his passion for the community. From individual contributions to organization wide campaigns, StarTech.com is committed to staying connected to the community and supporting non-profit organizations across the globe.
Highlights
4-BAY BACKPLANE: Add four U.2 (SFF-8639) NVMe drive bays to computer; Supports 7mm to 15mm 2.5" NVMe SSDs; Up to 32Gbps per drive with individual Mini-SAS SFF-8643 ports; Fits into a 5.25" bay; Hot swapping requires PCIe hot swap support from the host

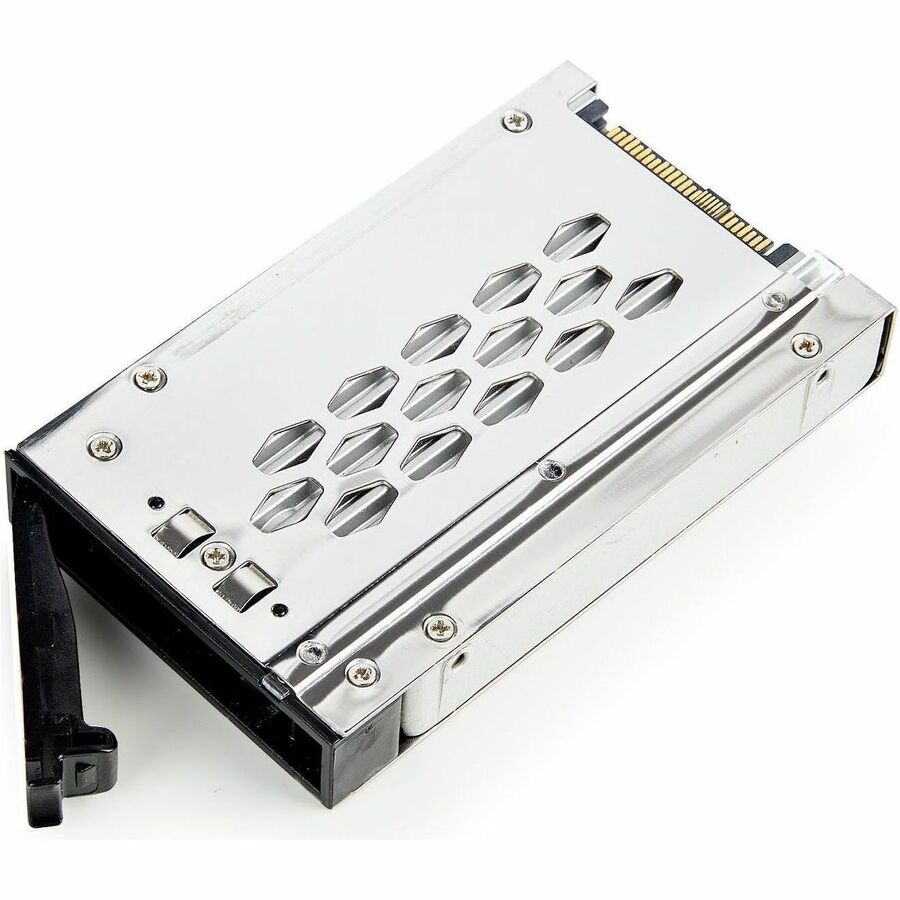

SECURE DESIGN: Lockable drive trays/caddies (2x keys incl.) keep the drives safe while adding an extra layer of security, helping to prevent accidental hot-swaps; Aluminum body aids heat dissipation; Extra drive trays sold separately (SATSASTRX25)
WELL VENTILATED: Quad U.2 mobile rack with four perforated drive trays/caddies, two rear blower fans and front air vents keep drives cool for optimal performance; Rear fan switch enables the adjustment of drive cooling fans between high and low settings
WIDE COMPATIBILITY: Compatible with storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), and mdraid/mdadm (Linux); Requires no drivers or software and works with any operating system; Supports U.2 NVMe Drives only
HASSLE-FREE SETUP: Includes 4x 2ft (61cm) Mini-SAS HD cables and uses a single SATA Power connector from the desktop/server power supply for a rapid installation; Drive and backplane mounting screws included; LEDs for individual drive status and activity
Specifications
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
4U2525-SAS-BACKPLANE
Brand Name
StarTech.com
Product Name
4-Bay Drive Backplane
Packaged Quantity
1
Product Type
Drive Enclosure
Interfaces/Ports
Drive Interface
U.2
Physical Characteristics
Product Color
Black
Product Material
Aluminum
Cooling Fan
Yes
Form Factor
Rack-mountable
Compatible Drive Bay Width
5.25"
Height
1.7"
Width
5.5"
Depth
5.7"
Weight (Approximate)
1.60 lb
Software
Operating System Supported
Linux, Mac OS, Windows
Technical Information
Number of Hard Drives Supported
4
Number of Solid State Drive Supported
4
I/O Expansions
Number of Total Expansion Bays
4
Number of 2.5" Bays
4
Hot Swappable Bays
Yes
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
4-Bay Drive Backplane
1 x Set of Keys
4 x 2 ft Mini-SAS Cable
8 x Frame Mounting Screws
16 x Drive Mounting Screws
1 x Quick-Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS)
