Eaton Tripp Lite Series M.2 NGFF SATA SSD (B-Key) to 2.5 in. SATA Enclosure Adapter

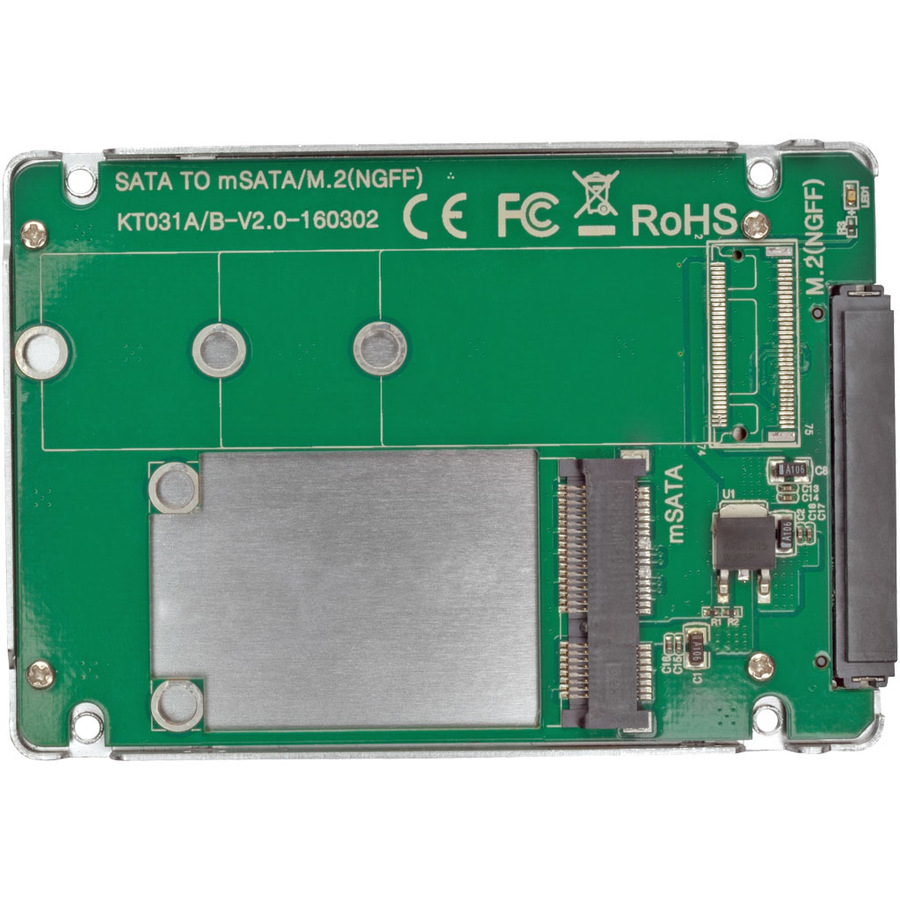

The P960-001-M2 M.2 NGFF SSD to 2.5 in. SATA Enclosure Adapter lets you use an M.2 NGFF SATA SSD (B-Key) drive with a standard SATA-enabled computer, drive enclosure or docking station. To share data, just remove the adapter's cover, connect the drive to the M.2 NGFF connector, secure it with the included screws, put the cover back, and connect the adapter to your computer's SATA port.

The enclosed housing protects the drive when used in applications requiring more durability, such as hot-swap drive bays and external docking stations. The P960-001-M2 supports 2242, 2260 and 2280 M.2 SATA SSD drive types and data transfer rates up to 6 Gbps. It's plug-and-play, so no software, drivers or external power supply are required.

Features

Use an M.2 NGFF SSD as a Standard 2.5 in. SATA SSD

• Access an M.2 NGFF SATA SSD (B-Key) drive with a standard SATA computer, drive enclosure or docking station

• Enclosed housing protects drive in applications requiring more durability

• Supports 2242, 2260 and 2280 M.2 SATA SSD drive types

• Supports data transfer rates up to 6 Gbps (SATA I/II/III)

• Plug-and-play with no software, drivers or external power supply needed

More from the Manufacturer

Plug and Play for Easy Data Sharing

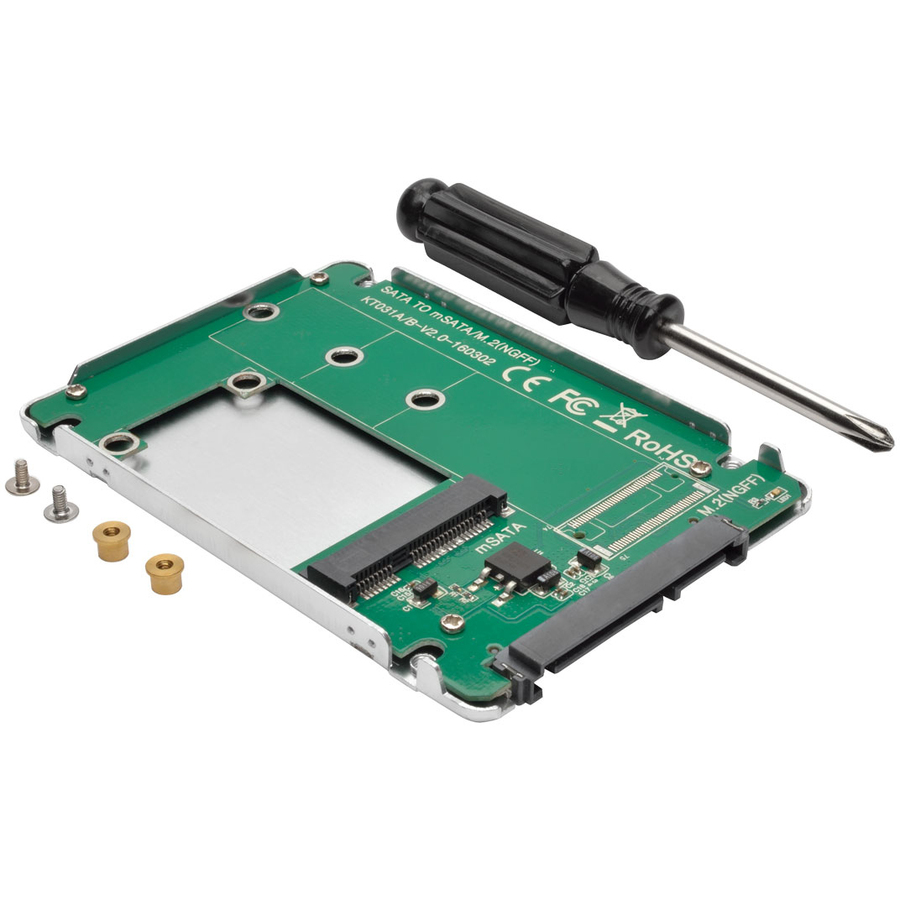

No software, drivers or external power supply is required. Just remove the cover, connect the drive to the M.2 NGFF connector, secure it with the included screws, put the cover back, and connect the P960-001-M2 to your computer’s SATA port. You can also connect it to your computer’s USB port via a USB docking station, such as Tripp Lite’s U339-000 (sold separately).

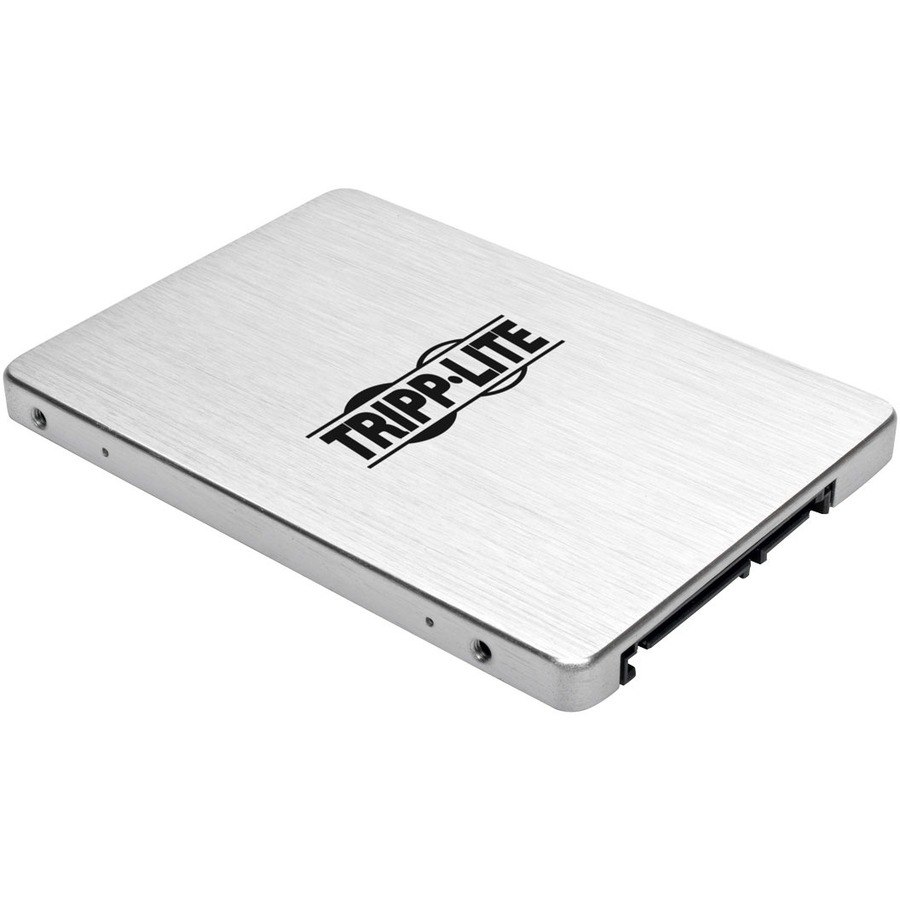

Protective Enclosed Housing

The housing provides extra protection when used in applications requiring more durability, such as hot-swap drive bays and external docking stations.

One-Year Warranty and Environmentally Responsible Design

The P960-001-M2 comes with a one-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.
