Overview
Performance

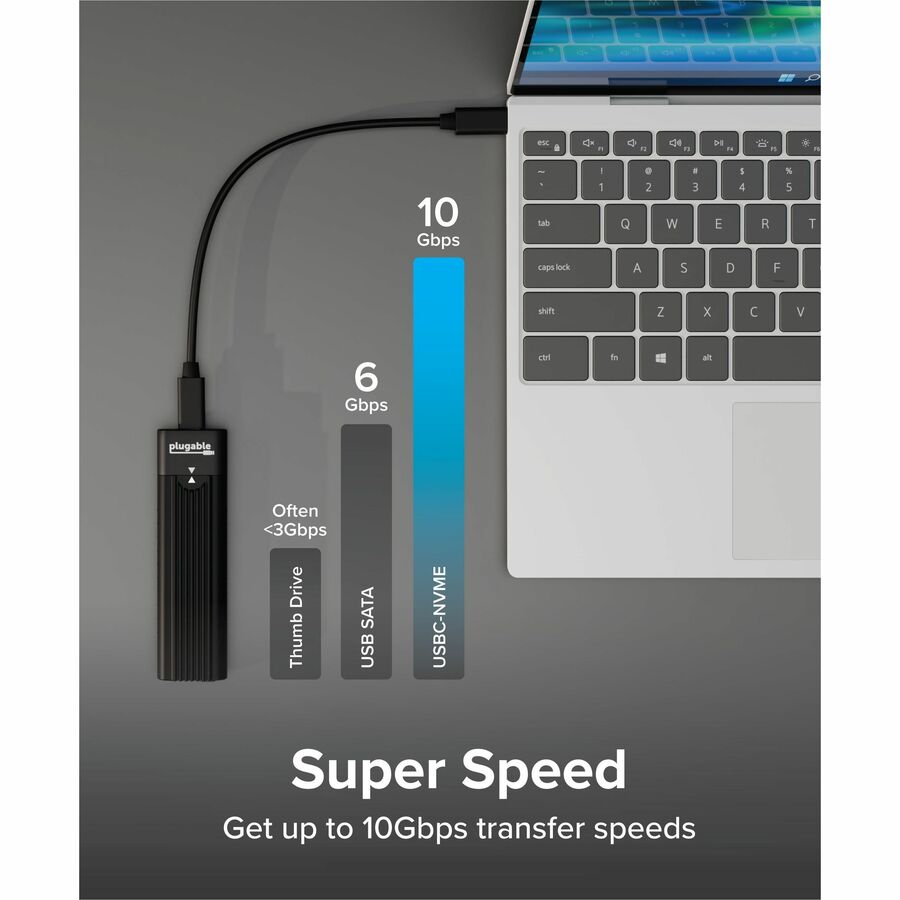

USB 3.1 Gen 2 and NVMe SSDs let us exceed SATA III SSD performance. The Plugable USBC-NVME M2 Enclosure is capable of raw read and write speeds up to 10 Gbps, compared to 6 Gbps with traditional SSDs.
Performance of the SSD NVME adapter depends on the capabilities of your NVMe SSD and host computer. 10Gbps connection requires USB 3.1 Gen 2 on the host computer; NVMe SSDs can run very hot and older drives may throttle, reducing speed, as they get hot. Thermal throttleing is especially noticable in large file transfers on older generation media.
Compatibility
Compatible with M.2 NVMe SSDs, Thunderbolt 3 External SSD. NVMe external SSD not included. Performance depends on host system, workload, and NVMe media used. USB-C Gen 2 or Thunderbolt 3 host recommended for fastest performance. USB-C Gen 1 and USB 3.0 systems supported at up to 5Gbps. Not compatible with M.2 SATA SSDs, M.2 PCIe AHCI SSDs, M.2 PCIe devices such as WiFi and capture cards, mSATA SSDs, and non-M 2 form-factor SSDs.
Native compatibility with Windows, Mac, and Linux, file system support depends on operating system. M2 Adapter is compatible with M.2 NVMe SSDs in the 2280, 2260, 2242, and 2230 formfactors with tooless installation. Supports USB, USBC, and Thunderbolt 3 host computers.
Not compatible with non-NVMe SSDs, or non NVMe M.2 PCIe devices. Some NVMe SSDs may have reduced performance caused by thermal throttling on large file transfers. More from the Manufacturer
Warranty
Limited Warranty: 2 Year
About Plugable Technologies
About Plugable
Plugable Technologies is a US-based electronics company that has been trusted by IT Professionals for over a decade. Plugable offers a wide range of universal products that are tested to fit any desk environment with guaranteed compatibility.
Our local support team consists of the very engineers who design our products, and our industry-leading product information gives you the confidence you need to find the right solution for your business.
Connect
This
With
That
.
Highlights

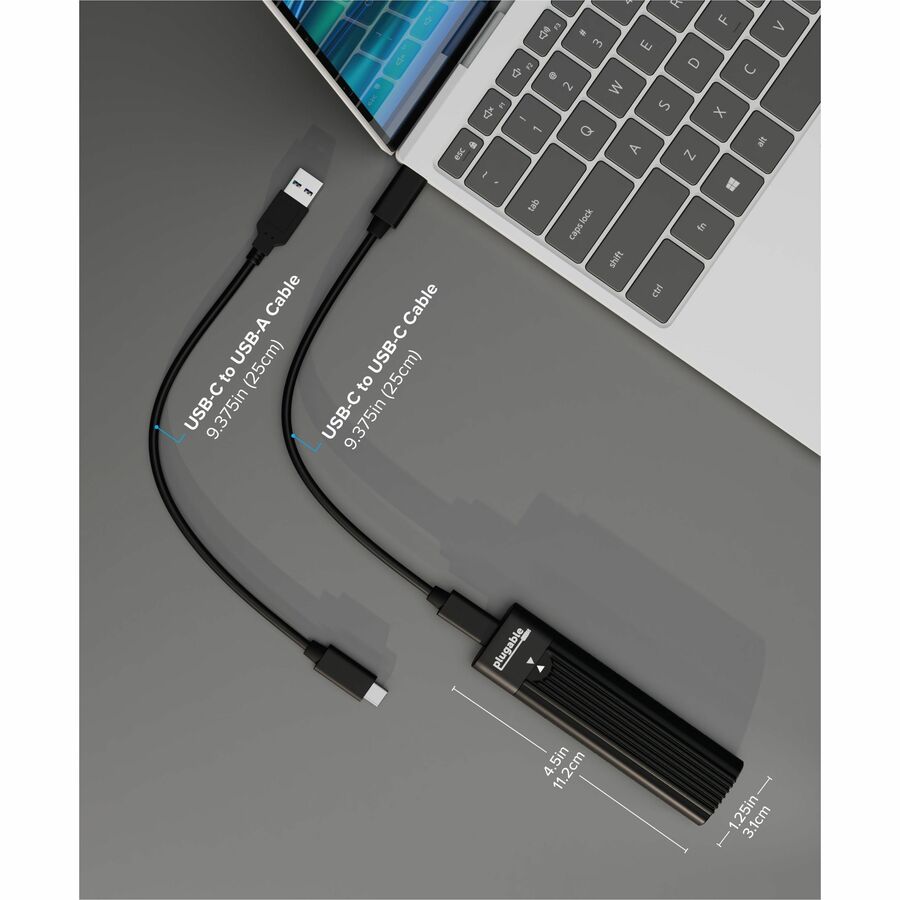

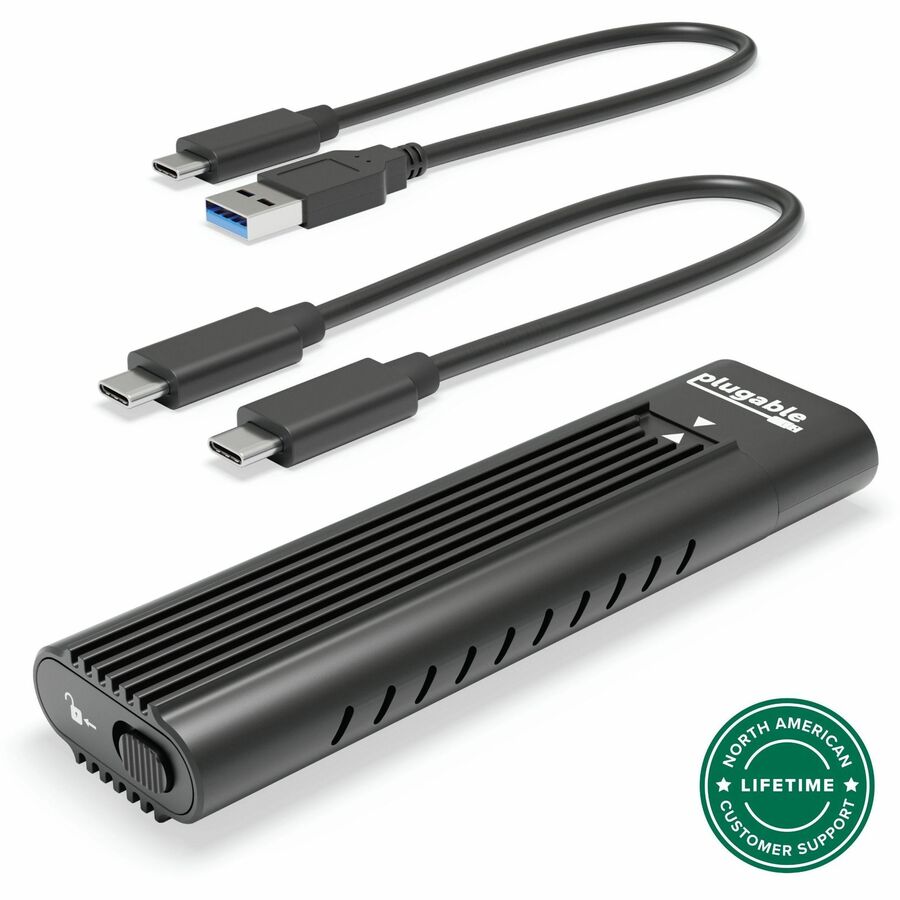

Super Speed - Get up to 10Gbps transfer speeds with this USB-C NVMe enclosure. Supports USB 3.1 Gen 2, USB-C, USB4, Thunderbolt 3, and Thunderbolt 4. Read/write speeds over 900MB/s with compatible NVMe SSDs. Includes USB-C and USB-A cables for flexible connectivity.

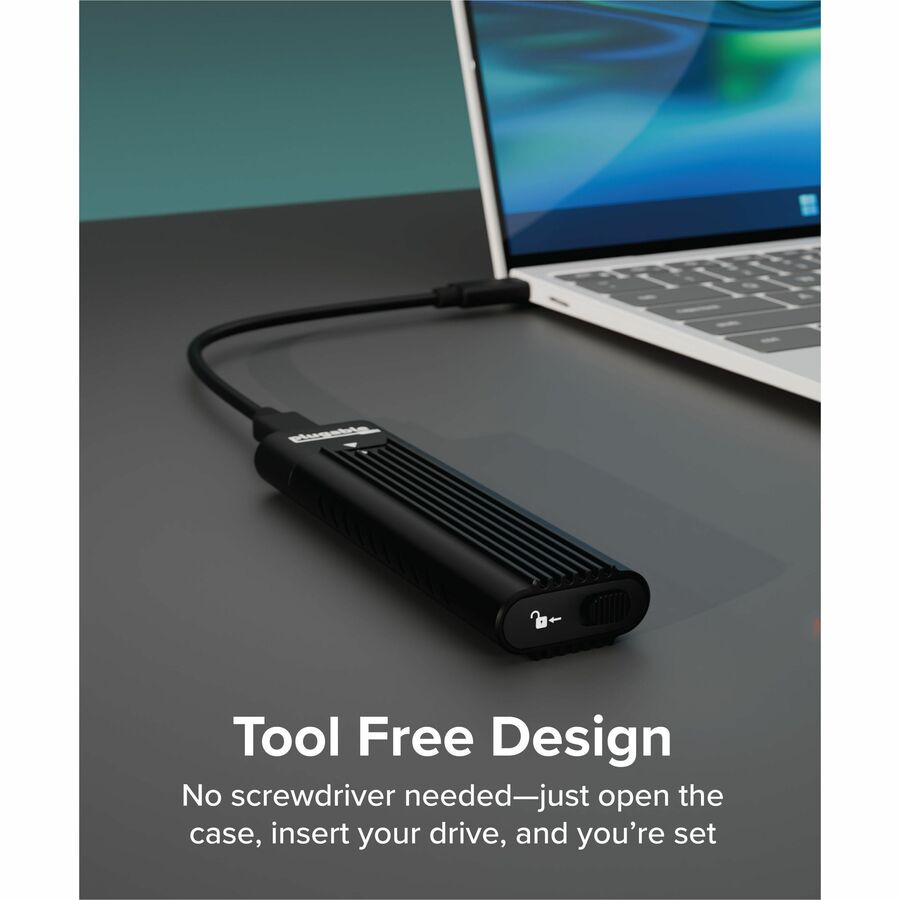

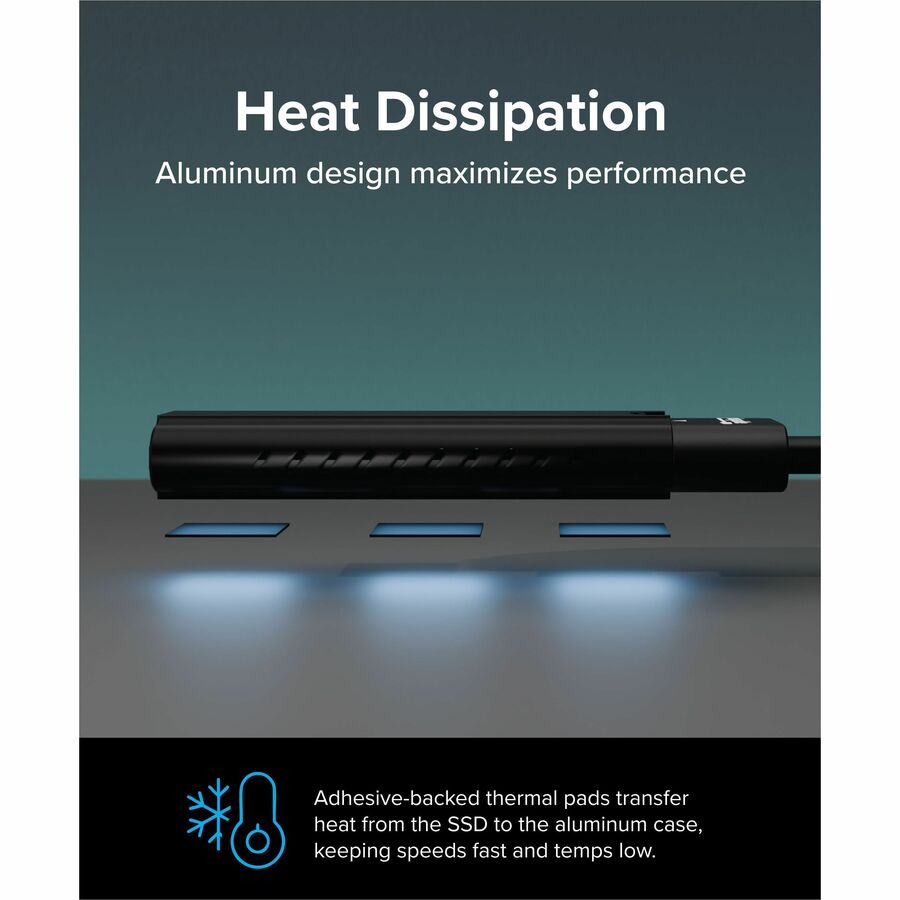

Tool-Free M.2 Enclosure Design - This innovative tool-less M.2 NVMe SSD Enclosure makes installing your SSD quick and hassle-free - no tools required. The compact, travel-ready design includes a removable cable and aluminum case with low-profile heatsink fins to help manage heat and protect your data on the go.
Cross-Platform & Plug and Play - Works with Windows, macOS, Linux, and ChromeOS - no drivers needed. This NVMe SSD Enclosure supports most modern systems and file formats. SSD must be formatted with a compatible file system for the host operating system, new NVMe SSDs will require manual partitioning and formatting before first use.
Wide SSD and Host Compatibility - Supports M.2 NVMe SSDs (2230, 2242, 2260, 2280) of any capacity - SSD not included. Compatible with PCIe Gen 3 and Gen 4 drives. Connect to USB 3.0, USB-C, USB4, Thunderbolt 3, or Thunderbolt 4 hosts at up to 10Gbps. Not compatible with M.2 SATA, AHCI, or non-NVMe PCIe drives. A versatile M2 external enclosure for desktops and laptops.
2-Year Coverage, Lifetime Support - Every Plugable product, including this SSD enclosure, is covered against defects for 2 years and comes with lifetime support. If you ever have questions, contact our North American-based team - even before purchase.
Specifications
General Information
Manufacturer
Plugable Technologies
Manufacturer Part Number
USBC-NVME
Brand Name
Plugable
Product Name
USB C to M.2 NVMe Tool-free Enclosure USB C and Thunderbolt 3
Packaged Quantity
1
Product Type
Drive Enclosure
Interfaces/Ports
Host Interface
USB 3.1 Type C
Network & Communication
Wireless LAN
No
Physical Characteristics
Form Factor
External
Technical Information
Number of Solid State Drive Supported
1
Number of Solid State Drive Installed
No
I/O Expansions
Number of Total Expansion Bays
1
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
USB C to M.2 NVMe Tool-free Enclosure USB C and Thunderbolt 3
