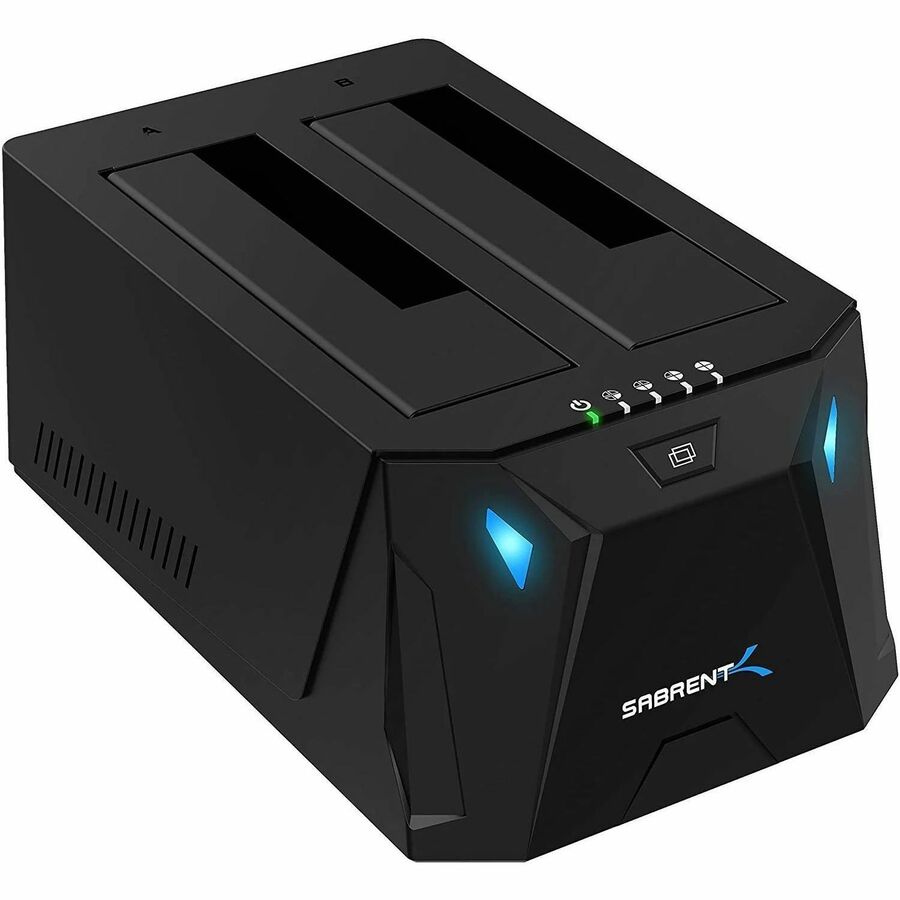

Sabrent Drive Dock SATA/600 - USB 3.0 Host Interface External - Black
1 x HDD Supported - 20 TB Total HDD Capacity Supported - 1 x SSD Supported - 2 x Total Bay - 1 x 3.5" Bay - 1 x 2.5" Bay - 6 Gbit/s Data Transfer Rate - Plastic
Genuine Sabrent through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
EC-HD2B
Category
Drive Cabinets
Overview
Product Features | SATA Compatibility
Supports standard 2.5"/3.5" SATA Hard Drives and SSDs
High Capacity Support
Supports hard drives up to 20TB

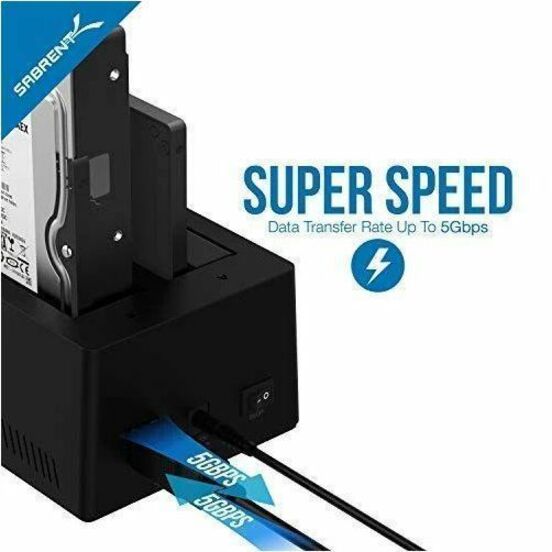

Super Speed
Supports transfer speeds up to 5Gbps (USB 3.0), 480Mbps (USB 2.0), 12Mbps (USB 1.1)

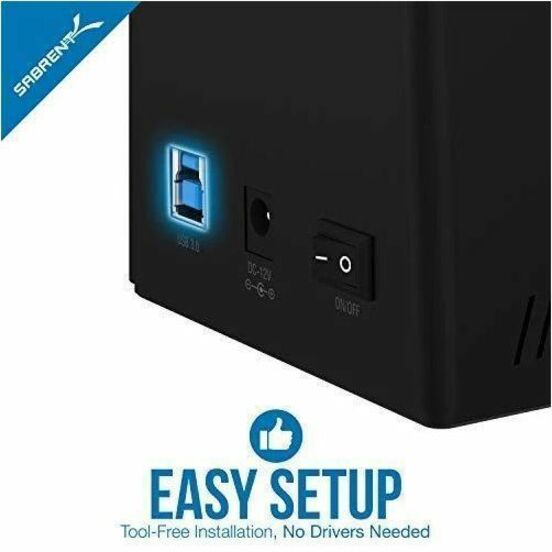

Plug and Play
Plug and play (PnP), no drivers needed
Quickly Access Drives

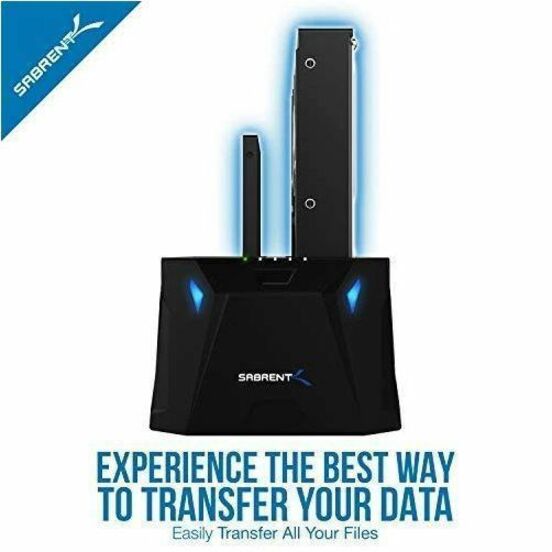

The Sabrent SATA Hard Drive Docking Station enables you to access desktop or laptop hard drives without the frustration of assembling hard drive enclosures. By inserting a 2.5"/3.5" SATA hard drive directly into this docking station you can quickly access drive contents and transfer files. Plus, you can swap out hard drives effortlessly with plug and play installation. Transfer data quickly and easily through USB 3.0 at speeds up to 5Gbps.
To Use Clone Function
• Insert Source Disk into hard drive bay A, then insert Target Disk into hard drive bay B.
• Make sure that the USB cable is disconnected from your computer.
• Connect power supply and switch on power.
• Hold down the CLONE button, release when you see a blue LED.
• Then quickly press the CLONE Button.
• A blue LED will flash on 25% indicating that the cloning process has begun.
• The cloning process is complete when all the lights turn solid blue (25%-100%).
• Finally press the power switch to the off position and eject your drives.
Highlights
Convenience redefined with plug-and-play hard drive docking station that delivers instant access to the hard drive without requiring a reboot
No hassle of internal installation, install externally
Specifications
General Information
Manufacturer
Sabrent, Inc
Manufacturer Part Number
EC-HD2B
Brand Name
Sabrent
Product Name
USB 3.0 to SATA Docking Station for 2.5" or 3.5"' HDD/SSD
Packaged Quantity
1
Product Type
Drive Dock
Interfaces/Ports
Drive Interface
SATA/600
Host Interface
USB 3.0
Number of USB Ports
1
Physical Characteristics
Color Family
Black
Product Color
Black
Product Material
Plastic
Form Factor
External
Height
2.7"
Width
3.9"
Depth
6.3"
Weight (Approximate)
1.19 oz
Software

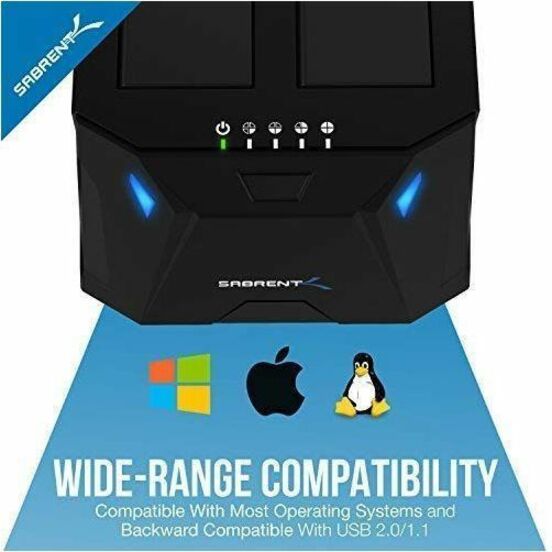

Operating System Supported
Windows, Mac OS
Technical Information
Number of Hard Drives Supported
1
Total Hard Drive Capacity Supported
20 TB
Number of Solid State Drive Supported
1
Maximum Data Transfer Rate
6 Gbit/s
I/O Expansions
Number of Total Expansion Bays
2
Number of 3.5" Bays
1
Number of 2.5" Bays
1
Miscellaneous
Package Contents
USB 3.0 to SATA Docking Station for 2.5" or 3.5"' HDD/SSD
