3U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

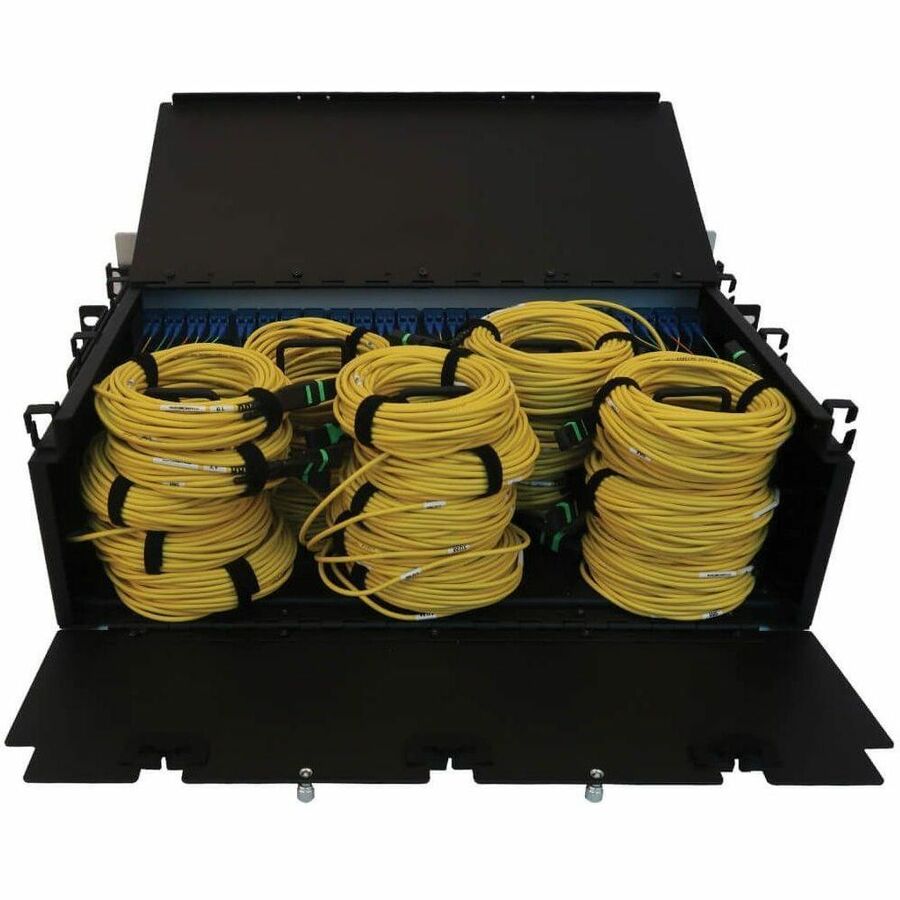

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 3U chassis features 24 MTP/MPO-APC to LC Duplex 8-fiber singlemode trunk cables, all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved.
Integrates Equipment to Meet Current Connectivity Needs
This preloaded slack-free panel helps integrate your 10 Gb equipment with 40 Gb networks or 25 Gb equipment with 100 Gb networks in a simple, elegant and flexible manner. The N48S-24M8L4-10 mounts in just 3U of space in an EIA-standard 19-inch rack.
Typical Applications
• Integrate 10G equipment with a 40G network or 25G equipment with a 100G network
• Save the expense and effort of buying custom cables or repurchasing cables after moving rack equipment
• Eliminate cable clutter by using only as much as you need and storing excess cable inside the panel
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved

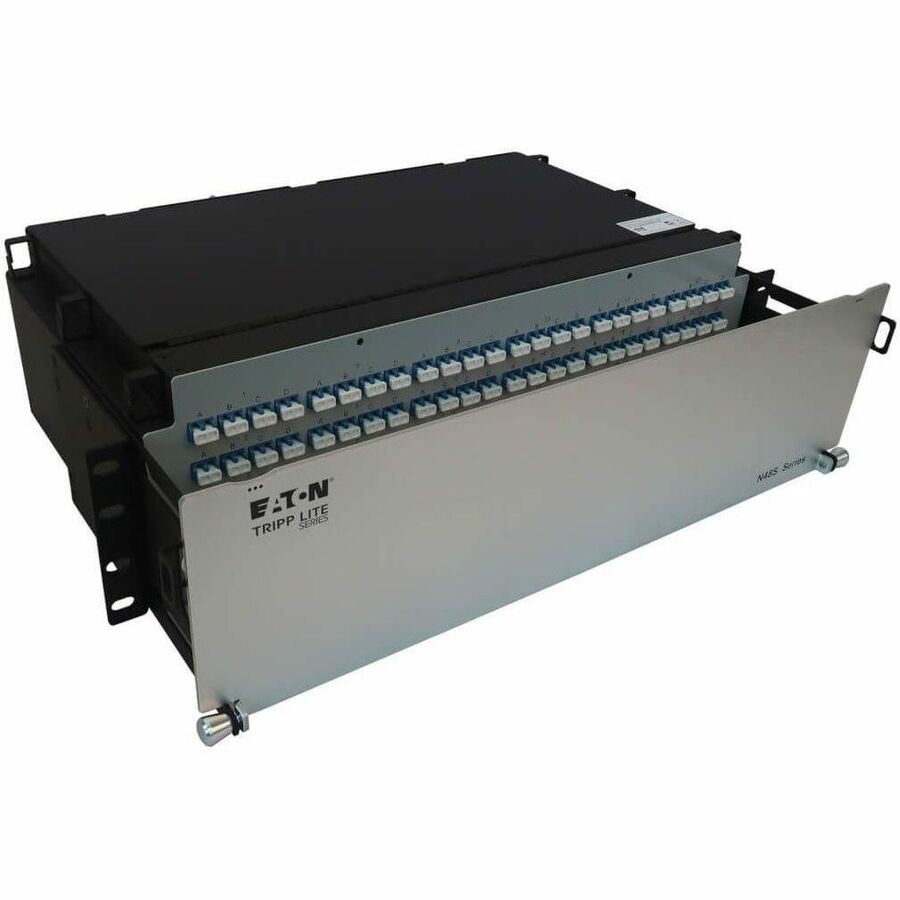

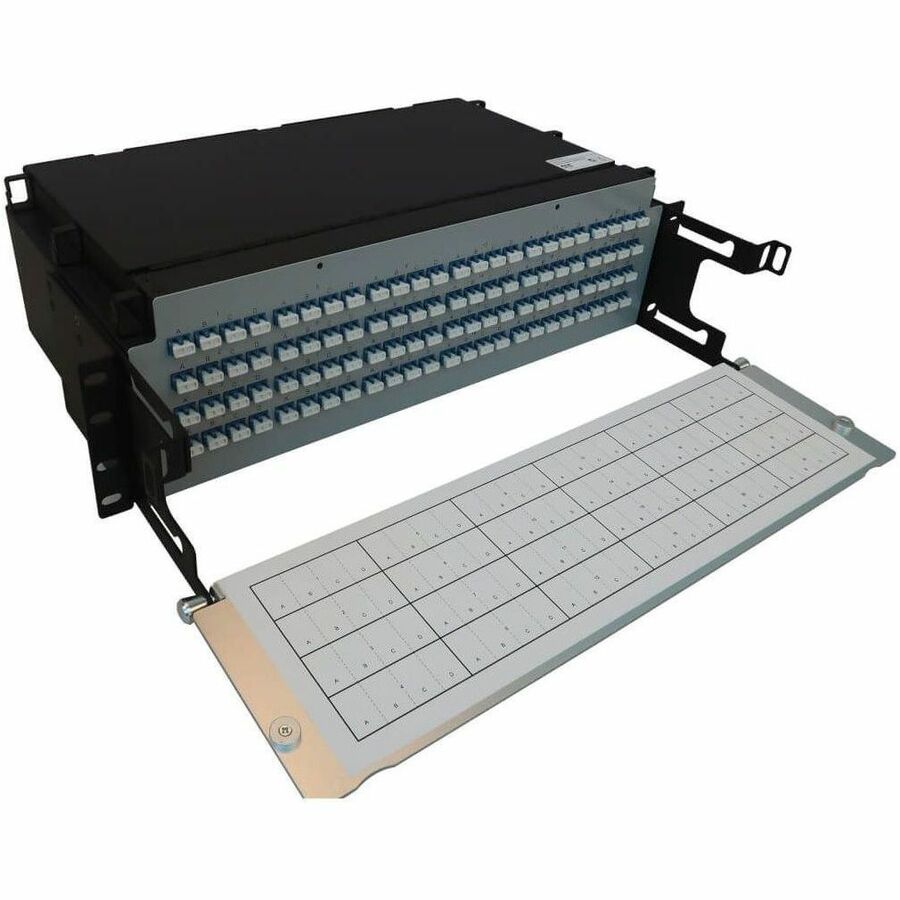

96 LC Duplex ports protected by fold-down front panel with organization labels
Aluminum chassis mounts into 3U of space in EIA-standard 19 in. racks
This product is covered by a Lifetime Limited Warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N48S-24M8L4-10
Brand Name
Tripp Lite series
Product Model
N48S-24M8L4-10
Product Name
N48S-24M8L4-10 Preloaded Fiber Patch Panel
Product Type
Network Patch Panel
Physical Characteristics
Color Family
Yellow
Product Color
Yellow
Product Material
Aluminum
Form Factor
Rack-mountable
Compatible Rack Unit
3U
Compatible Rack Width
19"
Height
5.2"
Width
17.4"
Depth
13"
Warranty
Limited Warranty
Lifetime
Interfaces/Ports
Number of LC Ports
96
LC Port Type
Duplex
Miscellaneous
Package Contents
N48S-24M8L4-10 Preloaded Fiber Patch Panel
24 x MTP/MPO-APC to LC Duplex Trunk Cables, 10 m (32.8 ft.)
Installation Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
