1U Panel Solution Comes with Cabling Preloaded to Cut Costs and Save Time

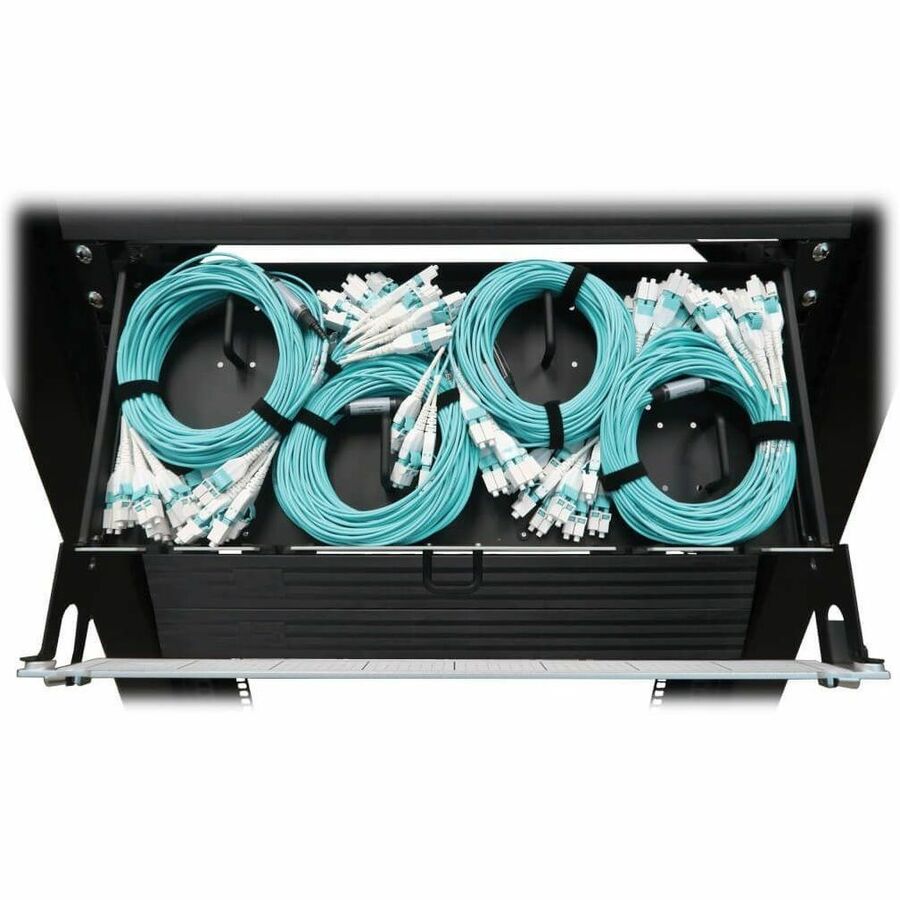

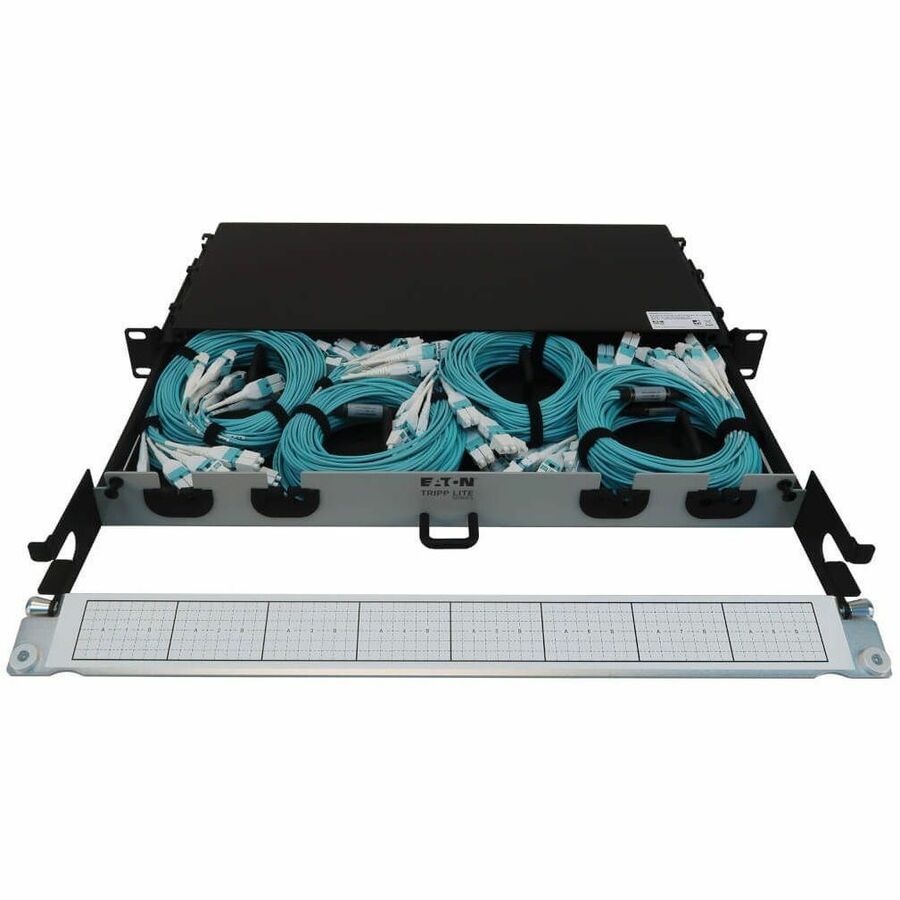

All necessary cabling is included with this preloaded fiber panel, coiled inside and ready for immediate use. The aluminum 1U chassis features four 16-fiber LC Duplex multimode trunk cables, all 10 meters (32.8 feet) in length to make management easy. The panel opens to provide easy access to stored cables. Use only as much cabling as you need. The remainder stores inside the chassis to eliminate cable clutter, allow better airflow through the rack and make equipment maintenance and replacement easier. The cables and panels have labels to help with organization. You also avoid the expense and effort of custom cabling. The flexibility in cable length lets you reuse the cables if equipment is moved. The N48M4L16L-10 mounts in just 1U of space in an EIA-standard 19-inch rack.
Warranty
Limited Warranty: Lifetime
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
4 LC Duplex 16-fiber OM4 multimode cables come coiled inside for instant use
Use only as much cable as you need; store the remainder inside to avoid clutter
Flexible cable length allows reuse of cables if equipment is moved
Aluminum chassis mounts into 1U of space in EIA-standard 19 in. racks
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
N48M-4L16L-10
Brand Name
Tripp Lite series
Product Model
N48M-4L16L-10
Product Name
N48M-4L16L-10 Preloaded Fiber Panel
Product Type
Network Patch Panel
Physical Characteristics
Color Family
Dual Color
Product Color
Aqua, White
Product Material
Aluminum
Form Factor
Rack-mountable
Compatible Rack Unit
1U
Compatible Rack Width
19"
Height
1.7"
Width
17.3"
Depth
10.2"
Warranty
Limited Warranty
Lifetime
Interfaces/Ports
Number of LC Ports
4
LC Port Type
Duplex
Miscellaneous
Package Contents
N48M-4L16L-10 Preloaded Fiber Panel
4 x LC Duplex to LC Duplex Trunk Cables, 10 m (32.8 ft.)
Installation Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
