Tripp Lite by Eaton 40/100Gb Fiber Breakout Patch Panel 40Gb to 4 x 10Gb 100Gb to 4 x 25Gb 15 MTP QSFP to 60 LC Duplex OM4 50/125 Multimode Ports 1U

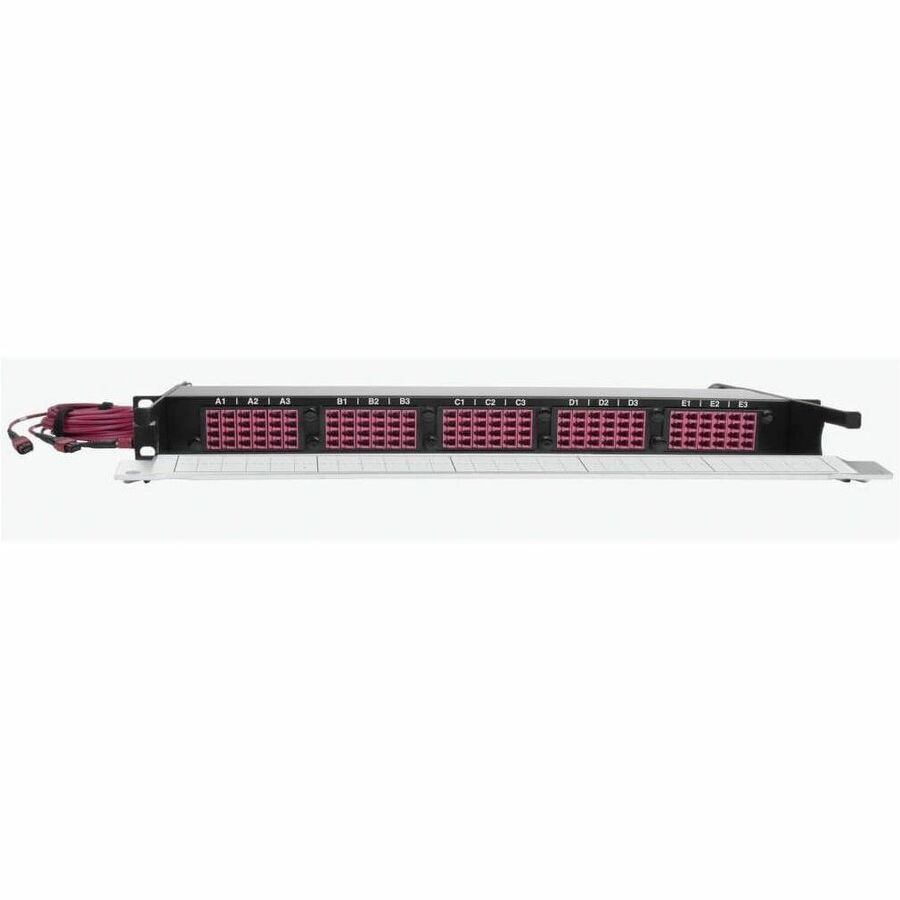

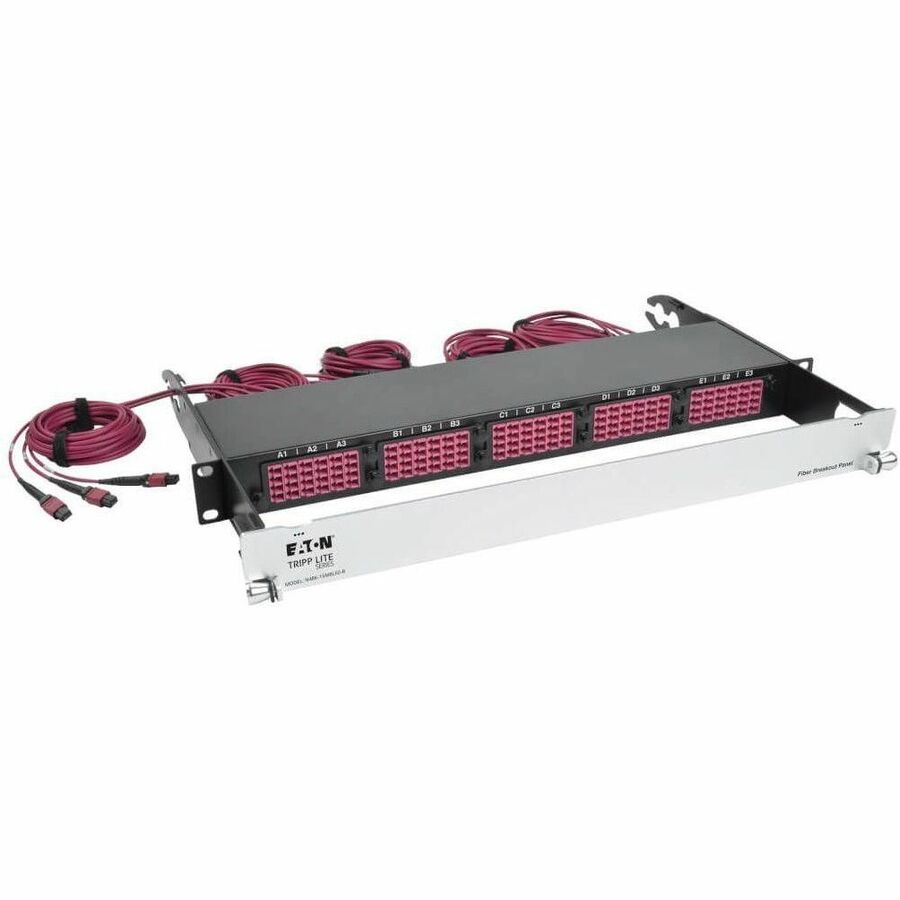

The N48K-15M8L60-B 50/125 Breakout Fiber Patch Panel not only integrates equipment with 10G and 40G speeds, but also provides a simple, flexible path to 100G and 400G speeds in the future. The 1U chassis features five breakout cassettes. Each cassette contains 12 LC duplex ports and three built-in two-meter MTP multimode cables for a total of 15 QSFP fiber switch ports breaking out to 60 LC ports.

Base8 wiring with built-in MTP trunks maximizes rack space and link performance, while enabling simple cable deployment and optimized harness mapping. The N48K-15M8L60-B uses all 60 LC ports, meaning no dead ports as in Base12 wiring, with streamlined 1-to-1 port mapping. Eliminating the need for 12-fiber conversion modules results in a reduction of up to 50 percent in link attenuation.

Hardwired cassettes offer a 30-percent improvement in insertion loss with no separate MTP connection in the rear, resulting in longer duplex link distances. Color-coded magenta OM4 cables are easily distinguished from traditional aqua OM3 multimode fiber.

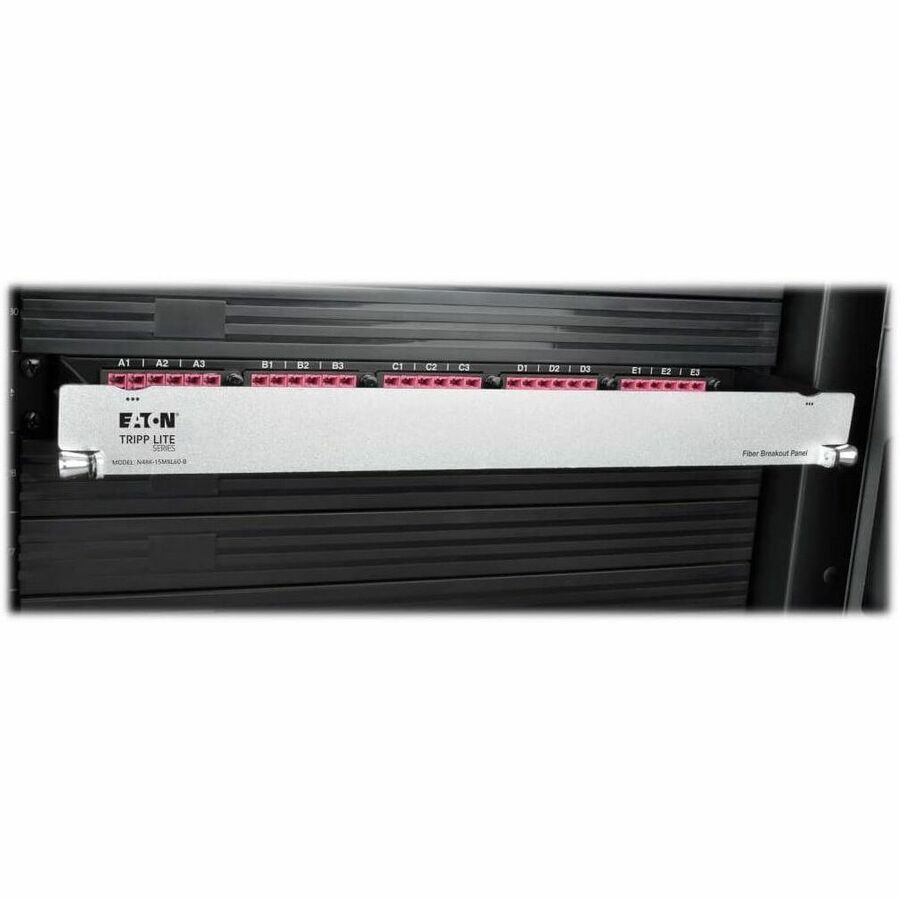

The front panel folds down to protect the LC patch cords, as well as provide wire mapping by matching each cassette's labeled MTP cables to the LC clusters. Writing space on the inside panel lets you custom-label each port. Each panel is serialized and insertion loss data is available upon request via the unit's serial number.

Features

Integrates Equipment with 10G and 40G Speeds to Meet Current Connectivity Needs

• Also future-proofs your network for eventual 100G and 400G speeds

• Recommended for QSFP fiber-based Ethernet switches

• OM4 fiber for highest throughput

5 Breakout Cassettes

• 12 LC duplex ports and 3 built-in 2-meter MTP multimode cables per cassette

• Total of 15 QSFP fiber switch ports and 60 LC ports

• 100% fiber utilization

• Streamlined 1:1 port mapping

• Up to 50% reduction in link attenuation

• Color-coded magenta cables easily distinguishable in crowded switch

Base8 Wiring

• No unused LC ports as in Base12 wiring

• Simple patch cable deployment

• Optimized harness mapping

• Hardwired cassette modules offer 30% improvement in insertion loss

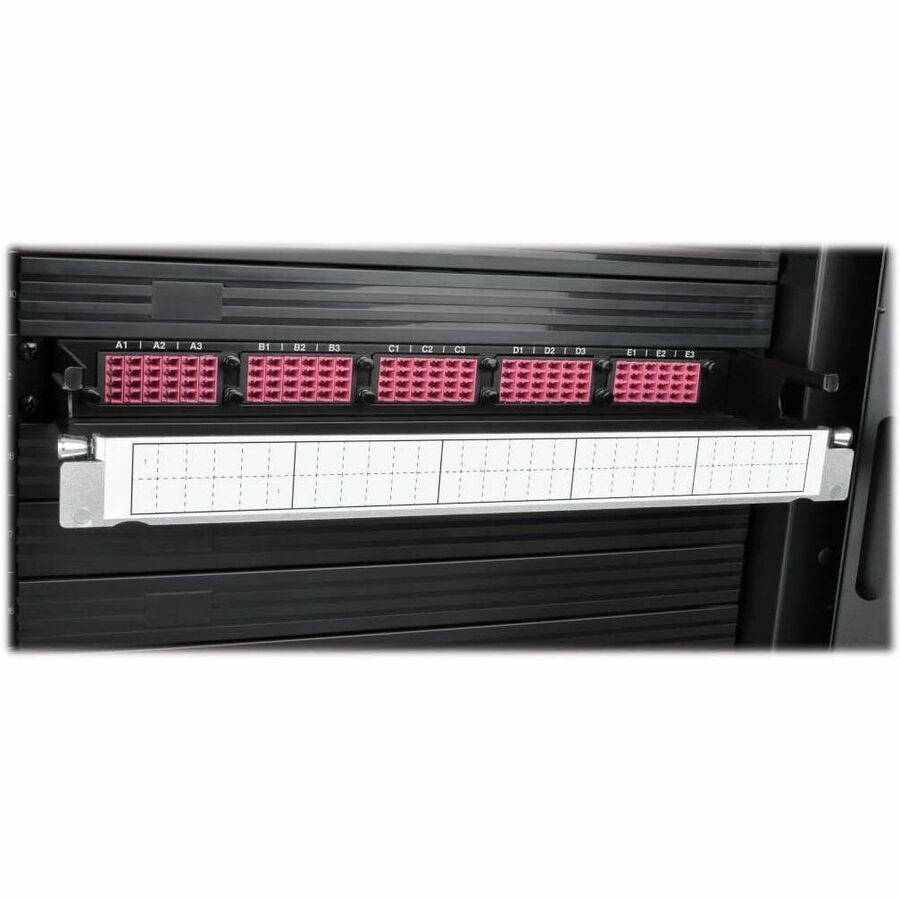

Fold-Down Front Panel

• LC patch cables protected

• Provides wire mapping by matching each cassette's labeled MTP cables to LC clusters

• Writing space on inside panel for custom-labeling of ports

• Insertion loss data available via unit's serial number

Mounts in 1U of EIA-Standard 19 in. Rack

• Maximizes rack space and link performance

More from the Manufacturer

Connect 10 Gb Equipment to 40 Gb Switches

Seamlessly integrate equipment of different speeds into a network infrastructure.

Future-Proof Network Infrastructure

Base-8 connectivity meets the needs of today’s 40 Gb switches and has the flexibility to accommodate future 100 Gb and 400 Gb networks. Tripp Lite breakout fiber patch panels are recommended for 40 Gb switches that support Base-8 connectivity, including popular models from Arista, Brocade, Cisco, Dell, HP and others.

Sized for 40 Gb Switches

A typical 40 Gb switch has 10 Gb devices connected to about half of its ports. Tripp Lite breakout fiber patch panels come in two sizes to accommodate different switch sizes.

1U solutions are designed for 40 Gb switches with up to 36 ports.

2U solutions have the density to accommodate larger switches.

Pre-Installed Breakout Cassettes for Hassle-Free Connections

Tripp Lite breakout fiber patch panels are pre-populated with multiple modular breakout cassettes. The back of each cassette has three hardwired 8-fiber MTP cables. The MTP cables connect to the QSFP+ transceivers on a 40 Gb switch. The front of each cassette has duplex LC ports for connection to the SFP+ ports on 10 Gb equipment. There’s no need for custom cables; you can make the 10 Gb connections with high-quality duplex LC cables that are readily available.

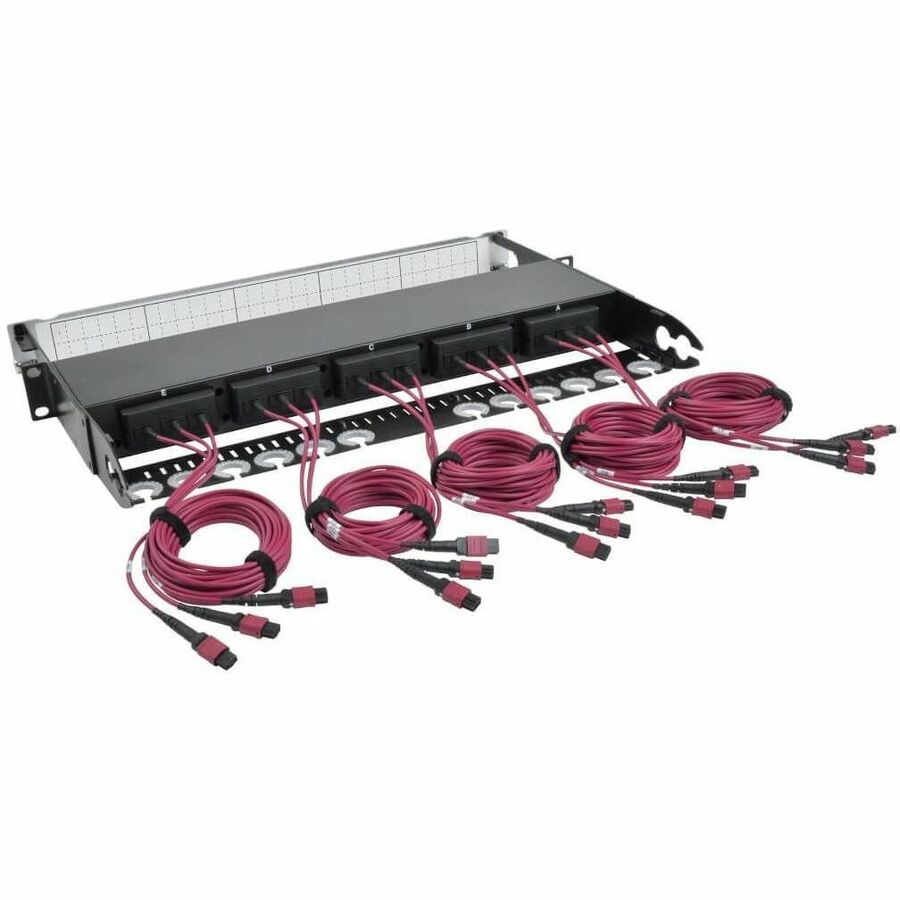

Built-In 8-Fiber MTP Cables for Quick Deployment

Each cassette has three built-in MTP cables, providing a plug-and-play solution that’s ready for immediate deployment. The MTP cables have Base-8 connectivity (eight fibers) for full fiber utilization in a 40 Gb network. Because the cables are hardwired into each cassette, there is a lower level of insertion loss compared to plugging separate cables into MTP ports. The MTP cables are two meters long to reduce cable congestion in the rack. Versions are available for OM4 multimode and singlemode fiber.

Structured Cable Management for Organization

A common problem with custom breakout cables is “spaghetti syndrome,” an unstructured tangle of cables that increases congestion and confusion in IT racks. Pre-assembled breakout fiber patch panels feature structured cabling to make installs, upgrades, changes, troubleshooting and repairs quicker and easier than using custom breakout cables.

The MTP cables are pre-labeled to map to the LC clusters on the front of each cassette. You’ll always know which 10 Gb device is connected to a particular port on the 40 Gb switch. A cable management and strain relief bracket helps keep the MTP cables in order. Additionally, the front panel folds down to reveal space for custom labeling of connections.

Eco-Friendly Design

Energy-Saving Solution: This patch panel does not require power, so it does not add to electricity costs. It does not generate heat, so it does not require extra cooling. Structured cabling reduces wasteful cable slack, helping to decrease congestion and heat build-up in the rack.

RoHS Compliance: This product complies with the RoHS (Restriction of Hazardous Substances) Directive, limiting the use of hazardous substances in manufacturing.
