5000VA/5000W, 200 - 239 VAC, Hardwire Terminal (NEMA L6-30P power cord included), 2U, Rack / Tower, Sine Wave, 4 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty
MSRP$5,500.00
$4,059.93
Save 26%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Nov 17 and Dec 22, then process your delivery right after.
Genuine CyberPower Systems through authorized distribution — NDAA §889 screened before checkout.
The PR5000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment.

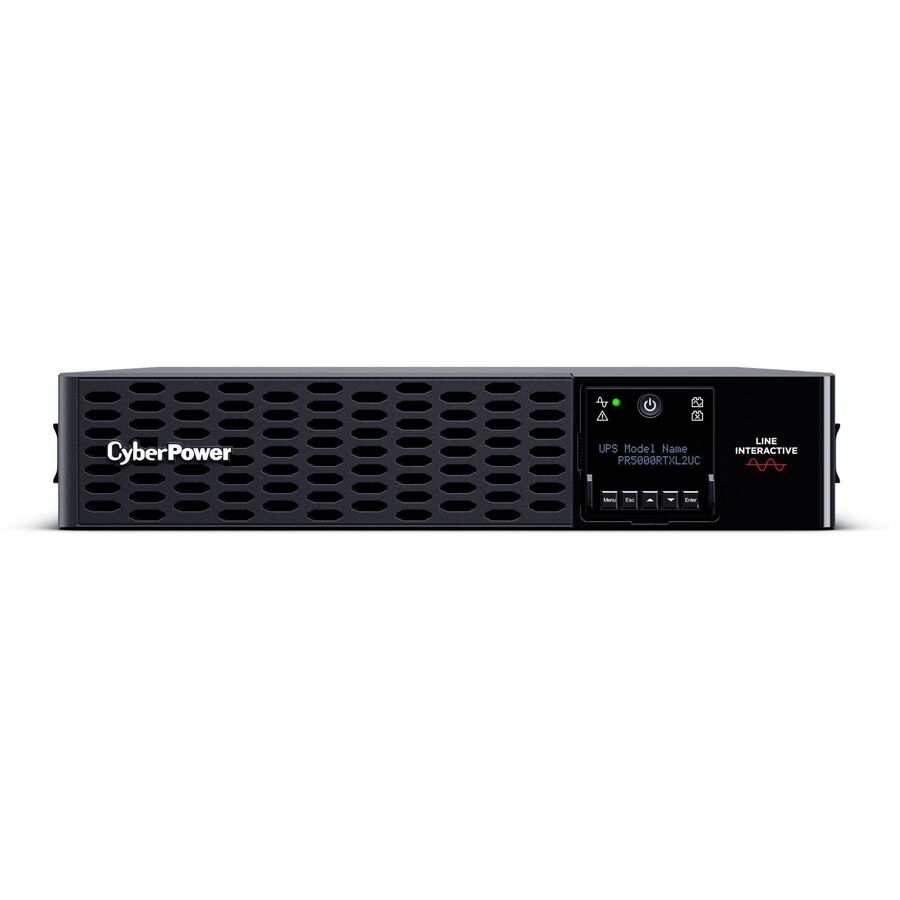

The Smart App Sinewave PR5000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR5000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts one BP48VP2U04 Extended Battery Module (EBM) for expanded runtime during power outages and includes RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring.
With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR5000RTXL2UC.
More from the Manufacturer
Why Do You Need a UPS System?
Even brief power outages can result in data loss or potential hardware damage. A UPS system provides battery backup power to keep your devices running during short outages and provides enough runtime to properly shut down electronics during extended outages.
Remotely troubleshoot UPS system power issues on networks with limited bandwidth. Use your phone or use the web-based app for real-time UPS system notifications via email and app alerts. UPS groups within an account can be monitored by segment, client, or individual location.
Workstations
Ensure seamless power to workstations and make certain you have time to safely shut down systems during a longer outage.
Telecom/VoIP
Keep your communication lines open and running during power outages.
Corporate & Department Servers
Protect mission-critical IT equipment and data centers from potential data loss and costly business interruptions.
How long will the UPS power my systems after the power goes out?
This system is estimated to run for 8.3 minutes at half load, 1.7 minutes for a full load. The LCD screen provides an estimated run time based on the required power usage during blackouts.
Can the battery capacity be expanded?
Yes, the PR5000RTXL2UC accepts the BP48VP2U04 extended battery module to help increase the runtime of the UPS unit.
Can the UPS be monitored?
Yes, the PR5000RTXL2UC comes with built-in cloud monitoring capabilities. It can also be paired PowerPanel Business (free download) that provides a user-friendly dashboard interface for controlling and monitoring the UPS.
Can this unit run a sump pump, laser printer, or other larger office equipment?
We do not recommend using the PR5000RTXL2UC to power sump pumps, laser printers, paper shredders, copiers, space heaters or other large electrical devices. The power demands of these devices may overload the unit and cause damage.
How do I mute the alarms?
The audible alarm can be set to Mute on Battery. This is accomplished by going to the basic setup via the LCD Screen, navigating to the audible alarm, and then set to Mute on Battery.
Limited Warranty: 3 Year
Our Vision To be the first choice in power management solutions and the catalyst for advancing power innovation. Our Mission CyberPower designs, produces and services power management solutions. CyberPower has a proven reputation and commitment to excellence. Customers can be assured that CyberPower is the smart choice for power protection reliability, quality and value.
| Battery Information | |
|---|---|
| Number of Batteries | 8 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Hot Swappable | Yes |
| Typical Battery Recharge Time | 3 Hour |
| Replaceable Battery | Yes |
| Controls/Indicators | |
| Status Indicators | LED Indicators: Power On |
| Display & Graphics | |
| Display | LCD |
| Environmental Conditions | |
| Maximum Operating Elevation | 9843 ft |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Storage Elevation | 49213 ft |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 68.5 dB(A) |
| Thermal Dissipation | 1312.61 W |
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR5000RTXL2UC |
| Brand Name | CyberPower |
| Product Line | Smart App Sinewave |
| Product Model | PR5000RTXL2UC |
| Product Name | Smart App Sinewave PR5000RTXL2UC 5000VA Tower/Rack Convertible UPS |
| Product Type | Line-interactive UPS |
| Interfaces/Ports | |
| Serial Port | Yes |
| USB | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Management | |
| Network Management | Dry Contact, SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Physical Characteristics | |
| Product Color | Black |
| Height | 3.39" |
| Width | 17.09" |
| Depth | 24.80" |
| Rack Height | 2U |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 104.19 lb |
| Power Description | |
| Load Capacity (VA) | 5000 VA |
| Load Capacity (Watt) | 5000 W |
| Input Voltage | 230 V AC |
| Input Voltage Range | 200 V AC - 240 V AC, 148 V AC - 254 V AC |
| Output Voltage | 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC |
| Input Frequency | 50 Hz, 60 Hz |
| Output Frequency | 50 Hz, 60 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Circuit Breaker | Yes |
| Output Power Factor | 1 |
| Technical Information | |
| AVR | Yes |
| Plug/Connector Type | Hardwire Terminal Block, NEMA L6-30P |
| Receptacle Type | NEMA 6-20R, NEMA L6-20R, NEMA L6-30R |
| Receptacle Detail | 2 x NEMA 6-20R, 1 x NEMA L6-20R, 1 x NEMA L6-30R |
| Number of Critical Load Outlets | 1 |
| Overload Protection | Yes |
| Cord Length | 10 ft |
| Transfer Time | 4 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Energy Saving | GreenPower UPS Bypass Technology |
| Surge Suppression | Yes |
| Features | Cold Start Function, Audible Alarm |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Software Included | PowerPanel Business |
| Energy Star | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
